Chery A series. Manual - part 105

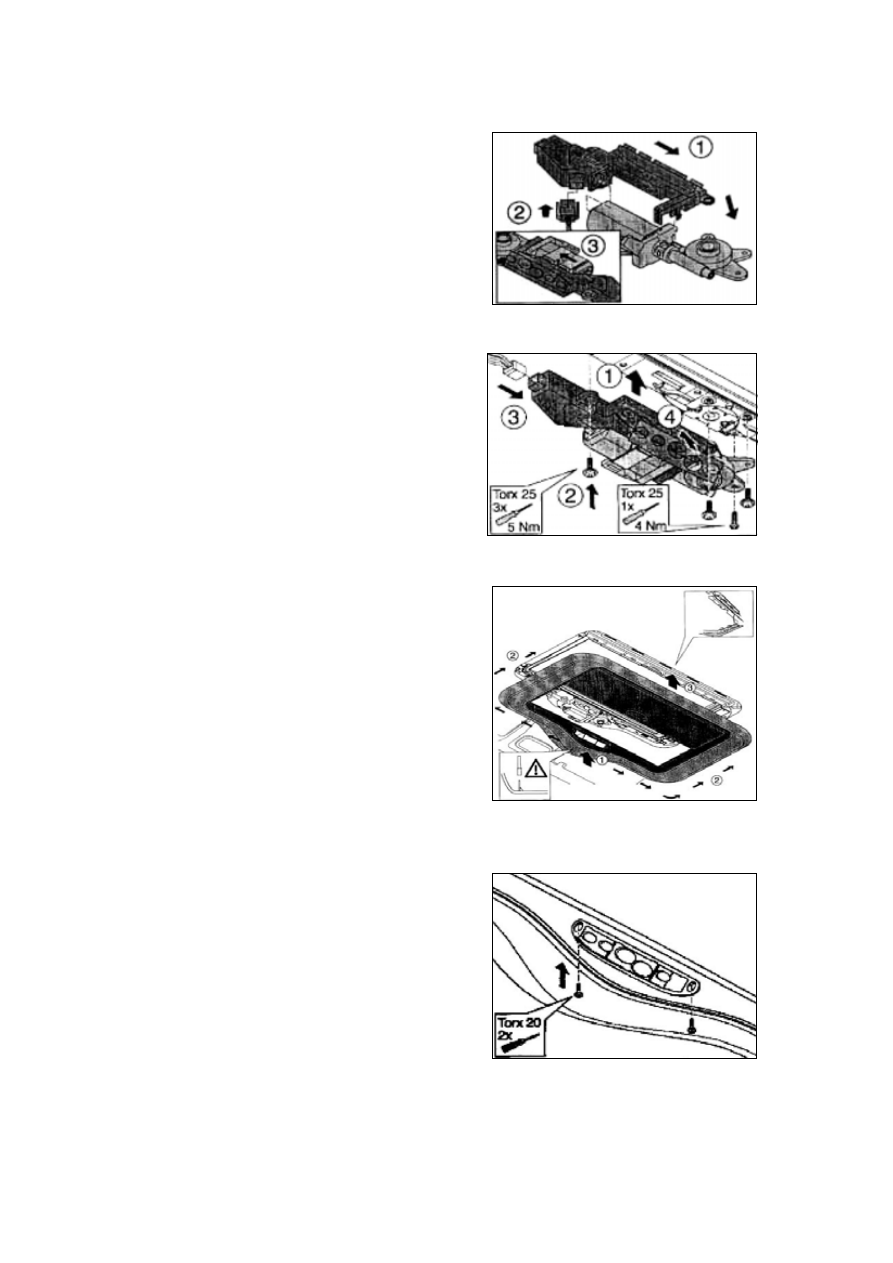

Install the motor and the SCU in the reverse
order of step 7.












Install in the reverse order of step 6.

Pay attention on the engagement of drive shaft and

the gear of motor.












Install the interior trim rim (push upwards as
the order shown in the figure, note that the
clamp should be aligned to the groove). Install
additional strip if necessary.














Tighten the fastening bolts of interior trim rim.

















S-71

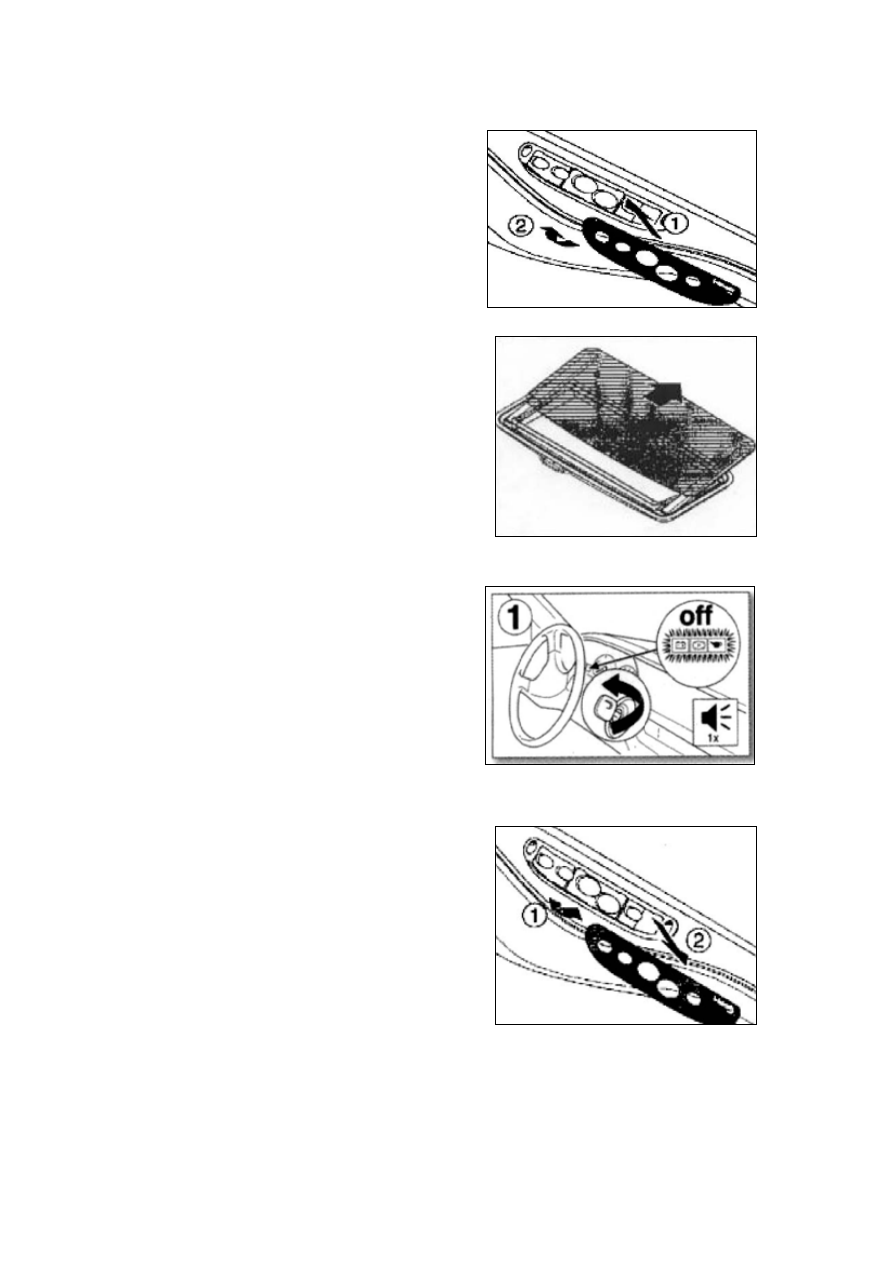

Install the cover of control buttons.










DISASSEMBLY AND ASSEMBLY OF
SUNROOF



Disassembly:

1. Fully open the sunroof.






2. Turn off the ignition switch, keep pressing

the control button to prevent the sunroof
from automatic closing.







3. Remove the cover of control buttons.











S-72

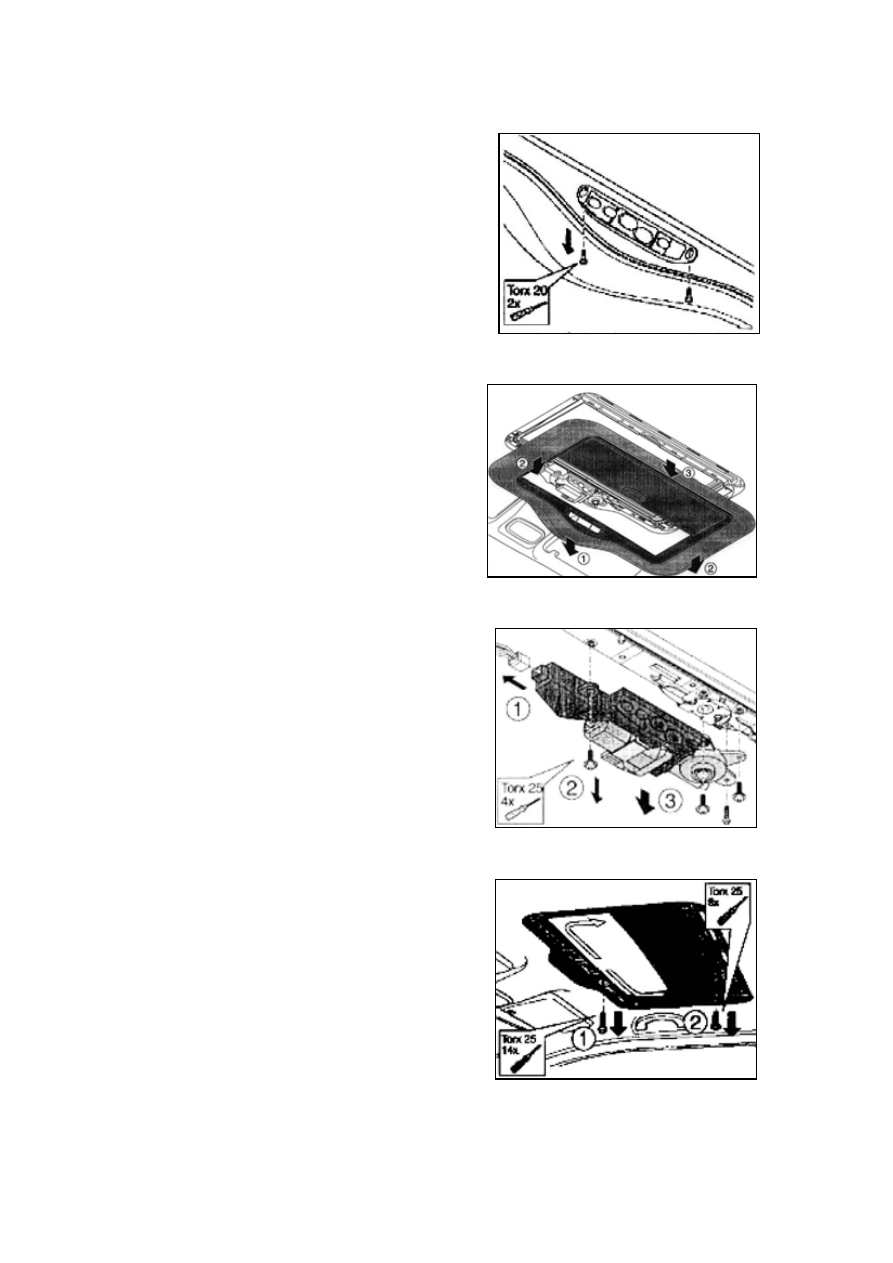

4. Remove the 2 fastening bolts in the front of

interior trim rim.






5. Remove the interior trim rim (pull upwards

as the order shown in the figure), pay
attention not to damage the control buttons.









6. Disconnect the harness of SCU.

Remove the 4 fastening bolts of motor and the
SCU, and pull upwards to remove the motor
and the SCU.




7. Remove the fastening bolts of frames.










S-73

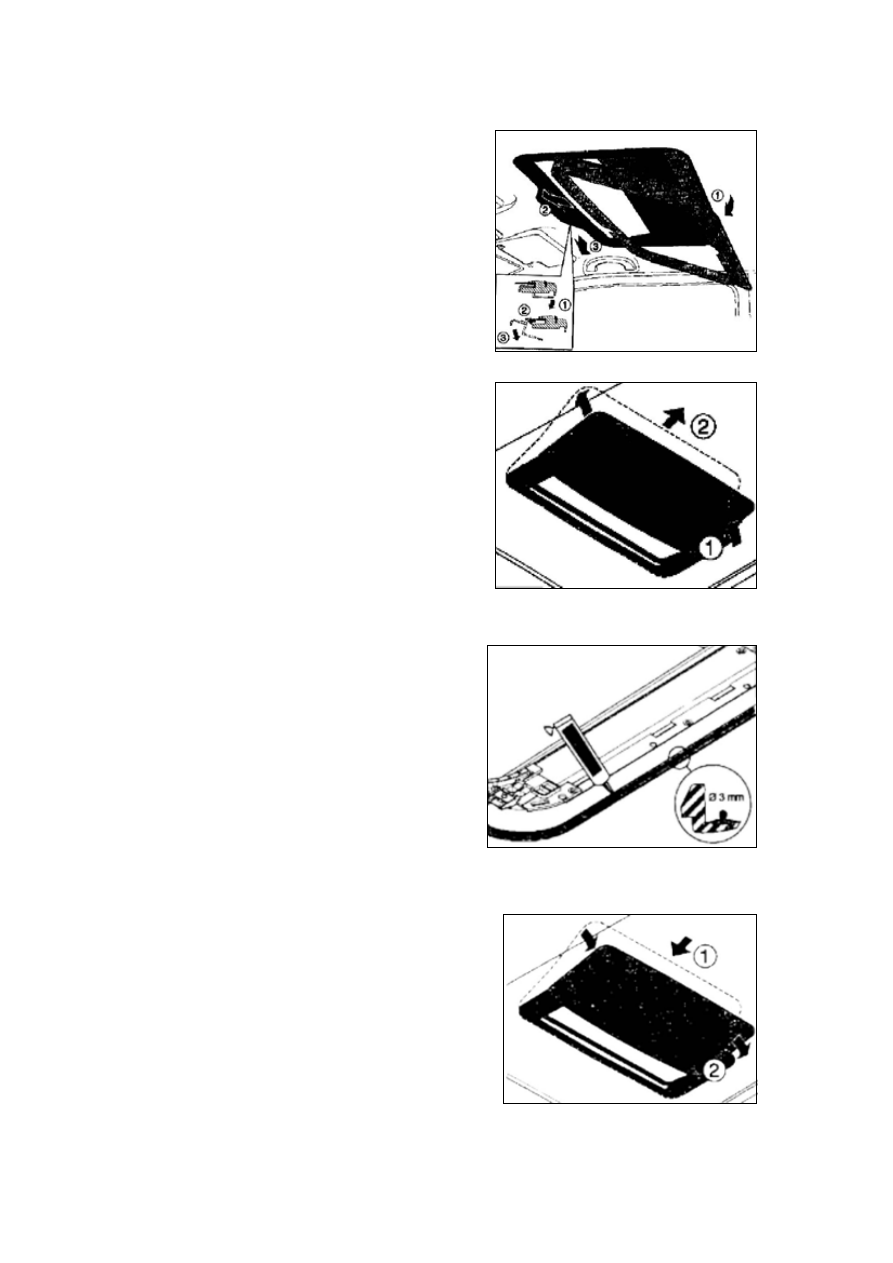

8. Remove the interior fastening frame, make

the rear part to be inclined downwards, push
forward and then the interior fastening frame
can be removed.



9. Remove the sunroof as the method shown in

the figure.





Assembly:

10. Apply silicon gel with a width of 3 cm on

the position indicated in the figure.



11. Place the upper frame assembly in the head

opening.





S-74
