Chery A series. Manual - part 56

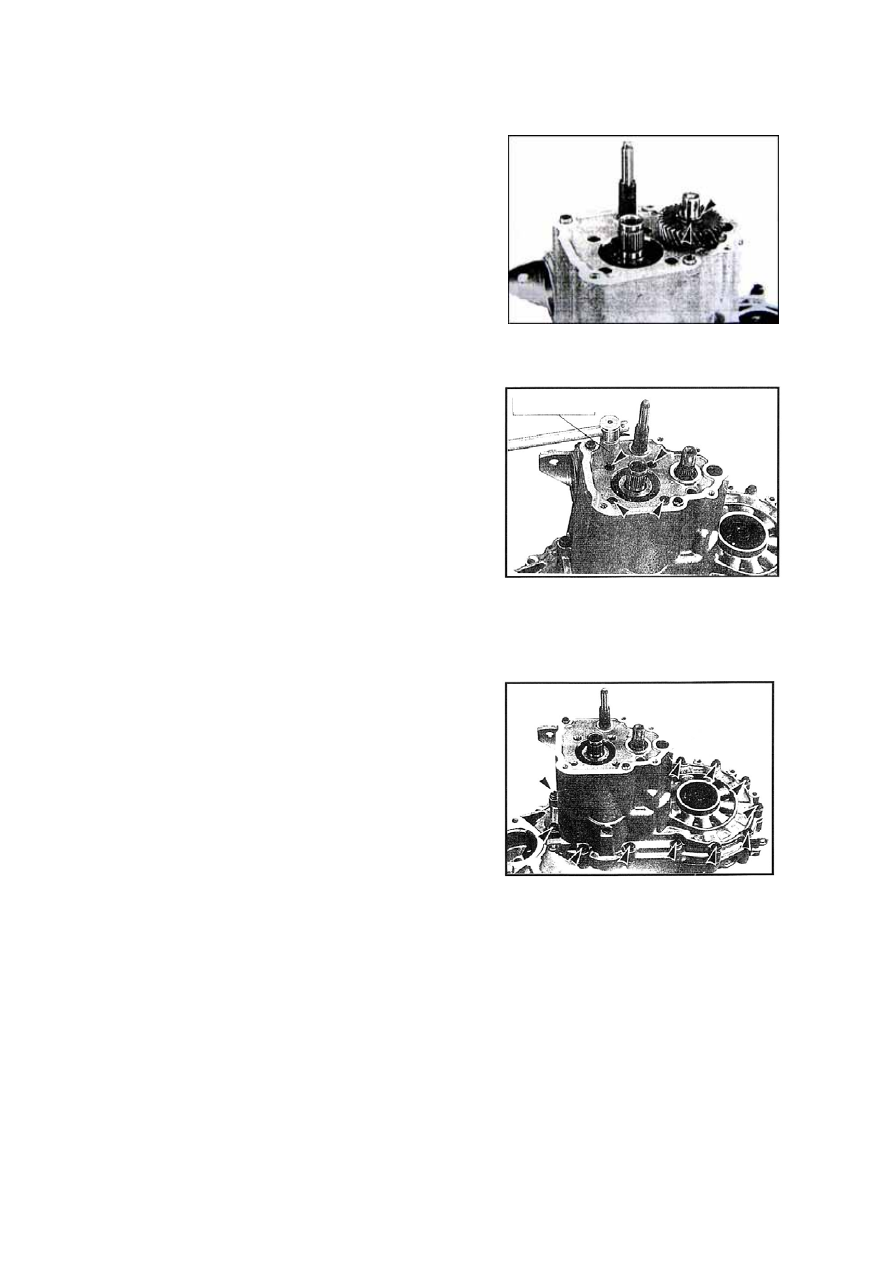

——Disassemble the gearshift shaft bolt by special

tools and take off compression spring and
gearshift shaft assembly.

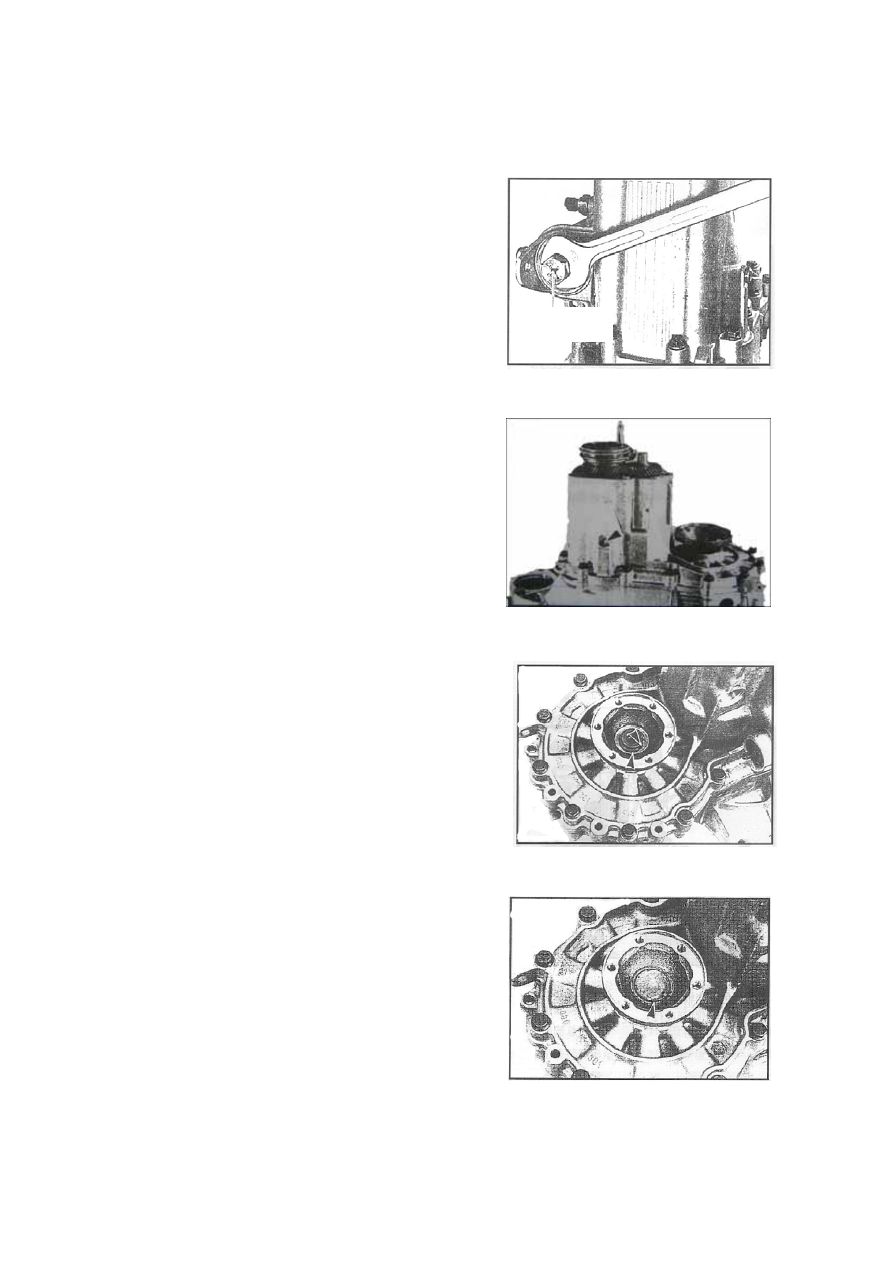

——Disassemble the reverse gear lockup screw

(see as the arrowhead pointed).









— — Disassemble left and right output flange

cover.





——Take out the internal snap ring and dish ring,

and disassemble the output flange.



Special Tool





J-16





——Shift to 5th    and reverse gear.

——Glide the synchronizer downward according

to arrowhead 1 direction and shift to 5th.

——Move the first fork downward according to

the arrowhead 2 direction and shift to reverse
gear.

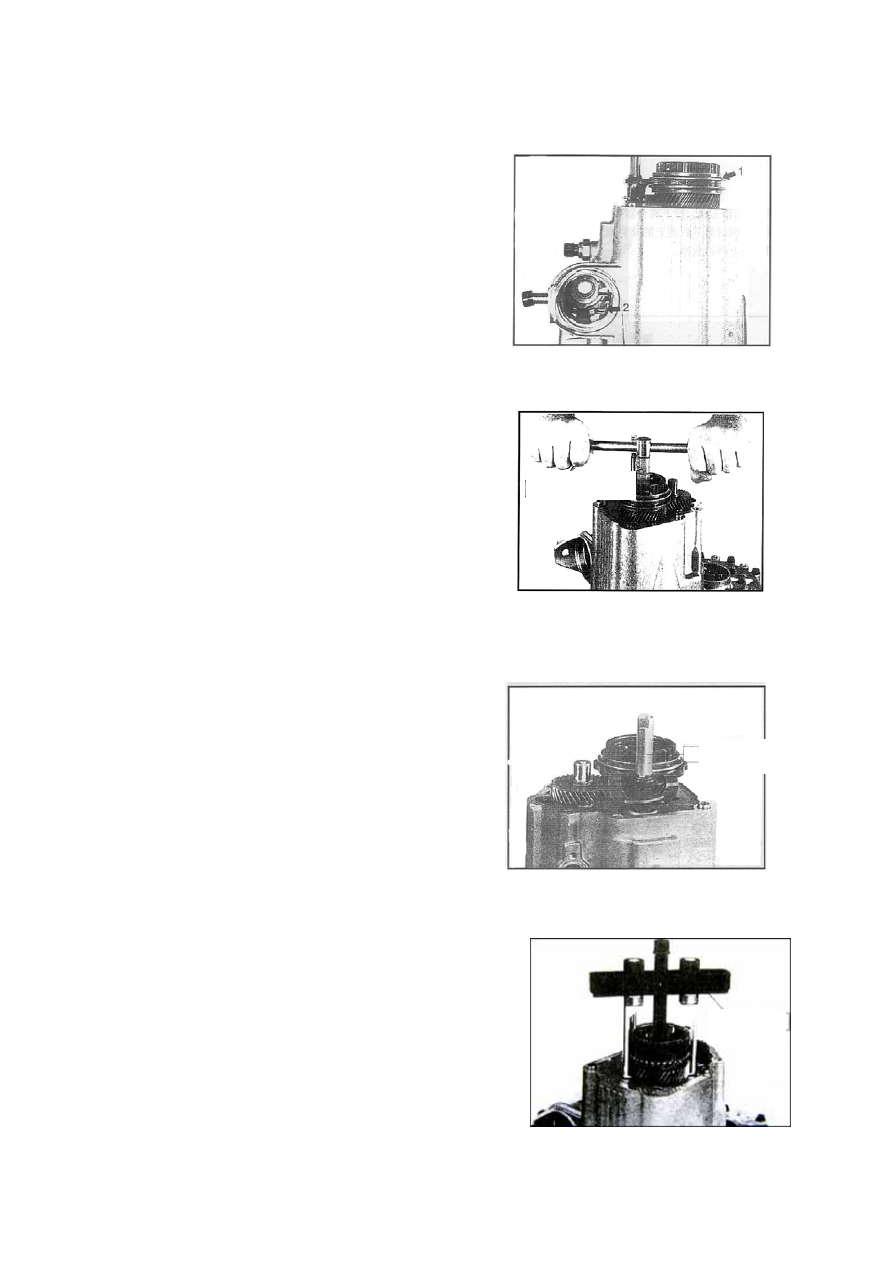

——Take off fixing bolt and washer of the 5th

synchronizer by a special tool.







——Prize up the 5th fork pad and turn left the 5th

fork bushing, take off the 5th fork assembly.















— — Disassemble 5th driving gear and its

synchronizer assembly.（by special tools）



Special Tool

Special Tool


Special Tool


J-17



——Take off 5th driven gear snap ring and 5th

driven gear.







——Take off the bearing shift slice clamping bolt

behind of input shaft by a special tool.






——Disassemble the fixing bolt of transmission

front and rear housing, take off the
transmission housing and front/rear housing
gasket.






Special Tool



J-18

——Take off the fork shaft and its upper and lower

spring, take off 5th fork guide assembly,
reverse gear fork guide, 3rd-4th shift fork and
1st-2nd fork.

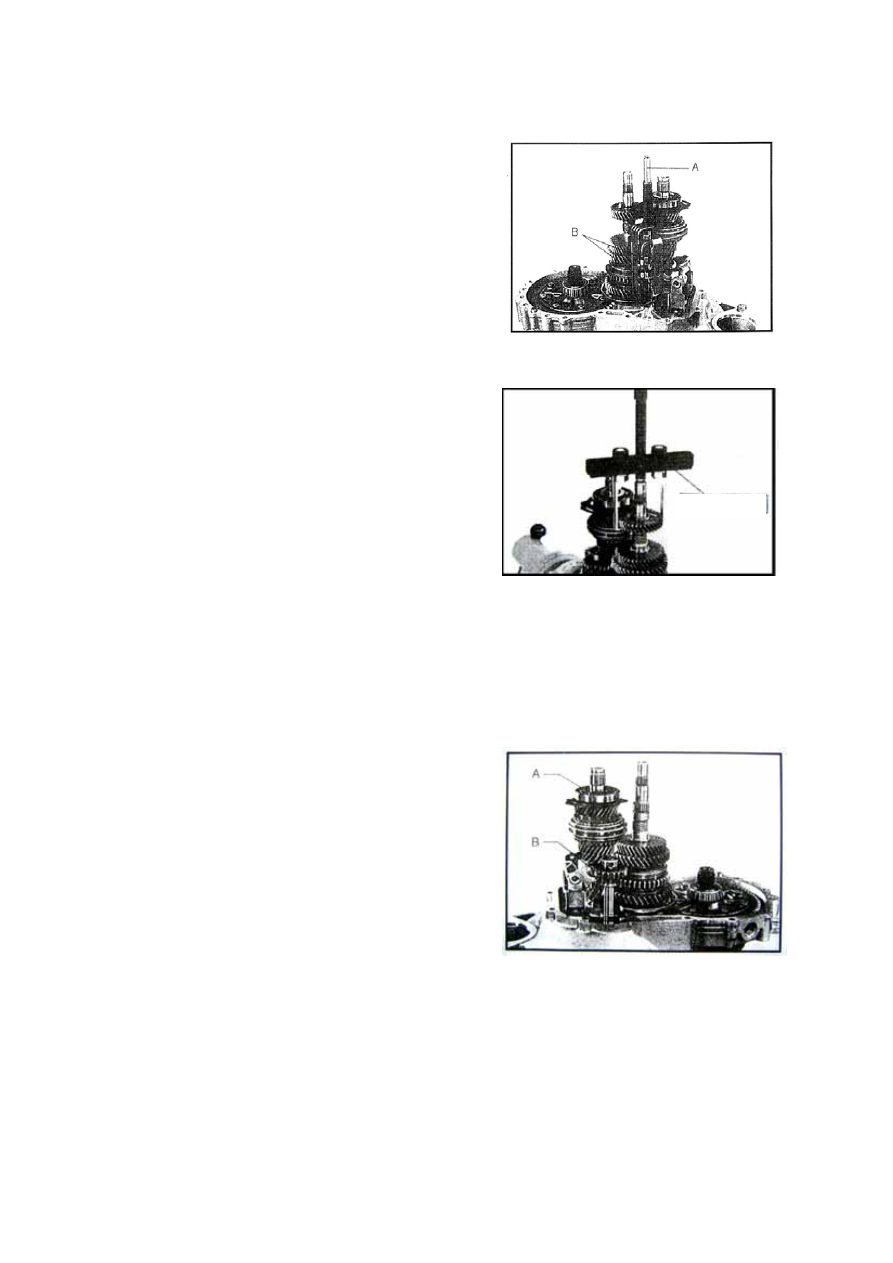

——Take off 4th driven gear snap ring and 4th

driven gear (by a special tool).











Special Tool













——Take off input shaft A assembly, pay attention

that the reverse gear B are not the shift.




J-19
