DISASSEMBLY OF THE DRIVE SHAFT



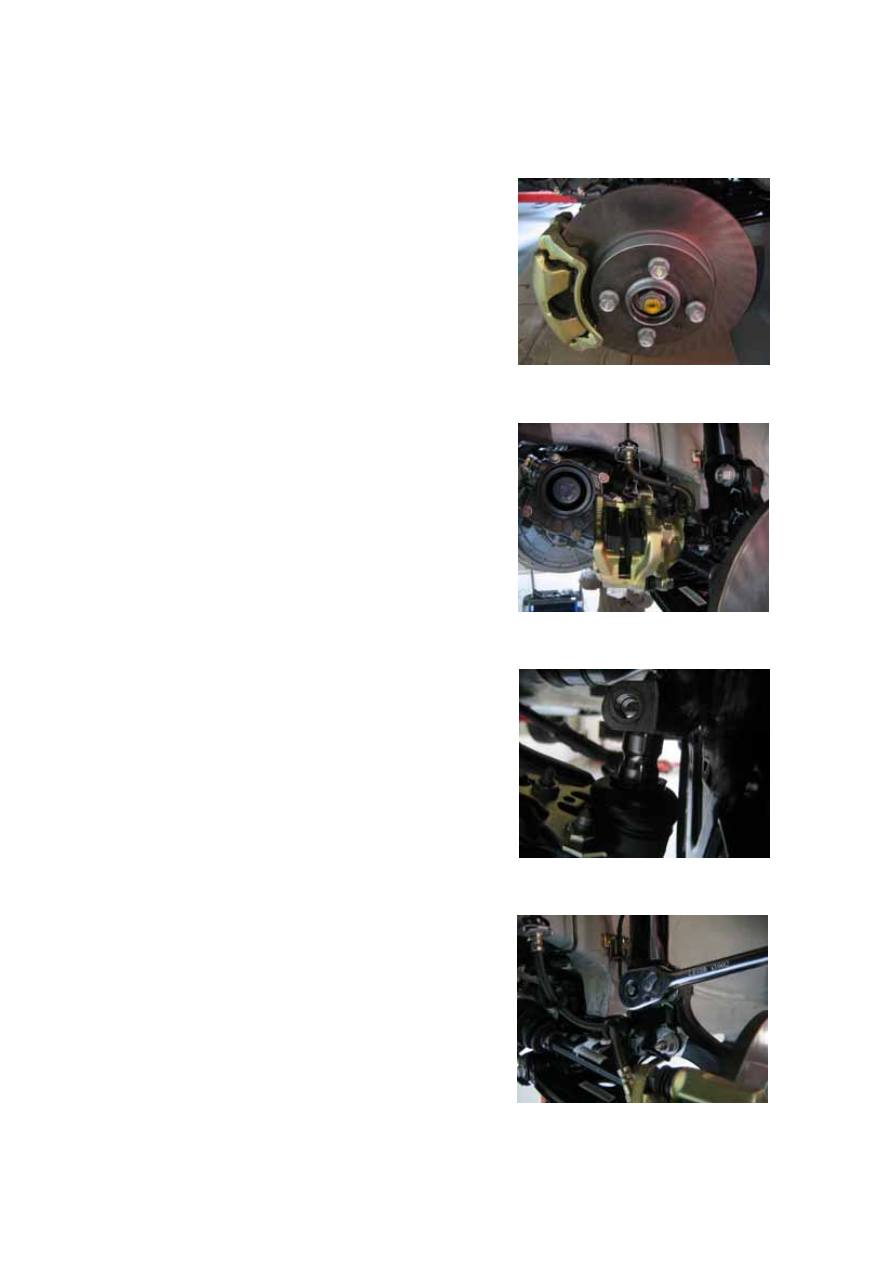

——Tyre disassembly.











——Disassemble two bolts of the brake cylinder and

brake shoe assembly. And hang the assembly on
the shock absorber by the hook.















——Disassemble the connecting bolt    of brake disc

and front axle, and make front axle ball joint off
by pressing it downward.









——

Loosen the two fixing bolts under the brake disc
and shock absorber.







J-4





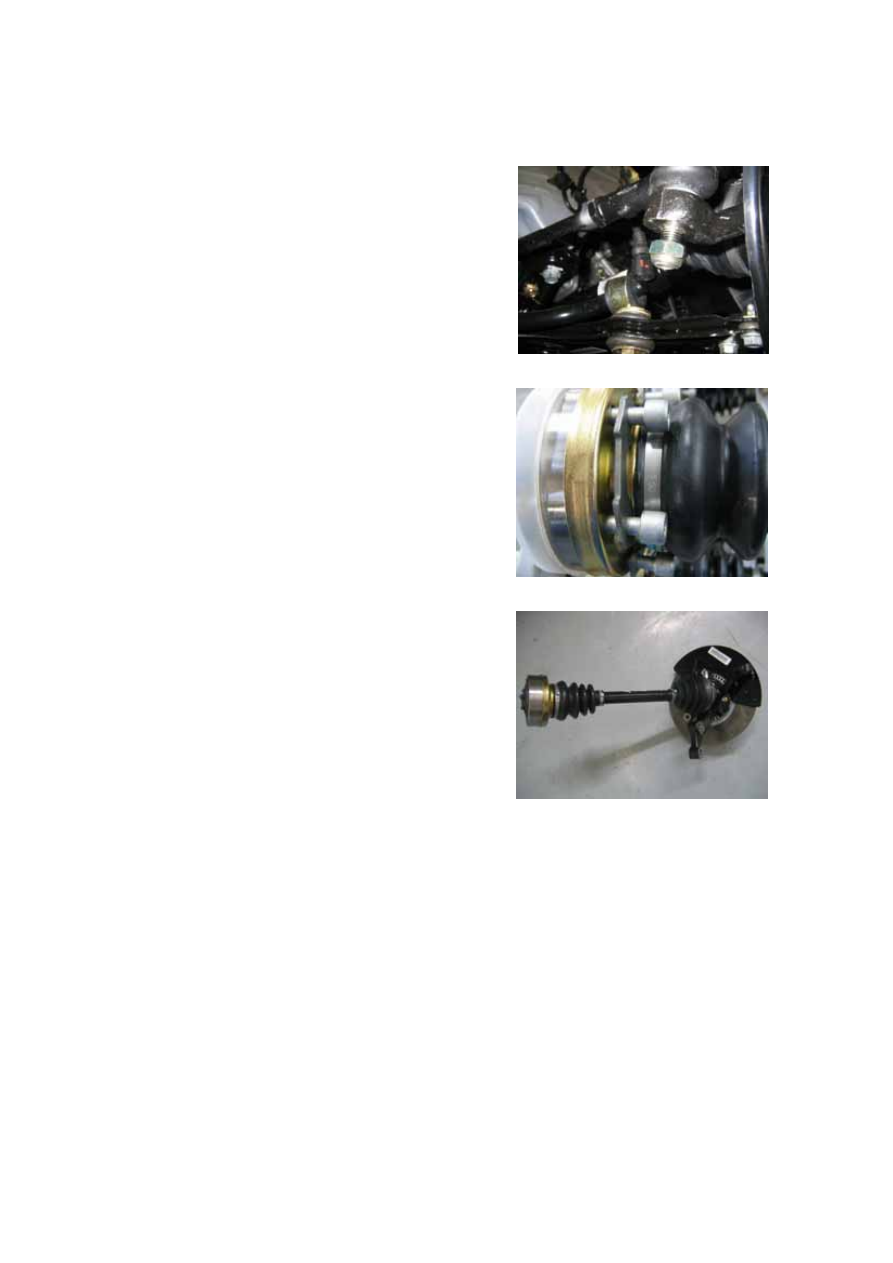

——Disassemble the round head bolt of steering

knuckle and steering rod, prize up the round
head bolt upward.









——Turn the brake disc and disassemble the 6 torx

head bolts of driving shaft and differential output
shaft, and take off the shim and bolt.









——Take off the 2 fixing bolts under the brake disc

and shock absorber, pull off the driving shaft and
brake disc assembly.



J-5



DISASSEMBLY OF THE TRANSMISSION

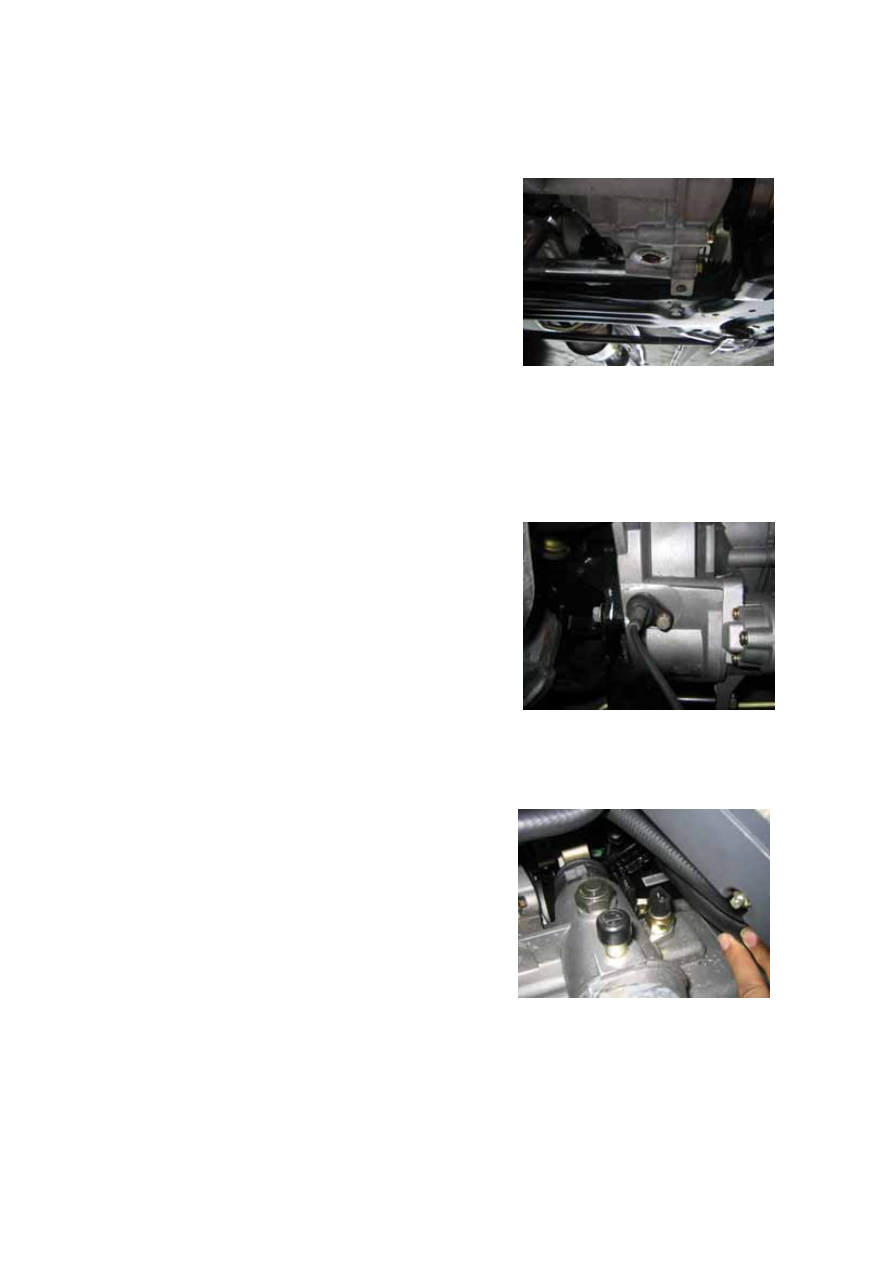

——Discharge the transmission oil.

——Disassemble the driving shaft.

——Disassemble those 3 fixing bolt of the

transmission lower shim.









——Disassemble the crankshaft position sensor.







——Disassemble the backup lamp switch plug.

——Disassemble the speed sensor plug.

——Prize up the round head clamp by screw

driver, take off the selector rod.

——Disassemble cotter pin, and take off shift lever

and shift mechanism linkage.

——Disassemble the gear shift arms subassembly.



J-6



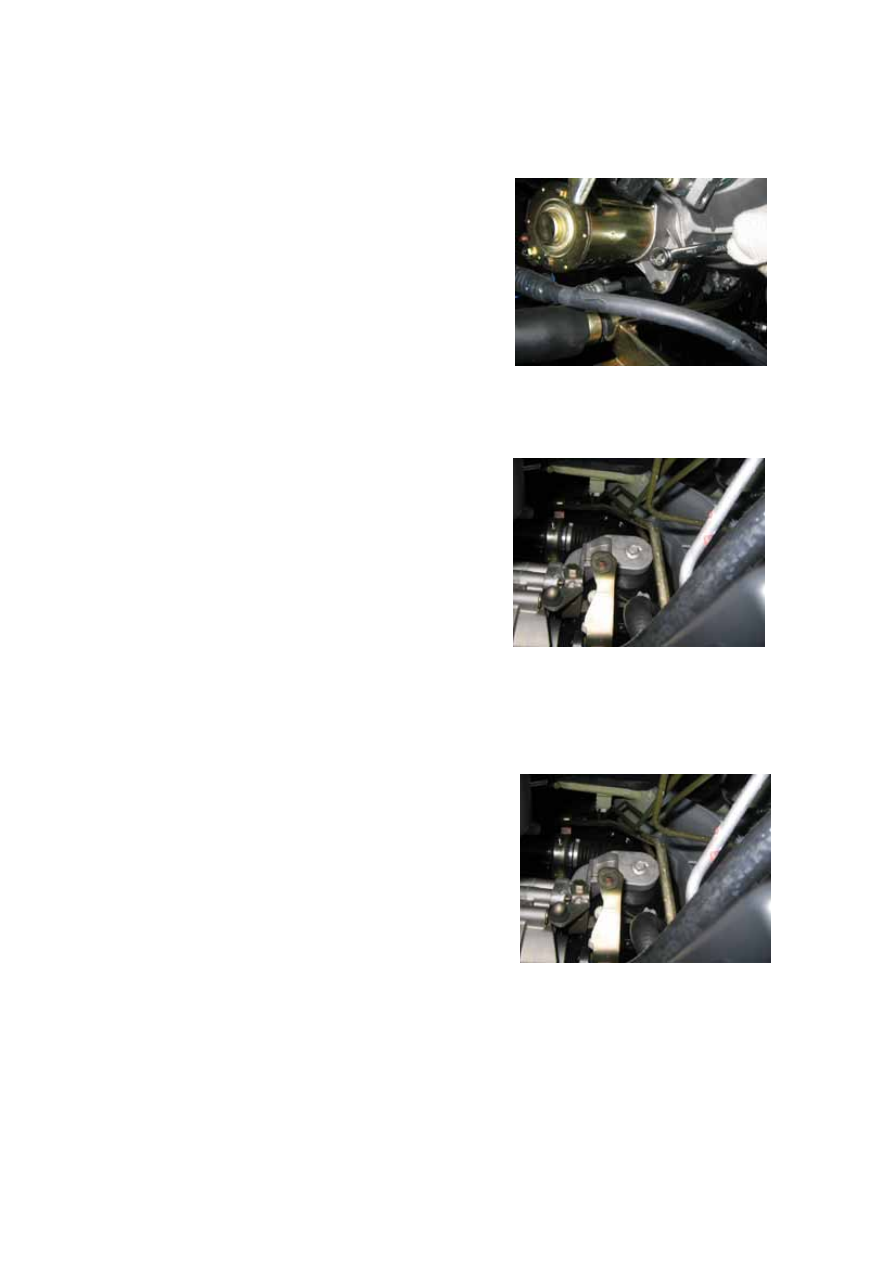

——Disassemble cathode cable of the accumulator;

disassemble the anode cable and plug of the
starter.

——Disassemble the fixing bolt between engine

front overhang bracket and front cross
member.

——Sling the engine.

——Disassemble the fixing bolt of the starter.

——Take off front overhang bracket of the starter

and the engine.





——Loosen connecting bolt between left / right

suspension and sub frame.

















——Disassemble the connecting bolt ( altogether 3

pieces)between left/right suspension and
transmission.







J-7
