STARTING AND OPERATING

187

TURNS AND BENDS

When driving on a curve with ACC engaged, the

system may increase or decrease the vehicle

speed for stability, with no vehicle ahead detected.

Once the vehicle is out of the curve, the system will

resume your original set speed. This is a part of

normal ACC system functionality.

NOTE:

On tight turns ACC performance may be limited.

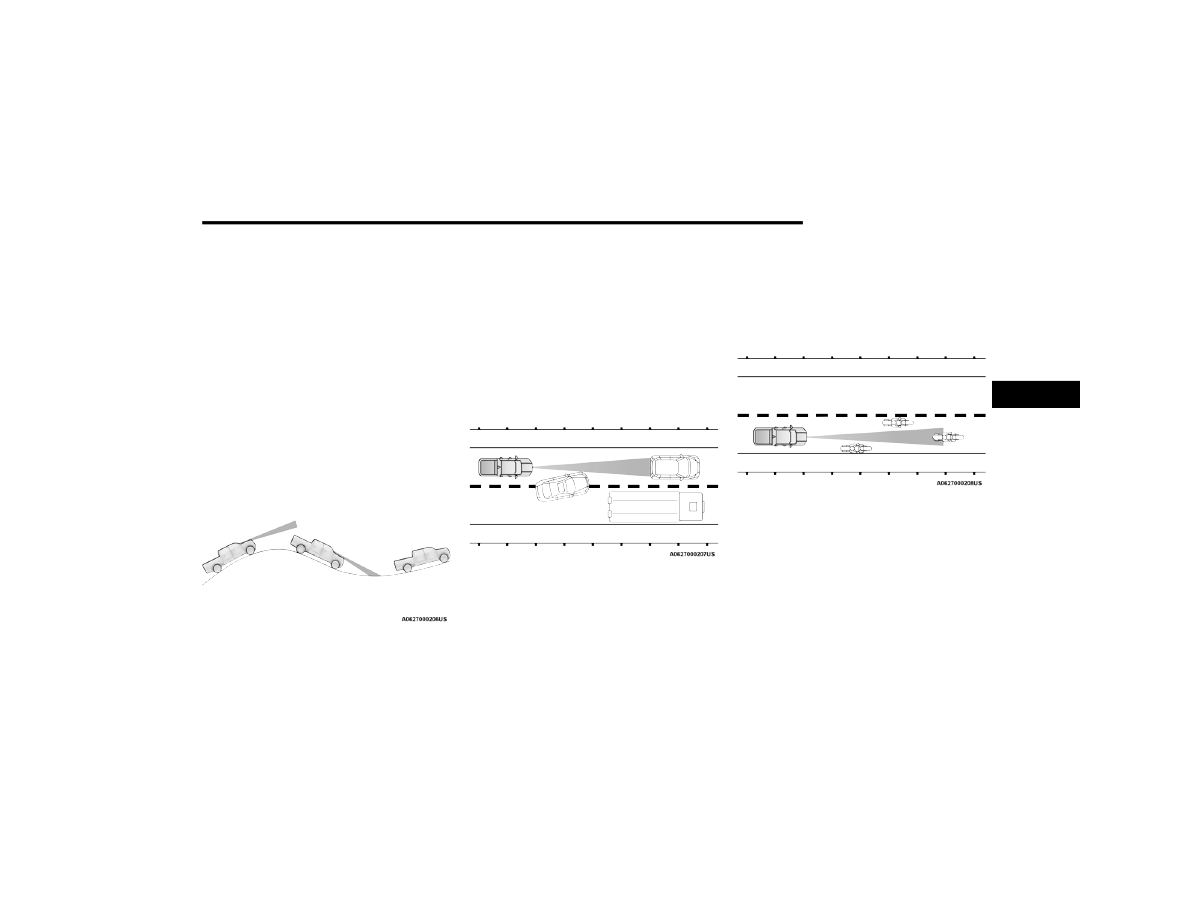

USING ACC ON HILLS

ACC performance may be limited when driving on

hills. ACC may not detect a vehicle in your lane

depending on the speed, vehicle load, traffic

conditions, and the steepness of the hill.

ACC Hill Example

LANE CHANGING

ACC may not detect a vehicle until it is completely

in the lane in which you are traveling. In the lane

changing example below, ACC has not yet detected

the vehicle changing lanes and it may not detect

the vehicle until it's too late for the ACC system to

take action. ACC may not detect a vehicle until it is

completely in the lane. There may not be sufficient

distance to the lane-changing vehicle. Always be

attentive and ready to apply the brakes if

necessary.

Lane Changing Example

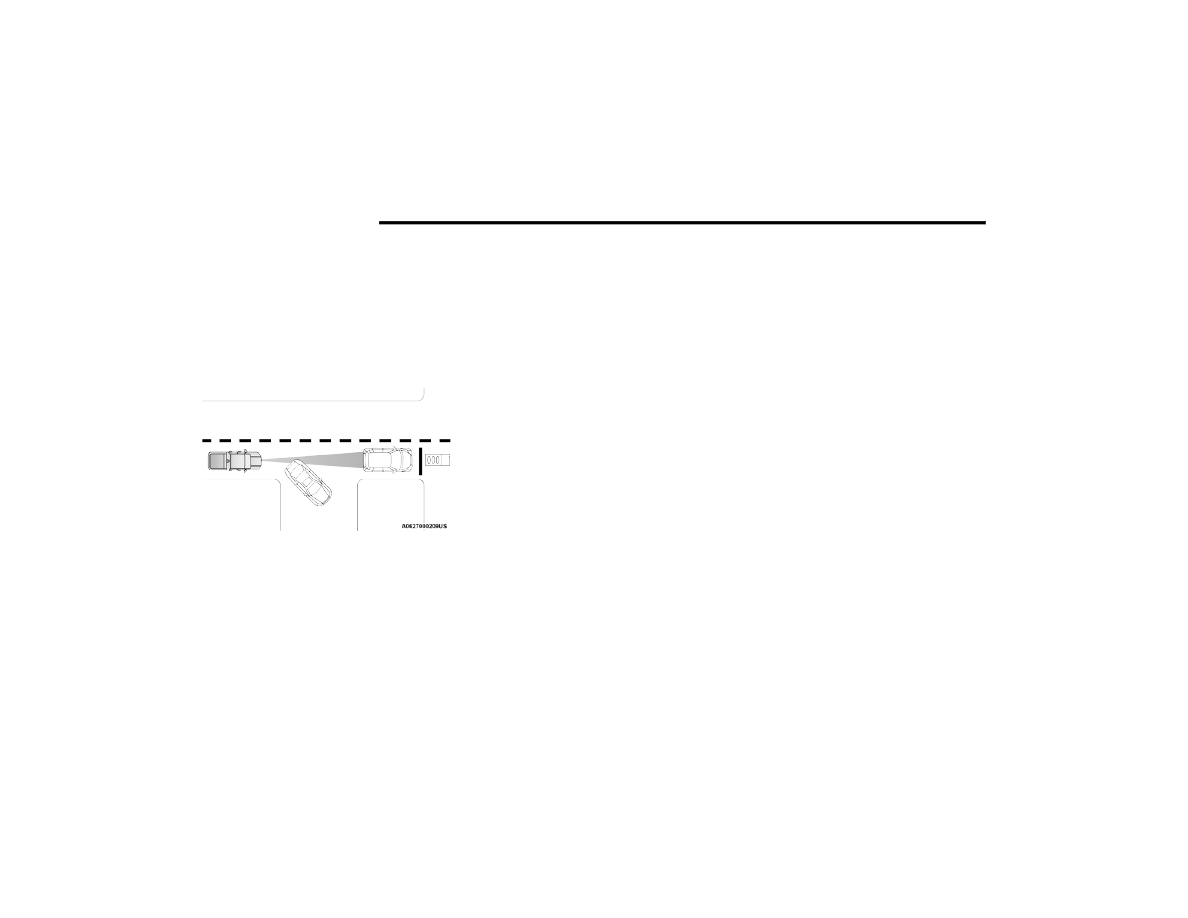

NARROW VEHICLES

Some narrow vehicles traveling near the outer

edges of the lane or edging into the lane are not

detected until they have moved fully into the lane.

There may not be sufficient distance to the vehicle

ahead.

Narrow Vehicle Example

-------------------------------------------------------------------------------------------------------------------------------------------------------------

188

STARTING AND OPERATING

STATIONARY OBJECTS AND VEHICLES

ACC does not react to stationary objects or

vehicles. For example, ACC will not react in

situations where the vehicle you are following exits

your lane and the vehicle ahead is stopped in your

lane. It will consider this stopped vehicle a

stationary object as it did not previously detect

movement from it. Always be attentive and ready

to apply the brakes if necessary.

Stationary Object And Stationary Vehicle Example

PARKSENSE FRONT/REAR PARK ASSIST

SYSTEM — IF EQUIPPED

The ParkSense Park Assist system provides visual

and audible indications of the distance between

the rear and/or front fascia/bumper and a

detected obstacle when backing up or moving

forward (e.g. during a parking maneuver). If your

vehicle is equipped with the automatic braking

function, the vehicle brakes may be automatically

applied and released when the vehicle is in

REVERSE if the system detects a possible collision

with an obstacle.

NOTE:



The driver can disable the automatic braking

function by turning ParkSense off via the Park

Sense switch. The driver can also override auto

matic braking by changing the gear or by

pressing the gas pedal over 90% of its capacity

during the braking event.



Automatic brakes will not be available if the

vehicle is in 4WD Low.



Automatic brakes will not be available if there is

a fault in the brake module.



Automatic brakes will not be available if there is

a faulted condition detected with the ParkSense

Park Assist system or the Braking System.



The automatic braking function may only be

applied if the vehicle deceleration is not enough

to avoid colliding with a detected obstacle.



The automatic braking function may not be

applied fast enough for obstacles that move

toward the rear of the vehicle from the left

and/or right sides.



The automatic braking function can be

enabled/disabled from the Customer Program

mable Features section of the Uconnect system.



ParkSense will retain its last known configura

tion state for the automatic braking function

through ignition cycles.



Trailer hitch ball assembly may cause false

braking events if left attached after towing.

The automatic braking function is intended to

assist the driver in avoiding possible collisions with

detected obstacles when backing up in REVERSE

gear.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

189

NOTE:



The system is provided to assist the driver and

not to substitute the driver.



The driver must stay in full control of the

vehicle's acceleration and braking and is

responsible for the vehicle's movements.

For limitations of this system and usage

precautions, see

page 193.

ParkSense will retain the last system state

(enabled or disabled) from the last ignition cycle

when the ignition is placed in the ON/RUN position.
ParkSense can be active only when the gear

selector is in REVERSE or DRIVE. If ParkSense is

enabled while in one of these gears, the system will

remain active until the vehicle speed is increased

to approximately 7 mph (11 km/h) or above. A

warning will appear in the instrument cluster

display indicating the vehicle speed is above

ParkSense operating speed while in REVERSE. The

system will become active again if the vehicle

speed is decreased to speeds less than

approximately 6 mph (9 km/h).

ARK

ENSE

ENSORS

The four ParkSense sensors (six if equipped with

Active Parksense), located in the front fascia/

bumper, monitor the area in front of the vehicle

that is within the sensors’ field of view, and the four

ParkSense sensors, located in the rear fascia/

bumper, monitor the area behind the vehicle that

is within the sensors’ field of view. The front

sensors can detect obstacles from approximately

12 inches (30 cm) up to 47 inches (120 cm) from

the front fascia/bumper. The rear sensors can

detect obstacles from approximately 12 inches

(30 cm) up to 79 inches (200 cm). These distances

depend on the location, type and orientation of the

obstacle in the horizontal direction.

ARK

ENSE

ARNING

ISPLAY

The ParkSense Warning screen is located within

the instrument cluster display

page 115. It

provides visual warnings to indicate the distance

between the rear fascia/bumper and/or front

fascia/bumper and the detected obstacle.

ARK

ENSE

ISPLAY

The warning display will turn on indicating the

system status when the vehicle is in REVERSE or

when the vehicle is in DRIVE and an obstacle has

been detected.

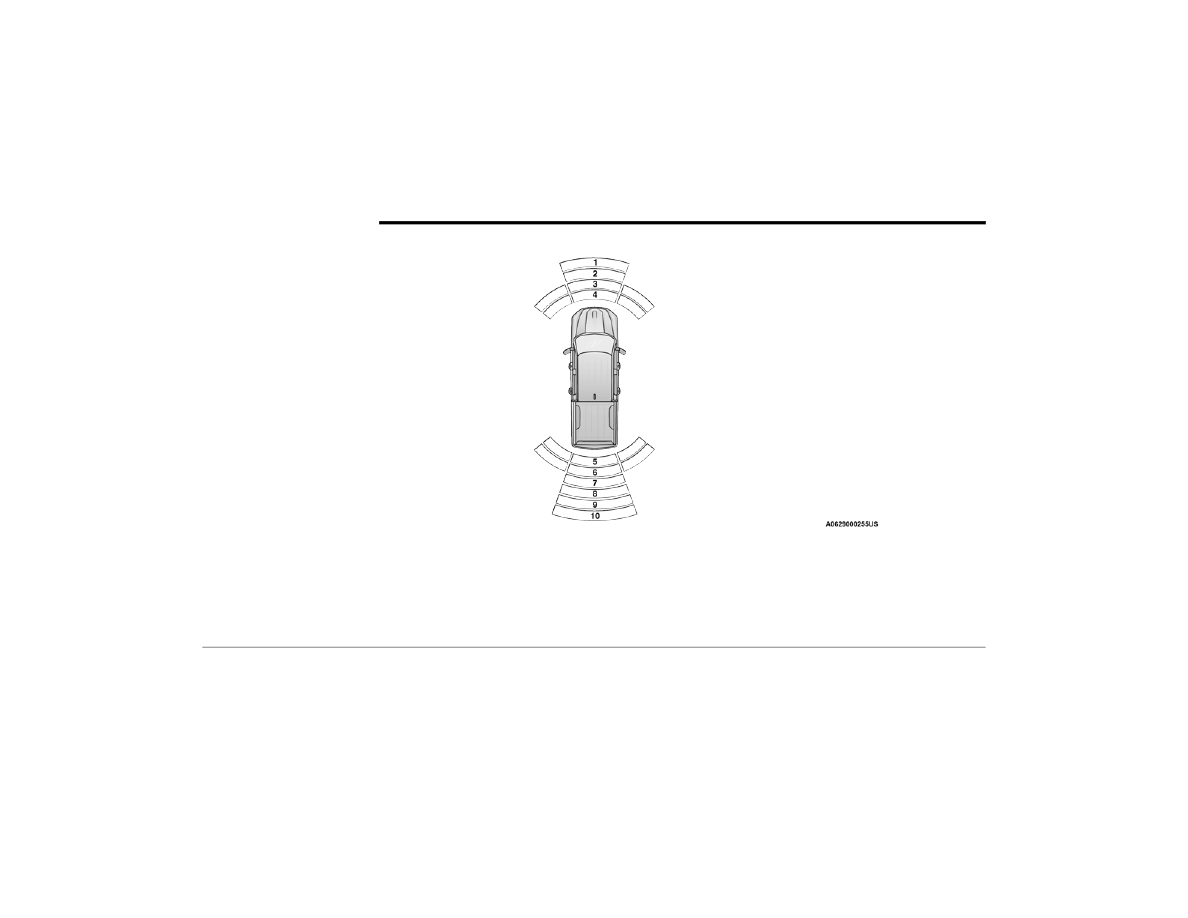

The system will indicate a detected obstacle by

showing a single arc in the left, right, or center

regions based on the obstacle’s distance and

location relative to the vehicle.
If an obstacle is detected in the center front region,

the display will show a single solid arc in the center

front region with no chime. As the vehicle moves

closer to the obstacle, the display will show the

single arc moving closer to the vehicle and a fast

chime will be heard and will change from fast to

continuous.
If an obstacle is detected in the left and/or right

front region, the display will show a single flashing

arc in the left and/or right front region and will

produce a fast chime. As the vehicle moves closer

to the obstacle, the display will show the single arc

moving closer to the vehicle and the tone will

change from fast to continuous.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

191

The vehicle is close to the obstacle when the display shows one flashing arc and sounds a continuous tone. The following chart shows the warning alert operation

when the system is detecting an obstacle:

WARNING ALERTS FOR REAR

Rear Distance

(inches/cm)

Greater than

79 inches

(200 cm)

79-59 inches

(200-150 cm)

59-47 inches

(150-120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than

12 inches (30cm)

Audible Alert

(Chime)

None

Single 1/2

Second Tone

Slow

Fast

Continuous

Arcs-Left

None

6thFlashing

5th Solid

Arcs-Center

None

10th Solid

9th Solid

8th Solid

7th Flashing

6th Flashing

5th Solid

Arcs-Right

None

6th Flashing

5th Solid

Radio Volume

Reduced

Yes

WARNING ALERTS FOR FRONT

Front Distance

(inches/cm)

Greater than 47 inches

(120 cm)

47-39 inches

(120-100 cm)

39-25 inches

(100-65 cm)

25-12 inches

(65-30 cm)

Less than 12 inches

(30 cm)

Audible Alert (Chime)

None

Fast

Continuous

Arcs-Left

None

3rd Flashing

4th Solid

Arcs-Center

None

1st Solid

2nd Flashing

3rd Flashing

4th Solid

Arcs-Right

None

3rd Flashing

4th Solid

Radio Volume Reduced

Yes

-------------------------------------------------------------------------------------------------------------------------------------------------------------

192

STARTING AND OPERATING

NOTE:

ParkSense will reduce the volume of the radio, if

on, when the system is sounding an audio tone.
Front Park Assist Audible Alerts
ParkSense will turn off the Front Park Assist

audible alert (chime) after approximately three

seconds when an obstacle has been detected, the

vehicle is stationary, and brake pedal is applied.
Adjustable Chime Volume Settings
The Front and Rear chime volume settings are

programmable through the Uconnect system

page 237.

NABLING

ISABLING

RONT

EAR

ARK

ENSE

Front ParkSense can be enabled and

disabled with the Front ParkSense

switch.

Rear ParkSense can be enabled and disabled with

the Rear ParkSense switch.
When the Front or Rear ParkSense switch is

pushed to disable the system, the instrument

cluster display

page 115 will show a vehicle

graphic of the Front or Rear ParkSense on/off

state for two seconds.

When the gear selector is moved to REVERSE and

the Front or Rear system is disabled, the

instrument cluster display will show a vehicle

graphic with “OFF” on the corresponding side. This

vehicle graphic will be displayed for as long as the

vehicle is in REVERSE.

NOTE:

Arc alerts from the enabled ParkSense system, will

interrupt the five second messages, and the

instrument cluster display will show the vehicle

graphic with the corresponding arcs and “OFF”

message.
The Front or Rear ParkSense switch LED will be on

when Front or Rear ParkSense is disabled or

requires service. The Front or Rear ParkSense

switch LED will be off when the Front or Rear

system is enabled. If the Front or Rear ParkSense

switch is pushed, and the system requires service,

the Front or Rear ParkSense switch LED will blink

momentarily, and then the LED will be on.

ERVICE

ARK

ENSE

ARK

SSIST

YSTEM

During vehicle start up, when the ParkSense

System has detected a faulted condition, the

instrument cluster will actuate a single chime,

once per ignition cycle, and it will display the

"PARKSENSE UNAVAILABLE WIPE REAR

SENSORS", "PARKSENSE UNAVAILABLE WIPE

FRONT SENSORS", or the "PARKSENSE

UNAVAILABLE SERVICE REQUIRED" message for

five seconds. When the gear selector is moved to

REVERSE and the system has detected a faulted

condition, the instrument cluster display will

display a "WIPE OFF" message on the

corresponding blocked system while the vehicle is

in REVERSE. The system will continue to provide

arc alerts for the side that is functioning properly.
If "PARKSENSE UNAVAILABLE WIPE REAR

SENSORS" or "PARKSENSE UNAVAILABLE WIPE

FRONT SENSORS" appears in the instrument

cluster display make sure the outer surface and

the underside of the rear fascia/bumper and/or

front fascia/bumper is clean and clear of snow,

ice, mud, dirt or other obstruction and then cycle

the ignition. If the message continues to appear

see an authorized dealer.

NOTE:

Water from a car wash or road slush in freezing

weather may also cause sensors to become

blocked.
If the "PARKSENSE UNAVAILABLE SERVICE

REQUIRED" message appears in the instrument

cluster display, see your authorized dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

193

LEANING

ARK

ENSE

YSTEM

Clean the ParkSense sensors with water, car wash

soap and a soft cloth. Do not use rough or hard

cloths. Do not scratch or poke the sensors.

ARK

ENSE

YSTEM

SAGE

RECAUTIONS

NOTE:



Ensure that the front and rear fascias/bumpers

are free of snow, ice, mud, dirt and debris to

keep the ParkSense system operating properly.



Jackhammers, large trucks, and other

vibrations could affect the performance of

ParkSense.



When you turn Front or Rear ParkSense off, the

instrument cluster display will show a vehicle

graphic of the Front or Rear ParkSense on/off

state for two seconds. Furthermore, once you

turn Front or Rear ParkSense off, it remains off

until you turn it on again, even if you cycle the

ignition.



When you move the gear selector to the

REVERSE position and Front or Rear ParkSense

is turned off, the instrument cluster display will

show a vehicle graphic with "OFF" in the corre

sponding side. This vehicle graphic will be

displayed for as long as the vehicle is in

REVERSE.



ParkSense, when on, will reduce the volume of

the radio when it is sounding a tone.



Clean the ParkSense sensors regularly, taking

care not to scratch or damage them. The

sensors must not be covered with ice, snow,

slush, mud, dirt or debris. Failure to do so can

result in the system not working properly. The

ParkSense system might not detect an obstacle

behind or in front of the fascia/bumper, or it

could provide a false indication that an obstacle

is behind or in front of the fascia/bumper.



Use the ParkSense switch to turn the ParkSense

system off if obstacles such as bicycle carriers,

trailer hitches, etc. are placed near the rear

fascia/bumper. Failure to do so can result in the

system misinterpreting a close obstacle as a

sensor problem, causing the “PARKSENSE

UNAVAILABLE SERVICE REQUIRED” message to

be appear in the instrument cluster display.



ParkSense should be disabled when the tailgate

is in the lowered or open position. A lowered tail

gate could provide a false indication that an

obstacle is behind the vehicle and could also

cause a false braking event.



The Rear ParkSense system will automatically

disable when the system detects that a trailer

with trailer brakes has been connected to the

Integrated Trailer Brake Module.



The Front ParkSense system will automatically

disable if a snow plow has been connected to

the vehicle.

WARNING!



Drivers must be careful when backing up even

when using ParkSense. Always check carefully

behind your vehicle, look behind you, and be

sure to check for pedestrians, animals, other

vehicles, obstructions, and blind spots before

backing up. You are responsible for safety and

must continue to pay attention to your

surroundings. Failure to do so can result in

serious injury or death.



Before using ParkSense, it is strongly recom

mended that the ball mount and hitch ball

assembly be disconnected from the vehicle

when the vehicle is not used for towing.

Failure to do so can result in injury or damage

to vehicles or obstacles because the hitch ball

will be much closer to the obstacle than the

rear fascia/bumper when the vehicle sounds

the continuous tone. Also, the sensors could

detect the ball mount and hitch ball assembly,

depending on its size and shape, and give a

false indication that an obstacle is behind the

vehicle, and could cause false braking.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

194

STARTING AND OPERATING

PARKSENSE ACTIVE PARK ASSIST

SYSTEM — IF EQUIPPED

The ParkSense Active Park Assist system is

intended to assist the driver during parallel and

perpendicular parking maneuvers by identifying a

proper parking space, providing audible/visual

instructions through the instrument cluster

display, and controlling the steering wheel. The

ParkSense Active Park Assist system is defined as

“semi-automatic” since the driver maintains

control of the accelerator, gear selector and

brakes. Depending on the driver's parking

maneuver selection, the ParkSense Active Park

Assist system is capable of maneuvering a vehicle

into a parallel or a perpendicular parking space on

either side (i.e., driver side or passenger side).

NOTE:



The driver is always responsible for controlling

the vehicle, responsible for any surrounding

objects, and must intervene as required.



The system is provided to assist the driver and

not to substitute the driver.



During a semi-automatic maneuver, if the driver

touches the steering wheel after being

instructed to remove their hands from the

steering wheel, the system will cancel, and the

driver will be required to manually complete the

parking maneuver.



The system may not work in all conditions

(e.g. environmental conditions such as heavy

rain, snow, etc., or if searching for a parking

space that has surfaces that will absorb the

ultrasonic sensor waves).



New vehicles from the dealership must have at

least 30 miles (48 km) accumulated before the

ParkSense Active Park Assist system is fully cali

brated and performs accurately. This is due to

the system’s dynamic vehicle calibration to

improve the performance of the feature.



The driver must control the vehicle’s brakes.

The automatic emergency braking feature is

NOT intended to substitute for the driver during

REVERSE maneuvers.

NABLING

ISABLING

ARK

ENSE

CTIVE

ARK

SSIST

YSTEM

The ParkSense Active Park Assist system

can be enabled and disabled with the

ParkSense Active Park Assist switch,

located on the switch panel below the

Uconnect display.

NOTE:

If your vehicle is equipped with a 12-inch Uconnect

display, the ParkSense Active Park Assist switch is

located above the display.
To enable or disable the ParkSense Active Park

Assist system, push the ParkSense Active Park

Assist switch once (LED turns on). Pushing the

switch a second time will disable the system

(LED turns off).
The ParkSense Active Park Assist system will turn

off automatically for any of the following

conditions:



Parking maneuver is completed.



Vehicle speed is greater than 18 mph

(30 km/h) when searching for a parking space.

CAUTION!



ParkSense is only a parking aid and it is

unable to recognize every obstacle, including

small obstacles. Parking curbs might be

temporarily detected or not detected at all.

Obstacles located above or below the sensors

will not be detected when they are in close

proximity.



The vehicle must be driven slowly when using

ParkSense in order to be able to stop in time

when an obstacle is detected. It is recom

mended that the driver looks over his/her

shoulder when using ParkSense.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

195



Vehicle speed is greater than 5 mph (7 km/h)

during active steering guidance into the parking

space.



Steering wheel is touched during active steering

guidance into the parking space.



ParkSense Front/Rear Park Assist switch is

pushed.



Driver's door is opened.



Tailgate is opened.



Electronic Stability Control/Anti-Lock Braking

System intervention.



Vehicle is in 4WD Low.



Axle Locker is active.



Trailer is connected.



Trailer Reverse Steering Control (TRSC) is

active.



Snow plow is connected.

NOTE:

The ParkSense Active Park Assist system will allow

a maximum of eight shifts between DRIVE and

REVERSE. If the maneuver cannot be completed

within eight shifts, the system will cancel and the

instrument cluster display will instruct the driver to

complete the maneuver manually.

The ParkSense Active Park Assist system will only

operate and search for a parking space when the

following conditions are present:



Gear selector is in DRIVE.



The ignition is in the ON/RUN position.



The ParkSense Active Park Assist switch is acti

vated.



Driver's door is closed.



Tailgate is closed.



Vehicle speed is less than 15 mph (25 km/h).



The outer surface and the underside of the front

and rear fascias/bumpers are clean and clear

of snow, ice, mud, dirt or other obstruction.

NOTE:

If the vehicle is driven above approximately

15 mph (25 km/h), the instrument cluster display

will instruct the driver to slow down. If the vehicle

is driven above approximately 18 mph (30 km/h),

the system will cancel. The driver must then reac

tivate the system by pushing the ParkSense Active

Park Assist switch.
When pushed, the LED on the ParkSense Active

Park Assist switch will blink momentarily, and then

the LED will turn off if any of the above conditions

are not present.

ARALLEL

ERPENDICULAR

ARKING

PACE

SSISTANCE

PERATION

When the ParkSense Active Park Assist system is

enabled, the messages “Active ParkSense

Searching - Press OK To Switch To Perpendicular

Park” or “Active ParkSense Searching - Press OK to

Switch to Parallel Park” will appear in the

instrument cluster display. Push the OK button on

the left side of the steering wheel to change your

parking space setting. You can switch between

perpendicular and parallel parking maneuvers.

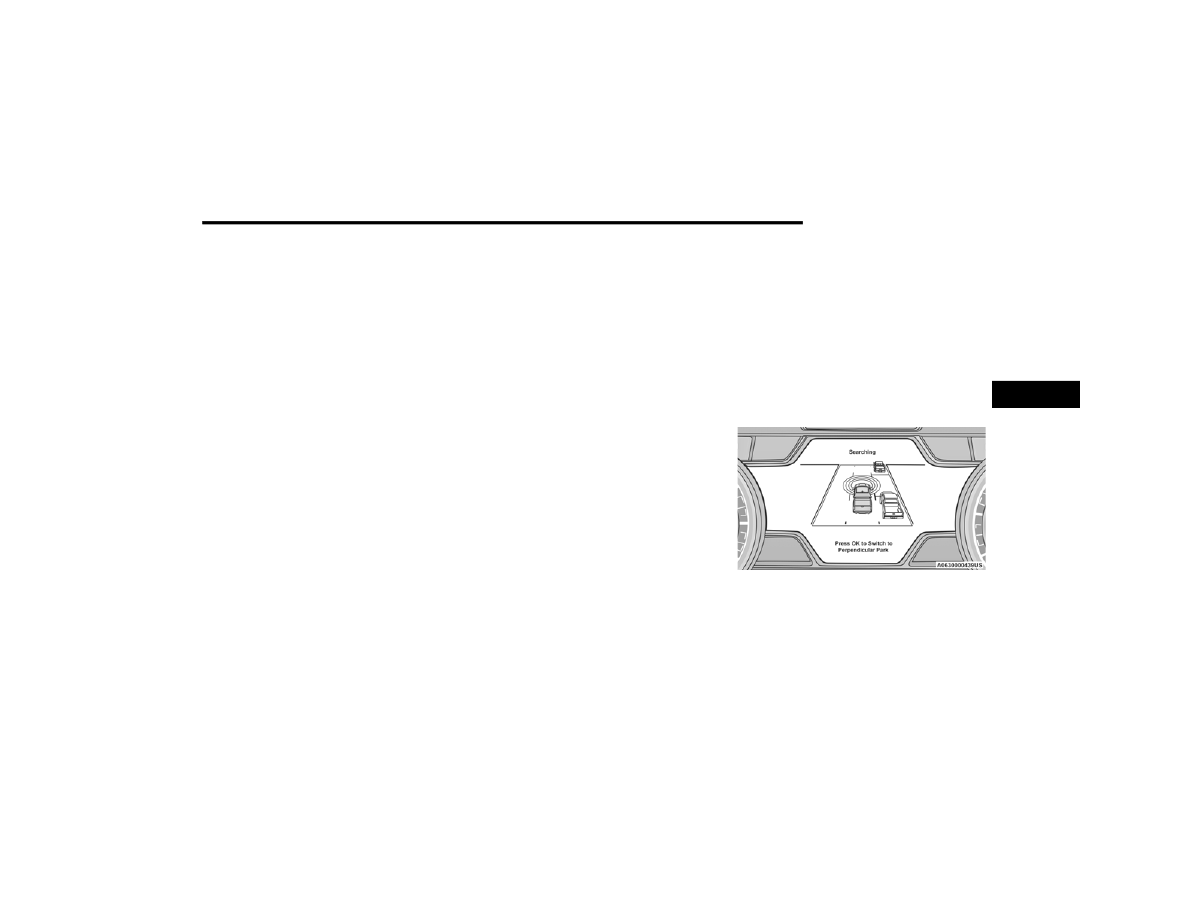

Press OK to Switch to Perpendicular Park

-------------------------------------------------------------------------------------------------------------------------------------------------------------

196

STARTING AND OPERATING

Press OK to Switch to Parallel Park

NOTE:



When searching for a parking space, use the

turn signal indicator to select which side of the

vehicle you want to perform the parking

maneuver. The ParkSense Active Park Assist

system will automatically search for a parking

space on the passenger's side of the vehicle if

the turn signal is not activated.



The driver needs to make sure that the selected

parking space for the maneuver remains free

and clear of any obstructions (e.g. pedestrians,

bicycles, etc.).



The driver is responsible to ensure that the

selected parking space is suitable for the

maneuver and free/clear of anything that may

be overhanging or protruding into the parking

space (e.g., ladders, tailgates, etc. from

surrounding objects/vehicles).



When searching for a parking space, the driver

should drive as parallel or perpendicular

(depending on the type of maneuver) to other

vehicles as possible.



The feature will only indicate the last detected

parking space (example: if passing multiple

available parking spaces, the system will only

indicate the last detected parking space for the

maneuver). A parking space is considered

invalid after the vehicle is 32 ft (10 m) or more

away from it.

When an available parking space has been found,

and the vehicle is not in position, you will be

instructed to move forward to position the vehicle

for a perpendicular or parallel parking sequence

(depending on the type of maneuver being

performed).

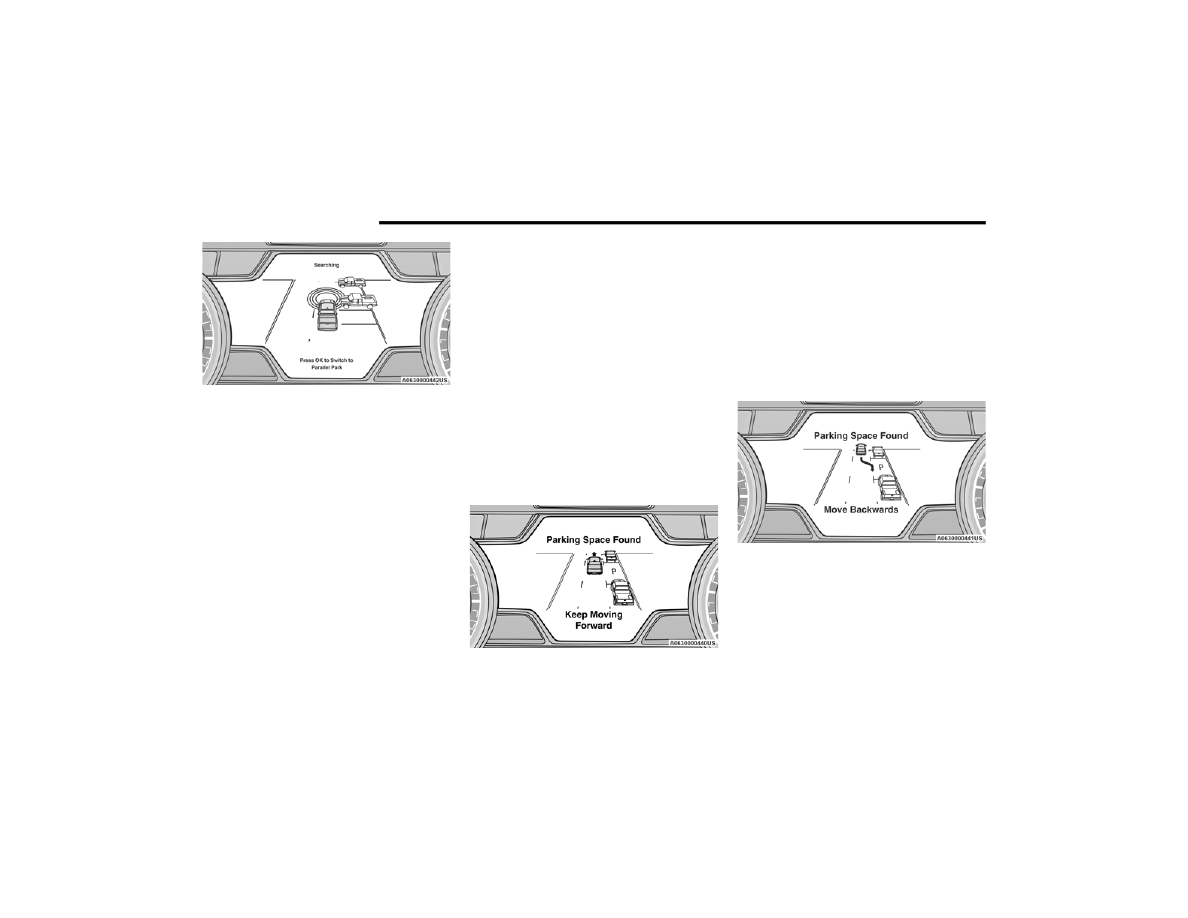

Space Found — Keep Moving Forward

Once the vehicle is in position, you will be

instructed to stop the vehicle’s movement and

remove your hands from the steering wheel. When

the vehicle comes to a standstill (your hands still

removed from the steering wheel), you will be

instructed to place the gear selector into the

REVERSE position.
The system may then instruct the driver to wait for

steering to complete before then instructing to

check surroundings and move backward.

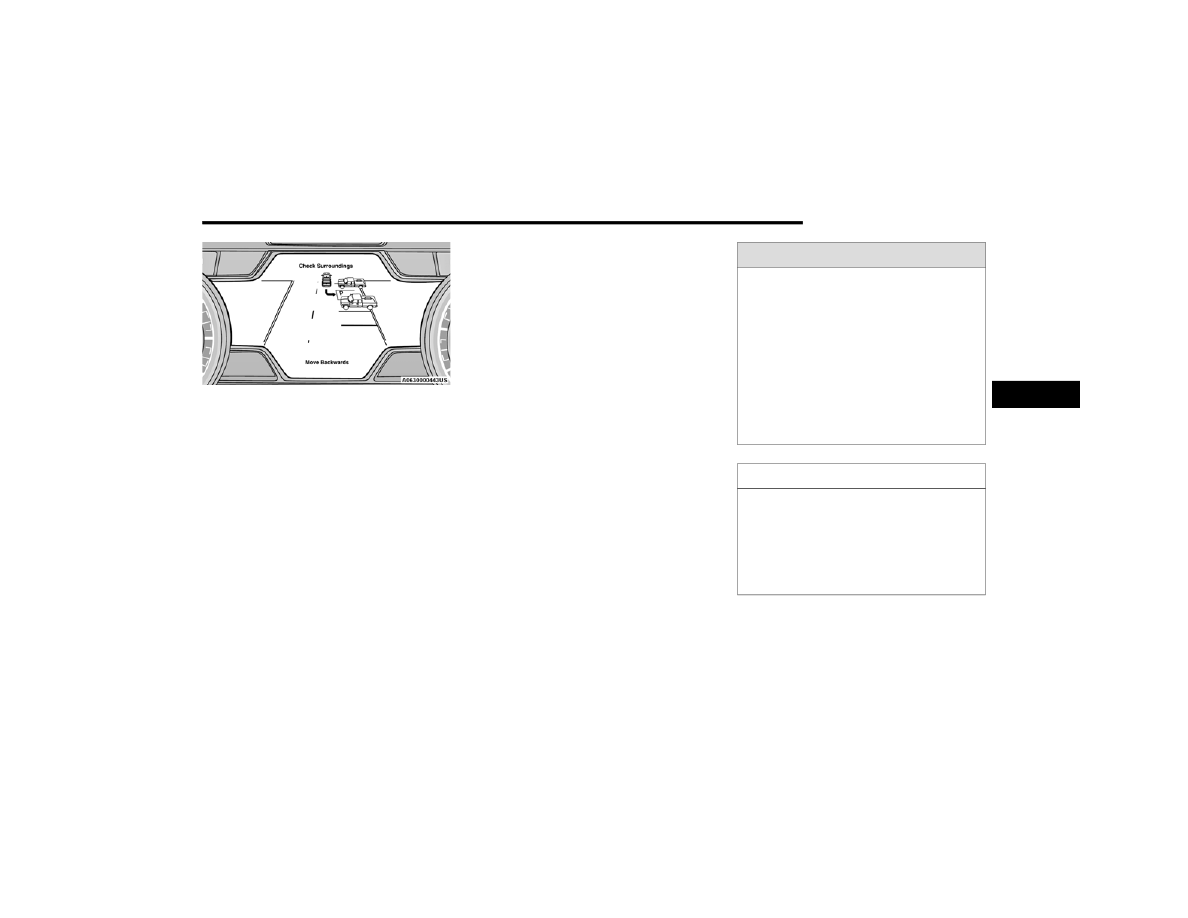

Move Backward Into Parallel Parking Space

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

197

(Continued)

Move Backward Into Perpendicular Parking Space

The system may instruct several more gear shifts

(DRIVE and REVERSE), with hands off of the

steering wheel, before instructing the driver to

check surroundings and complete the parking

maneuver.
When the vehicle is in the parking position, the

maneuver is complete and the driver will be

instructed to check the vehicle's parking position,

then shift the vehicle into PARK. The message

"Active ParkSense Complete - Check Parking

Position" will be displayed momentarily.

NOTE:



It is the driver's responsibility to use the brake

and accelerator during the semi-automatic

parking maneuver.



It is the driver's responsibility to use the brake

and stop the vehicle. The driver should check

their surroundings and be prepared to stop the

vehicle either when instructed to, or when driver

intervention is required.



When the system instructs the driver to remove

their hands from the steering wheel, the driver

should check their surroundings and begin to

back up slowly.



The ParkSense Active Park Assist system will

allow a maximum of eight shifts between DRIVE

and REVERSE. If the maneuver cannot be

completed within eight shifts, the system will

cancel and the instrument cluster display will

instruct the driver to complete the maneuver

manually.



The system will cancel the maneuver if the

vehicle speed exceeds 5 mph (7 km/h) during

active steering guidance into the parking space.

The system will provide a warning to the driver

at 3 mph (5 km/h) that tells them to slow down.

The driver is then responsible for completing the

maneuver if the system is canceled.



If the system is canceled during the maneuver

for any reason, the driver must take control of

the vehicle.

WARNING!

Drivers must be careful when performing

parallel or perpendicular parking maneuvers

even when using the ParkSense Active Park

Assist system. Always check carefully behind

and in front of your vehicle, look behind and in

front of you, and be sure to check for

pedestrians, animals, other vehicles,

obstructions, and blind spots before backing up

and moving forward. You are responsible for

safety and must continue to pay attention to

your surroundings. Failure to do so can result in

serious injury or death.

CAUTION!



The ParkSense Active Park Assist system is

only a parking aid and it is unable to recognize

every obstacle, including small obstacles.

Parking curbs might be temporarily detected

or not detected at all. Obstacles located above

or below the sensors’ field of view will not be

detected when they are in close proximity.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

198

STARTING AND OPERATING

LANESENSE — IF EQUIPPED

ANE

ENSE

PERATION

The LaneSense system is operational at speeds

above 37 mph (60 km/h) and below 112 mph

(180 km/h). The LaneSense system uses a

forward looking camera to detect lane markings

and measure vehicle position within the lane

boundaries.
When both lane markings are detected and the

driver drifts out of the lane (no turn signal applied),

the LaneSense system provides a haptic warning

in the form of torque applied to the steering wheel,

as well as a visual warning in the instrument

cluster display, to prompt the driver to remain

within the lane boundaries.

The driver may manually override the haptic

warning by applying force into the steering wheel at

any time.
When only a single lane marking is detected and

the driver drifts across the lane marking (no turn

signal applied), the LaneSense system provides a

visual warning through the instrument cluster

display to prompt the driver to remain within the

lane.
When only a single lane marking is detected, a

haptic or a torque warning will not be provided.

NOTE:



When operating conditions have been met, the

LaneSense system will monitor if the driver’s

hands are on the steering wheel and provide an

audible and visual warning to the driver if

removed. The system will cancel if the driver

does not return their hands to the wheel.



LaneSense will disable when a snow plow is

connected to the vehicle.

URNING

ANE

ENSE

The LaneSense button is located on the

switch panel below the Uconnect display.

NOTE:

If your vehicle is equipped with a 12-inch Uconnect

Display screen, the LaneSense button is located

above the display.
To turn the LaneSense system on, push the

LaneSense button (LED turns off). A “LaneSense

On” message is shown in the instrument cluster

display.
To turn the LaneSense system off, push the

LaneSense button again (LED turns on).

NOTE:

The LaneSense system will retain the last system

state on or off from the last ignition cycle when the

ignition is placed in the ON/RUN position.

ANE

ENSE

ARNING

ESSAGE

The LaneSense system will indicate the current

lane drift condition through the instrument cluster

display.



The vehicle must be driven slowly when using

the ParkSense Active Park Assist system in

order to be able to stop in time when an

obstacle is detected. It is recommended that

the driver looks over his/her shoulders when

using the ParkSense Active Park Assist

system.

CAUTION!

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

199

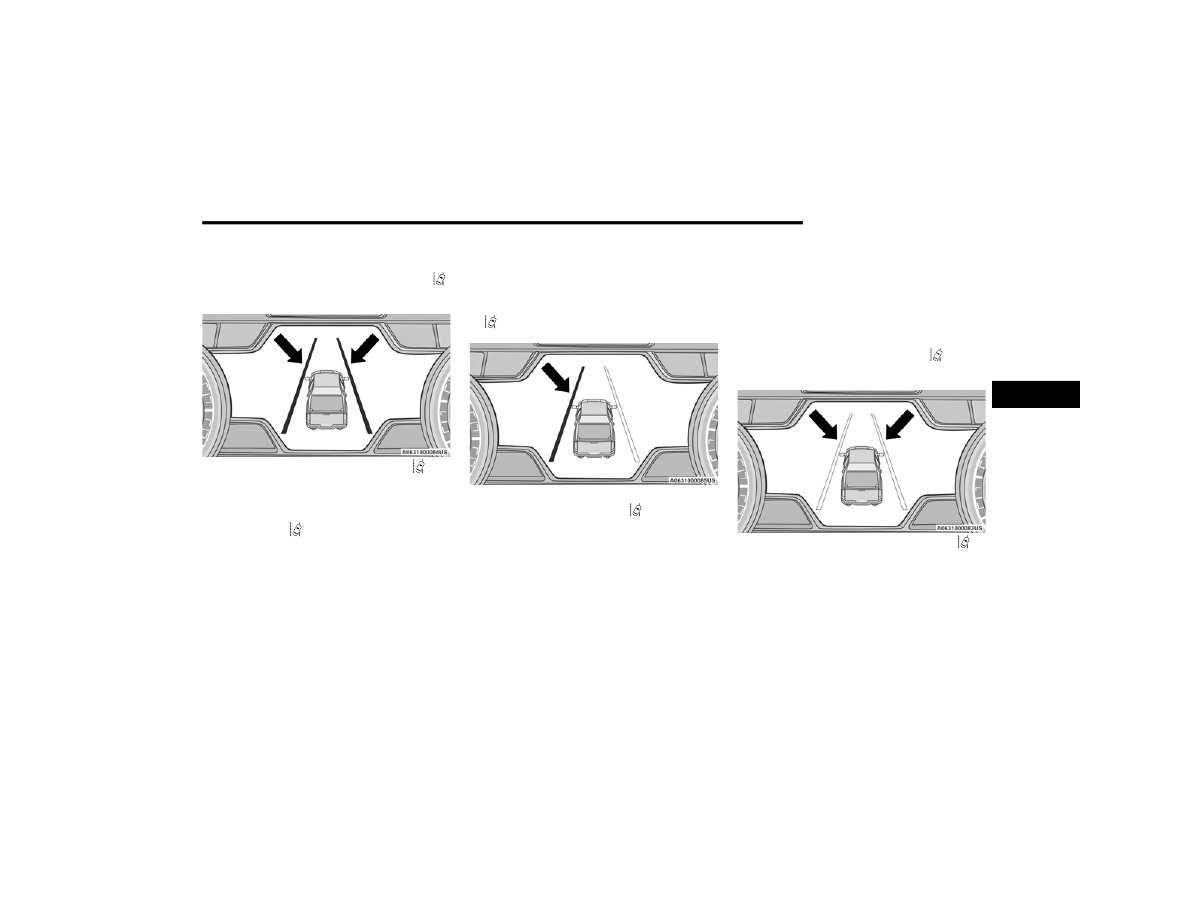

When the LaneSense system is on, the lane lines

are gray when both of the lane boundaries have
not been detected and the LaneSense telltale

is solid white.

System ON (Gray Lines) With White Telltale

Left Lane Departure — Only Left Lane Detected



When the LaneSense system is on, the Lane

Sense Telltale is solid white when only the

left lane marking has been detected and the

system is ready to provide visual warnings in the

instrument cluster display if an unintentional

lane departure occurs on the left side.



When the LaneSense system senses the lane

has been approached and is in a lane departure

situation, the visual warning in the instrument

cluster display will show the left lane line

flashing yellow (on/off). The LaneSense telltale

changes from solid white to flashing yellow.

Lane Approached (Flashing Yellow Lane Line)

With Yellow Telltale

NOTE:

The LaneSense system operates with similar

behavior for a right lane departure when only the

right lane marking has been detected.

Left Lane Departure — Both Lane Lines Detected



When the LaneSense system is on and both the

lane markings have been detected, the system

is "armed" to provide visual warnings in the

instrument cluster display and a torque warning

in the steering wheel if an unintentional lane

departure occurs. The lane lines turn from gray
to white and the LaneSense telltale is solid

green.

Lanes Sensed (White Lines) With Green Telltale

-------------------------------------------------------------------------------------------------------------------------------------------------------------

200

STARTING AND OPERATING



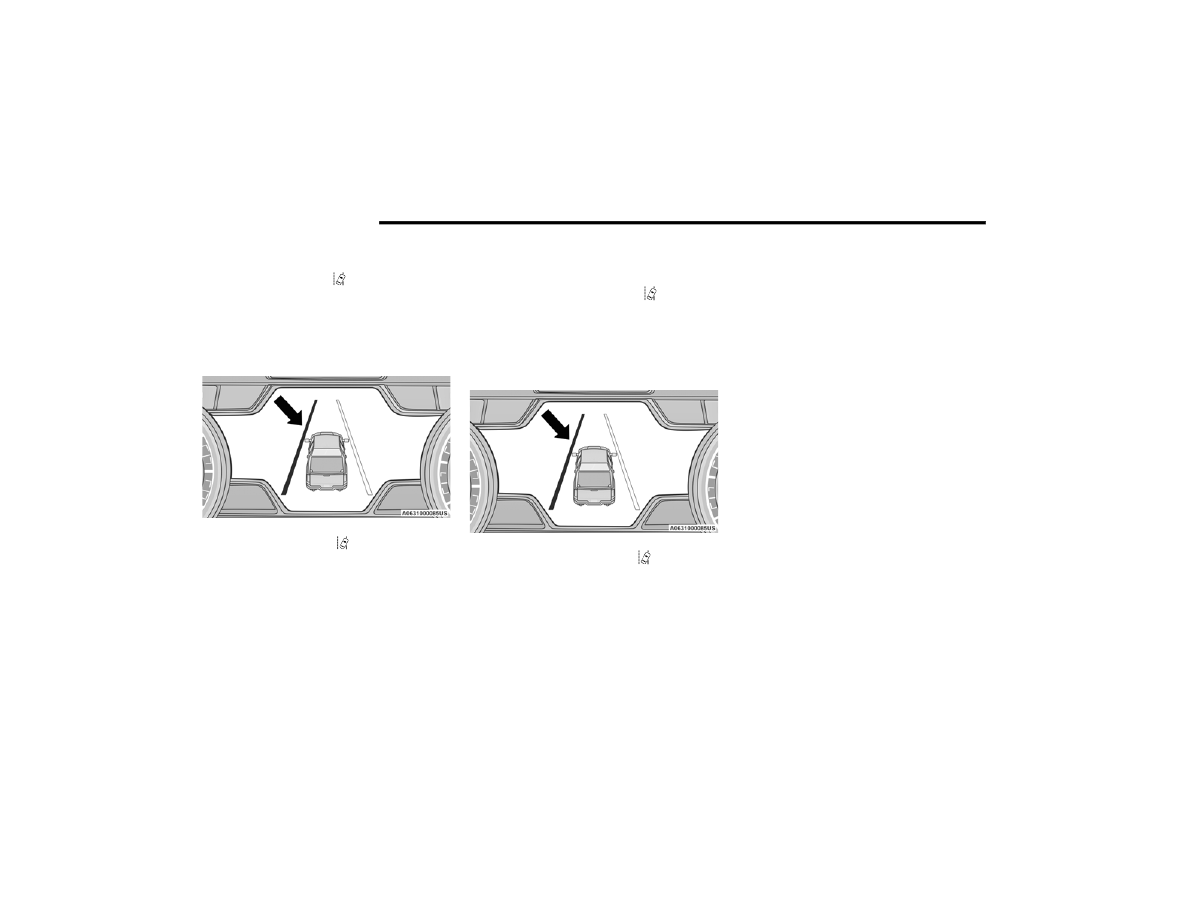

When the LaneSense system senses a lane drift

situation, the left lane line turns solid yellow.
The LaneSense telltale changes from solid

green to solid yellow. At this time torque is

applied to the steering wheel in the opposite

direction of the lane boundary.
For example: If approaching the left side of the

lane the steering wheel will turn to the right.

Lane Sensed (Solid Yellow Lane Line) With Solid Yellow

Telltale



When the LaneSense system senses the lane

has been approached and is in a lane departure

situation, the left lane line flashes yellow
(on/off). The LaneSense telltale changes

from solid yellow to flashing yellow. At this time

torque is applied to the steering wheel in the

opposite direction of the lane boundary.
For example: If approaching the left side of the

lane the steering wheel will turn to the right.

Lane Approached (Flashing Yellow Lane Line) With

Flashing Yellow Telltale

NOTE:

The LaneSense system operates with similar

behavior for a right lane departure.

HANGING

ANE

ENSE

TATUS

The LaneSense system has settings to adjust the

intensity of the torque warning and the warning

zone sensitivity (Early/Medium/Late) that you can

configure through the Uconnect system

page 237.

NOTE:



When enabled the system operates above

37 mph (60 km/h) and below 112 mph

(180 km/h).



The warnings are disabled with use of the turn

signal.



The system will not apply torque to the steering

wheel whenever a safety system engages

(Anti-Lock Brakes, Traction Control System,

Electronic Stability Control, Forward Collision

Warning, etc.).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND OPERATING

201

PARKVIEW REAR BACK UP CAMERA

The ParkView Rear Back Up Camera allows you to

see an on-screen image of the rear surroundings of

your vehicle whenever the gear selector is put into

REVERSE. The image will be displayed on the

Navigation/Multimedia radio display screen along

with a caution note to “Check Entire Surroundings”

across the top of the screen. After five seconds this

note will disappear. The ParkView Camera is

located in the center of the tailgate handle.

NOTE:

Removing the tailgate will disable the rearview

camera function.

Manual Activation Of The Rear View

Camera:

1. Press the Controls button located on the

bottom of the Uconnect display.

2. Press the Back Up Camera icon to turn the

Rear View Camera system on.

NOTE:

The ParkView Rear Back Up Camera has program

mable modes of operation that may be selected

through the Uconnect system

page 237.

When the vehicle is shifted out of REVERSE with

camera delay turned off, the rear camera mode is

exited and the previous screen appears. When the

vehicle is shifted out of REVERSE with camera

delay turned on, the camera image will continue to

be displayed for up to 10 seconds after shifting out

of REVERSE unless the following conditions occur:

The vehicle speed exceeds 8 mph (13 km/h), the

vehicle is shifted into PARK, the vehicle’s ignition is

placed in the OFF position, or the user presses

image defeat X to exit out of the camera video

display.
Whenever the Rear View Camera image is

activated through the Back Up Camera button in

the Controls menu, and the vehicle speed is

greater than, or equal to, 8 mph (13 km/h), a

display timer for the image is initiated. The image

will continue to be displayed until the display timer

exceeds 10 seconds.

NOTE:



If the vehicle speed remains below 8 mph

(13 km/h), the Rear View Camera image will be

displayed continuously until deactivated via the

touchscreen button X, the transmission is

shifted into PARK, or the ignition is placed in the

OFF position.



The touchscreen button X to disable display of

the camera image is made available ONLY when

the vehicle is not in REVERSE.

When enabled, active guidelines are overlaid on

the image to illustrate the width of the vehicle and

its projected back up path based on the steering

wheel position. A dashed centerline overlay

indicates the center of the vehicle to assist with

parking or aligning to a hitch/receiver. Different

colored zones indicate the distance to the rear of

the vehicle. The following table shows the

approximate distances for each zone:

Zones

Distance To The Rear

Of The Vehicle

Red

0 - 1 ft (0 - 30 cm)

Yellow

1 ft - 6.5 ft

(30 cm - 2 m)

Green

6.5 ft or greater

(2 m or greater)

WARNING!

Drivers must be careful when backing up even

when using the ParkView Rear Back Up Camera.

Always check carefully behind your vehicle, and

be sure to check for pedestrians, animals, other

vehicles, obstructions, or blind spots before

backing up. You are responsible for the safety of

your surroundings and must continue to pay

attention while backing up. Failure to do so can

result in serious injury or death.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

202

STARTING AND OPERATING

NOTE:

If snow, ice, mud, or any foreign substance builds

up on the camera lens, clean the lens, rinse with

water, and dry with a soft cloth. Do not cover the

lens.
Zoom View
When the Rear View Camera image is being

displayed, and the vehicle speed is below 8 mph

(13 km/h) while in any gear, Zoom View is

available. By pressing the “magnifying glass” icon

in the upper left of the display screen, the image

will zoom in to four times the standard view.

Pressing the icon a second time will return the view

to the standard Back Up Camera display.

When Zoom View is selected while the vehicle is in

REVERSE, then shifted to DRIVE, the camera delay

view will display the standard Back Up Camera

view. If the vehicle is then returned to REVERSE

gear from DRIVE, the Zoom View selection will

automatically resume.

NOTE:

The Zoom View button and AUX button (if

equipped) will not be available when the vehicle is

shifted into REVERSE and the Trailer Reverse

Steering Control (TRSC) feature (if equipped) is

activated.
Shifting to NEUTRAL from any gear will maintain

the selected view (Zoom or Standard) as long as

the vehicle is below 8 mph (13 km/h).
If the vehicle is in PARK, Zoom View is available

until the gear selector is placed in DRIVE or

REVERSE and speeds are at or above 8 mph

(13 km/h).

NOTE:



If the vehicle is in DRIVE, NEUTRAL, or REVERSE,

and speed is greater than or equal to 8 mph

(13 km/h), Zoom View is unavailable and the

icon will appear grey.



While in Zoom View, the guidelines will not be

visible.

For information on Auxiliary Cameras (if equipped),

see

page 208.

SURROUND VIEW CAMERA SYSTEM —

IF EQUIPPED

The Surround View Camera system allows you to

see an on-screen image of the surroundings and

the Top View of your vehicle. This occurs whenever

the gear selector is in REVERSE or when enabled

through the Uconnect system. The Top View of the

vehicle will also show if any doors are open. The

image will be displayed on the touchscreen along

with a caution note “Check Entire Surroundings”.

After five seconds, this note will disappear. The

Surround View Camera system is comprised of four

cameras located in the front grille, rear tailgate

and side mirrors.

NOTE:



Removing the tailgate will disable the rearview

camera function.



The Surround View Camera system has

programmable settings that may be selected

through the Uconnect system

page 237.

Press this button on the touchscreen to

enter the Surround View Camera menu in

the Uconnect system.

CAUTION!



To avoid vehicle damage, ParkView should

only be used as a parking aid. The ParkView

camera is unable to view every obstacle or

object in your drive path.



To avoid vehicle damage, the vehicle must be

driven slowly when using ParkView to be able

to stop in time when an obstacle is seen. It is

recommended that the driver look frequently

over his/her shoulder when using ParkView.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

RAM 1500 (2022 year). Manual in english - page 12
