DTC Troubleshooting (cont’d)

SRS UNIT CONNECTOR B (18P)

18. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

19. Disconnect both side airbag connectors (A) and

both seat belt buckle tensioner 4P connectors (B).

20. Disconnect SRS unit connector B (18P) from the

SRS unit.

21. Check resistance between the No. 3 terminal of

SRS unit connector B (18P) and body ground. There
should be an open circuit or at least 1 M

Go to step 22.

Short to ground in the floor wire harness, seat

subharness (with BOSE sound system), or in the
OPDS unit harness; replace the faulty harness.

Wire side of female terminals

Is the r esistance as specif ied?

05/06/27 18:11:04 61S6M040_230_0112

−

＊０４

＊０５

０８

＊０６

−

’02-04 models

’05-06 models

YES

23-113

SRS UNIT CONNECTOR B (18P)

OPDS UNIT 8P CONNECTOR D

BLU

SRS UNIT CONNECTOR B (18P)

OPDS UNIT 8P CONNECTOR D

ORN/BLU

SRS UNIT CONNECTOR B (18P)

22. Check resistance between the No. 3 terminal of

SRS unit connector B (18P) and the No. 7 terminal
of the OPDS unit 8P connector D. There should be
0

1.0

Go to step 23.

Open in floor wire harness, seat subharness

(with BOSE sound system), or in the OPDS unit
harness; replace the faulty harness.

23. Disconnect dashboard wire harness 2P connector S

from the under-dash fuse/relay box.

24. Reconnect the negative battery cable.

25. Turn the ignition switch ON (II).

26. Check for voltage between the No. 3 terminal of

SRS unit connector B (18P) and body ground. There
should be 0.5 V or less.

Go to step 27.

Short to power in the floor wire harness, in

the OPDS unit harness, or seat subharness (with
BOSE sound system); replace the faulty harness.

(cont’d)

Wire side of female terminals

Is the r esistance as specif ied?

Is the voltage as specif ied?

05/06/27 18:11:05 61S6M040_230_0113

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１１５２ＦＡＡＴ００

−

YES

DTC 15-2:

23-114

SRS

DTC Troubleshooting (cont’d)

27. Replace the OPDS unit (see page 23-143), then

initialize the system (see page 23-24).

28. Erase the DTC memory, then check for DTC 15-1.

Replace the OPDS sensor/seat-back

(see page 20-79). If the problem is still present,
replace the SRS unit (see page 23-141).

The system is OK.

1. Make sure nothing is on the front passenger’s seat.

2. Erase the DTC memory (see page 23-23).

3. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Turn the ignition switch OFF, and go to step 4.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

NOTE: This DTC may have been caused by turning
the ignition switch ON (II) with the gauge assembly
disconnected.

4. Turn the ignition switch ON (II), and check that the

side airbag cutoff indicator comes on.

Go to step 5.

Go to step 6.

5. Make sure the side airbag cutoff indicator goes off

after 5 seconds.

Faulty OPDS unit or SRS unit; replace the

OPDS unit (see page 23-143). If the problem is still
present, replace the SRS unit (see page 23-141).

Go to step 32.

6. Turn the ignition switch OFF.

Faulty Side Airbag Cutoff Indicator

Circuit

Is DT C 15-1 indicated?

Does the SRS indicator stay on?

Does the side air bag cutof f indicator come on?

Does the side air bag cutof f indicator go of f af ter
5 seconds?

05/06/27 18:11:05 61S6M040_230_0114

０１

０２

＊０１

−

YES

’02-04 models

’05-06 models

YES

23-115

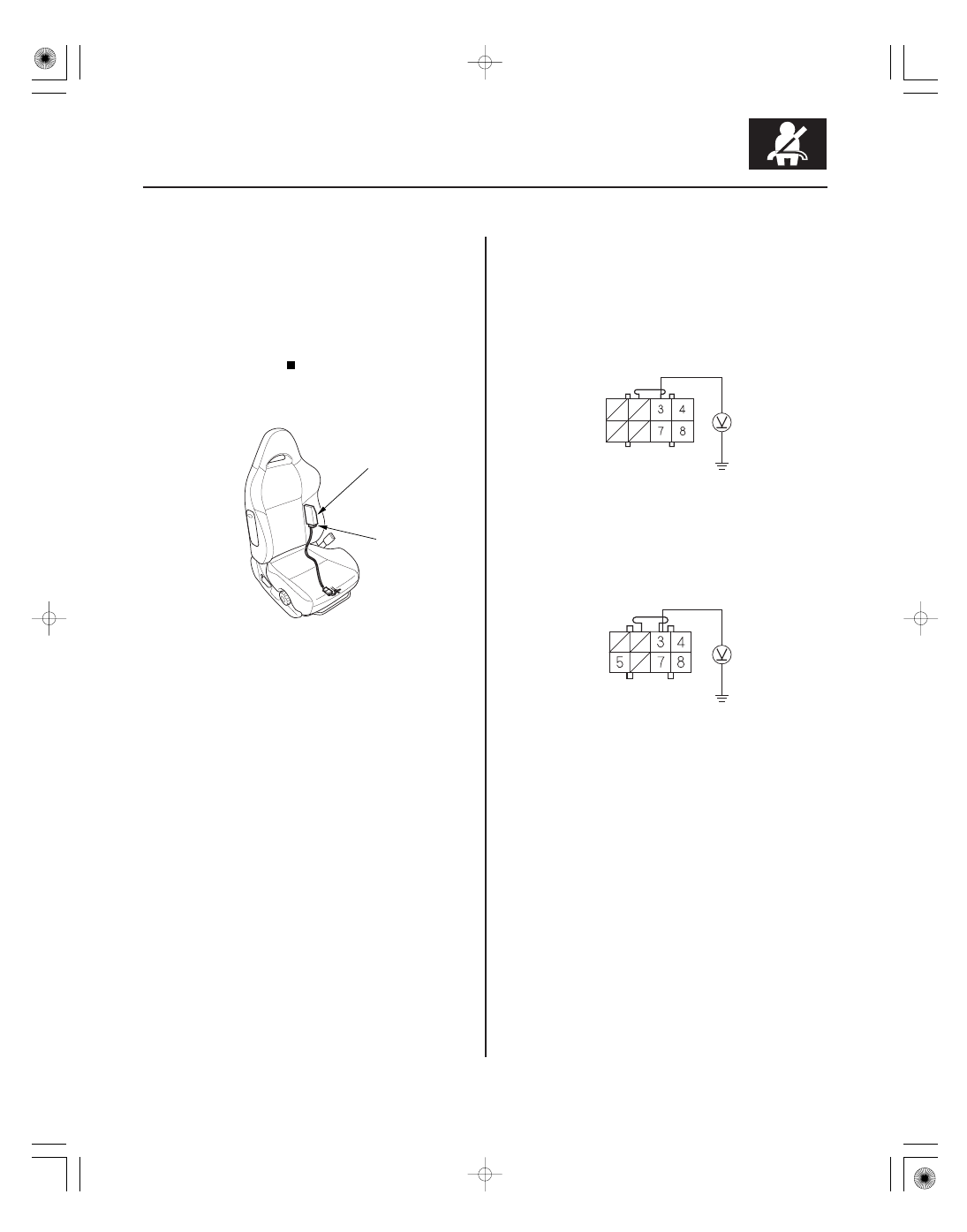

OPDS UNIT 8P CONNECTOR D

GRN

OPDS UNIT 8P CONNECTOR D

ORN

7. Check the No. 10 (7.5 A) fuse in the under-dash

fuse/relay box.

Go to step 8.

Repair the short to ground in the No. 10

(7.5 A) fuse circuit.

8. Disconnect the OPDS unit 8P connector D from the

OPDS unit (A) (see page 23-143).

9. Turn the ignition switch ON (II).

10. Check for voltage between the No. 3 terminal of the

OPDS unit 8P connector D and body ground. There
should be battery voltage.

Go to step 11.

Go to step 23.

(cont’d)

Wire side of female terminals

Is the f use OK ?

Is ther e batter y voltage?
