Acura RSX Honda Integra. Manual - part 493

０１

０２

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１１３３ＦＡＡＴ００

−

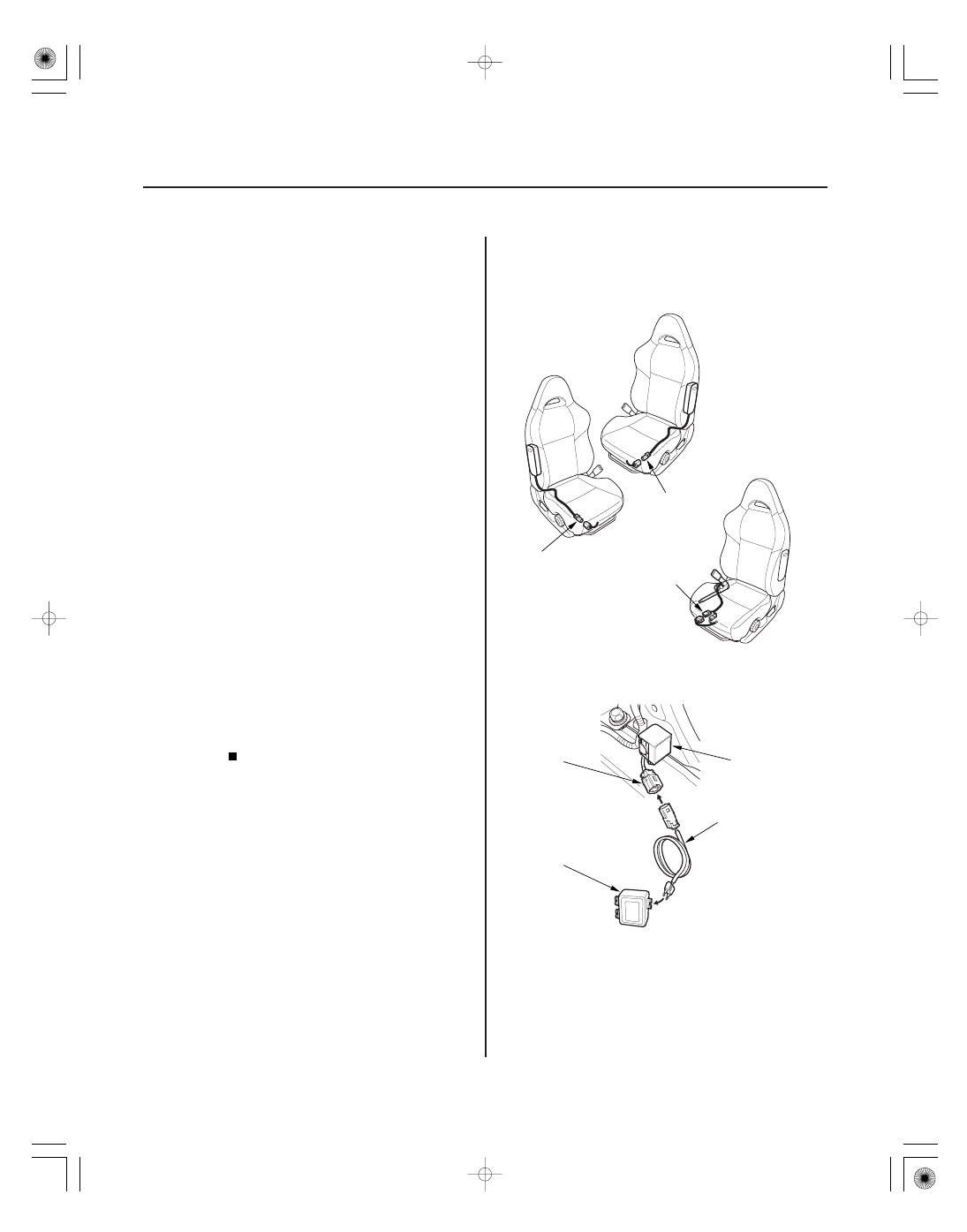

DTC 13-3:

Special Tools Required

YES

23-104

SRS

DTC Troubleshooting (cont’d)

07YAZ-S3AA100

07SAZ-TB4011A

No Signal from the Driver’s Side

Impact Sensor

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead H 07YAZ-S3AA100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Check the connection between the floor wire

harness 2P connector and the driver’s side impact
sensor.

Go to step 5.

Replace the driver’s side impact sensor

and/or the floor harness, as needed (see page
23-142).

5. Disconnect the driver’s side airbag and front

passenger’s side airbag 2P connectors (A), and
disconnect both seat belt buckle tensioner 4P
connectors (B).

6. Disconnect the floor wire harness 2P connector (A)

from the driver’s side impact sensor (B).

7. Connect the SRS inflator simulator (jumper

connector) and the simulator lead H to the floor
wire harness 2P connector.

Does the SRS indicator stay on?

Is the connection OK ?

05/06/27 18:11:02 61S6M040_230_0104

−

０１

＊０１

０１

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１１３４ＦＡＡＴ００

−

YES

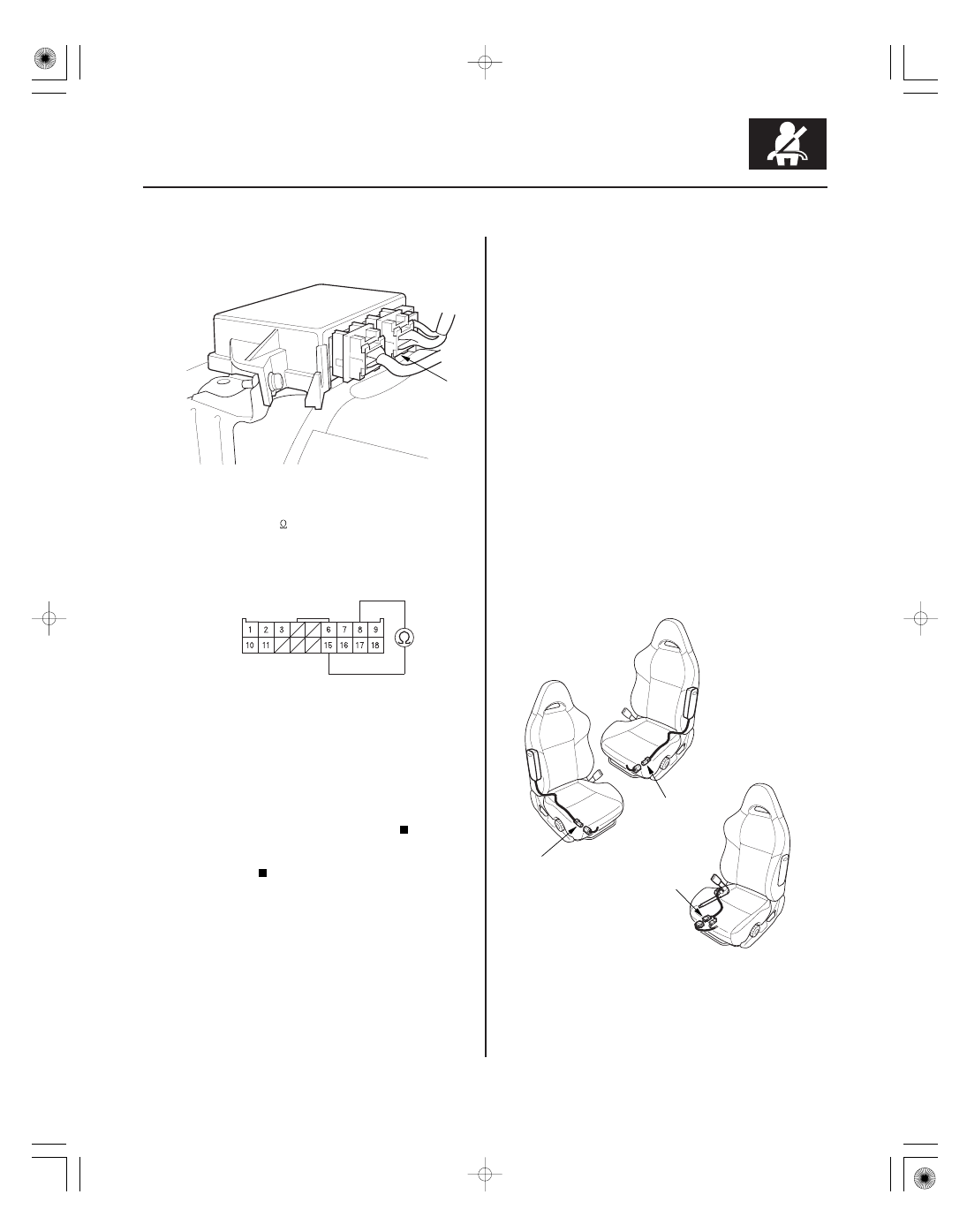

DTC 13-4:

23-105

SRS UNIT CONNECTOR B (18P)

8. Disconnect SRS unit connector B (18P) from the

SRS unit.

9. Check resistance between the No. 8 and No. 15

terminals of SRS unit connector B (18P). There
should be 0

1.0

Faulty driver’s side impact sensor or SRS

unit; replace the driver’s side impact sensor
(see page 23-142). If the problem is still present,
replace the SRS unit (see page 23-141).

Open in floor wire harness; replace the floor

wire harness.

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the driver’s side airbag and front

passenger’s side airbag 2P connectors (A), and
disconnect both seat belt buckle tensioner 4P
connectors (B).

(cont’d)

Faulty Power Supply to the Driver’s

Side Impact Sensor

Wire side of female terminals

Is the r esistance as specif ied?

Does the SRS indicator stay on?

05/06/27 18:11:02 61S6M040_230_0105

０２

０１

＊０１

＊０２

−

YES

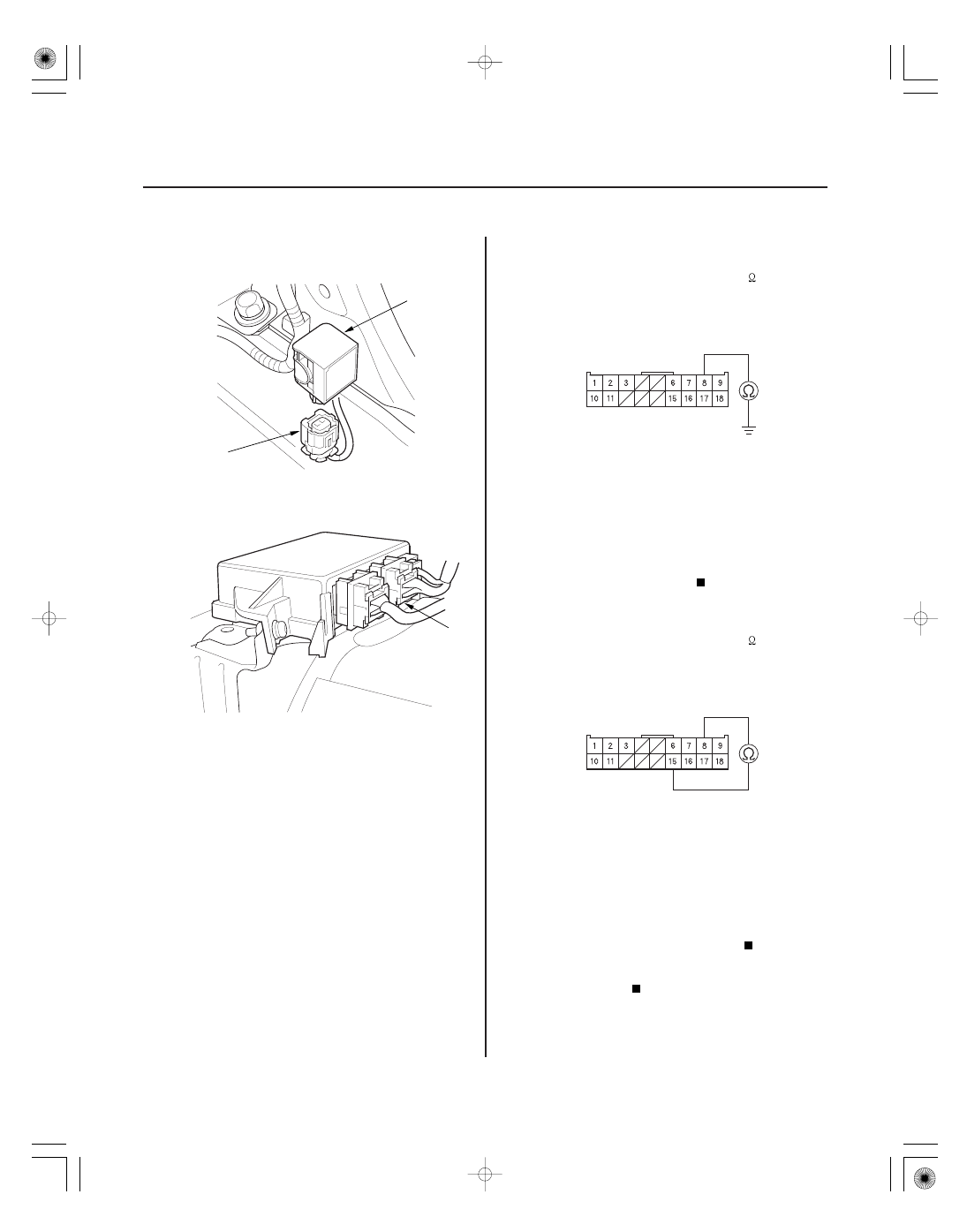

23-106

SRS

DTC Troubleshooting (cont’d)

SRS UNIT CONNECTOR B (18P)

5. Disconnect the floor wire harness 2P connector (A)

from the driver’s side impact sensor (B).

6. Disconnect SRS unit connector B (18P) from the

SRS unit.

7. Check resistance between the No. 8 terminal of

SRS unit connector B (18P) and body ground. There
should be an open circuit or at least 1 M

Go to step 8.

Short to ground in the floor wire harness;

replace the floor wire harness.

8. Check resistance between the No. 8 and No. 15

terminals of SRS unit connector B (18P). There
should be an open circuit or at least 1 M

Faulty driver’s side impact sensor or SRS

unit; replace the driver’s side impact sensor
(see page 23-142). If the problem is still present,
replace the SRS unit (see page 23-141).

Short in the floor wire harness; replace the

floor wire harness.

Wire side of female terminals

Is the r esistance as specif ied?

05/06/27 18:11:02 61S6M040_230_0106

０１

０２

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１１４３ＦＡＡＴ００

−

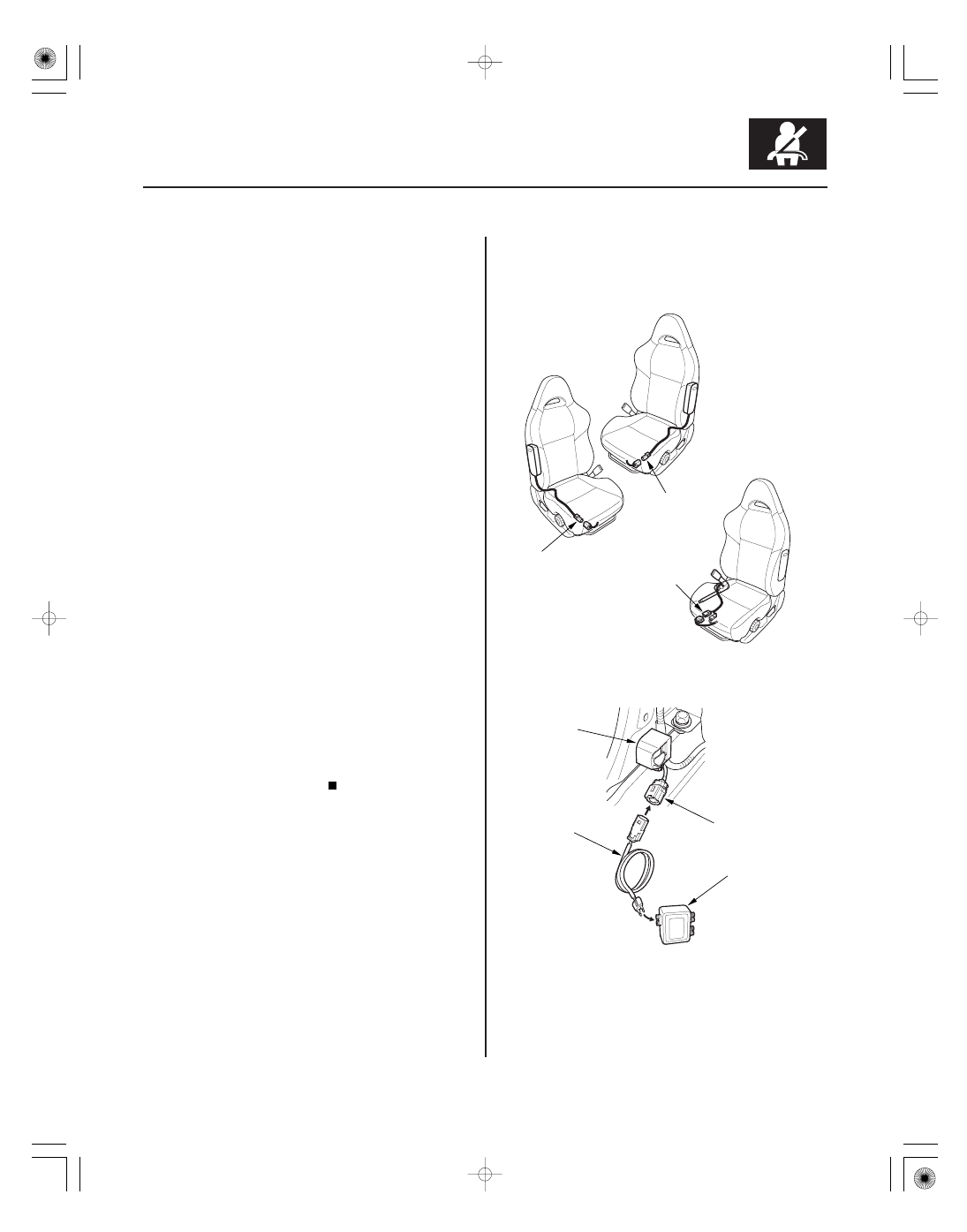

DTC 14-3:

Special Tools Required

YES

23-107

07YAZ-S3AA100

07SAZ-TB4011A

No Signal from the Front

Passenger’s Side Impact Sensor

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead H 07YAZ-S3AA100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Check the connection between the floor wire

harness 2P connector and the front passenger’s
side impact sensor.

Go to step 5.

Poor connection between the floor wire

harness 2P connector and the front passenger’s
side impact sensor; replace the front passenger’s
side impact sensor and/or the floor harness, as
needed (see page 23-142).

5. Disconnect the driver’s side airbag and front

passenger’s side airbag 2P connectors (A), and
disconnect both seat belt buckle tensioner 4P
connectors (B).

6. Disconnect the floor wire harness 2P connector (A)

from the front passenger’s side impact sensor (B).

7. Connect the SRS inflator simulator (jumper

connector) and the simulator lead H to the floor
wire harness 2P connector.

(cont’d)

Does the SRS indicator stay on?

Is the connection OK ?

05/06/27 18:11:03 61S6M040_230_0107
