Acura RSX Honda Integra. Manual - part 21





16

17

Overrunning Clutch Inspection (K20A2, K20Z1 Engines)

Starter Reassembly (K20A3 Engine)

4-20

Starting System

Starter Overhaul (cont’d)

B

A

A

E

F

D

C

B

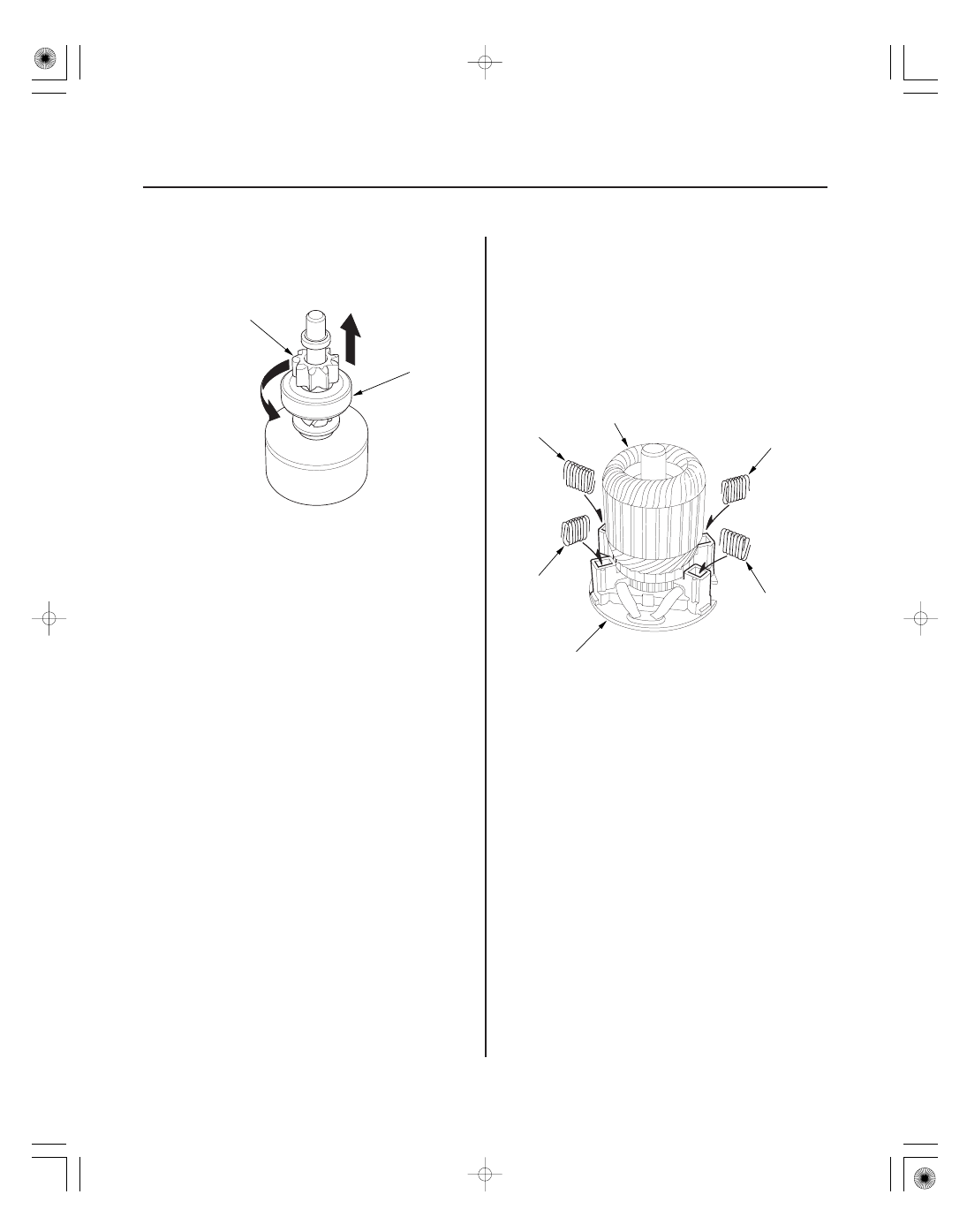

20. Slide the overrunning clutch (A) along the shaft.

Replace it if it does not slide smoothly.

21. Hold the overrunning clutch, and turn the drive

gear (B) in the direction shown to be sure it turns
freely. Also make sure the drive gear locks in the
opposite direction. If it does not lock in either
direction or it locks in both directions, replace it.

22. If the starter drive gear is worn or damaged,

replace the overrunning clutch assembly; the gear
is not available separately.
Check the condition of the flywheel ring gear.
Replace it if the starter drive gear teeth are
damaged.

23. Install the brush into the brush holder, and set the

armature (A) in the brush holder (B).

NOTE: To seat the new brushes, slip a strip of

500

or

600 sandpaper, with the grit side up, between

the commutator and each brush, and smoothly
rotate the armature. The contact surface of the
brushes will be sanded to the same contour as the
commutator.

24. Squeezing a spring (C), insert it in the hole on the

brush holder, and push it until it bottoms. Repeat
this for the other three springs (D, E, and F).

25. Install the armature and brush holder assembly

into the housing.

NOTE: Make sure the armature stays in the holder.

18

19

Starter Reassembly (K20A2, K20Z1 Engines)

4-21

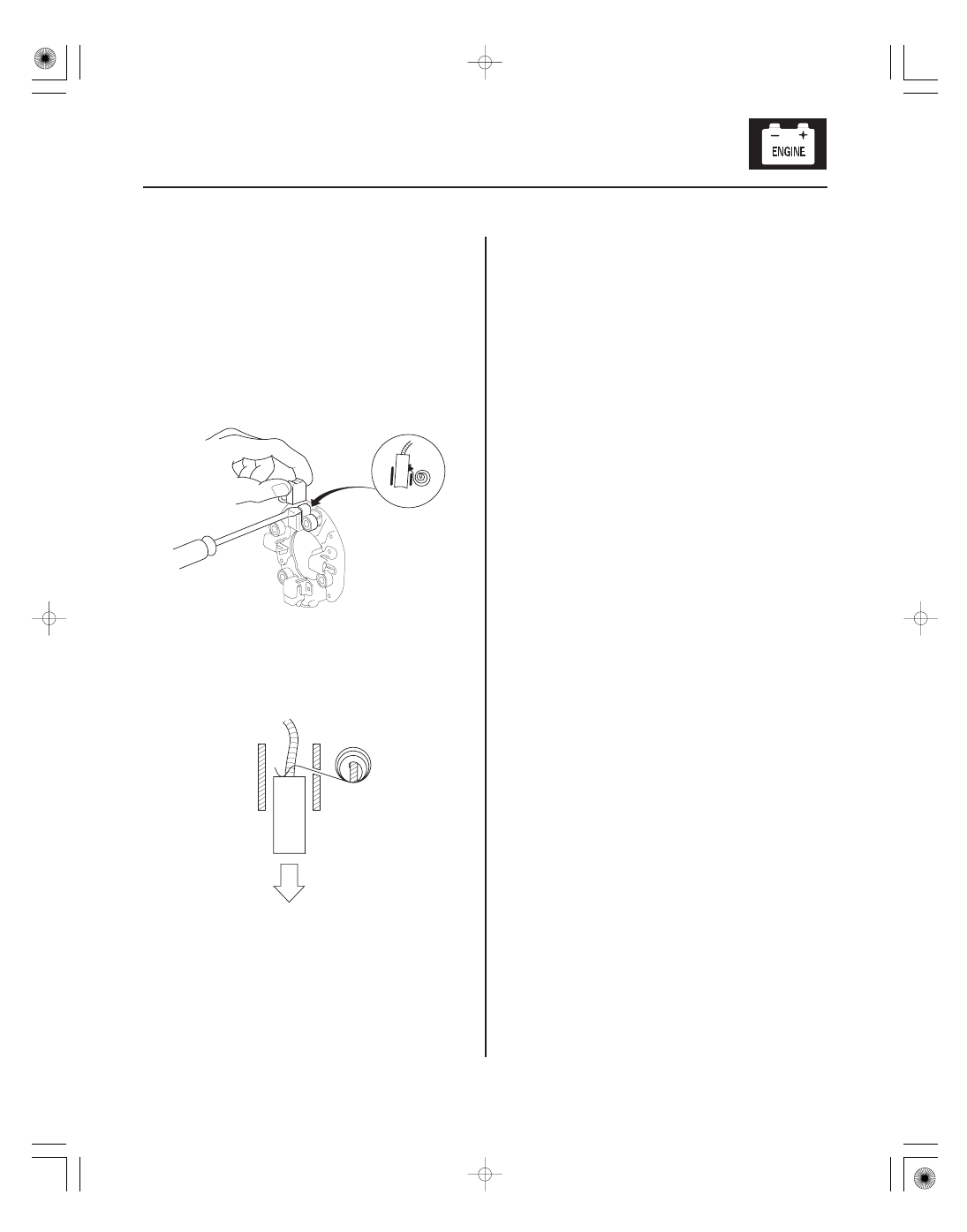

26. Pry back each brush spring with a screwdriver, then

position the brush about halfway out of its holder,
and release the spring to hold it there.

NOTE: To seat the new brushes, slip a strip of

500

or

600 sandpaper, with the grit side up, between

the commutator and each brush, and smoothly
rotate the armature. The contact surface of the
brushes will be sanded to the same contour as the
commutator.

27. Install the armature in the housing, and install the

brush holder. Next, pry back each brush spring
again, and push the brush down until it seats
against the commutator, then release the spring
against the end of the brush.

28. Install the starter end cover to retain the brush

holder.

*01

*02

S6M6A00A26100000000DAAT00

4-22

Ignition System

Component Location Index

IGNITION COIL RELAY

UNDER-DASH
FUSE/RELAY BOX

SPARK PLUG

IGNITION COIL

Inspection, page 4-28

Ignition Timing Inspection, page 4-25
Removal/Installation, page 4-26

*01

S6M6AZFA26100000000EAAT00

2002-2004 Models

4-23

Circuit Diagram

No. 20*

WHT

BATTERY

UNDER-HOOD FUSE/RELAY BOX

No. 19 (100 A)

IGNITION SWITCH

BAT

IG1

BLK/YEL

BLK/WHT

YEL/GRN

BLK/WHT

BLK

No. 1

BLK

BLK/WHT

BLU/RED

No. 2

No. 4

BRN

BLK/WHT

ICM

BLK

BLK

BLK/WHT

WHT/BLU

No. 3

ICM: Ignition Control Module

ECM/PCM

G101

ICM

ICM

ICM

1

3

2

IG1 HOT in ON (II)
andSTART (III)

UNDER-DASH
FUSE/RELAY
BOX

No. 1
(15 A)

IGNITION
COILS

SPARK
PLUGS

IGPLS4

IGPLS3

IGPLS2

IGPLS1

5V

* No. 20 (40 A): USA model

No. 20 (50 A): Canada model
