Acura RSX Honda Integra. Manual - part 19
＊０１
＊０２
０４
０１
K20A3 engine
K20A2, K20Z1 engines
K20A3 engine
K20A2, K20Z1 engines
Installation
4-12

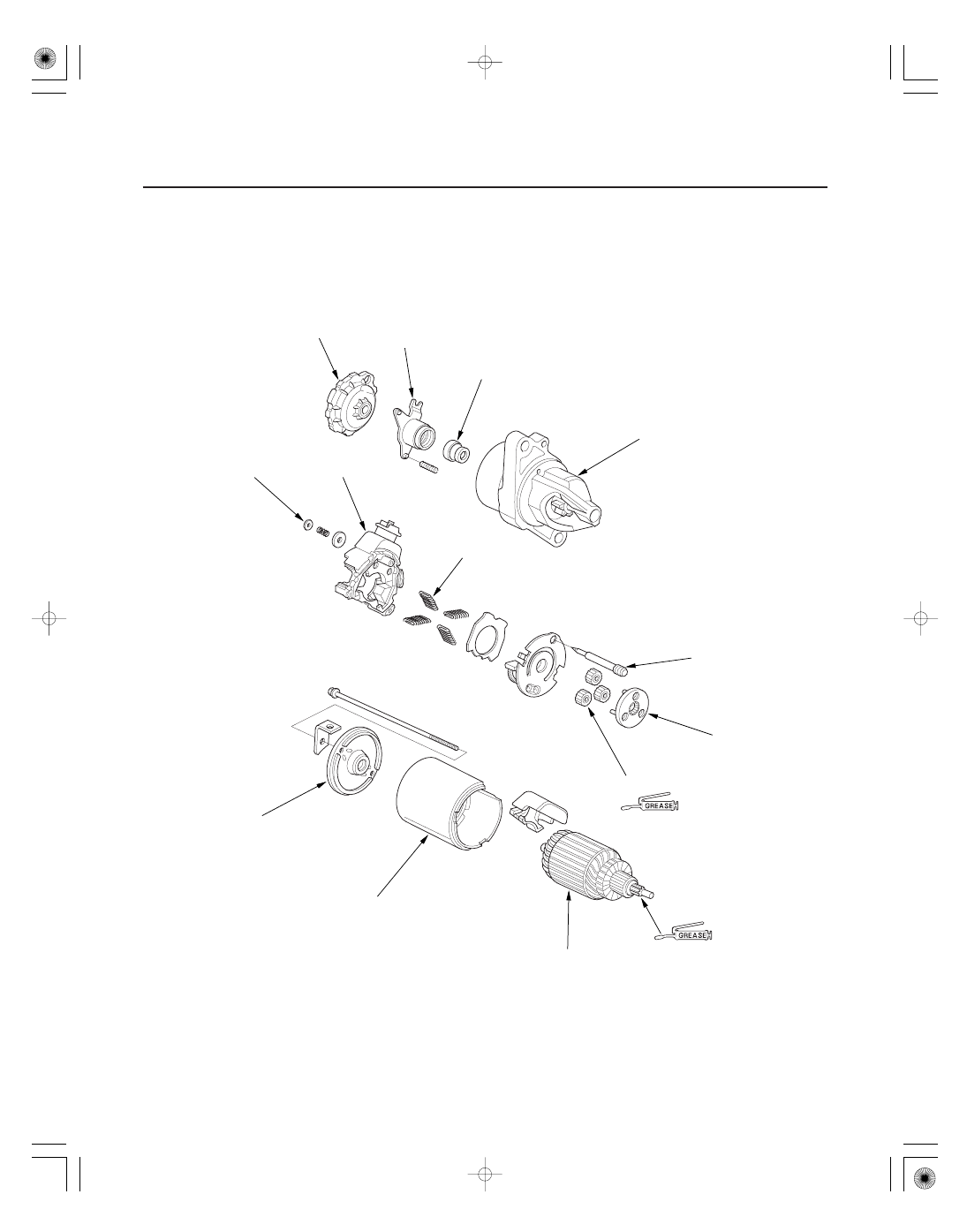

Starting System
Starter Removal and Installation (cont’d)
A
B
A
B
8 x 1.25 mm
9 N·m (0.9 kgf·m, 7 lbf·ft)
10 x 1.25 mm
44 N·m
(4.5 kgf·m,
33 lbf·ft)
12 x 1.25 mm
64 N·m (6.5 kgf·m, 47 lbf·ft)
A
B
A
10 x 1.25 mm
44 N·m (4.5 kgf·m, 33 lbf·ft)
B
8 x 1.25 mm
9 N·m
(0.9 kgf·m, 7 lbf·ft)
12 x 1.25 mm
64 N·m
(6.5 kgf·m, 47 lbf·ft)
Disconnect the starter cable (A) from the B terminal
on the solenoid, then disconnect the BLK/WHT wire
(B) from the S terminal.
Remove the two bolts holding the starter, then
remove the starter.
1. Install the two bolts holding the starter.
2. Connect the starter cable (A) from the B terminal on
the solenoid, then connect the BLK/WHT wire (B)
from the S terminal. Make sure the crimped side of
the ring terminal is facing out.
8.
9.
