Troubleshooting

Tips and Precautions (cont'd)

• Insert the connector all the way and make sure it is

securely locked.

• Position wires so that the open end of the cover faces

down.

Face
open end
down

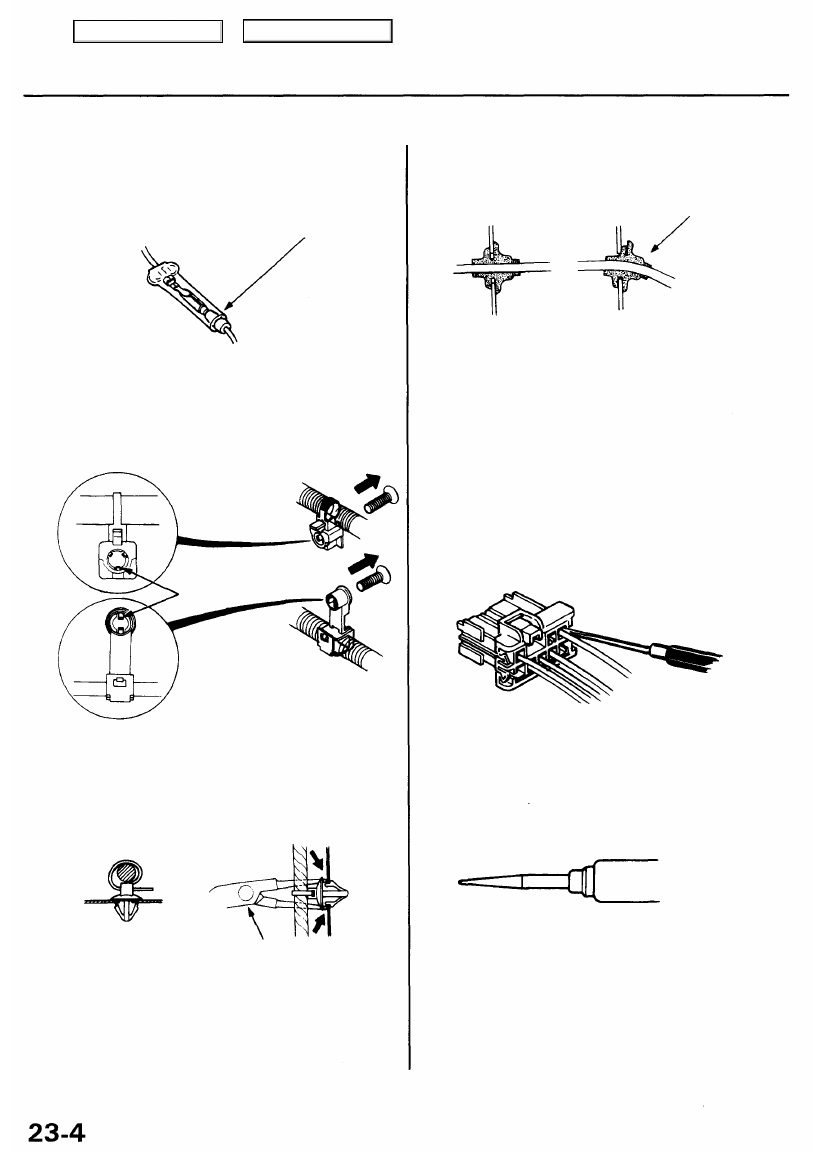

Handling Wires and Harnesses

• Secure wires and wire harnesses to the frame with

their respective wire ties at the designated locations.

• Remove clips carefully; don't damage their locks.

EXPANSION
CLIP LOCKS

Slip pliers under the clip base and through the hole at
an angle, then squeeze the expansion tabs to release the
clip.

SNAP-RING PLIERS

• After installing harness clips, make sure the harness

doesn't interfere with any moving parts.

• Keep wire harnesses away from exhaust pipes and

other hot parts, from sharp edges of brackets and
holes, and from exposed screws and bolts.

• Refer to the instructions in the Honda Terminal Kit for

identification and replacement of connector

terminals.

• Use a probe with a tapered tip.

• Seat grommets in their grooves properly.

NOT GOOD

Testing and Repairs

• Do not use wires or harnesses with broken insulation.

Replace them or repair them by wrapping the break

with electrical tape.

• After installing parts, make sure that no wires are

pinched under them.

• When using electrical test equipment, follow the

manufacturer's instructions and those described in

this manual.

• If possible, insert the probe of the tester from the

wire side (except waterproof connector).

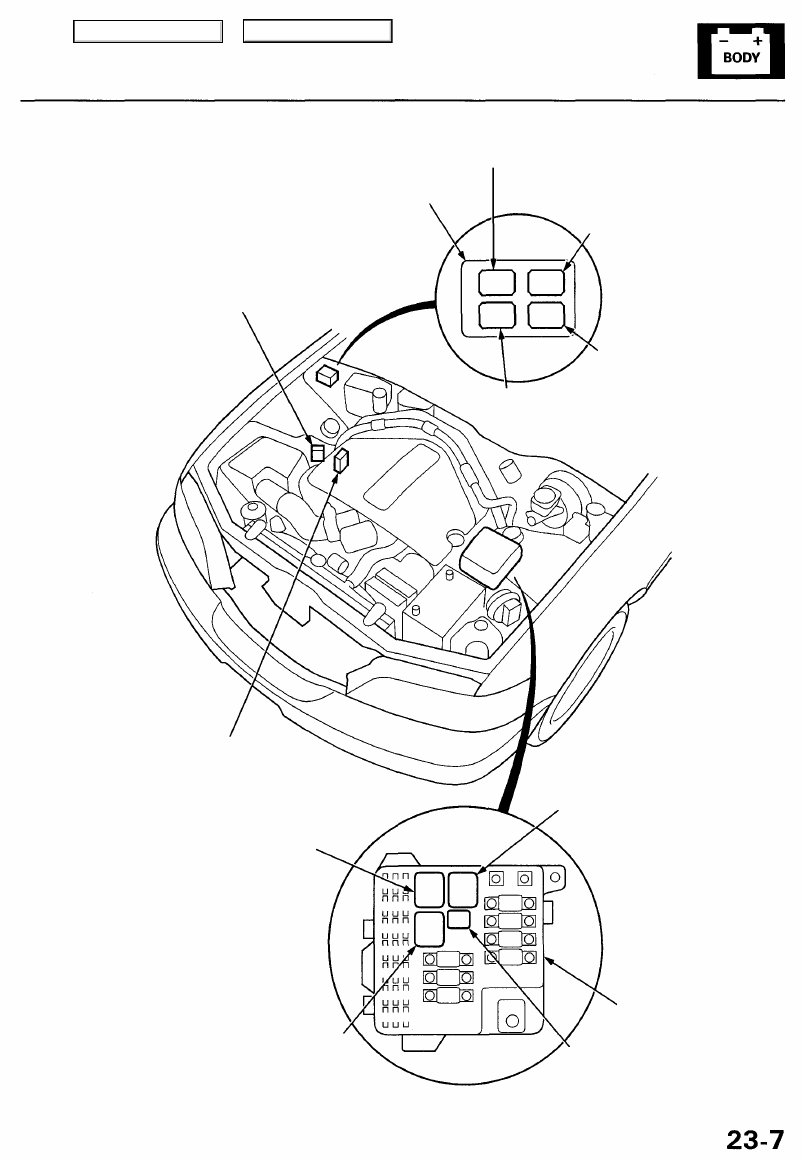

Main Menu

Table of Contents

Five-step Troubleshooting

1. Verify The Complaint

Turn on all the components in the problem circuit to
verify the customer complaint. Note the symptoms.

Do not begin disassembly or testing until you have
narrowed down the problem area.

2. Analyze The Schematic

Look up the schematic for the problem circuit.
Determine how the circuit is supposed to work by

tracing the current paths from the power feed
through the circuit components to ground. If several

circuits fail at the same time, the fuse or ground is a

likely cause.

Based on the symptoms and your understanding of

the circuit operation, identify one or more possible
causes of the problem.

3. Isolate The Problem By Testing The Circuit

Make circuit tests to check the diagnosis you made
in step 2. Keep in mind that a logical, simple
procedure is the key to efficient troubleshooting.

Test for the most likely cause of failure first. Try to

make tests at points that are easily accessible.

4. Fix The Problem

Once the specific problem is identified, make the

repair. Be sure to use proper tools and safe
procedures.

5. Make Sure The Circuit Works

Turn on all components in the repaired circuit in all

modes to make sure you've fixed the entire
problem. If the problem was a blown fuse, be sure

to test all of the circuits on the fuse. Make sure no

new problems turn up and the original problem

does not recur.

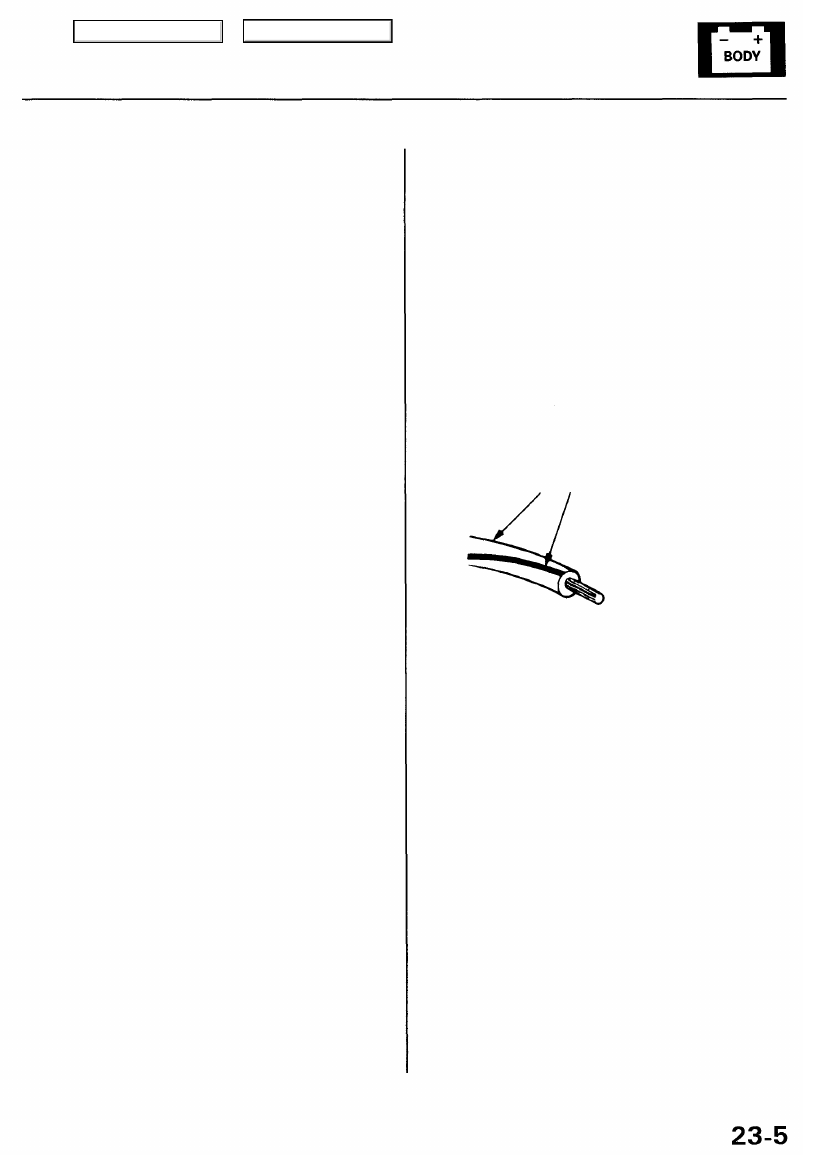

Wire Color Codes

The following abbreviations are used to identify wire
colors in the circuit schematics:

WHT .............................White
YEL............................... Yellow

BLK .............................. Black
BLU .............................. Blue
GRN ............................. Green
RED .............................. Red
ORN ............................. Orange
PNK .............................. Pink

BRN .............................. Brown
GRY.............................. Gray
PUR .............................. Purple
LT BLU ......................... Light Blue
LT GRN ........................ Light Green

The wire insulation has one color or one color with
another color stripe. The second color is the stripe.

WHT/BLK

Main Menu

Table of Contents

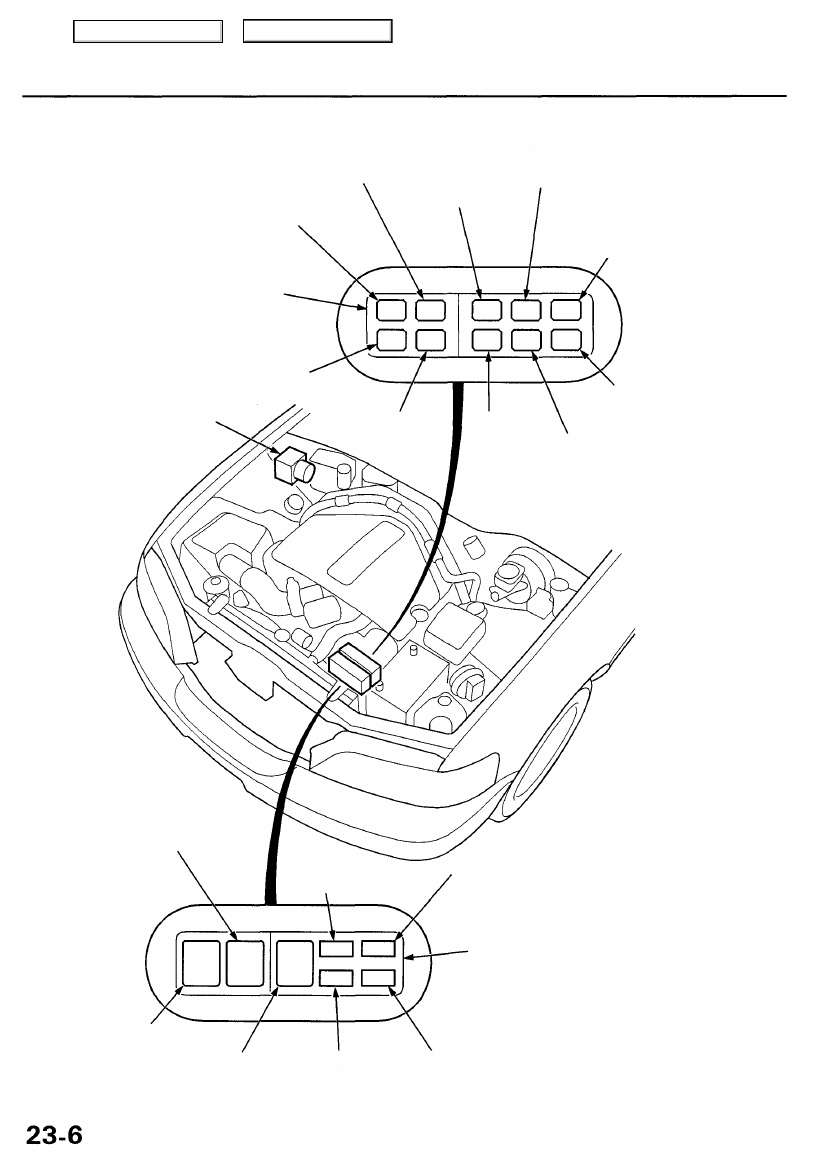

Relay and Control Unit Locations

Engine Compartment

TCS FAIL-SAFE RELAY
('96-99 models)

• FRONT SEAT HEATER

RELAY ('98 model)

• ACCESSORY POWER

SOCKET RELAY

('99-01 models)

UNDER-HOOD RELAY
BOX C

RADIATOR FAN
RELAY

VSA MODULATOR UNIT

('00 - 01 models)

• POWER WINDOW

MASTER SWITCH
RELAY
('96-97 models)

• TAILLIGHT RELAY

('99-01 models)

WINDSHIELD WIPER

MOTOR RELAY

- ABS REAR FAIL-SAFE

RELAY
('96-97 models)

• HORN RELAY

('98-01 models)

FRONT FOG LIGHT
RELAY

• ABS FRONT FAIL-SAFE

RELAY ('96-97 models)

• ABS FAIL-SAFE RELAY

('98-99 models)

GAUGE RELAY

A/T REVERSE

RELAY

REAR WINDOW
DEFOGGER RELAY

WINDSHIELD WIPER
INTERMITTENT
RELAY

RADIATOR FAN
MAIN RELAY

CONDENSER FAN
RELAY

A/C COMPRESSOR
CLUTCH RELAY

• LOW BEAM CUT RELAY

(Canada: '96 - 98 models)

• SECURITY HORN RELAY

(USA: '99-01 models)

• LOW BEAM CUT RELAY

(Canada: '00-01 models)

UNDER-HOOD RELAY
BOX A

Main Menu

Table of Contents

IGNITION CONTROL
MODULE (ICM)

UNDER-HOOD RELAY
BOX B

DRIVER'S POWER WINDOW MOTOR RELAY B
('98-01 models)

• HORN RELAY

('96-97 models)

• POWER WINDOW MASTER SWITCH

RELAY ('98-01 models)

CIGARETTE LIGHTER RELAY

• FRONT SEAT HEATER RELAY

('96-97 models)

• DRIVER'S POWER WINDOW MOTOR RELAY A

('98-01 models)

SPARK PLUG VOLTAGE
DETECTION MODULE

DIMMER RELAY

• ABS PUMP MOTOR RELAY

('96-99 models)

• VSA FAIL-SAFE RELAY

('00-01 models)

• HEADLIGHT RELAY

('96-98 models)

• HEADLIGHT

LOW BEAM RELAY
('99-01 models)

TAILLIGHT RELAY

('96 - 98 models)

• HEADLIGHT HIGH BEAM RELAY

('99-01 models)

UNDER-HOOD
FUSE/RELAY
BOX

Main Menu

Table of Contents
