203-16
2004 American Honda Motor Co., Inc.

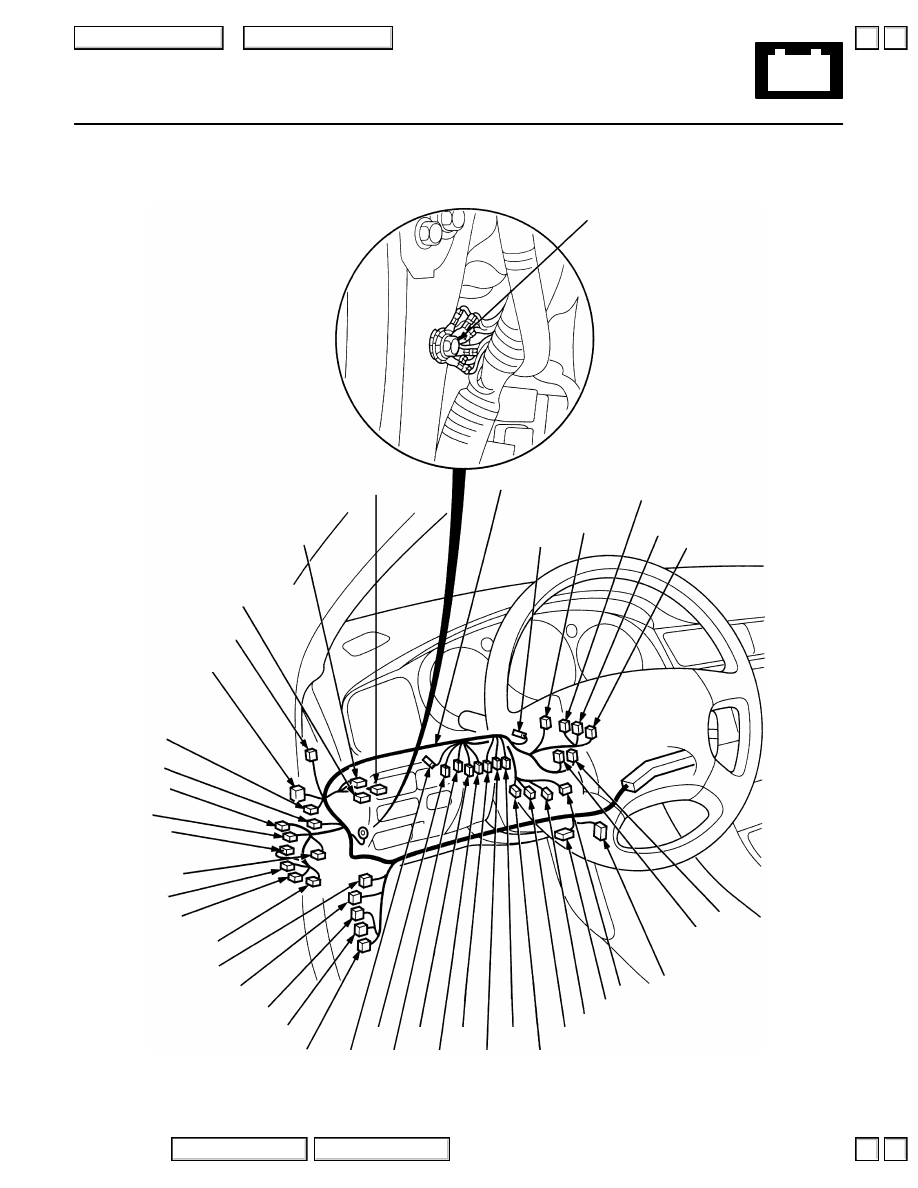

Connector to Harness Index

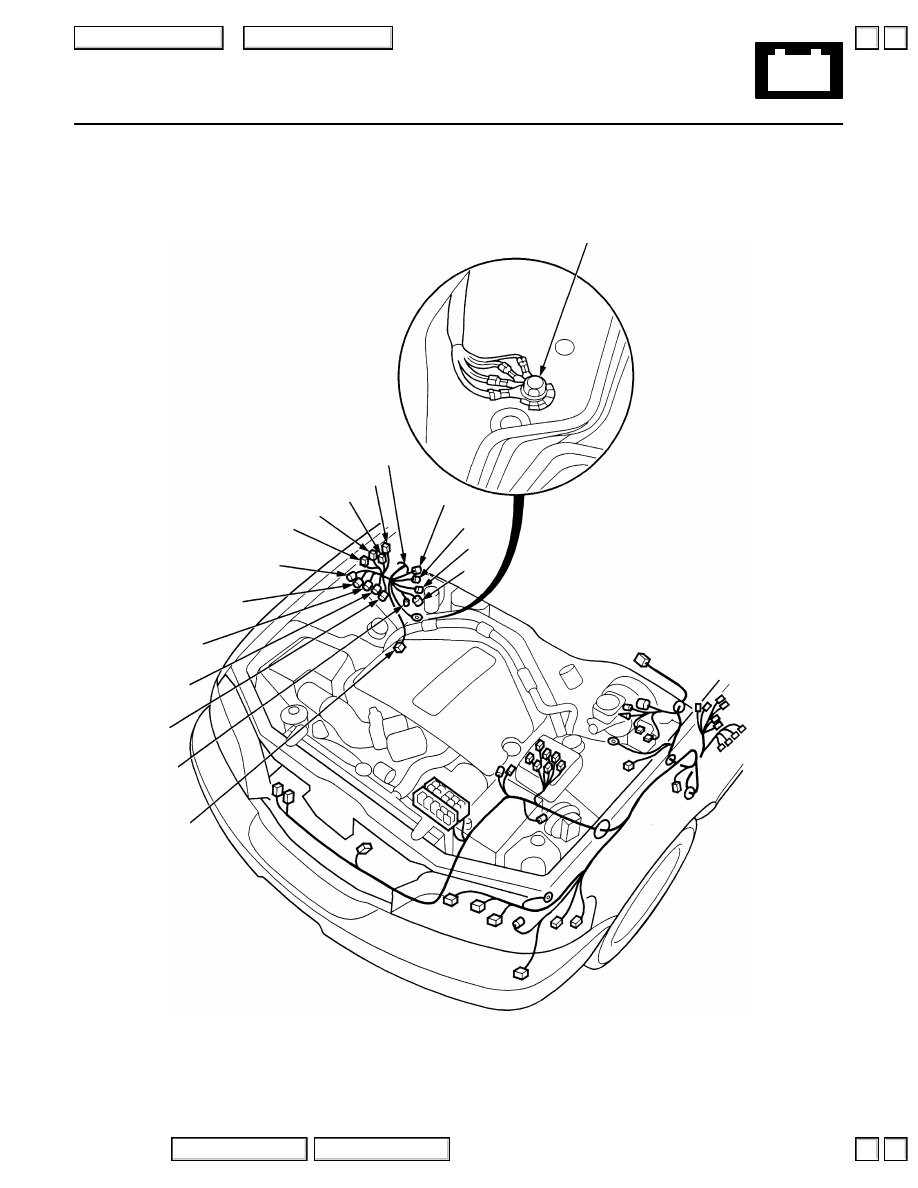

Main Wire Harness (Engine compartment branch)
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C101
14-GRY
Right side of engine compartment
Engine wire harness
C102
14-GRY
Right side of engine compartment
Engine wire harness
C103
14-BLU
Right side of engine compartment
Engine wire harness
C104
14-BLU
Right side of engine compartment
Engine wire harness
C105
8-GRY
Right side of engine compartment
Engine wire harness
Premium,
Canada
C105
2-GRY
Right side of engine compartment
Engine wire harness
Base
C181
14-ORN
Right side of engine compartment
ABS modulator unit wire harness
*1
C256
2-NAT
Right side of engine compartment
Test tachometer connector
C257
4-GRY
Right side of engine compartment
Fuel pressure regulator and EGR control
solenoid valves
C258
2-ORN
Right side of engine compartment
ABS pump motor
*2
C259
10-ORN
Right side of engine compartment
ABS modulator unit
*3
C260
5
Right side of engine compartment
Horn relay
*1
C260
5-BLK
Right side of engine compartment
Driver’s power motor window relay A
*6
C261
5
Right side of engine compartment
Cigarette lighter relay
*1
C261
5-BLK
Right side of engine compartment
Power window master switch relay
*4
C262
5
Right side of engine compartment
Seat heater relay
*1
C262
5-GRY
Right side of engine compartment
Driver’s power window motor relay B
*6
C263
5-BLK
Right side of engine compartment
Cigarette lighter relay
*4
C264
42-BLK
Right side of engine compartment
VSA modulator/control unit
*5
C265
3-BLK
Right side of engine compartment
VSA hydraulic pressure sensor
*5
G251
Right side of engine compartment
Body ground, via main wire harness
*1: ’96-’97
*2: ’96-’99
*3: ’98-’99
*4: ’98-’04
*5: ’00-’04
*6: ’98-’01
▲
▲
