203-12
2004 American Honda Motor Co., Inc.
Connector to Harness Index

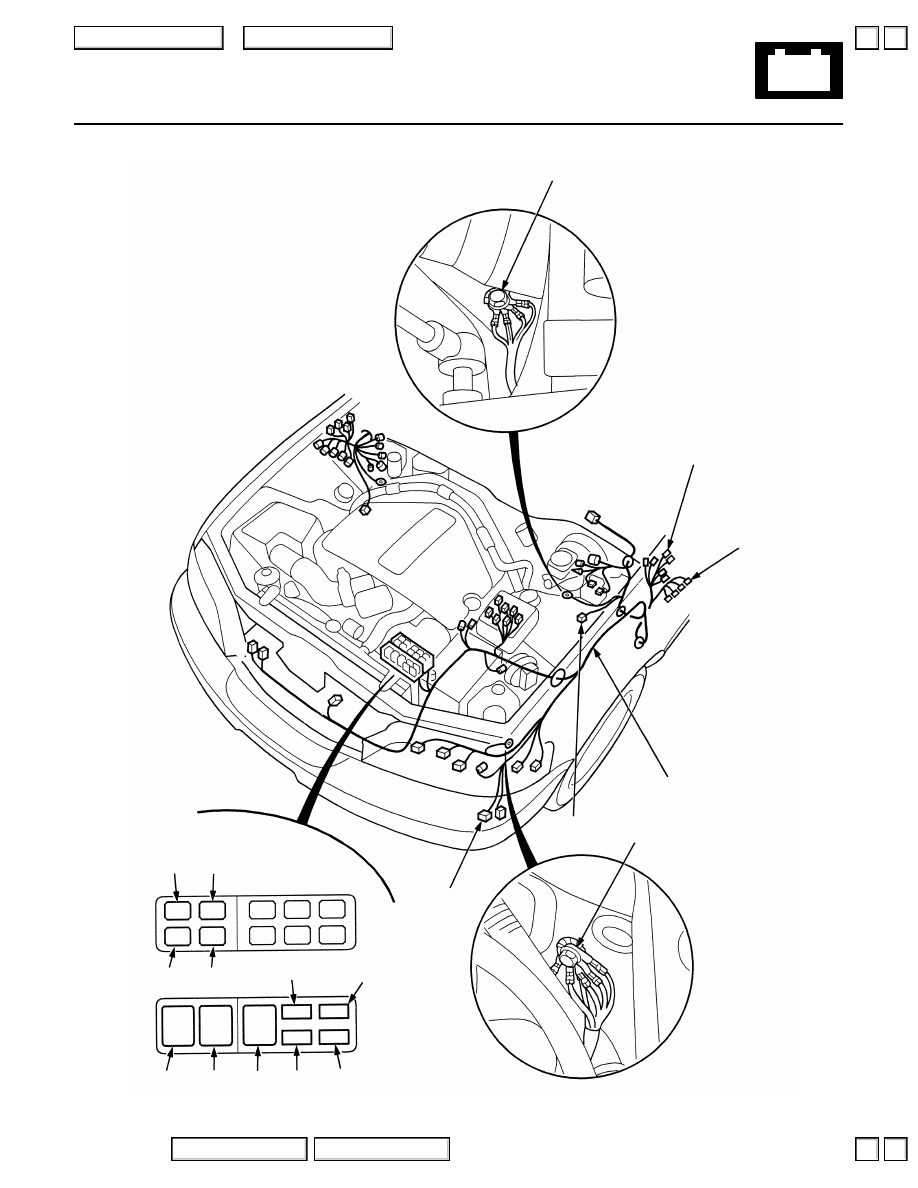

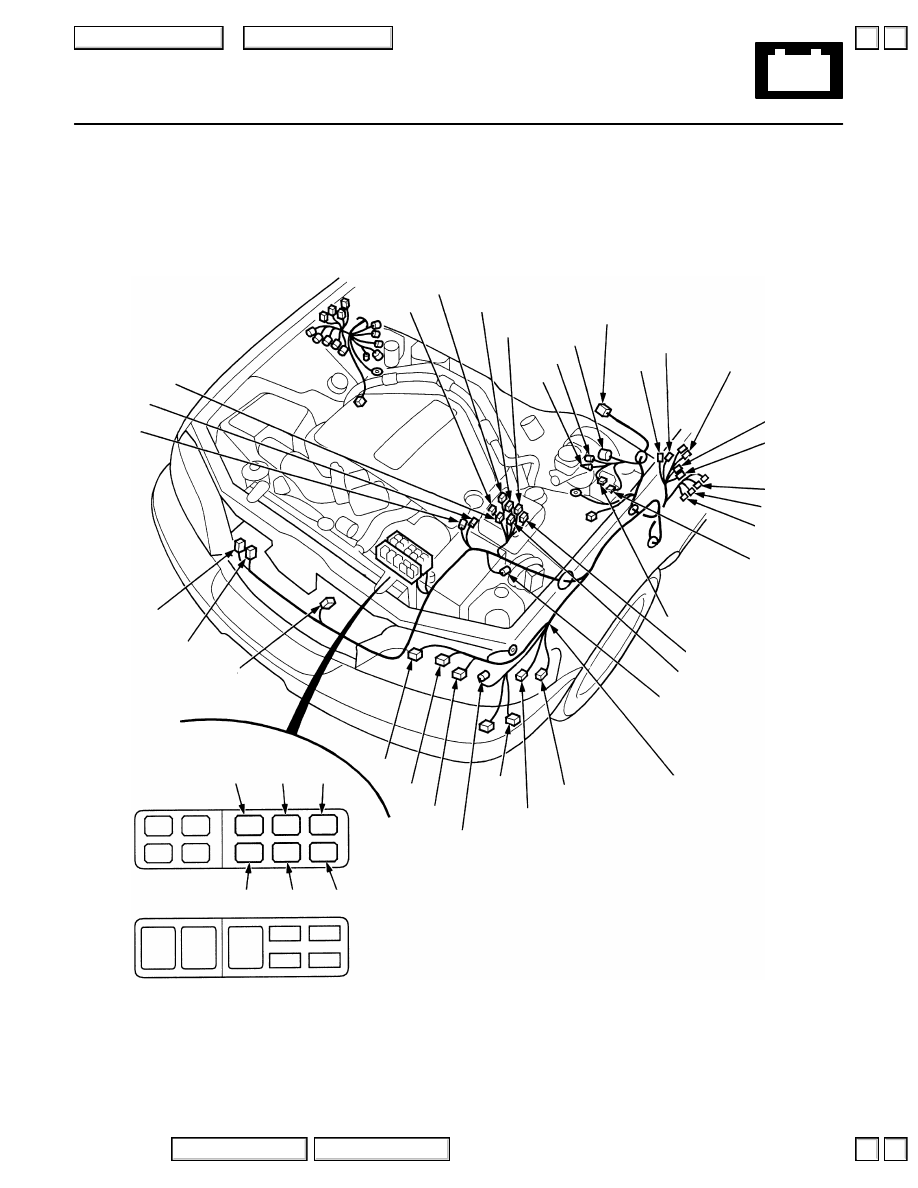

Left Engine Compartment Wire Harness
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C124
2-GRY
Left side of engine compartment
Engine wire harness
C171
14-GRY
Left side of engine compartment
A/T sub-harness
C301
5-BRN
Left side of engine compartment
Under-hood fuse/relay box
C302
2-BRN
Left side of engine compartment
Under-hood fuse/relay box
C303
3-BRN
Left side of engine compartment
Under-hood fuse/relay box
C304
1-BLK
Left side of engine compartment
Under-hood fuse/relay box
C305
7-BRN
Left side of engine compartment
Under-hood fuse/relay box
C306
9-GRY
Left side of engine compartment
Under-hood fuse/relay box
C307
11-GRY
Left side of engine compartment
Under-hood fuse/relay box
C309
2-ORN
Left side of engine compartment
ABS left front wheel sensor
C310
4-GRY
Left side of engine compartment
Cruise control actuator
C311
3
Behind left headlight
Left headlight (low/high beam)
*2
C311
2-GRY
Behind left headlight
Left headlight (low beam)
*6
C312
3
Behind left fog light
Left fog light
*2
C312
3-BLK
Behind left headlight
Left headlight (high beam)
*6
C313
2
Behind left front parking light
Left front parking light
*2
C314
2-BRN
Behind left front turn signal light
Left front turn signal light
*2
C314
3-WHT
Behind left turn signal/parking light
Left front turn signal/parking light
*6
C315
2-BLU
Behind left front side marker light
Left front side marker light
C316
2-BLK
Left side of engine compartment
EVAP control canister vent shut valve
*3
C317
5-GRY
Under cowl cover
Windshield wiper motor
C318
2-BRN
Inside of left fender
Windshield washer motor
C319
3-GRY
Left side of engine compartment
Fuel tank pressure sensor
*3
C320
2-BLK
Left side of engine compartment
EVAP bypass solenoid valve
*3
C321
1-BLK
Left side of engine compartment
Brake fluid level switch (+)
C322
1-BLK
Left side of engine compartment
Brake fluid level switch (–)
C324
7-BRN
Under left side of dash
Main wire harness
C325
20-GRY
Under left side of dash
Main wire harness
C326
18-GRY
Under left side of dash
Main wire harness
C327
22-GRN
Under left side of dash
Main wire harness
C328
12-GRY
Under left side of dash
Main wire harness
*2
C328
14-GRY
Under left side of dash
Main wire harness
*6
C329
3-BLU
Behind left side kick panel
Under-dash fuse/relay box
C330
5-BLU
Behind left side kick panel
Under-dash fuse/relay box
C331
16-BLU
Behind left side kick panel
Under-dash fuse/relay box
C332
2-GRY
Under right side of radiator
Radiator fan control sensor
C333
2-GRY
Under right side of radiator
Radiator fan motor
C334
2-GRY
Under condenser fan motor
Condenser fan motor
C335
5-BLK
Front of engine compartment
Fog light relay
C336
5
Middle of engine compartment
ABS rear fail-safe relay
*1
C336
5-BLK
Front of engine compartment
Horn relay
*5
C337
5
Middle of engine compartment
ABS front fail-safe relay
*1
C337
5-BLK
Middle of engine compartment
ABS fail-safe relay
*4
C338
5-BLK
Front of engine compartment
Windshield wiper motor relay
C339
5-BLK
Front of engine compartment
Gauge relay
C340
5
Middle of engine compartment
Power window master switch relay
*1
C340
5-BLK
Middle of engine compartment
Taillight relay
*6
*1: ’96-’97
*4: ’98-’99
*7: ’98
*2: ’96-’98
*5: ’98-’04
*8: ’99
*3: ’96-’99
*6: ’99-’04
*9: ’00-’04
▲
▲
