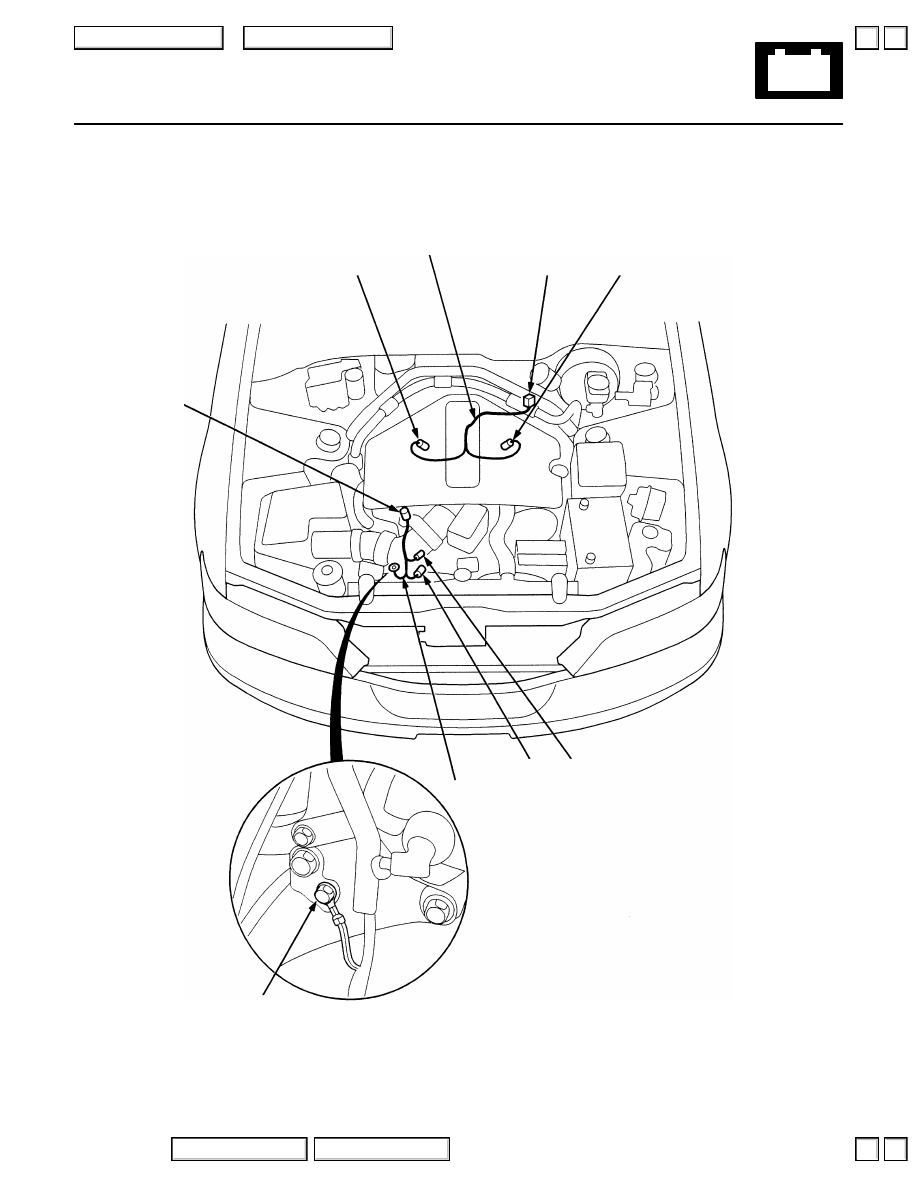

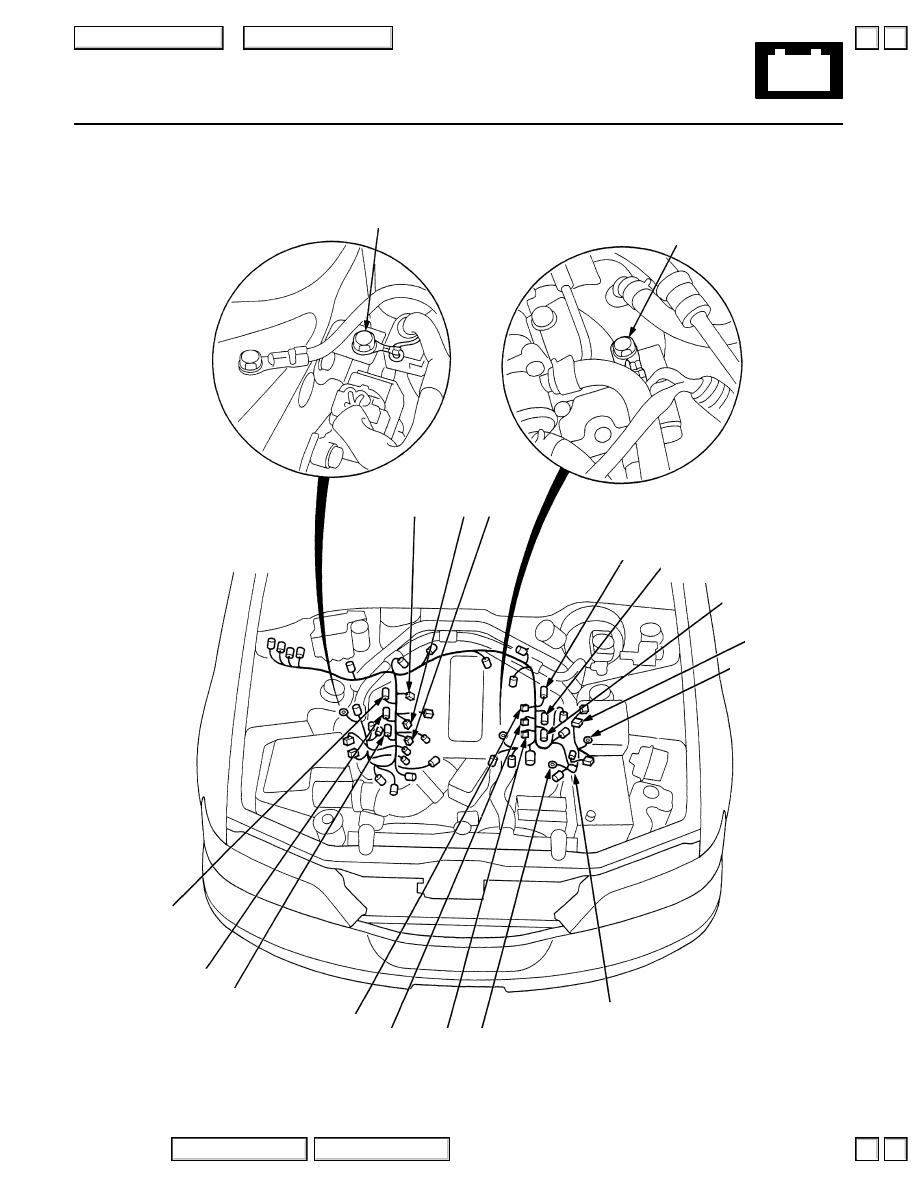

Connector to Harness Index
Engine Wire Harness
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C134
2-BLK
Top right of engine
No. 1 fuel injector
C135
2-BLK
Top right of engine
No. 2 fuel injector
C136
2-BLK
Top right of engine
No. 3 fuel injector
C137
2-BLK
Top left of engine
No. 4 fuel injector
C138
2-BLK
Top left of engine
No. 5 fuel injector
C139
2-BLK
Top left of engine
No. 6 fuel injector
C140
3-BLK
Top right of engine
No. 1 ignition coil
C141
3-BLK
Top right of engine
No. 2 ignition coil
C142
3-BLK
Top right of engine
No. 3 ignition coil
C143
3-BLK
Top left of engine
No. 4 ignition coil
C144
3-BLK
Top left of engine
No. 5 ignition coil
C145
3-BLK
Top left of engine
No. 6 ignition coil
C146
8-GRY
Left side of engine compartment
Junction connector
T101
Left side of engine compartment
Under-hood fuse/relay box
T102
Left front corner of engine compartment
Alternator
G101
Middle of engine compartment
Body ground via, engine wire harness
G102
Right side of engine compartment
Body ground via, engine wire harness
