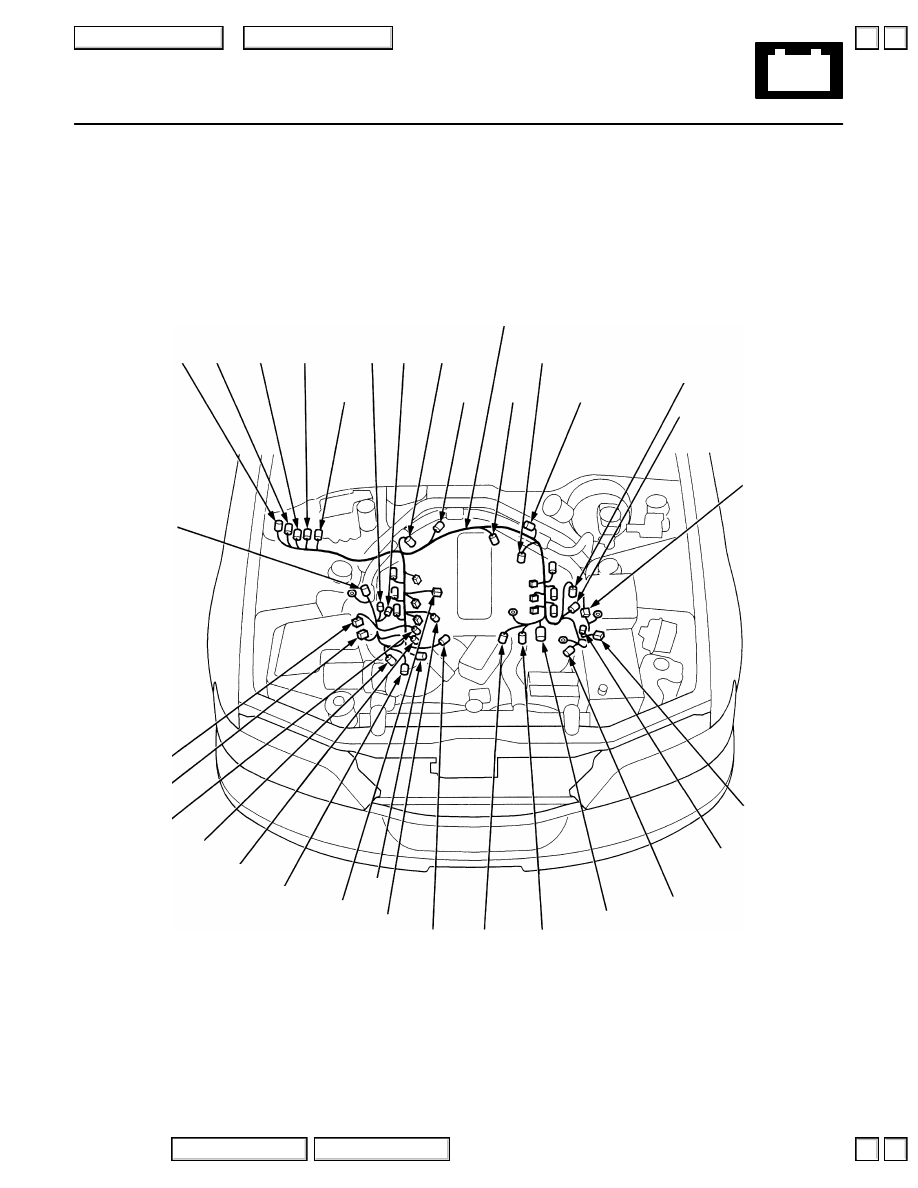

Connector to Harness Index

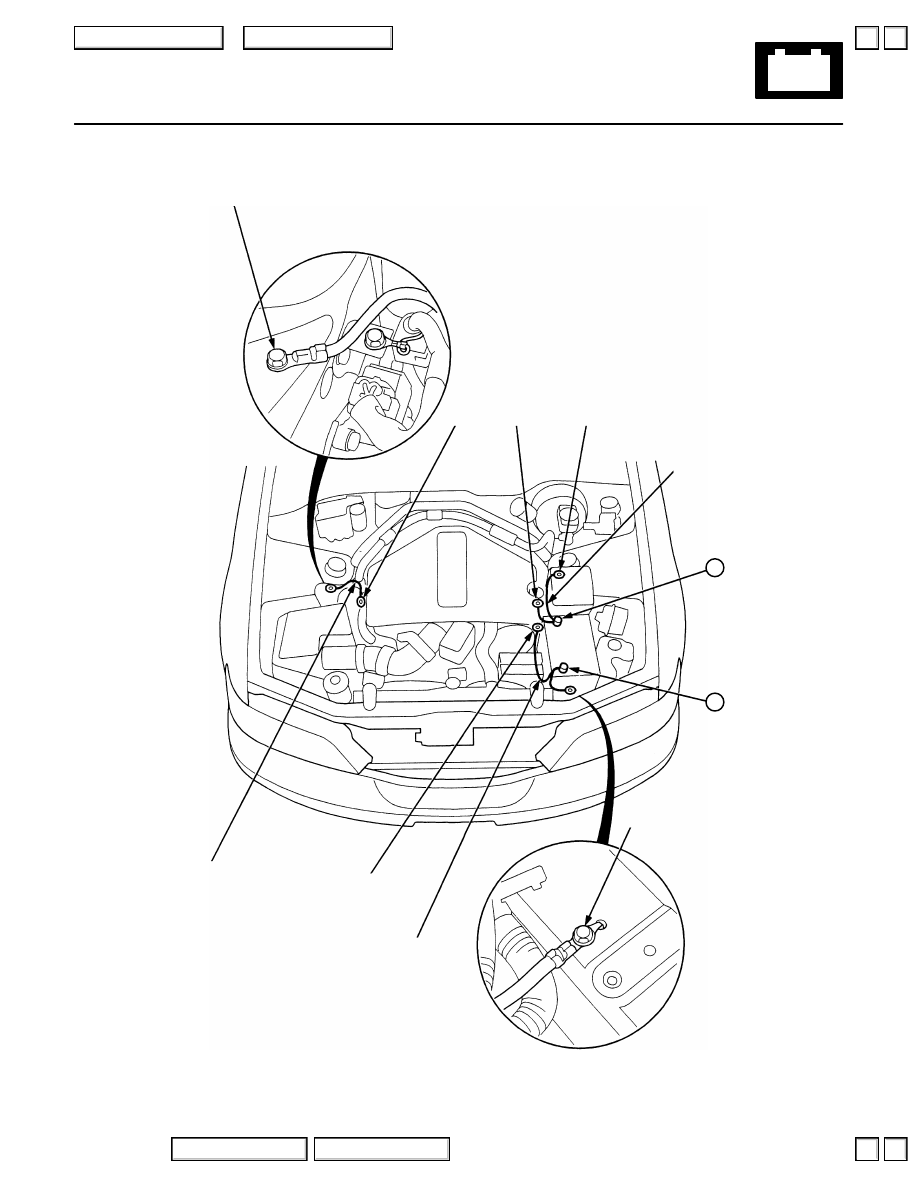

Starter Cables
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
T1
Left side of engine compartment
Under-hood fuse/relay box
T2
Left side of engine compartment
Starter motor
+
Battery
Battery positive terminal
Battery Ground Cables
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
T3
Left side of cylinder block
Cylinder block
G1
Under battery tray
Body ground via battery ground cable
–
Battery
Battery negative terminal
Engine Ground Cables
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
T4
Right side of engine
Right valve cover
G2
Right side of engine compartment
Body ground, via battery ground cable
▲
▲
