203-8
2004 American Honda Motor Co., Inc.
Connector to Harness Index

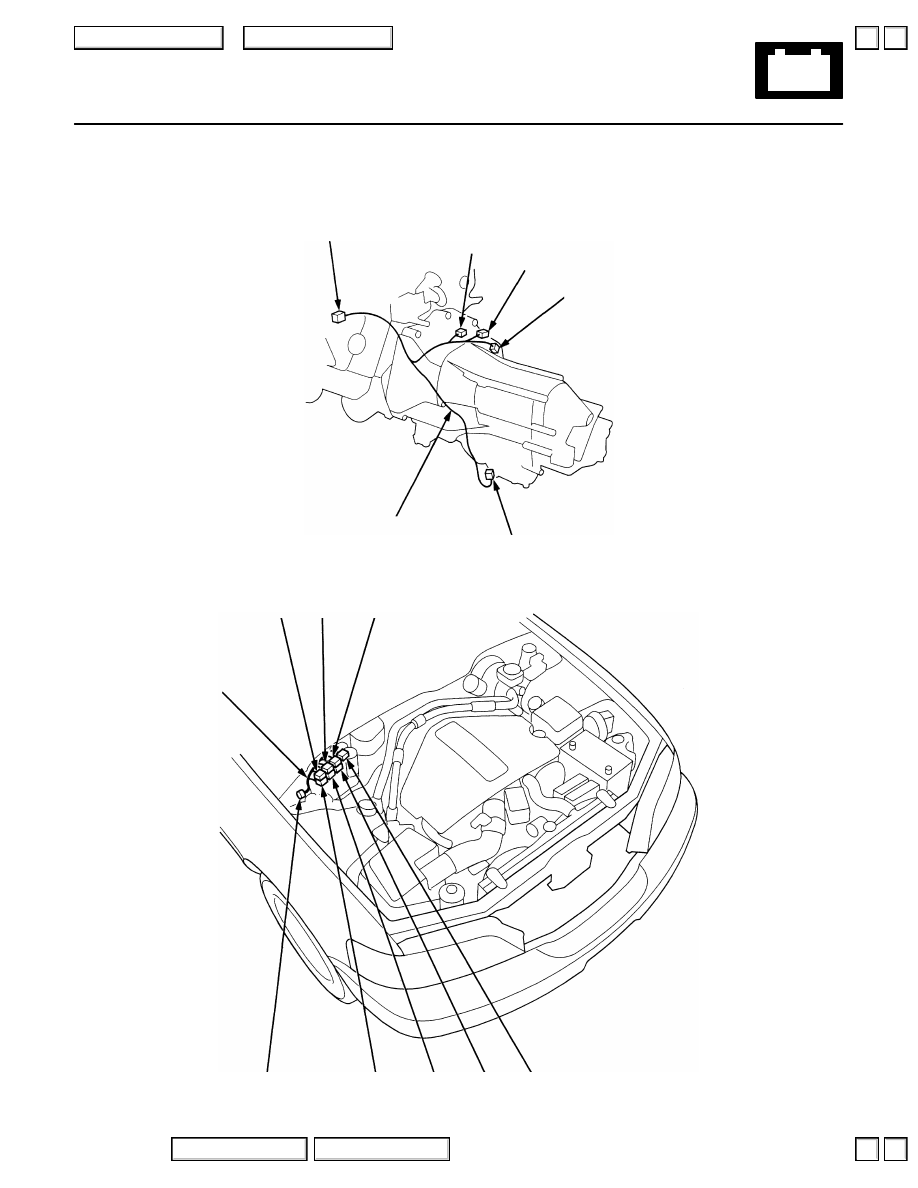

A/T Sub-harness
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C171
14-GRY
Left side of engine compartment
Left engine compartment wire harness
C172
2-BLK
Right rear of engine compartment
Lock-up control solenoid valve
C173
2-GRY
Right side of transmission
Mainshaft speed sensor
C174
3-GRY
Right side of transmission
Countershaft speed sensor
C175
4-BLK
Left side of transmission
Shift control solenoid valve

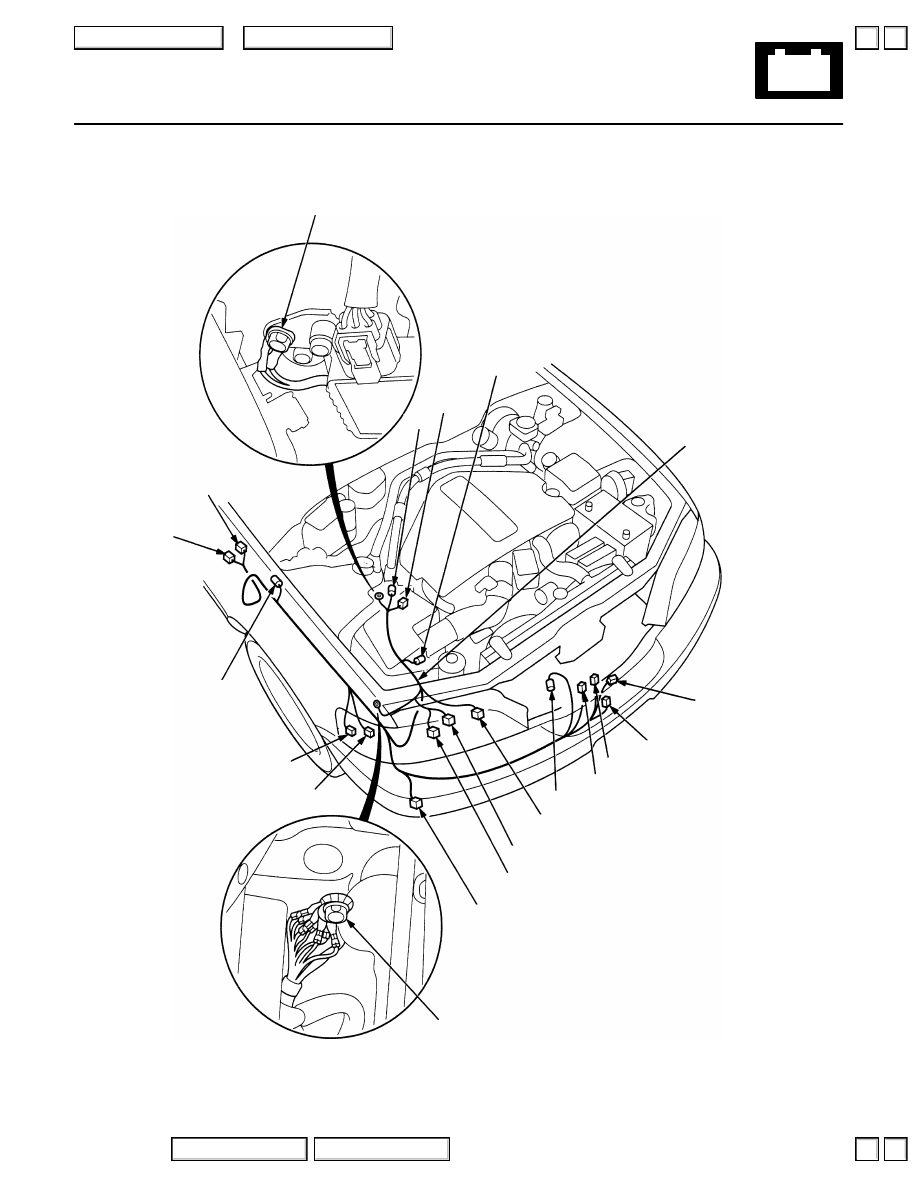

ABS Modulator Unit Wire Harness (’96-’97)
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C181
14-ORN
Right side of engine compartment
Main wire harness
C182
2-ORN
ABS modulator unit
ABS left front solenoid (IN)
C183
2-ORN
ABS modulator unit
ABS left front solenoid (OUT)
C184
2-ORN
ABS modulator unit
ABS rear solenoid (IN)
C185
2-ORN
ABS modulator unit
ABS rear solenoid (OUT)
C186
2-ORN
ABS modulator unit
ABS right front solenoid (IN)
C187
2-ORN
ABS modulator unit
ABS right front solenoid (OUT)
C188
2-ORN
ABS modulator unit
ABS pressure switch
▲
▲
