203-20
2004 American Honda Motor Co., Inc.

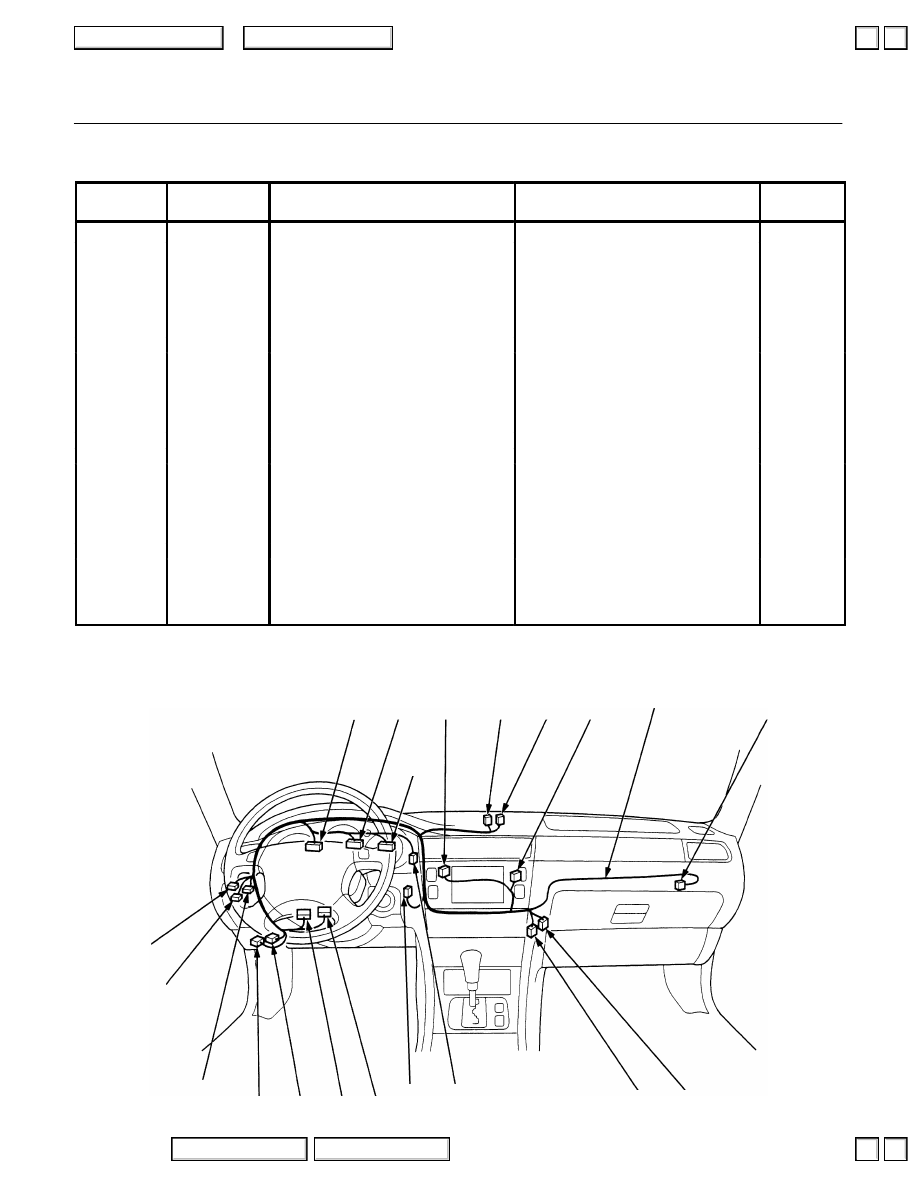

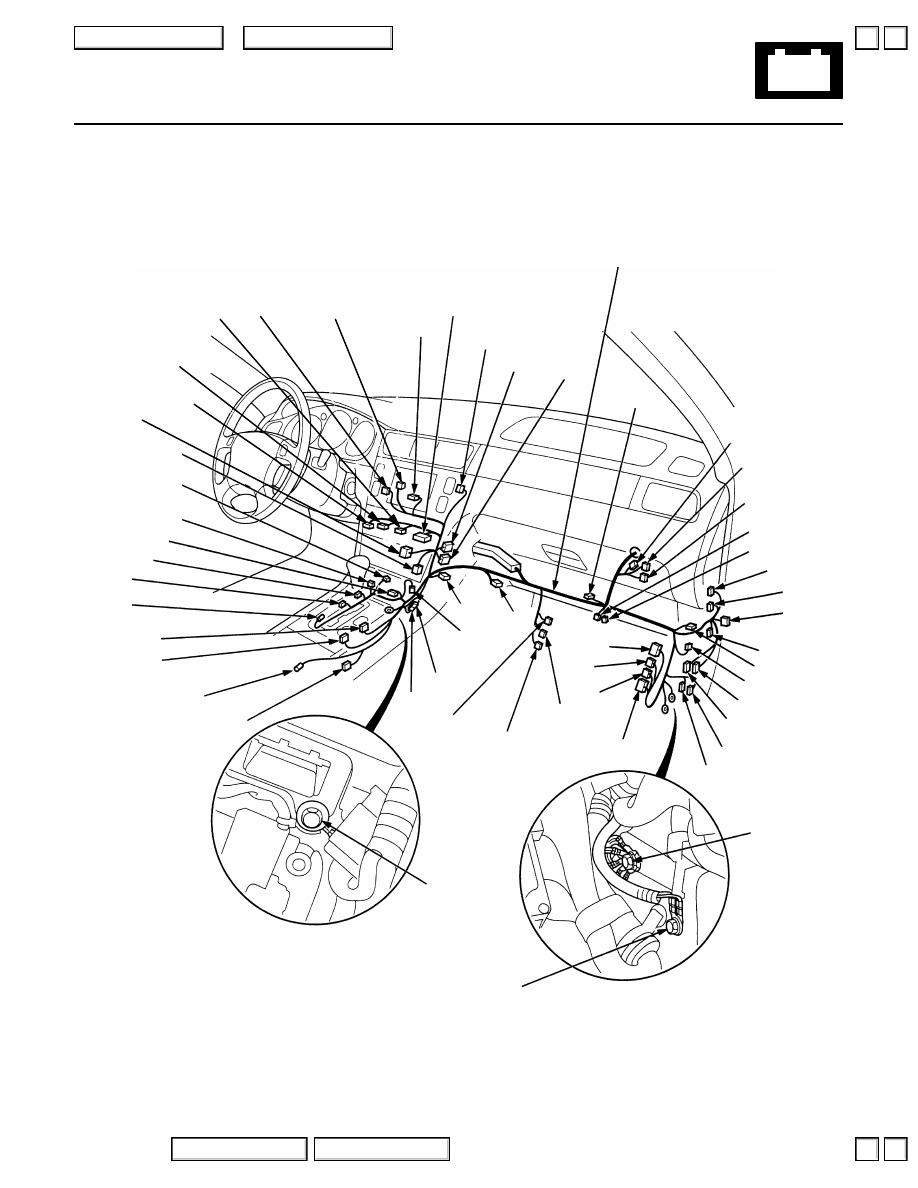

Connector to Harness Index
Main Wire Harness
Connector
or Terminal
Cavities/
Color
Location
Connects to
Notes
C201
18-GRY
Under right side of dash
Right engine compart. wire harness
C202
8-GRY
Under right side of dash
Right engine compart. wire harness
C441
24-LT BLU
Under right side of dash
Right side wire harness
C442
22-GRY
Under right side of dash
Right side wire harness
C443
16-BLU
Under right side of dash
Right side wire harness
C444
22-GRN
Under right side of dash
Right side wire harness
C445
42-GRY
Under right side of dash
Front passenger’s door wire harness
C446
20-GRY
Under right side of dash

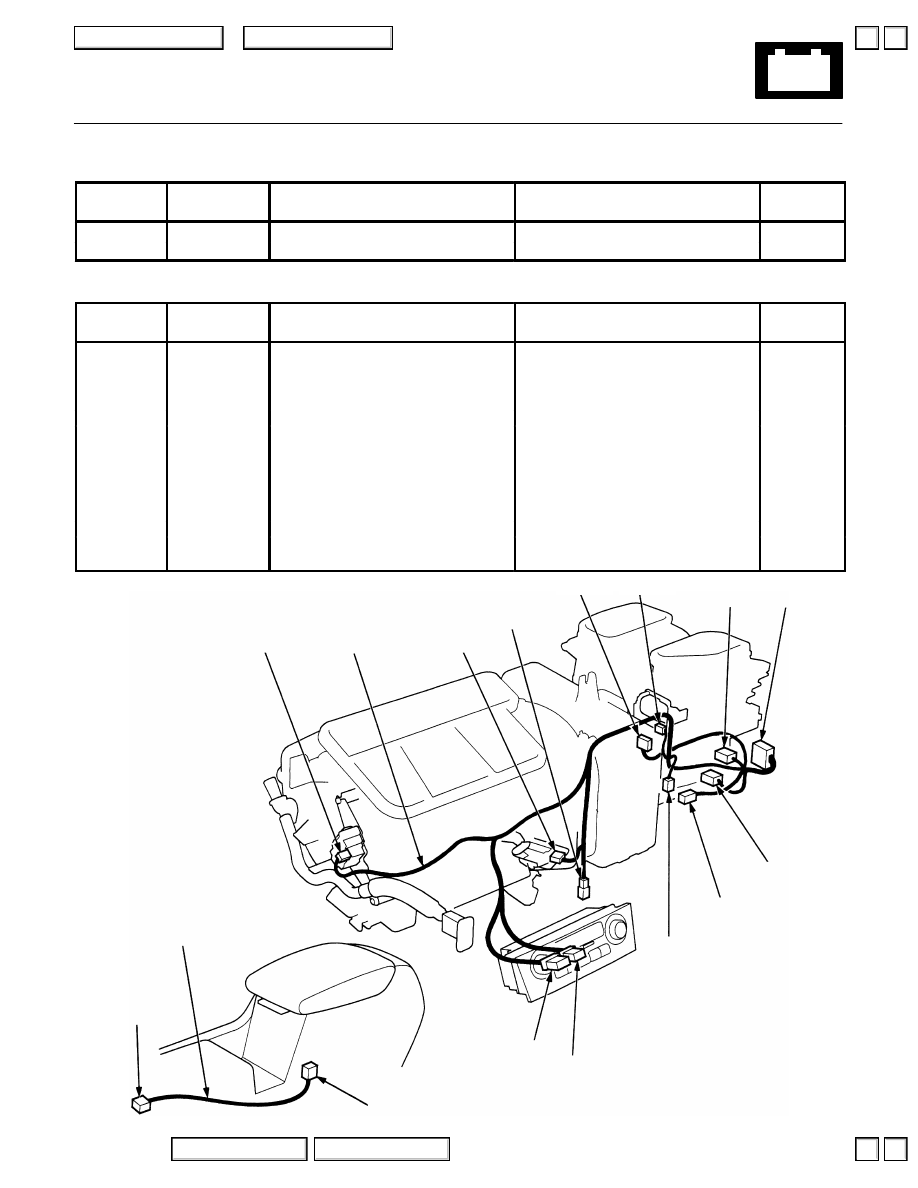

A/C wire harness
C447
26-GRY
Under right side of dash
Multiplex control unit (passenger’s)
C448
20-BLK
Under right side of dash
Junction connector
C449
26-ORN
Under right side of dash
ABS control unit
*1
C449
12-ORN
Under right side of dash
ABS control unit
*2
C450
22-ORN
Under right side of dash
ABS control unit
*1, *2
C450
26-GRY
Under right side of dash
VSA converter unit
*7, *10
C453
2-BLK
Under right side of dash
Diode (for A/T reverse position)
C454
2-BLU
Under right side of dash
Service check connector
C455
6-ORN
Under right side of dash
ABS inspection connector
*1
C456
20-BLU
Under right side of dash
Junction connector
C457
12-BLK
Under right side of dash
Fan control unit
C458
26-BLU
Front passenger’s footwell
PCM E
C459
26-BLU
Front passenger’s footwell
PCM A
C460
12-GRY
Front passenger’s footwell
PCM C
C461
16-GRY
Front passenger’s footwell
PCM B
C462
8-BLK
Front passenger’s footwell
PCM F
C463
22-GRY
Front passenger’s footwell
PCM D
C464
20-BLK
Front passenger’s footwell
Junction connector
C465
3-GRY
Under middle of dash
Cellular phone system
Option
C466
3-GRY
Under middle of dash
Cellular phone system
Option
C467
6-GRY
Behind center console
Driver’s seat heater switch
C468
6-BRN
Behind center console
Front passenger’s seat heater switch
C469
16-GRY
Under middle of dash
Data link connector
C470
10-GRY
Under middle of dash
A/T gear position switch
C471
2-BLU/GRY
Behind center console
A/T shift lock solenoid
C472
2-GRY
Behind center console
Park pin switch
C473
2-BLK
Behind center console
A/T gear position console light
C474
4-GRY
Behind center console
Cigarette lighter
C475
3-YEL
Behind center console
SRS main harness
*4
C475
8-YEL
Under middle of dash
SRS main harness
*6
C476
22-GRN
Under middle of dash
Dashboard wire harness
C477
8-GRY
Under middle of dash
Dashboard wire harness
C477
12-GRY
Under middle of dash
Dashboard wire harness
*10
C478
16-GRY
Behind audio unit
Audio unit conector A
*8
C478
16-WHT
Behind audio unit
Audio unit conector A
*7
C478
20-LT BLU
Behind audio unit
Audio unit conector A
*10
C479
8-BLK
Behind audio unit
Audio unit conector B
*7
C480
12-BLK
Behind audio unit
Audio unit conector C
*9
C480
14-WHT
Behind audio unit
Audio unit conector B
*11
C481
20-BLU
Behind audio unit
Navigation display unit A
C482
6-WHT
Behind instrument panel
Rear window defogger switch
Except *9, *11
C483
5-GRN
Behind instrument panel
Fog light switch
Except *5, *9, *11
C483
6-GRN
Behind instrument panel
Fog light switch
*5
C483
6-WHT
Behind instrument panel
Fog light switch
*9
C484
10-GRY
Under middle of dash
Audio sub-harness
*3
C485
2-GRY
Behind center console
Accessory power socket wire harness
*6
C486
2-BLK
Behind center console
Beverage holder light
*6
C487
20-ORN
Front passenger’s footwell
Junction connector
*7
C488
20-GRN
Under right side of dash
Junction connector
*10
C489
5-GRN
Behind audio unit
Navigation display unit B
*11
G402
Under right side of dash
Body ground, via main wire harness
G403
Under middle of dash
Body ground, via main wire harness
G404
Under right side of dash
Body ground, via main wire harness
*1:
’96-’97
*2:
’98-’99
*3:
BOSE sound system
*4:
’96-’98
*5:
’99 Navigation system
*6:
’99-’04
*7:
’00-’03
*8:
’96-’99
*9:
’99-’03 Navigation system
*10: ’04
*11: ’04 Navigation system
