Acura RL. Manual - part 811

Service Limit: 0.1 mm (0.004 in.)

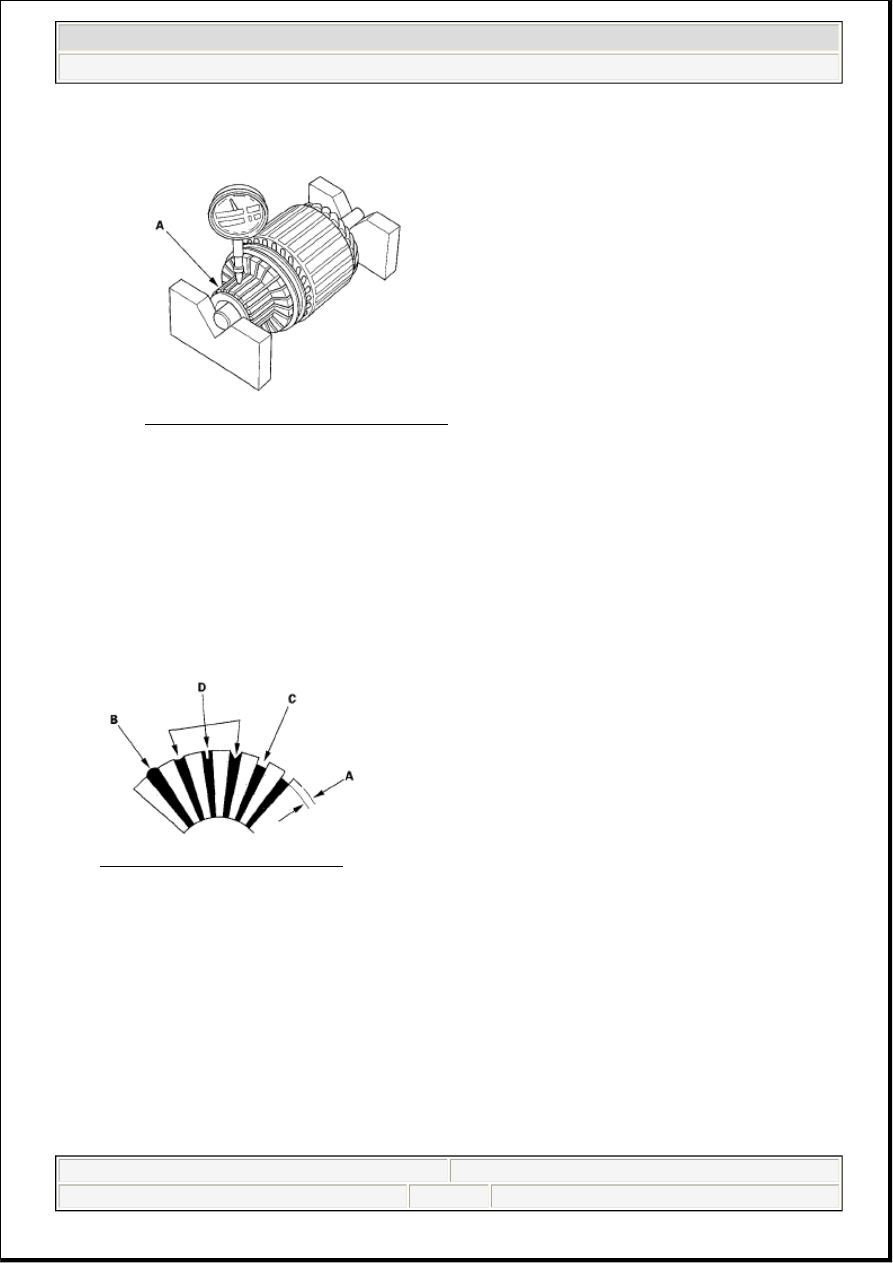

Fig. 22: Checking Commutator Runout
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Check the mica depth (A). If the mica is too high (B), undercut the mica with a hacksaw blade to the

proper depth. Cut away all the mica (C) between the commutator segments. The undercut should not
be too shallow, too narrow, or V-shaped (D).

Commutator Mica Depth

Standard (New): 0.40-0.50 mm (0.016-0.020 in.)

Service Limit: 0.20 mm (0.008 in.)

Fig. 23: Identifying Mica Depth
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Check for continuity between the segments of the commutator. If there is an open circuit between any

segments, replace the armature.



2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

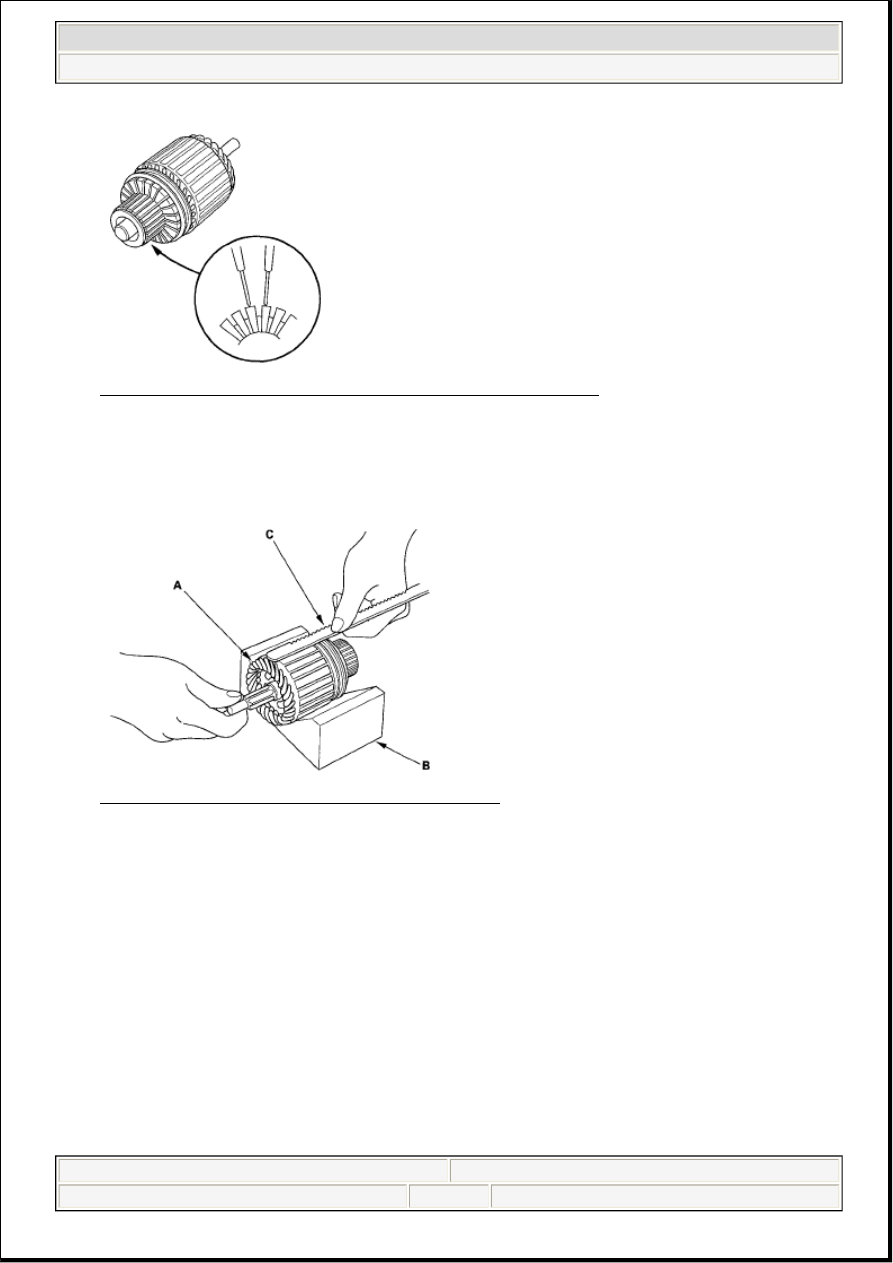

Fig. 24: Checking Continuity Between Segments Of Commutator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Place the armature (A) on an armature tester (B). Hold a hacksaw blade (C) on the armature core. If

the blade is attached to the core or vibrates while the core is turned, the armature is shorted. Replace
the armature.

Fig. 25: Holding Hacksaw Blade On Armature Core
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Use an ohmmeter to check for continuity between the commutator (A) and the armature coil core (B),

and between the commutator and the armature shaft (C). If there is continuity, replace the armature.



2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

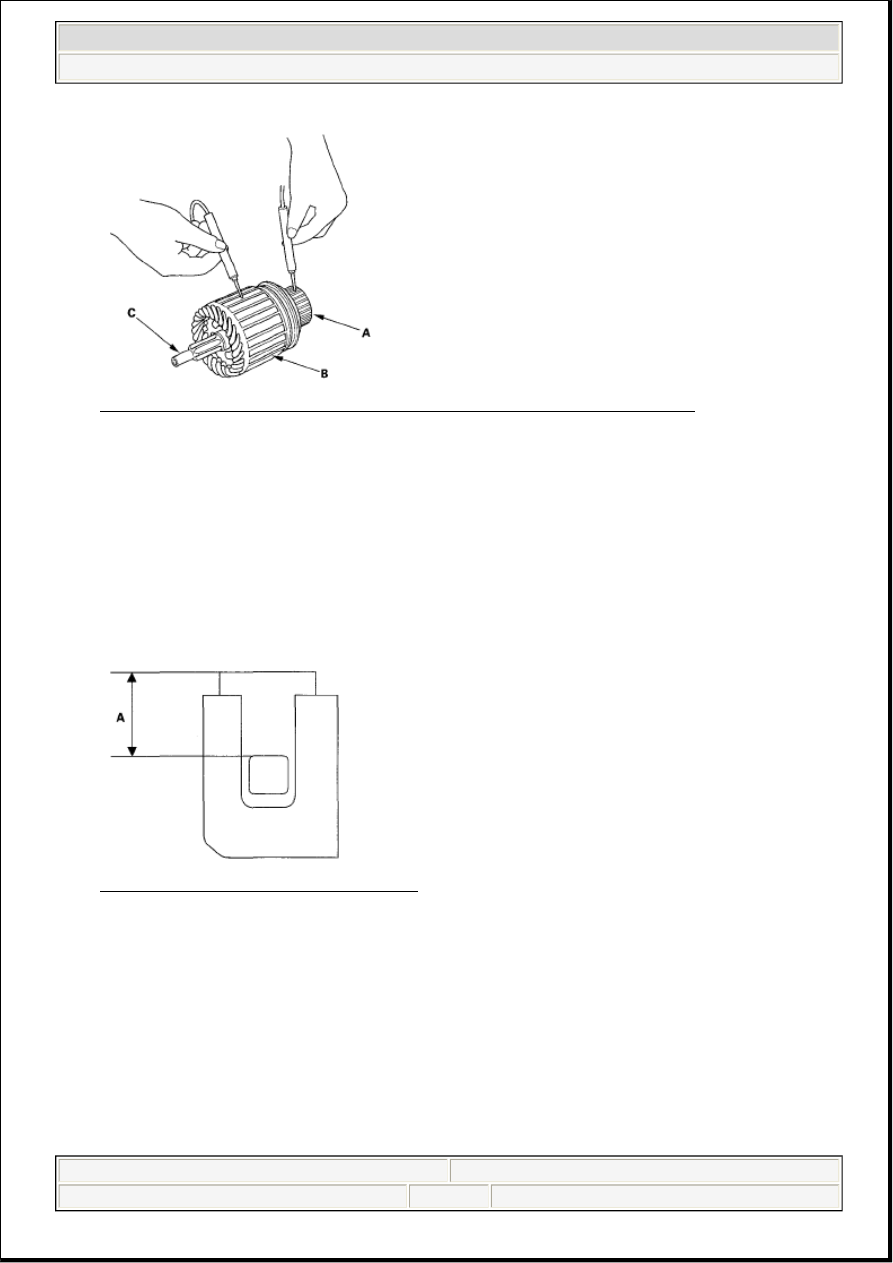

Fig. 26: Checking Continuity Between Commutator And Armature Coil Core
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Starter Brush Inspection

14. Measure the brush length (A). If it is shorter than the service limit, replace the brush holder assembly.

Brush Length

Standard (New): 7.7-8.0 mm (0.30-0.31 in.)

Service Limit: 0.9 mm (0.04 in.)

Fig. 27: Identifying Starter Brush Length
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Starter Brush Holder Test

15. Check for continuity between the (+) brush (A) and (-) brush (B). If there is continuity, replace the

brush holder assembly.



2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

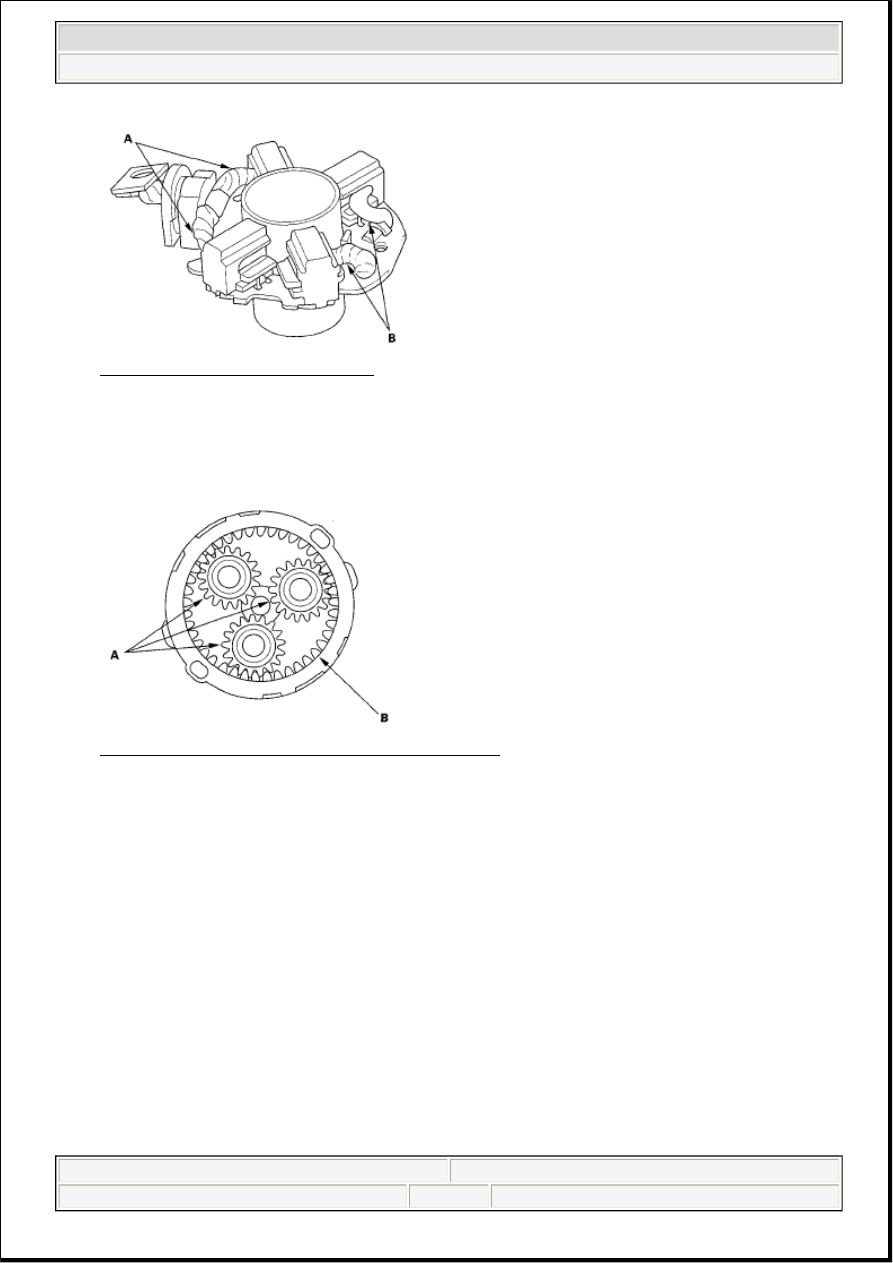

Fig. 28: Identifying Starter Brushes
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Planetary Gear Inspection

16. Check the planetary gears (A) and ring gear (B). Replace them if they are worn or damaged.

Fig. 29: Identifying Planetary Gears And Ring Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Overrunning Clutch Inspection

17. Slide the overrunning clutch along the shaft. Replace it if it does not slide smoothly.

18. Rotate the overrunning clutch (A) in both directions. It should lock and move upward in one direction

and rotate smoothly in the other direction. If it does not lock in either direction, or if it locks both
directions, then replace it.
