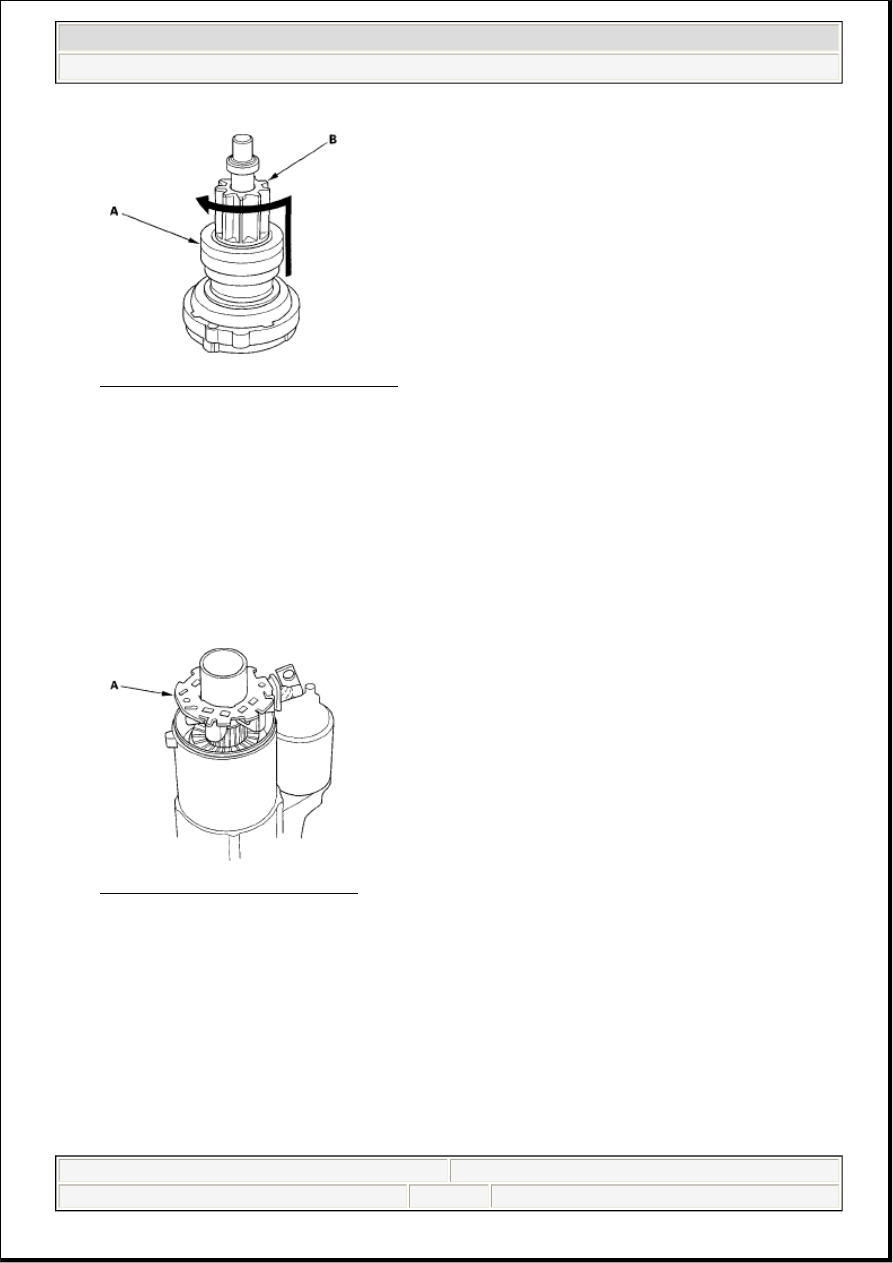

Fig. 30: Checking Overrunning Clutch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
19. If the starter drive gear (B) is worn or damaged, replace the overrunning clutch assembly; the gear is
not available separately. Check the condition of the idler gear and drive plate ring gear to see if the
starter drive gear teeth are damaged.

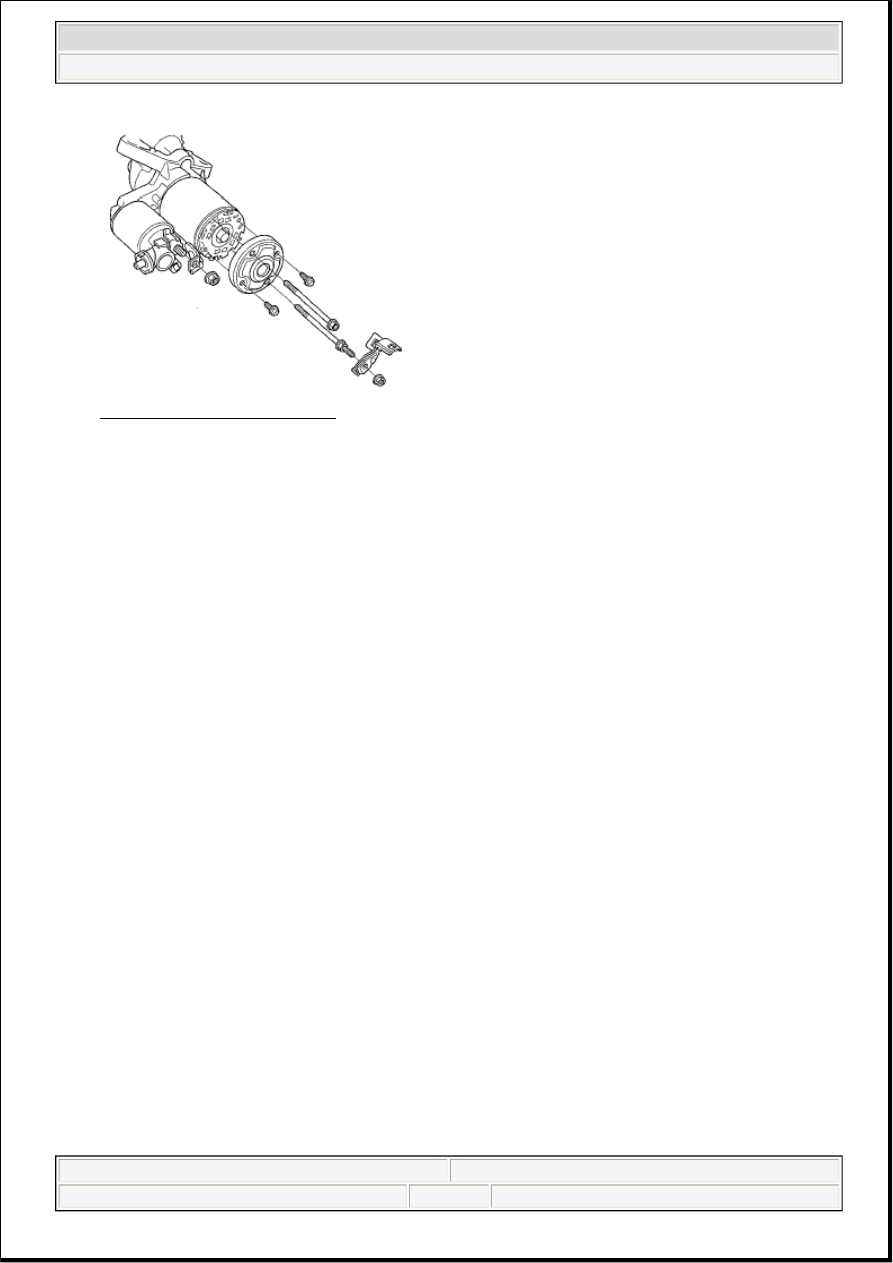

Starter Reassembly
20. Install the armature into the housing.
21. Place the brush holder assembly on the armature, then move the brush holder (A) down to the
armature.
Fig. 31: Identifying Brush Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
22. Install the end cover to retain the brush holder.
