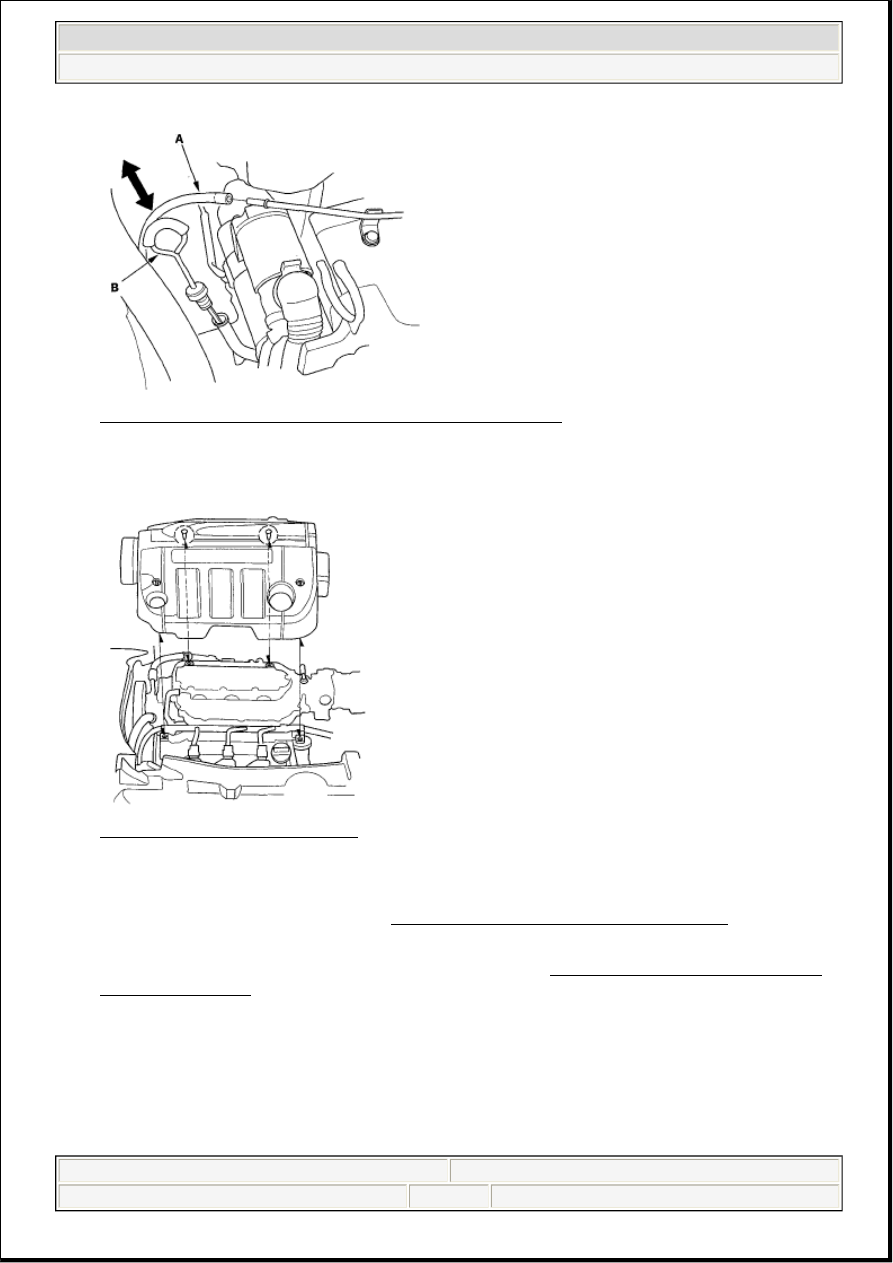

Fig. 14: Installing Vacuum Hose And Transmission Dipstick
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the engine cover.

Fig. 15: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Connect the negative cable to the battery.

5. Install the battery trim (see step 2 under UPPER FENDER TRIM REPLACEMENT ).

6. Start the engine to make sure the starter works properly.

7. Do the steering column position memorization procedure (see STEERING COLUMN POSITION

MEMORIZATION ).

8. Enter the anti-theft codes for the audio system and the navigation system.

STARTER OVERHAUL

DISASSEMBLY/REASSEMBLY



2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 12

© 2005 Mitchell Repair Information Company, LLC.

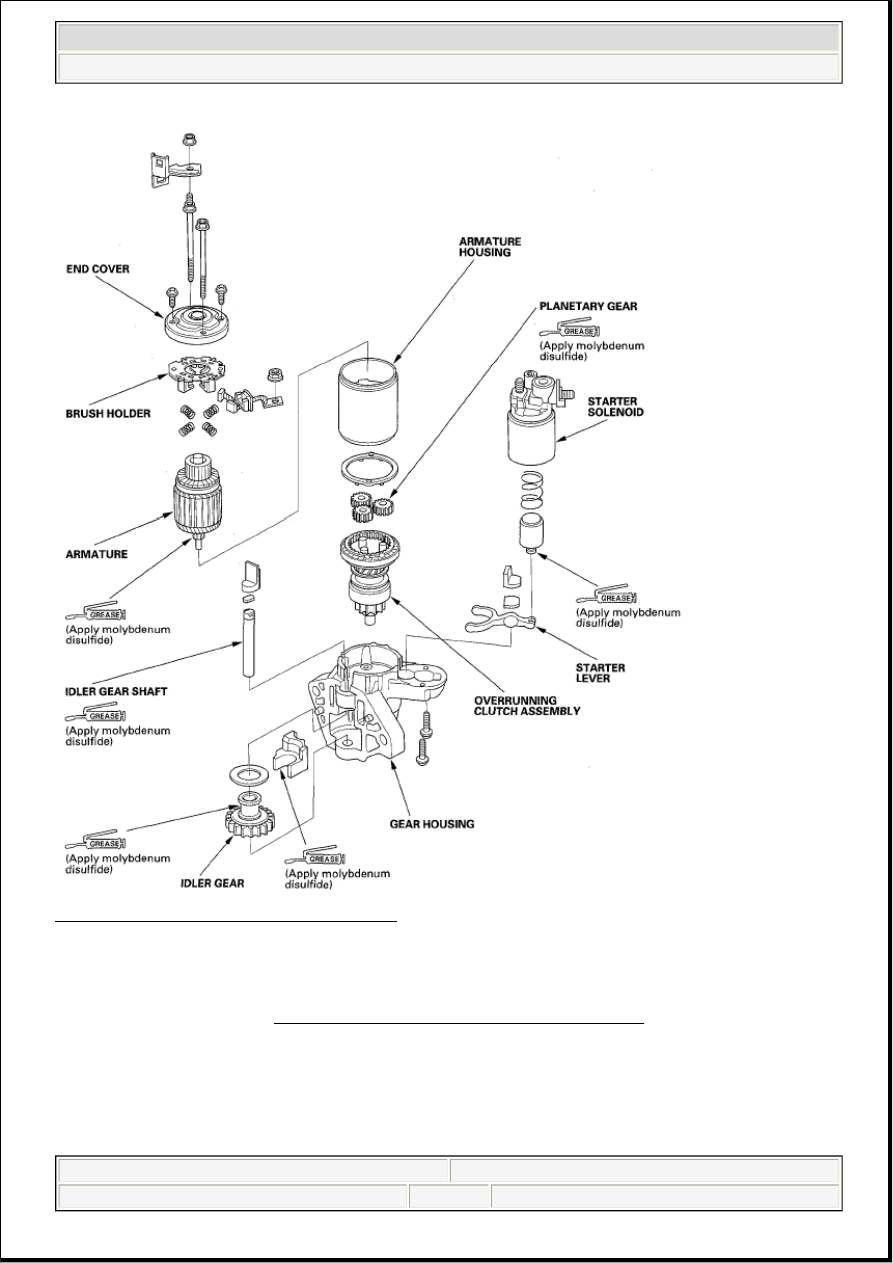

Fig. 16: Exploded View Of Starter Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Brush Holder Removal

1. Remove the starter (see STARTER REMOVAL AND INSTALLATION ).

2. Disconnect the wire from the M terminal, and remove the end cover.

3. Place a plastic pipe with an outside diameter of 29.4 mm (1.16 in.) on the armature.



2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

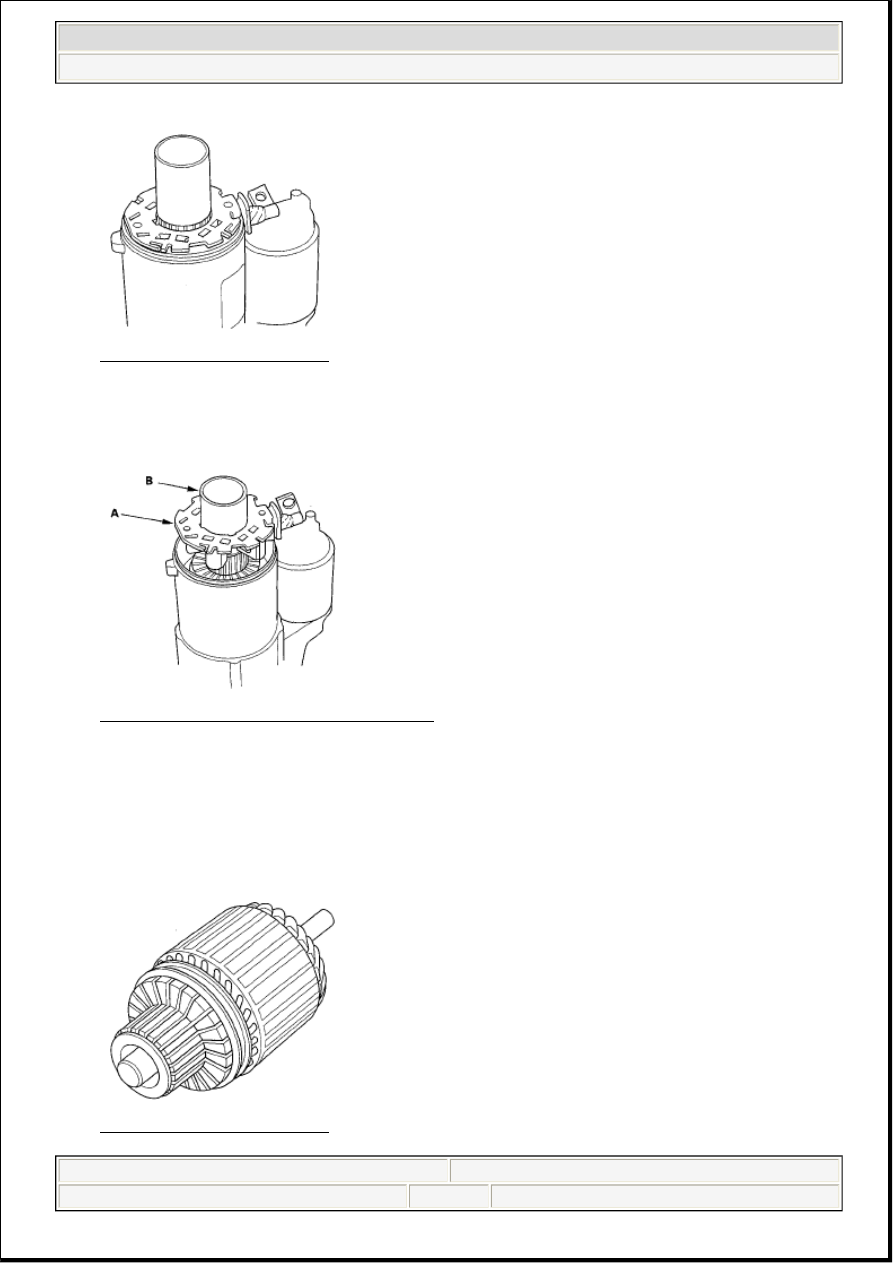

Fig. 17: Identifying Armature
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Move the brush holder (A) up to the pipe (B) while holding the pipe so the brushes do not pop out

from the holder.

Fig. 18: Identifying Brush Holder And Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Armature Inspection and Test

5. Disassemble the starter as shown at the beginning of this procedure.

6. Inspect the armature for wear or damage from contact with the permanent magnet. If there is wear or

damage, replace the armature.

Fig. 19: Identifying Armature
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

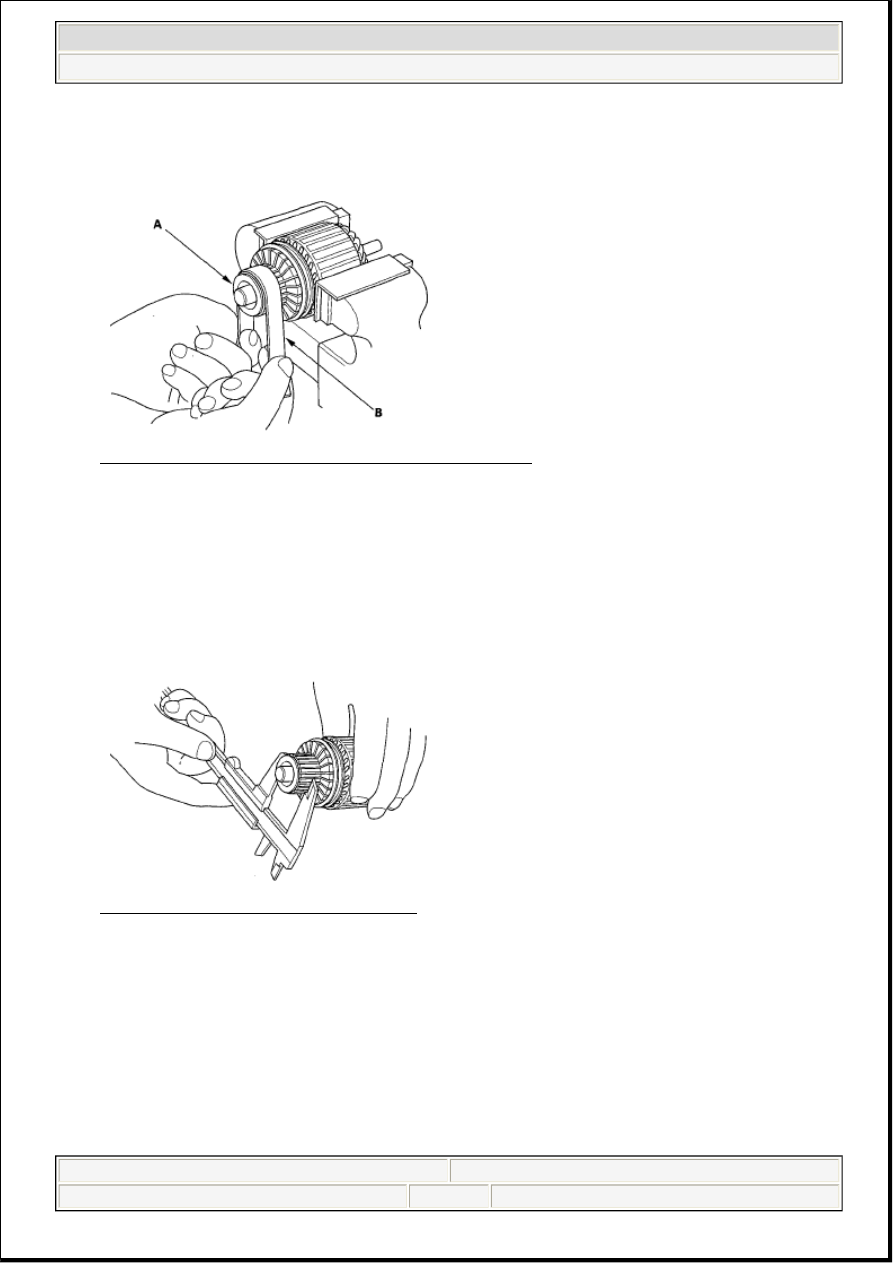

7. Check the commutator (A) surface. If the surface is dirty or burnt, resurface it with an emery cloth or

a lathe to the specifications in step 8, or recondition with #500 or #600 sandpaper (B).

Fig. 20: Cleaning Commutator Surface With Sandpaper
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Check the commutator diameter. If the diameter is out of the service limit, replace the armature.

Commutator Diameter

Standard (New): 29.3-29.5 mm (1.154-1.161 in.)

Service Limit: 28.8 mm (1.134 in.)

Fig. 21: Checking Commutator Diameter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Measure the commutator (A) runout.



If the commutator runout is within the service limit, check the commutator for carbon dust or
brass chips between the segments.



If the commutator runout is not within the service limit, replace the armature.

Commutator Runout

Standard (New): 0.05 mm (0.002 in.) max.
