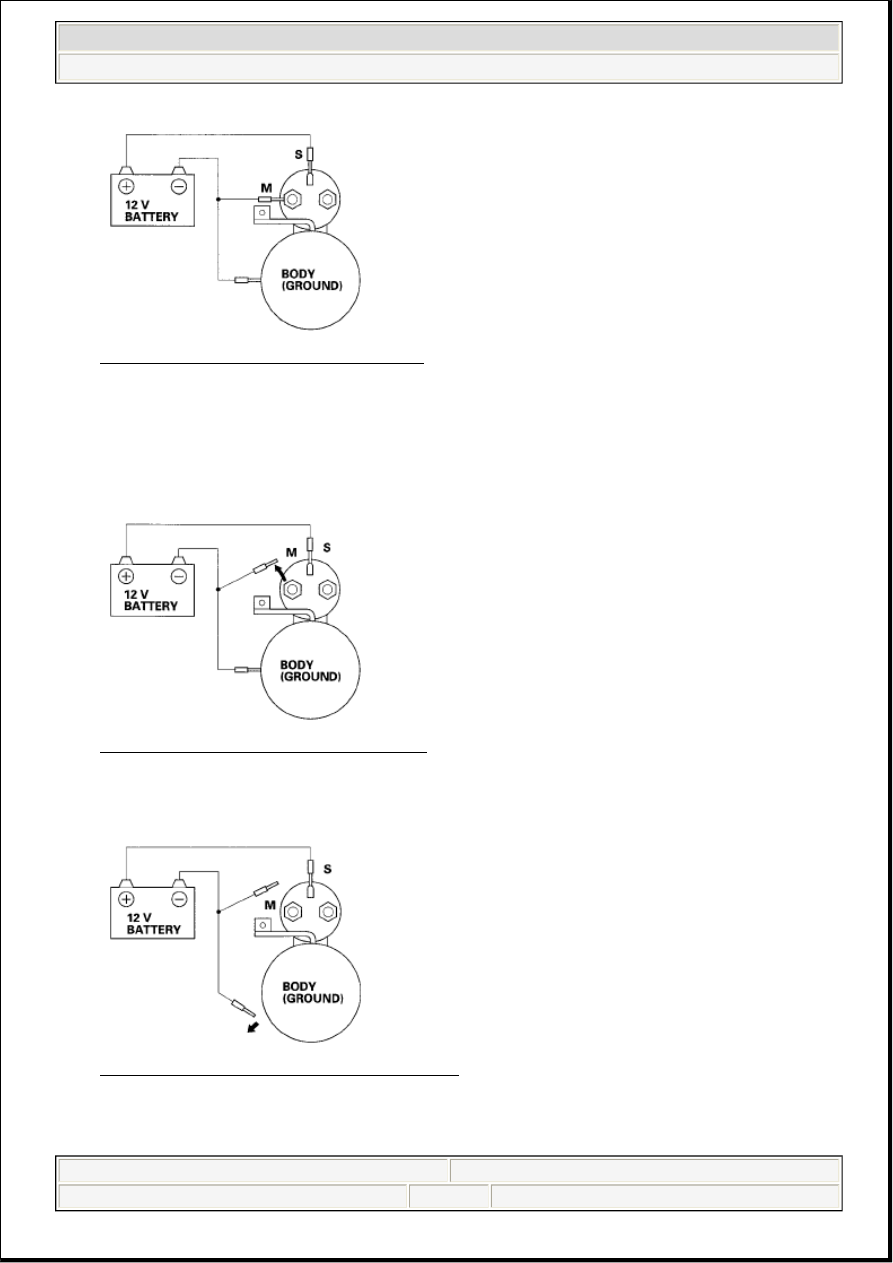

Fig. 6: Testing Starter Pinion - Moves Out
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Connect the battery as shown. Make sure you disconnect the starter motor wire from the solenoid. If

the starter pinion moves out, it is working properly.

4. Disconnect the battery from the M terminal. If the pinion does not retract, the hold-in coil of the

solenoid is working properly.

Fig. 7: Testing Starter Pinion Hold-In Coil
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Disconnect the battery from the starter body. If the pinion retracts immediately, it is working properly.

Fig. 8: Testing Starter Pinion - Pinion Retracts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Firmly clamp the starter in a vise.



2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 8

© 2005 Mitchell Repair Information Company, LLC.

7. Reconnect the wire to the M terminal.

8. Connect the starter to the battery as shown in the diagram, and check that the motor turns and keeps

rotating.

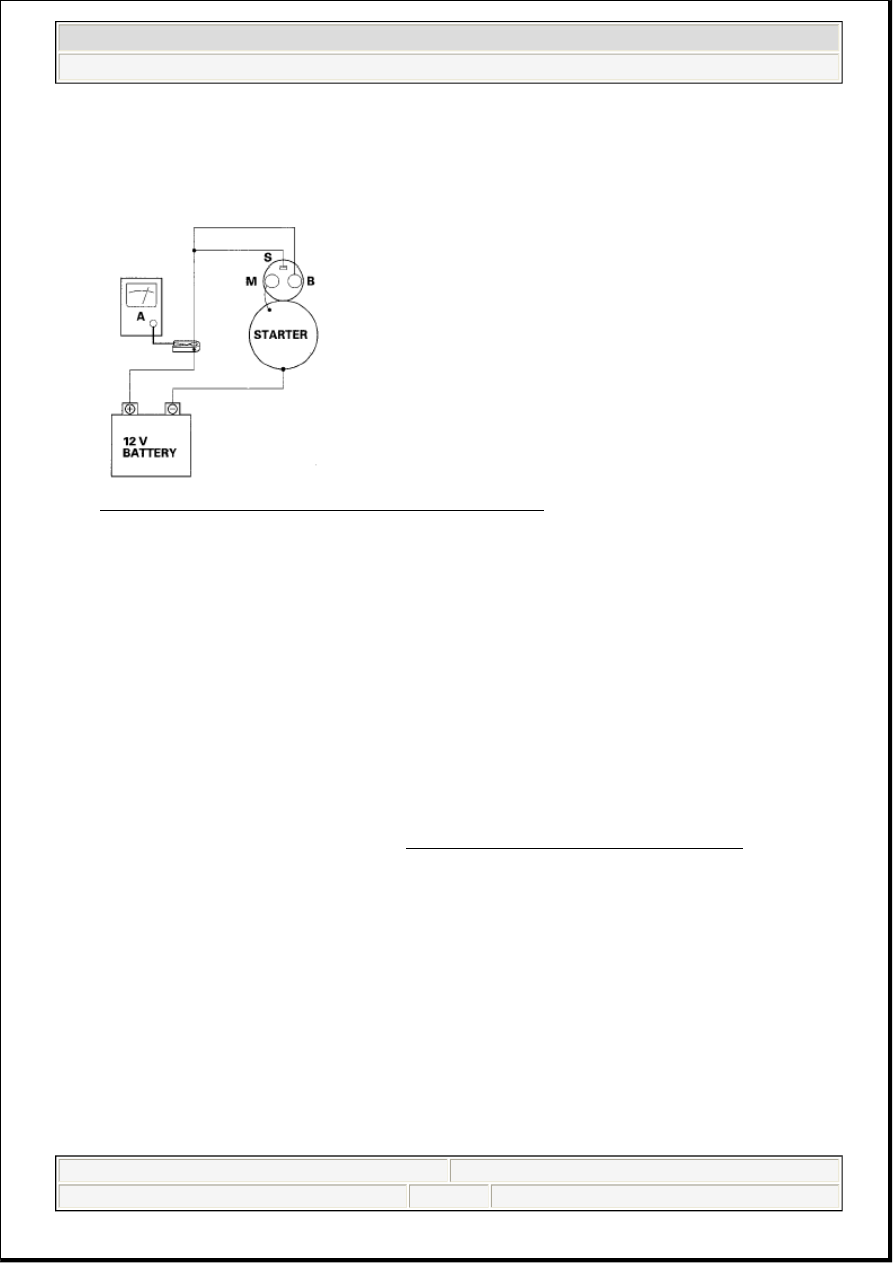

Fig. 9: Checking Starter Motor Turns And Current Draw
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. If the electric current meets the specification when the battery voltage is at 11 V, the starter is working

properly.

Specification

Electric Current: 90 A or less

STARTER REMOVAL AND INSTALLATION

REMOVAL

1. Make sure you have the anti-theft codes for the audio system and navigation system. Make sure the

ignition switch is OFF.

2. Remove the battery trim (see step 2 under UPPER FENDER TRIM REPLACEMENT ).

3. Disconnect the negative cable from the battery.

4. Remove the engine cover.



2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

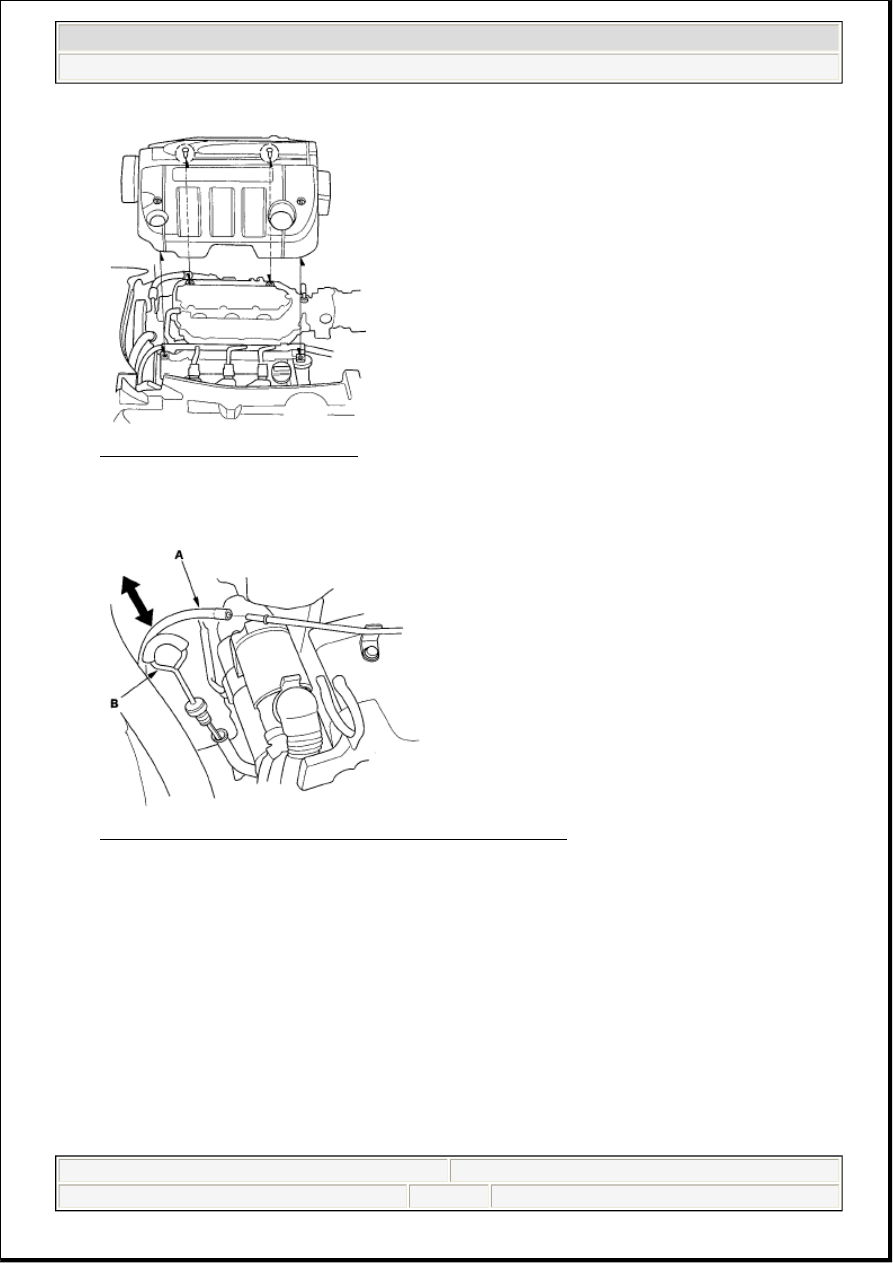

Fig. 10: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the vacuum hose (A) and transmission dipstick (B).

Fig. 11: Removing Vacuum Hose And Transmission Dipstick
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the harness clamp (A).



2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

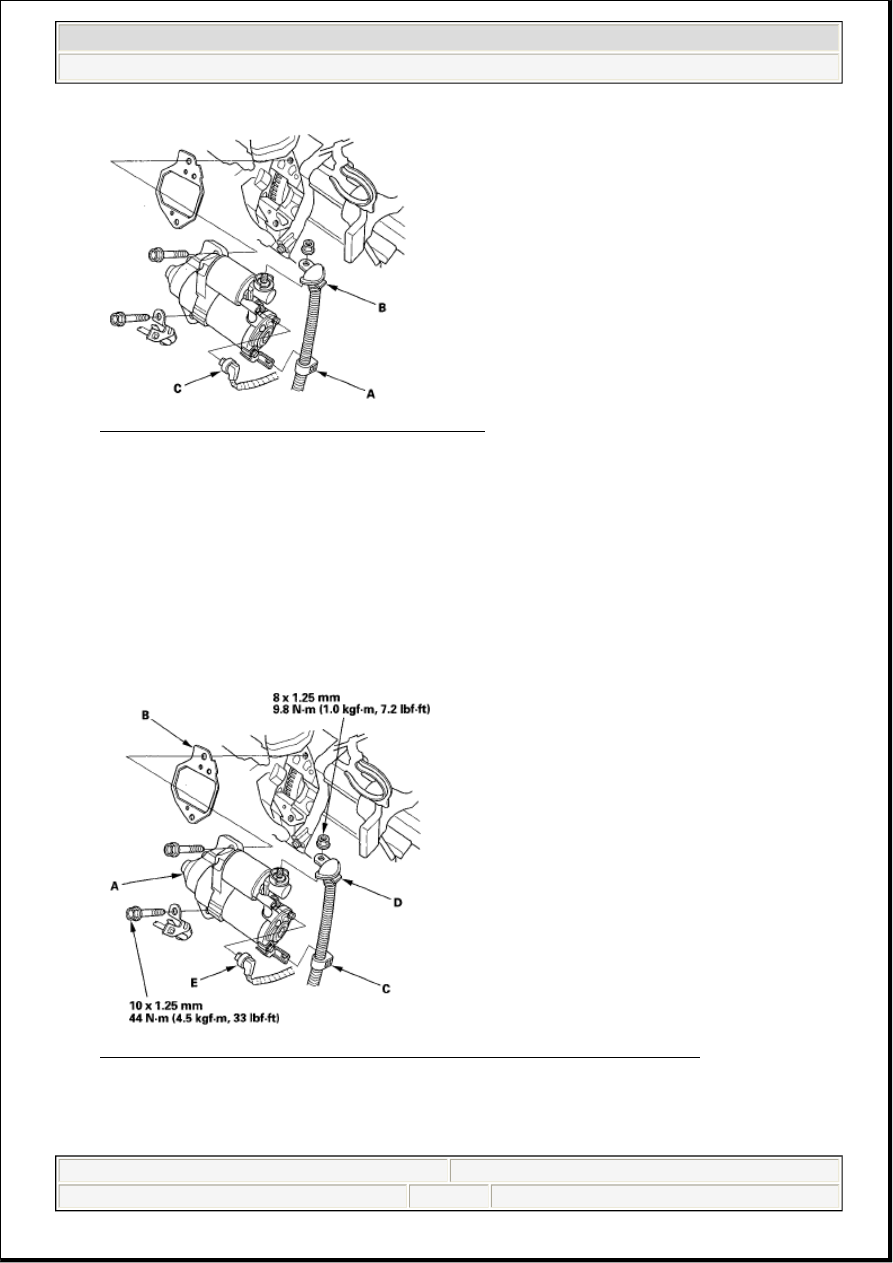

Fig. 12: Identifying Starter Mounting And Wiring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Disconnect the starter cable (B) from the B terminal, then disconnect the BLK/WHT wire (C) from

the S terminal.

8. Remove the two bolts holding the starter, then remove the starter.

INSTALLATION

1. Install the starter (A) using a new gasket (B), then install the harness clamp (C), and connect the B

terminal (D) and BLK/WHT wire (E). Make sure the crimped side of the B terminal faces away from
the starter when you connect it.

Fig. 13: Identifying Starter Mounting And Wiring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the vacuum hose (A) and transmission dipstick (B).
