8. Install the cover in the reverse order of removal, and to prevent wrinkles, make sure the material is

stretched evenly over the pad before securing the hooks strips and fastener.

REAR SEAT HEAD RESTRAINT COVER/PAD REPLACEMENT

1. Remove the head restraint (see REAR SEAT HEAD RESTRAINT REPLACEMENT ).

2. Unzip the head restraint cover (A), pull it back, and remove it.

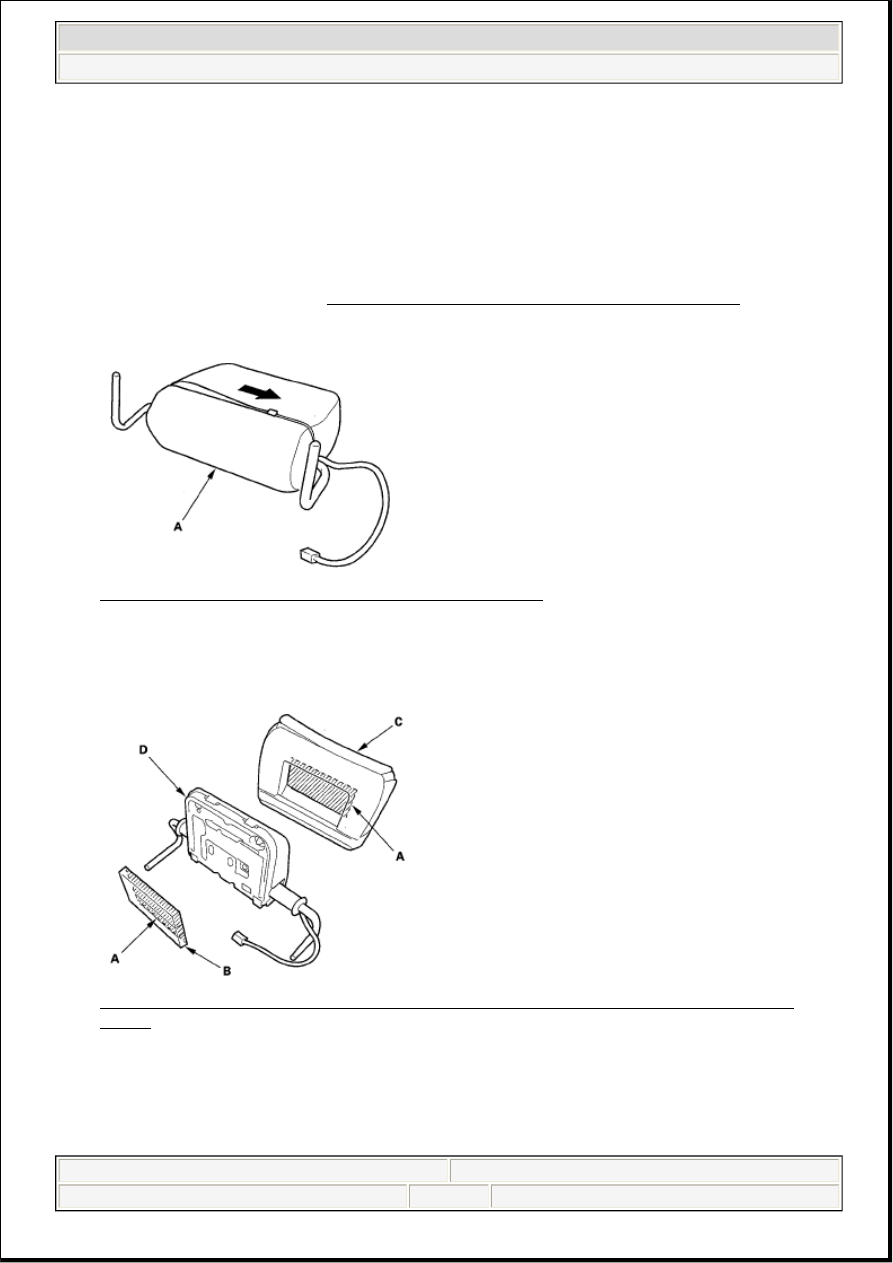

Fig. 87: Pulling Rear Seat Head Restraint Cover And Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Separate the double-sided adhesive tapes (A), then remove the head restraint pad (B) and head

restraint pad molding (C) from the head restraint frame (D).

Fig. 88: Identifying Head Restraint Pad, Head Restraint Pad Molding And Head Restraint
Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Scrape off the remaining double-sided adhesive tape from the head restraint frame, then clean its

surface with a sponge dampened in alcohol.

5. Install the cover and pads in the reverse order of removal.

NOTE:

Take care not to tear the seams or damage the seat covers.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Seats - RL



me



Friday, June 05, 2009 3:27:17 PM

Page 50

© 2005 Mitchell Repair Information Company, LLC.

2005-08 ENGINE

Starting System - RL

COMPONENT LOCATION INDEX

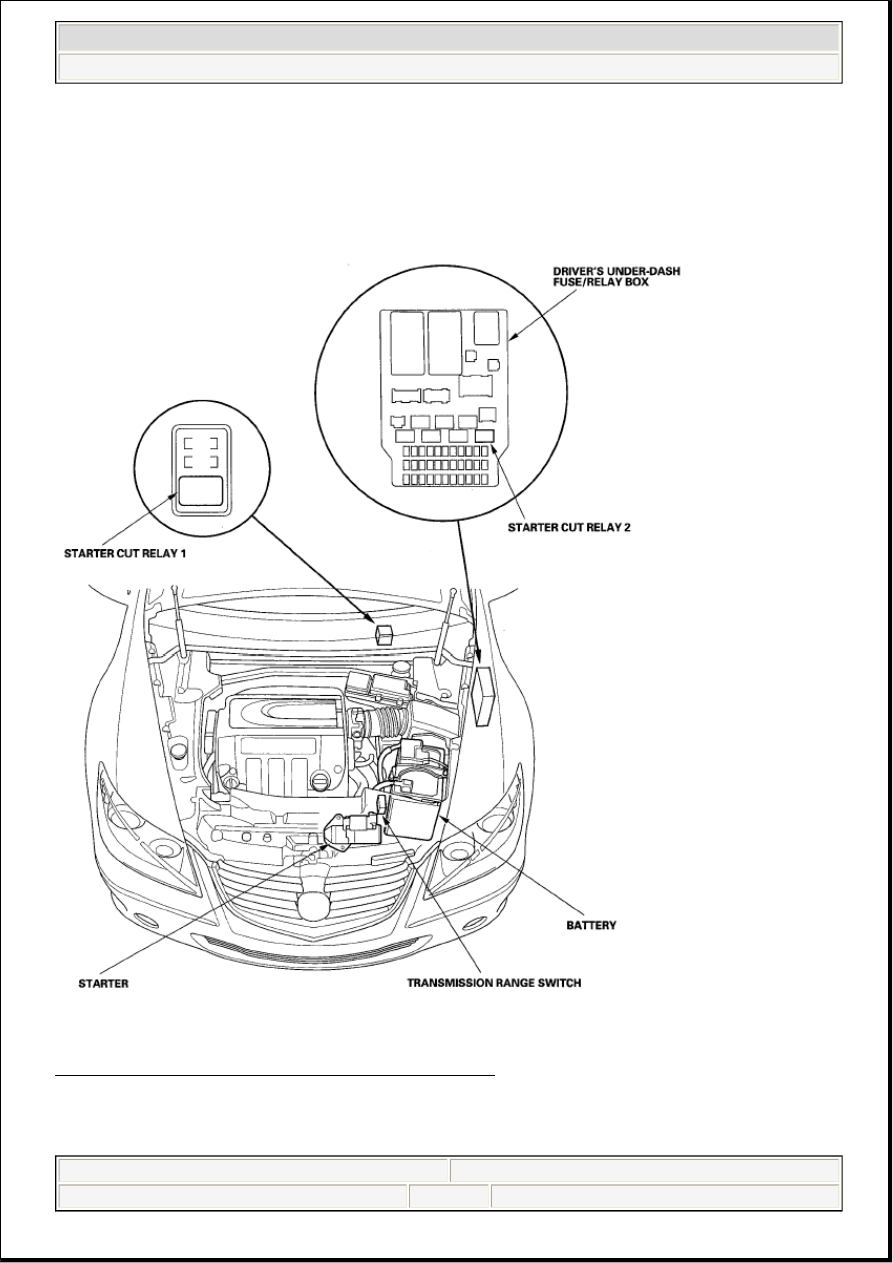

Fig. 1: Identifying Starting System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYMPTOM TROUBLESHOOTING INDEX



2007 Acura RL

2005-08 ENGINE Starting System - RL





2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

me



Friday, June 05, 2009 3:03:39 PM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

SYMPTOM TROUBLESHOOTING INDEX

Symptom

Diagnostic procedure

Also check for

Engine does not start (does
not crank)

1. Check for loose battery terminals or

connections.

2. Test the battery for a low charge (see

BATTERY TEST ).

3. Check the starter (see STARTER SYSTEM

CIRCUIT TROUBLESHOOTING ).

4. Check starter cut relay 1 and starter cut relay 2

(see POWER RELAY TEST ).

5. Check the transmission range switch (see

TRANSMISSION RANGE SWITCH TEST ).

6. Check the ignition switch or wire (see TEST ).

Poor ground at
G1, G2, G101,
G102

Engine cranks, but does not
start

1. Check for PGM-FI DTCs.

2. Check the fuel pressure (see FUEL

PRESSURE TEST ).

3. Check for a plugged or damaged fuel line (see

FUEL LINE INSPECTION ).

4. Check for a plugged fuel filter (see FUEL

PRESSURE REGULATOR
REPLACEMENT ).

5. Check the throttle body (see THROTTLE

BODY TEST ).

6. Check for low engine compression (see

ENGINE COMPRESSION INSPECTION ).

7. Check for a damaged or broken timing belt.



Engine is hard to start

1. Check for PGM-FI DTCs.

2. Check the fuel pressure (see FUEL

PRESSURE TEST ).

3. Check for a plugged or damaged fuel line (see

FUEL LINE INSPECTION ).

4. Check for a plugged fuel filter (see FUEL

PRESSURE REGULATOR
REPLACEMENT ).



Engine cranks slowly

1. Check for loose battery terminals or

connections.

2. Test the battery for a low charge (see

BATTERY TEST ).

3. Check the starter for binding (see STARTER

OVERHAUL ).

4. Check for excessive drag in the engine.



Multi-information display
warning CHECK
STARTING SYSTEM

Check for PGM-FI DTCs (see GENERAL
TROUBLESHOOTING INFORMATION ).





2007 Acura RL

2005-08 ENGINE Starting System - RL



me



Friday, June 05, 2009 3:03:32 PM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

CIRCUIT DIAGRAM

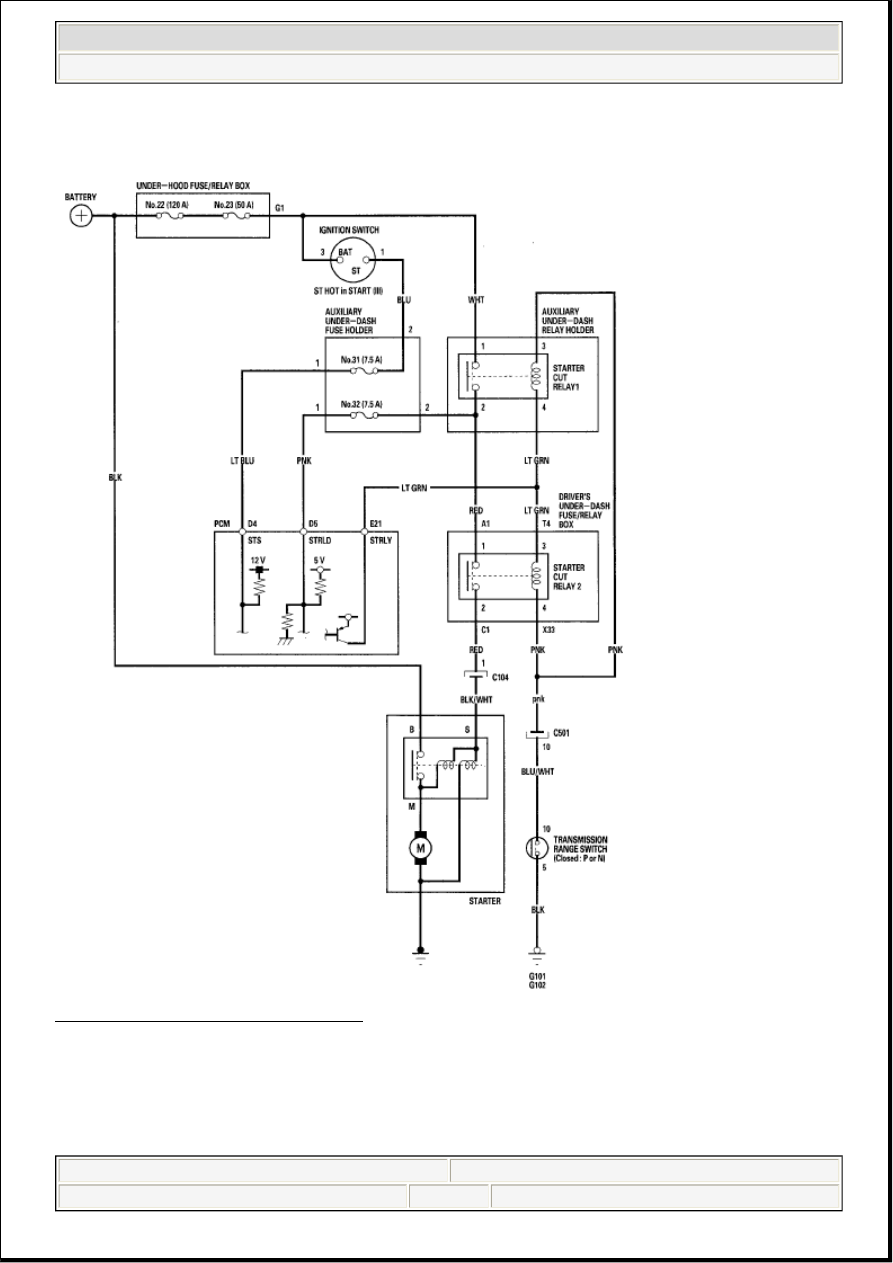

Fig. 2: Starting System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

STARTER SYSTEM CIRCUIT TROUBLESHOOTING

NOTE:



Air temperature must be between 59 and 100°F (15 and 38°C) during
