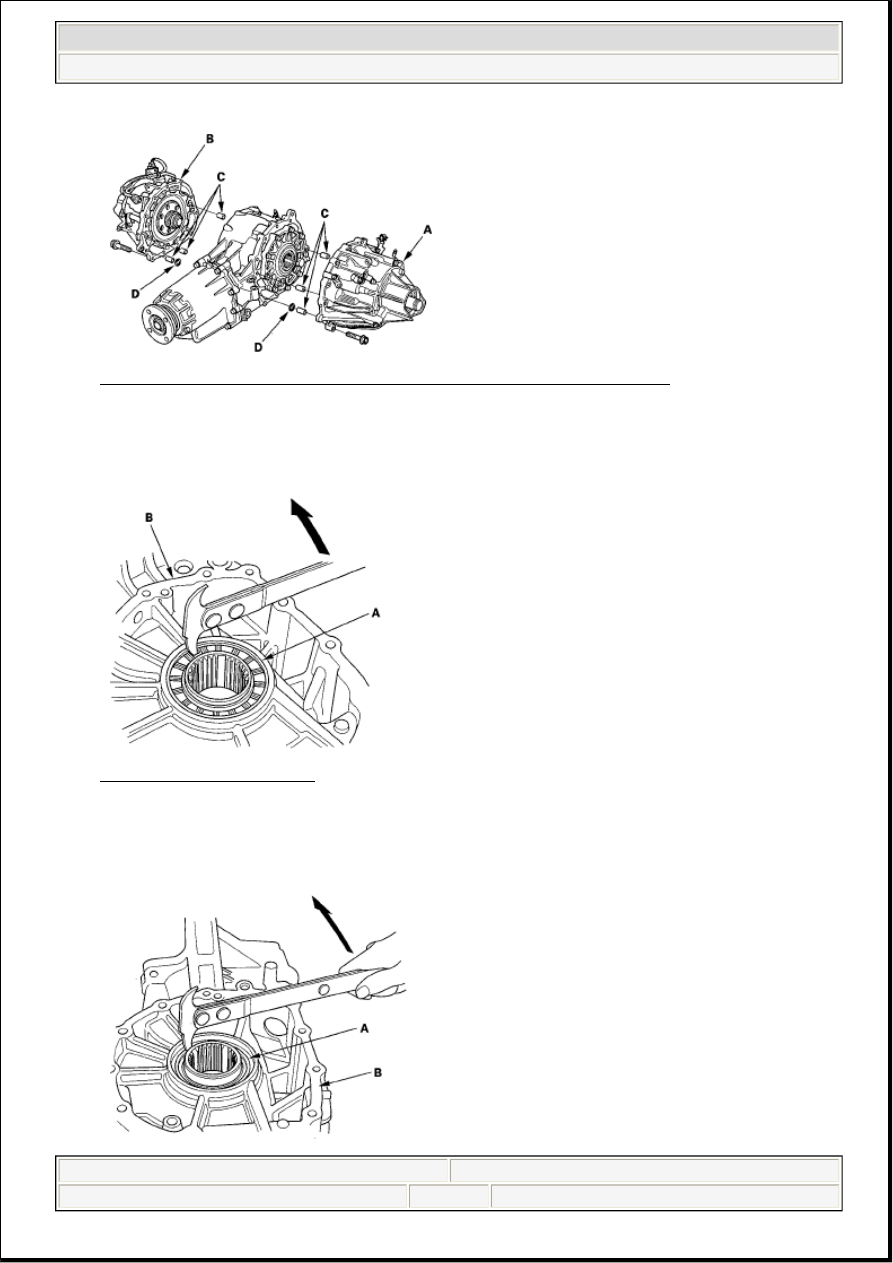

Fig. 220: Identifying Left Side Case And Right Side Case With Dowel Pins
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the 60 x 89 x 6.5 mm oil seal (A) from the right side center case (B) with a commercially

available seal remover.

Fig. 221: Removing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the 60 x 80 x 6.5 mm oil seal (A) from the left side center case (B) with a commercially

available seal remover.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 155  © 2005 Mitchell Repair Information Company, LLC.

Fig. 222: Removing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

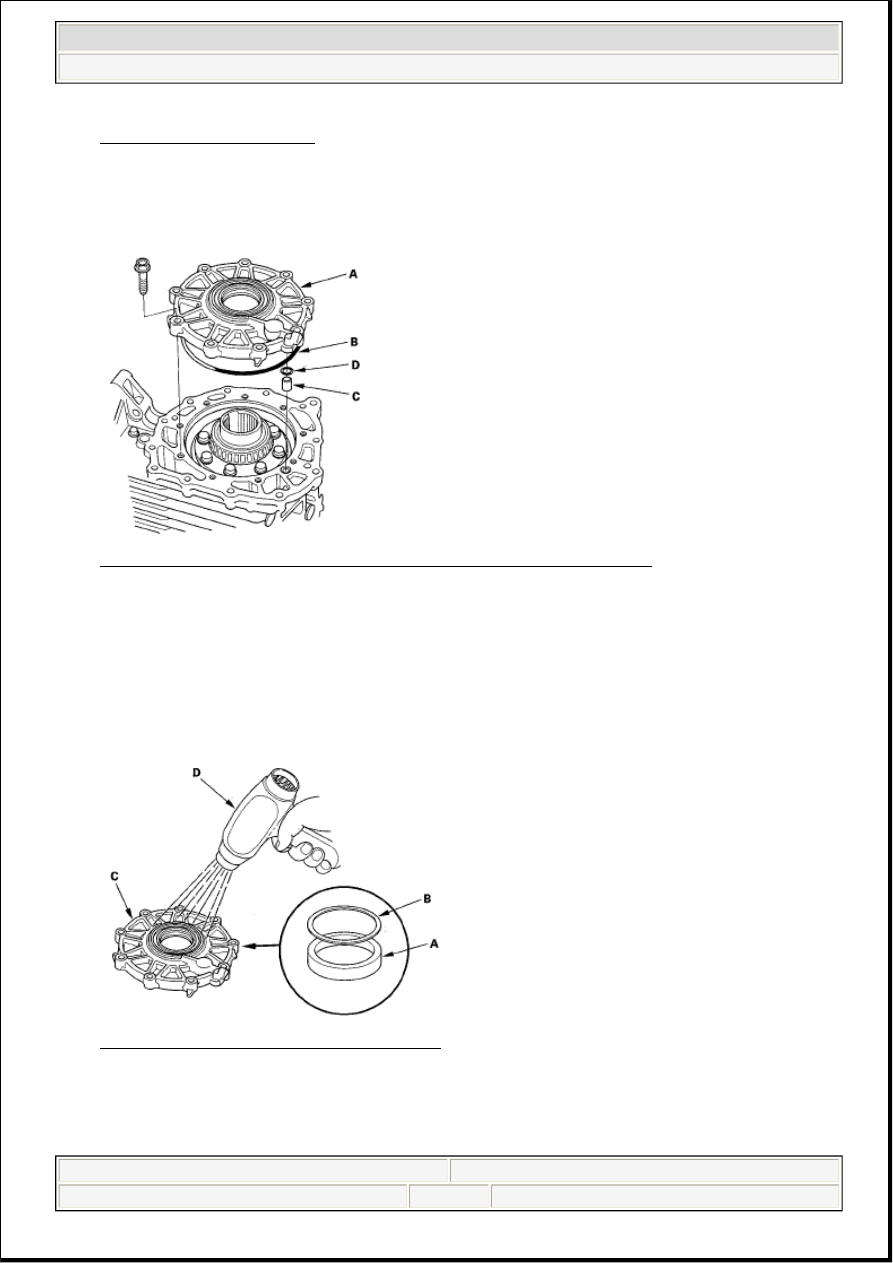

5. Remove the differential carrier cover (A), the 156 x 3.5 mm O-ring (B), the 8x14 mm dowel pin (C),

and the 7.7 x 2.3 mm O-ring (D).

Fig. 223: Identifying Differential Carrier Cover, Dowel Pin And O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the 70 x 100 x 20 mm bearing outer race (A) and 100 mm shim (B) from the differential

carrier cover (C) by heating the differential carrier cover to about 212°F (100°C) with a heat gun (D).
Do not heat the differential carrier cover in excess of 212°F (100°C).

Fig. 224: Heating Differential Carrier Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the 60 x 89 x 6.5 mm oil seal and the 60 x 80 x 6.5 mm oil seal from the differential carrier

cover.

NOTE:

Let the differential carrier cover cool to room temperature before
installing the bearing outer race.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 156  © 2005 Mitchell Repair Information Company, LLC.

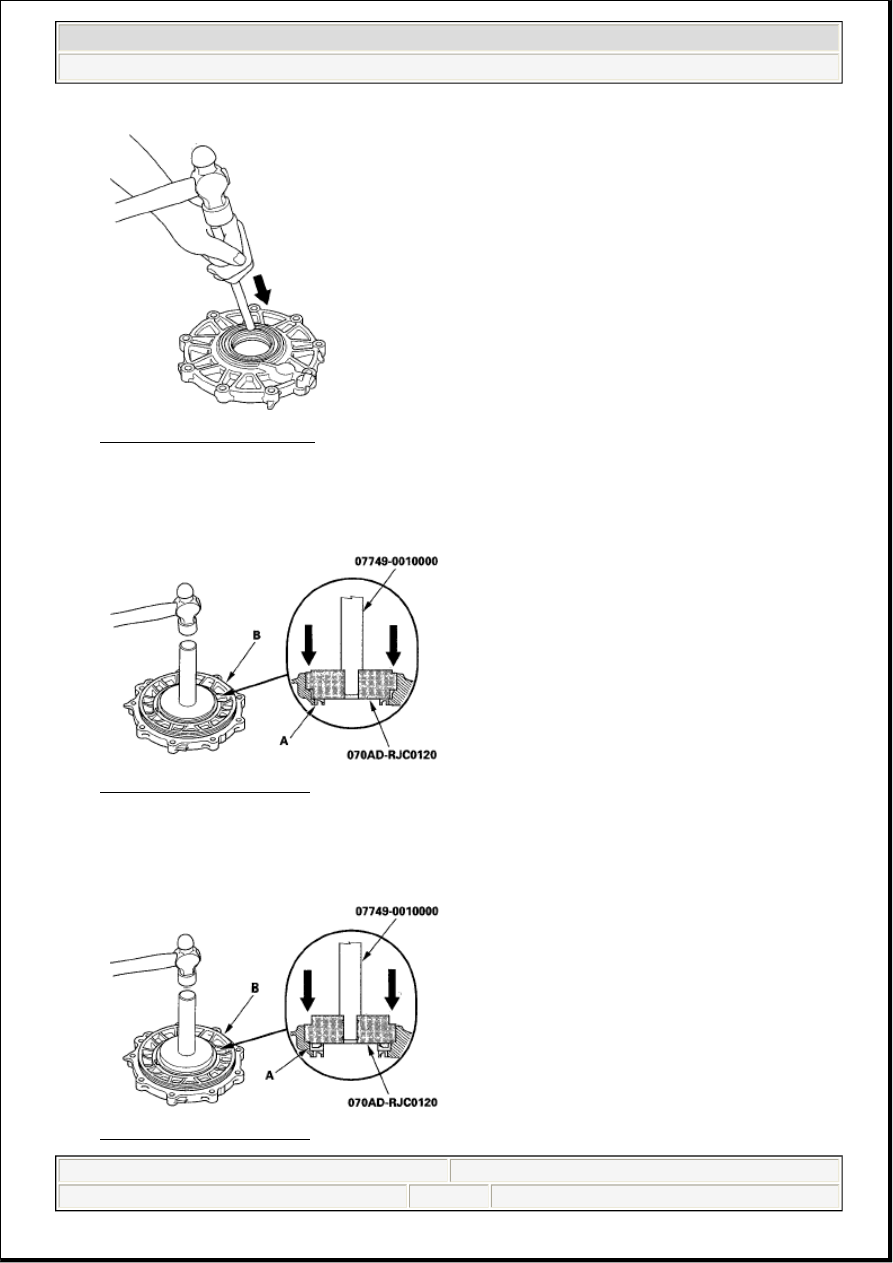

Fig. 225: Removing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the new 60 x 80 x 6.5 mm oil seal (A) into the differential carrier cover (B) with the driver and

driver handle.

Fig. 226: Installing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the new 60 x 89 x 6.5 mm oil seal (A) into the differential carrier cover (B) with the driver and

driver handle.

Fig. 227: Installing Oil Seal



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 157  © 2005 Mitchell Repair Information Company, LLC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

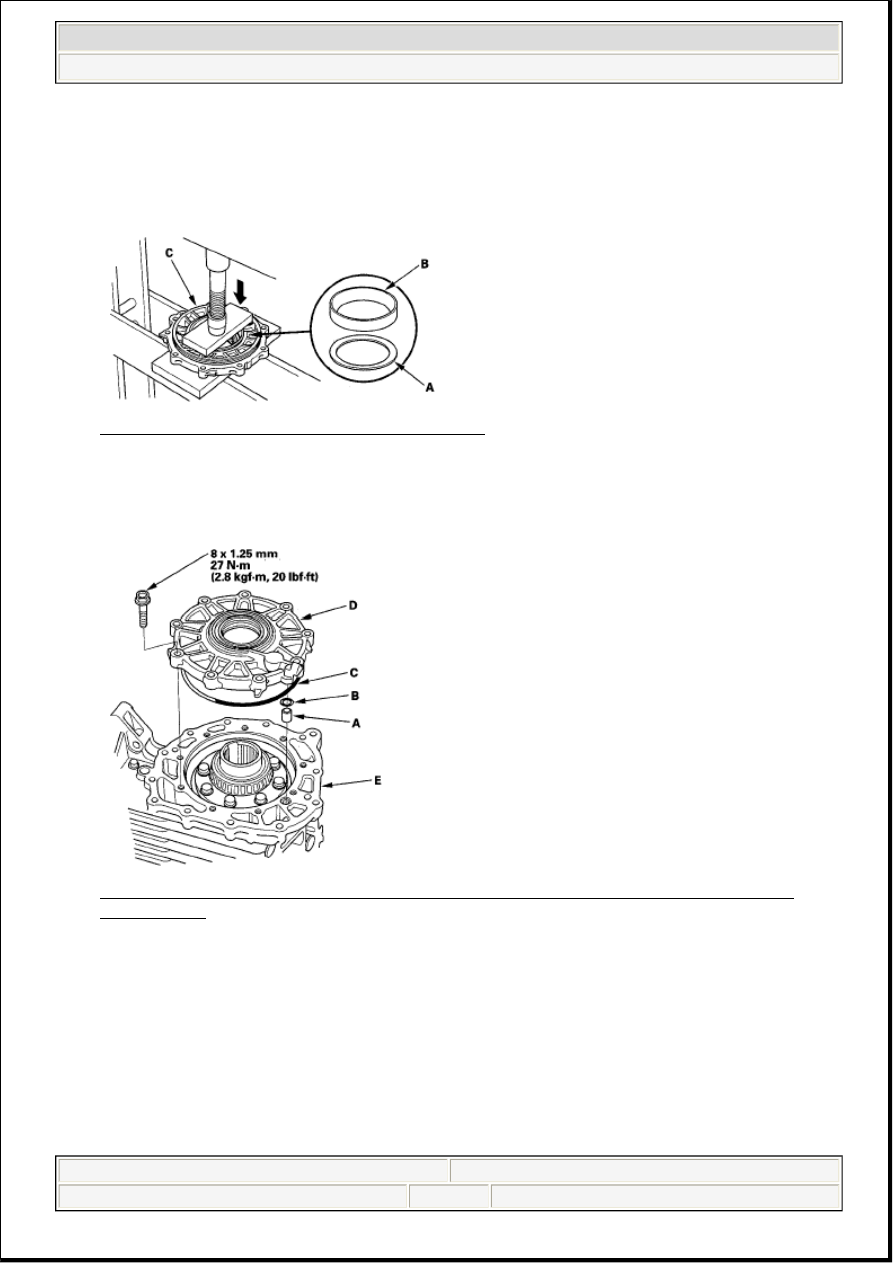

10. Install the 100 mm shim (A) and the 70 x 100 x 20 mm bearing outer race (B) into the differential

carrier cover (C) with a press.

Fig. 228: Installing Shim And Bearing Outer Race
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Install the 8 x 14 mm dowel pin (A), the new 7.7 x 2.3 mm O-ring (B), the new 156 x 3.5 mm O-ring

(C), and the differential carrier cover (D) onto the center case (E).

Fig. 229: Identifying Differential Carrier Cover, Center Case And Dowel Pin With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Install the new 60 x 80 x 6.5 mm oil seal (A) into the right side center case (B) with the driver and

driver handle, and attachment.
