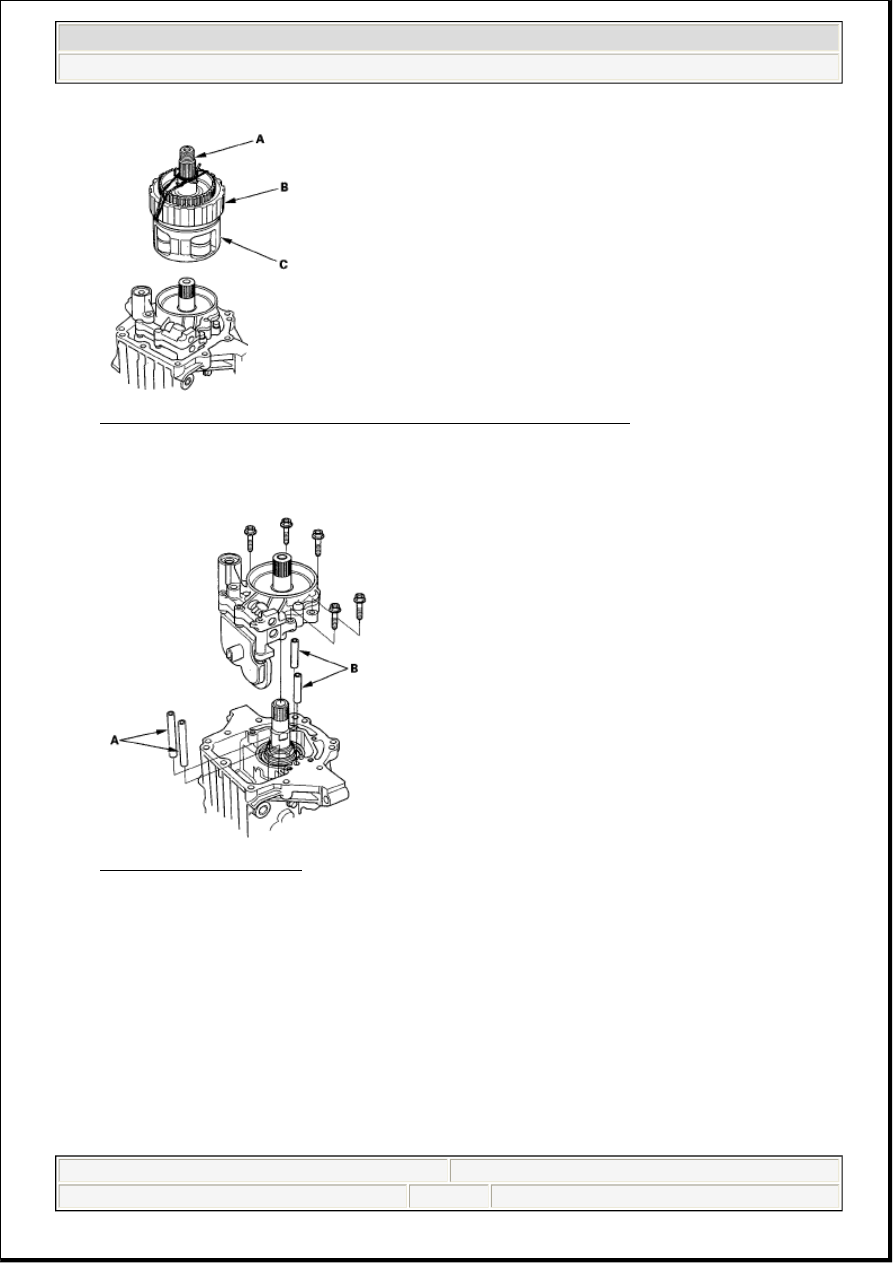

Fig. 202: Identifying Input Shaft, Low Clutch And Planetary Carrier
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Remove the two 8 x 51.5 mm pipes (A), and the two 8 x 35 mm pipes (B).

Fig. 203: Identifying Pipes
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Remove the 45 x 67 x 6.5 mm oil seal (A) with a commercially available seal remover.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 147  © 2005 Mitchell Repair Information Company, LLC.

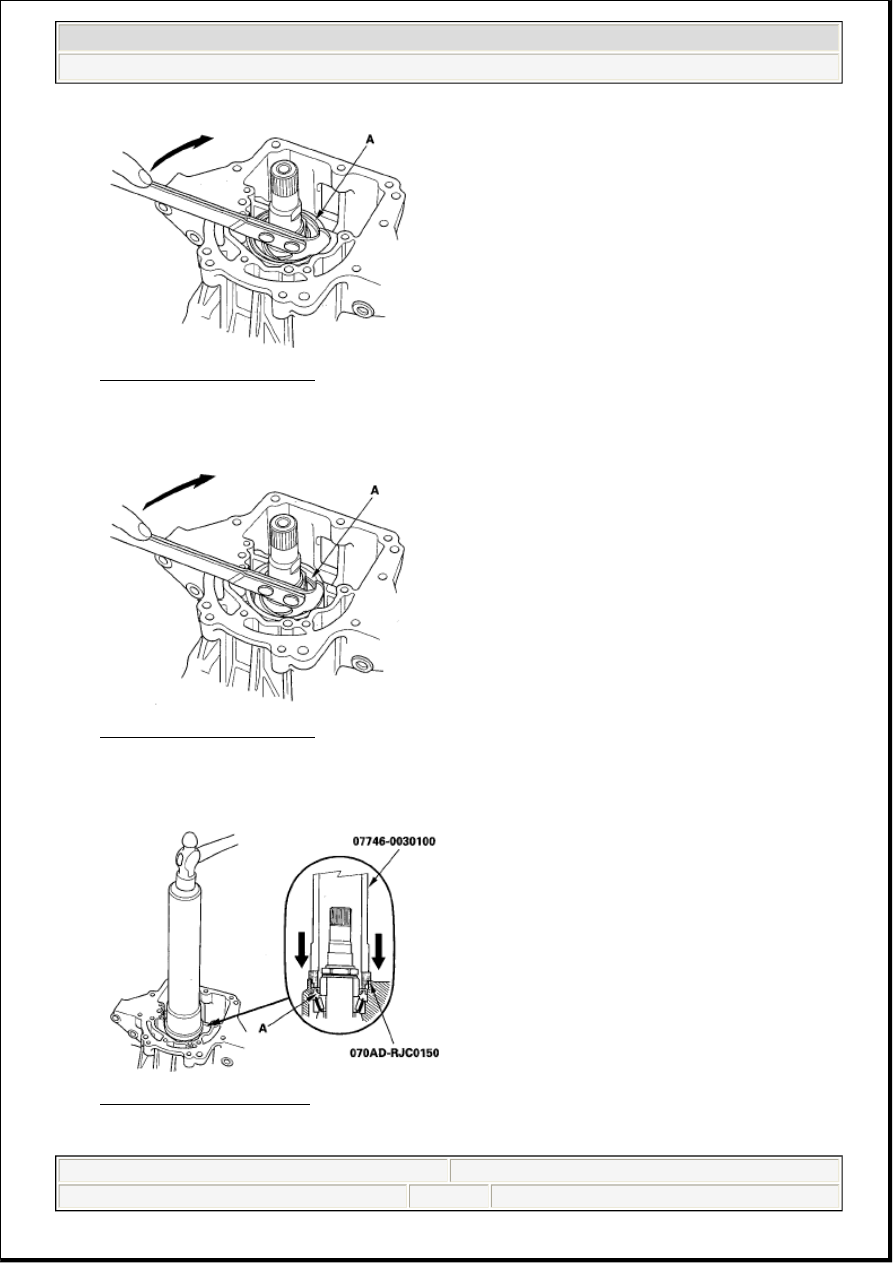

Fig. 204: Removing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Remove the 45 x 65 x 6.5 mm oil seal (A) with a commercially available seal remover.

Fig. 205: Removing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Install a new 45 x 65 x 6.5 mm oil seal (A) with the driver and driver handle.

Fig. 206: Installing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 148  © 2005 Mitchell Repair Information Company, LLC.

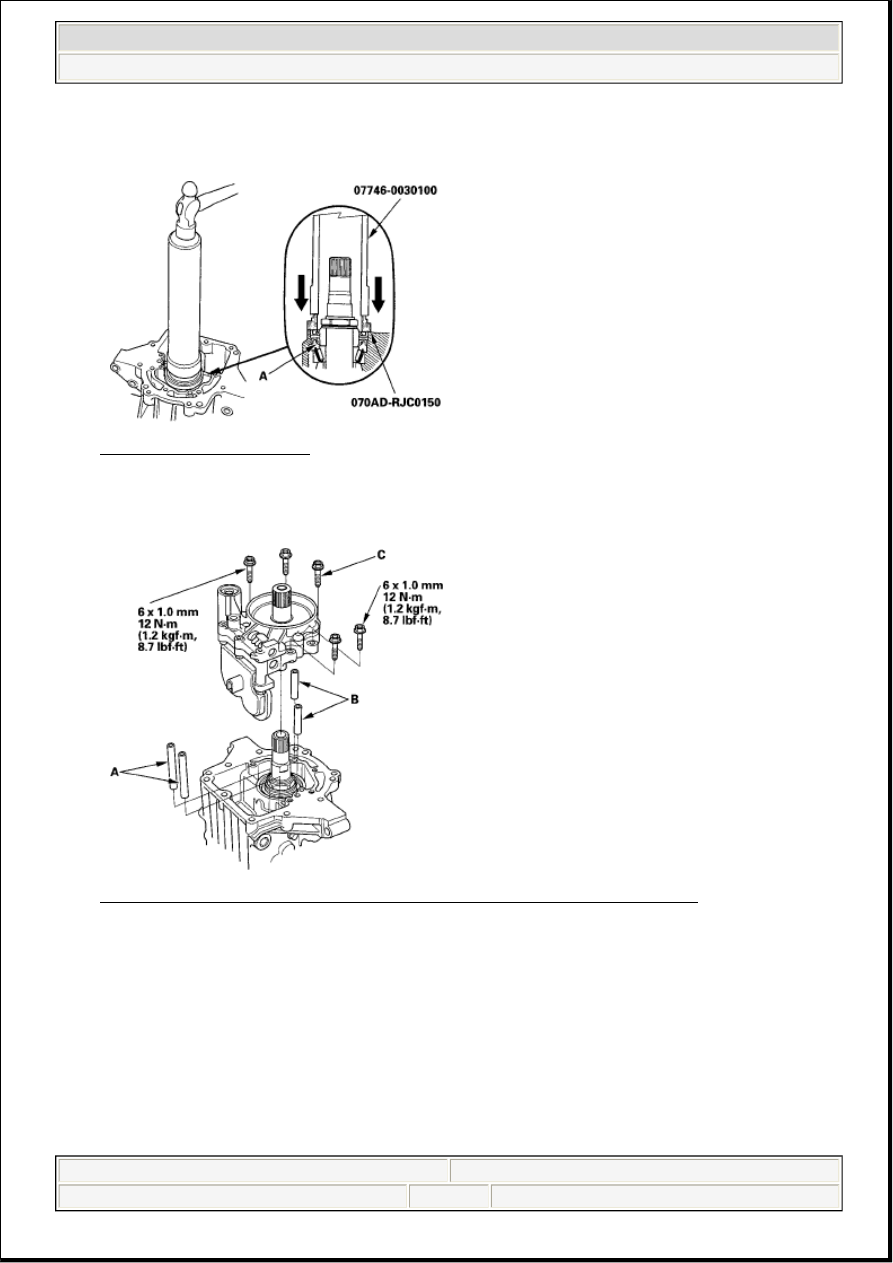

17. Install a new 45 x 67 x 6.5 mm oil seal (A) with the driver and driver handle.

Fig. 207: Installing Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Install the two 8 x 51.5 mm pipes (A), the two 8 x 35 mm pipes (B), and the planetary carrier (C).

Fig. 208: Identifying Pipes And Planetary Carrier With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

19. Install the planetary carrier (A), low clutch (B) and input shaft (C) as an assembly, then remove the

wire.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 149  © 2005 Mitchell Repair Information Company, LLC.

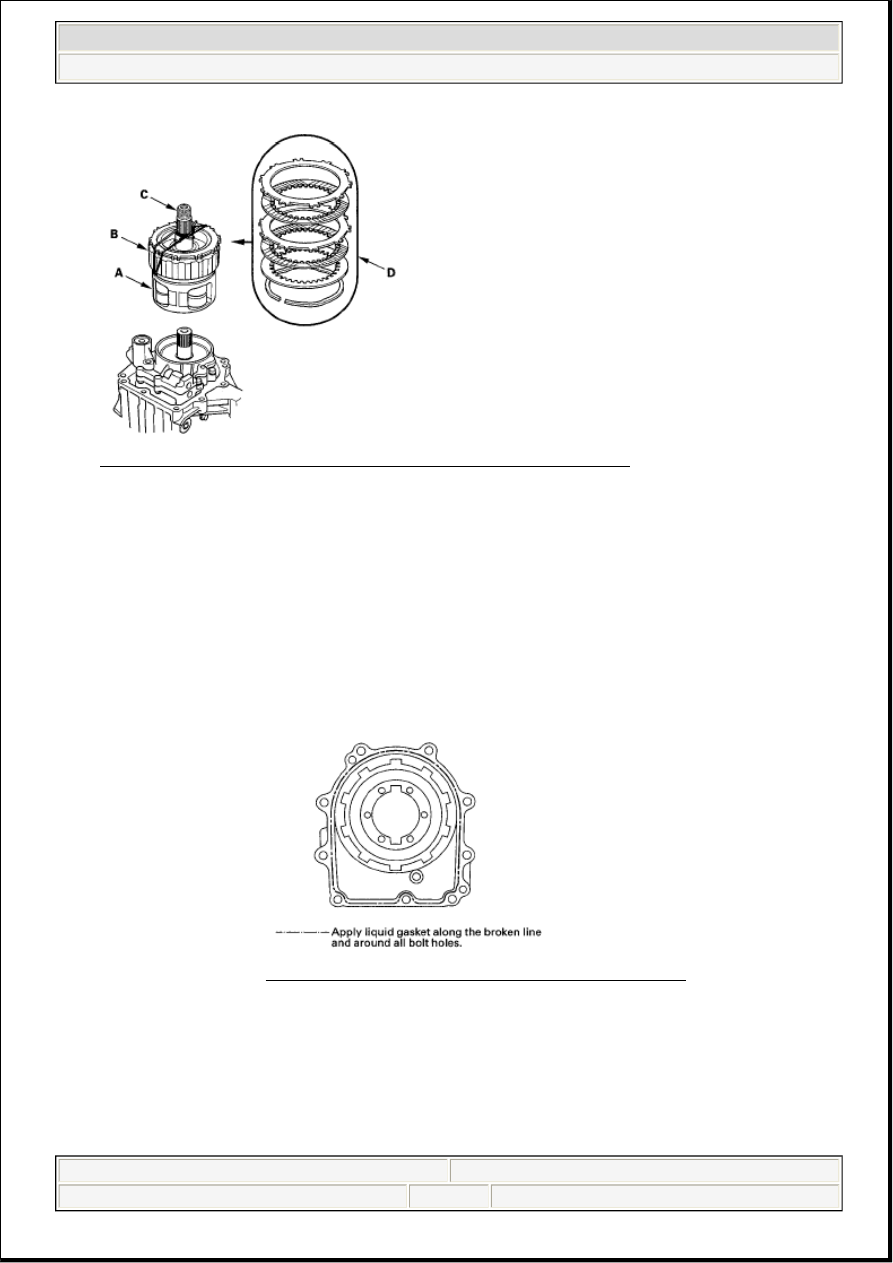

Fig. 209: Identifying Planetary Carrier, Low Clutch And Input Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

20. Install the high clutch (D).

21. Remove the dirt and oil from the sealing surface. Apply liquid gasket (P/N 08718-0001) to the sealing

surface. Make sure you seal the entire circumference of the bolt holes to prevent oil leakage.

22. Install the two 8 x 14 mm dowel pins (A) and the 8 x 130 mm pipe (B).

NOTE:



You must assemble the housings with you do in 5 minutes after
applying the liquid gasket. If not, the sealing surface must be
cleaned, and the liquid gasket reapplied.



Allow it to cure at least 30 minutes after assembly before filling
the differential with fluid.

Fig. 210: Identifying Liquid Gasket Applying Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.
