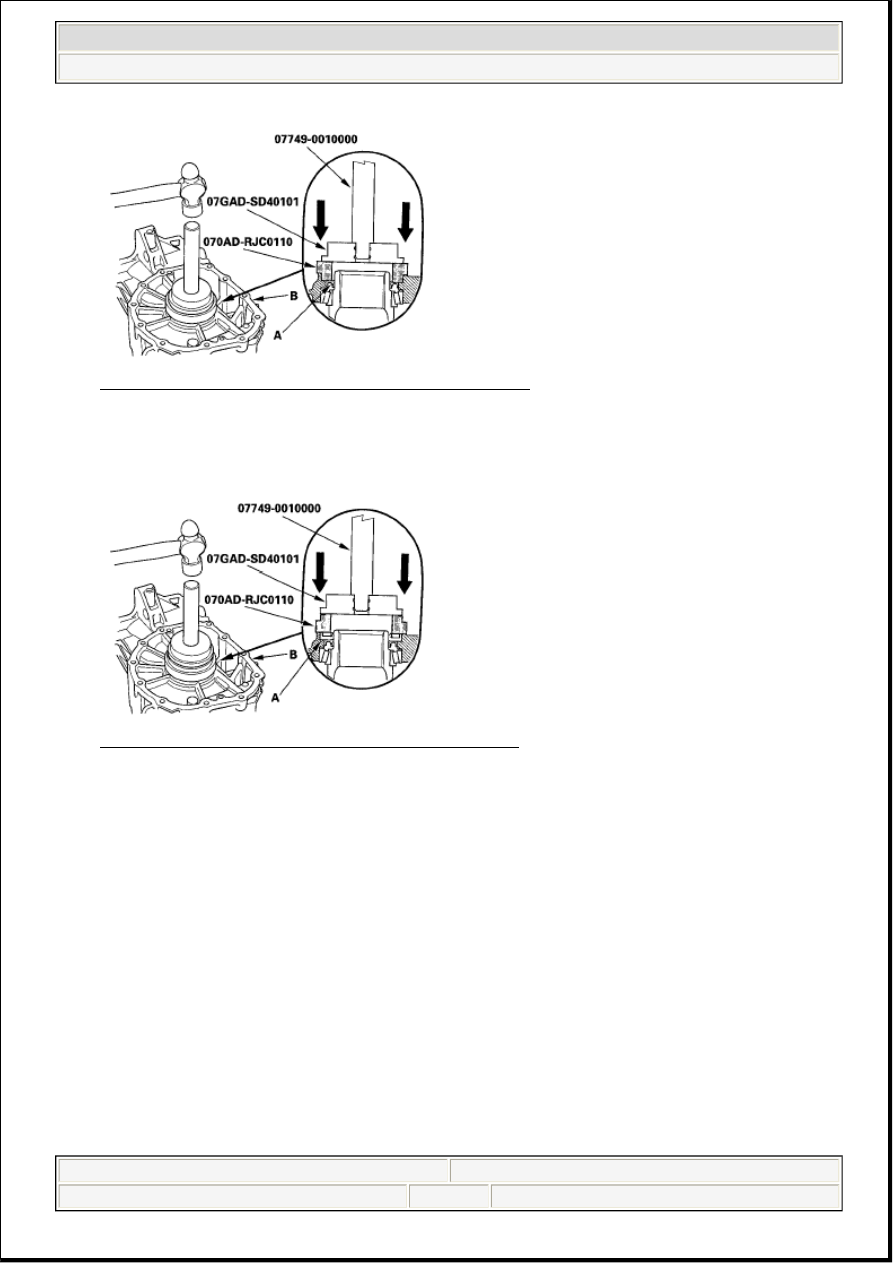

Fig. 230: Installing Oil Seal Into Right Side Center Case
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Install the new 60 x 89 x 6.5 mm oil seal (A) into the left side center case (B) using the driver and

driver handle, and attachment.

Fig. 231: Installing Oil Seal Into Left Side Center Case
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Remove the dirt and oil from the sealing surfaces. Apply liquid gasket (P/N 08718-0001) to the

sealing surface. Make sure you seal the entire circumference of the bolt holes to prevent oil leakage.

Left side case

NOTE:



You must assemble the housings with you do in 5 minutes after
applying the liquid gasket. If not, the sealing surface must be
cleaned, and the liquid gasket reapplied.



Allow it to cure at least 30 minutes after assembly before filling
the differential with fluid.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 159  © 2005 Mitchell Repair Information Company, LLC.

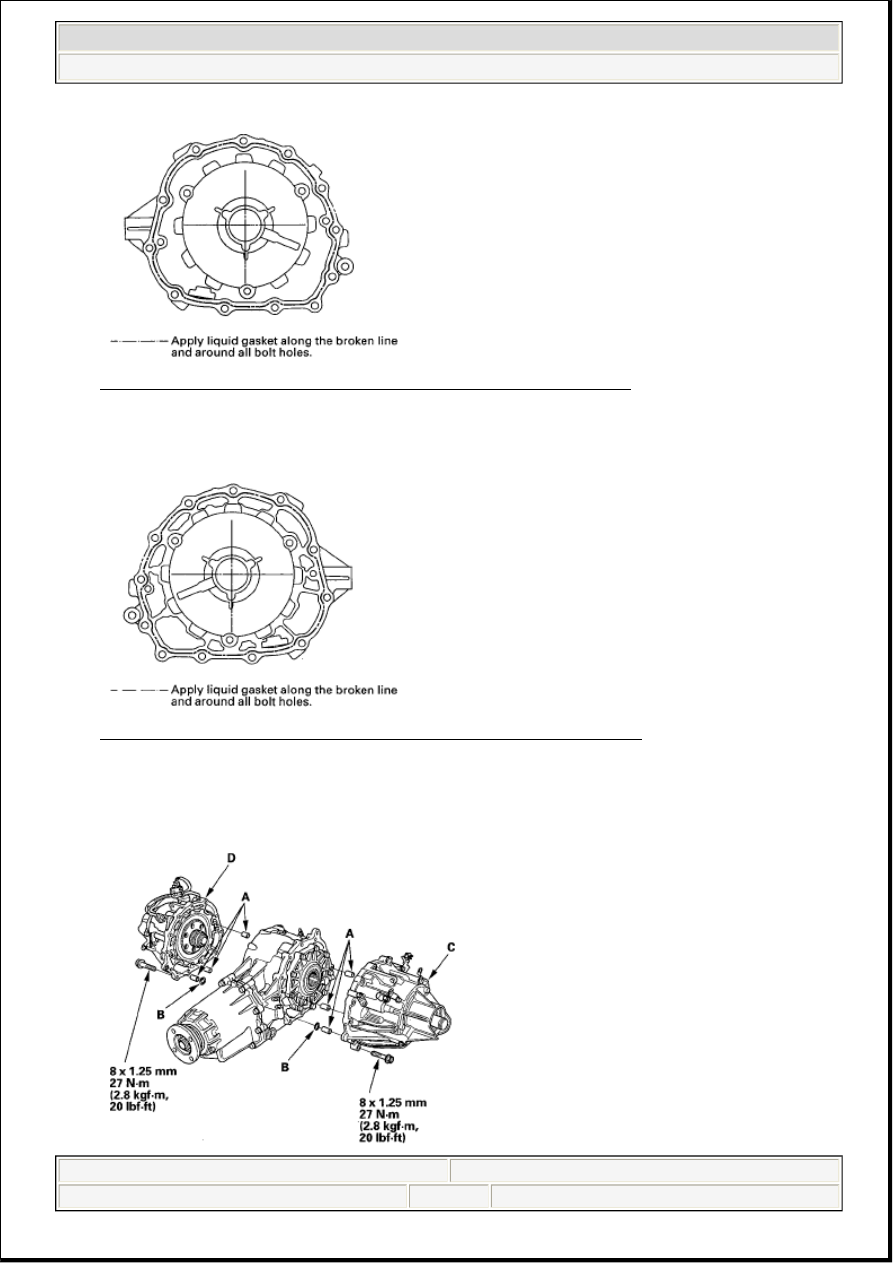

Fig. 232: Identifying Liquid Gasket Applying Area To Left Side Case
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right side case

Fig. 233: Identifying Liquid Gasket Applying Area To Right Side Case
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Install the six 8x14 mm dowel pins (A), the new 7.7 x 2.3 mm O-rings (B), the left side case (C), and

the right side case (D).



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 160  © 2005 Mitchell Repair Information Company, LLC.

Fig. 234: Identifying Left Side Case, And Right Side Case With Dowel Pins With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Install the rear differential (see REAR DIFFERENTIAL INSTALLATION ).

CENTER CASE REPLACEMENT

1. Remove the rear differential (see REAR DIFFERENTIAL REMOVAL ).

2. Remove the rear differential right side case (A), the rear differential left side case (B); the six 8 x 14

mm dowel pins (C), and the O-rings (D) from the rear differential center case (E).

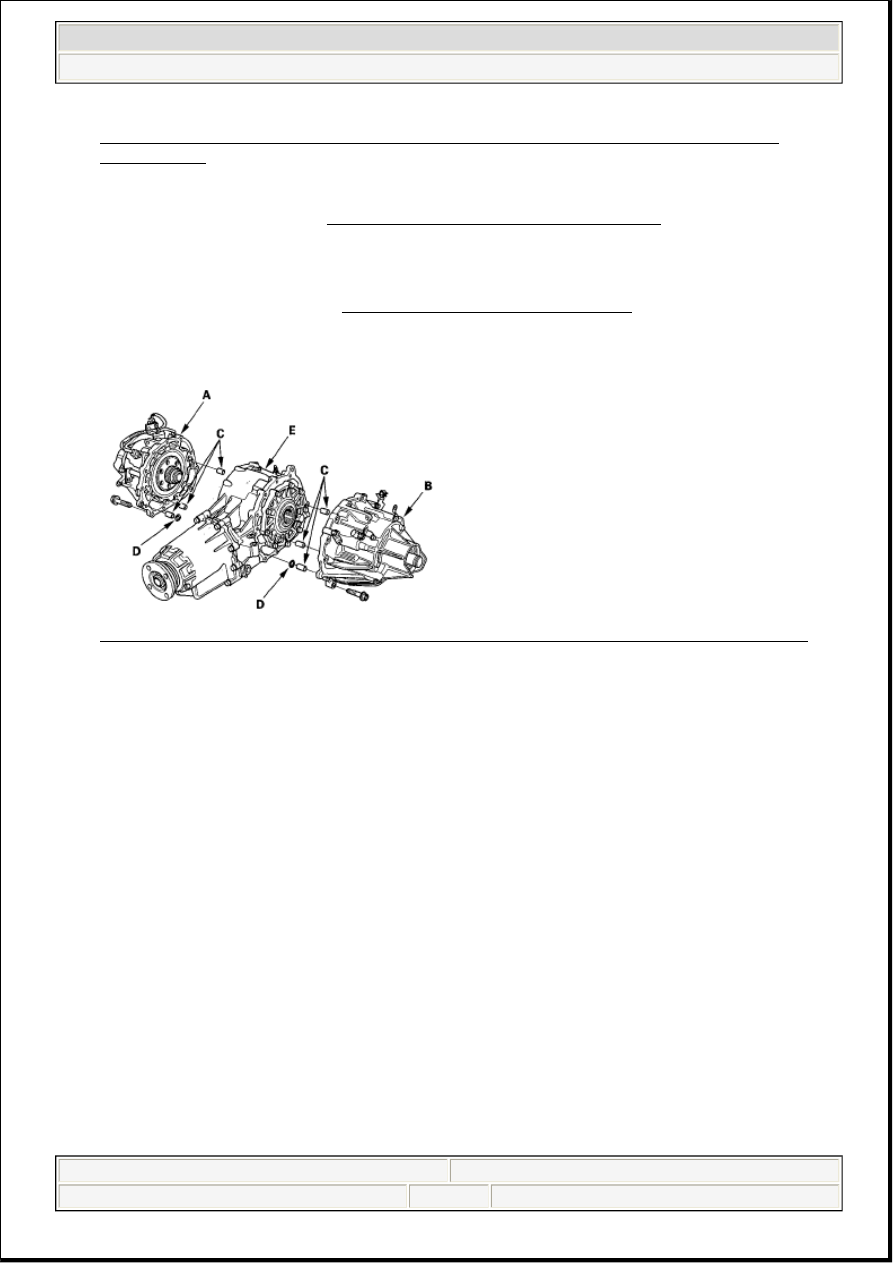

Fig. 235: Identifying Rear Differential Right Side Case And Rear Differential Left Side Case
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Replace the new rear differential center case.

4. Remove the dirt and oil from the sealing surfaces. Apply liquid gasket (P/N 08718-0001) to the

sealing surface. Make sure you seal the entire circumference of the bolt holes to prevent oil leakage.

Left side case

NOTE:



You must assemble the housings with you do in 5 minutes after
applying the liquid gasket. If not, the sealing surface must be
cleaned, and the liquid gasket reapplied.



Allow it to cure at least 30 minutes after assembly before filling
the differential with fluid.



2007 Acura RL

2005-08 DRIVELINE/AXLES Rear Differential - RL



me



Friday, June 05, 2009 3:02:19 PM

Page 161  © 2005 Mitchell Repair Information Company, LLC.

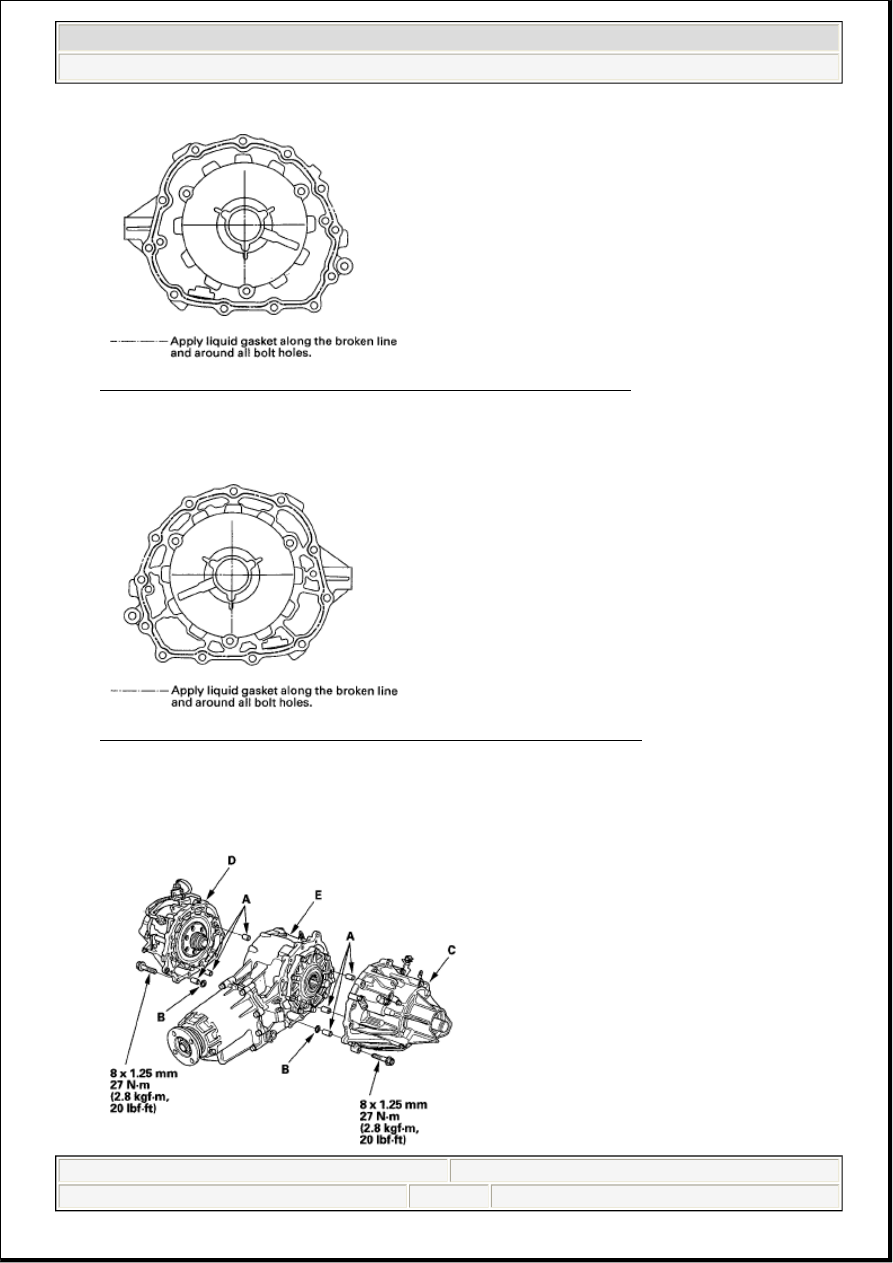

Fig. 236: Identifying Liquid Gasket Applying Area To Left Side Case
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right side case

Fig. 237: Identifying Liquid Gasket Applying Area To Right Side Case
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install the six 8 x 14 mm dowel pins (A), the new O-rings (B), the rear differential left side case (C),

and the rear differential right side case (D) on the rear differential center case (E).
