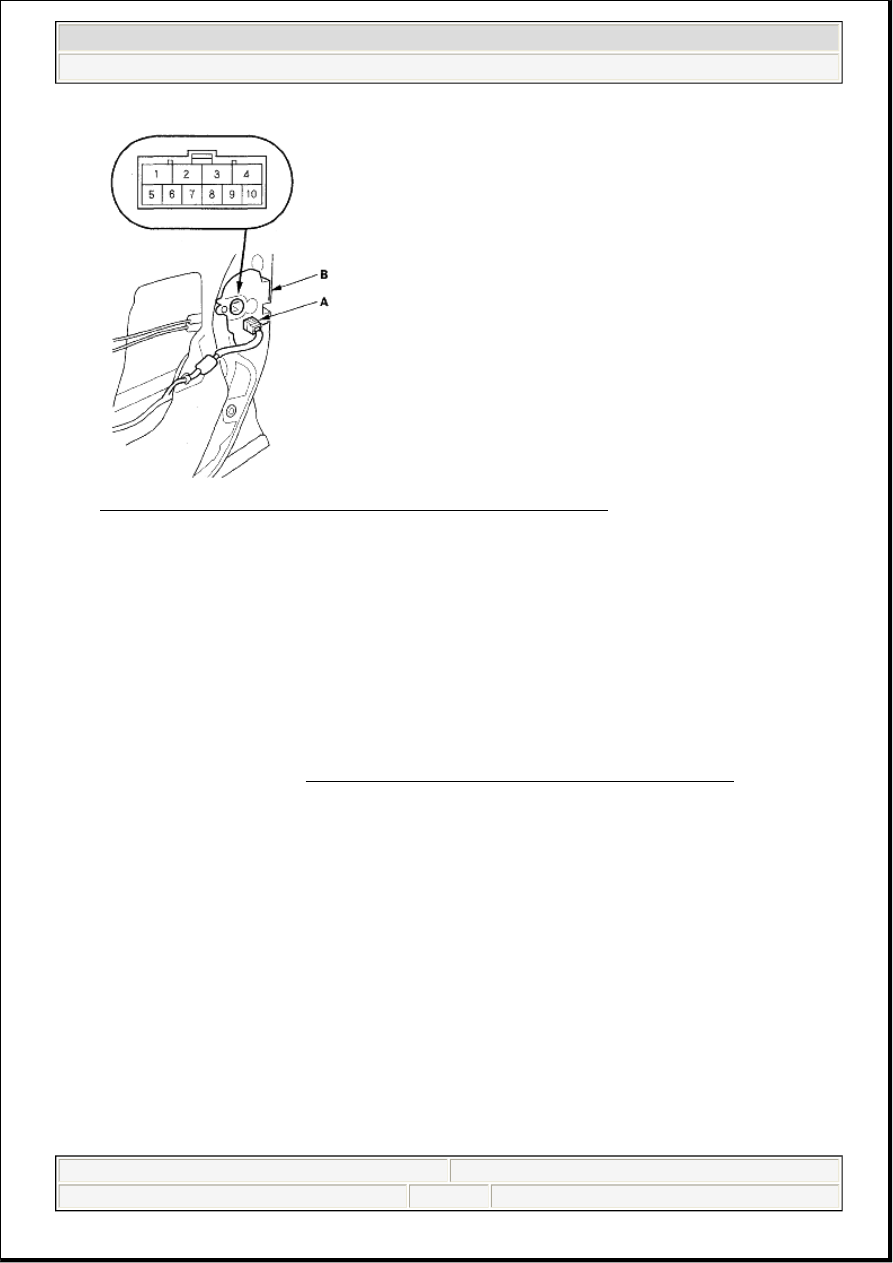

Fig. 21: Identifying Driver's Door Knob Switch 10P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check for continuity between the terminals.



There should be continuity between the No. 6 and No. 5 terminals when the door lock knob
switch is in the LOCK position and no continuity when the switch is in the UNLOCK position.



There should be continuity between the No. 7 and No. 5 terminals when the door lock knob
switch is in the UNLOCK position and no continuity when the switch is in the LOCK position.

4. If the continuity is not as specified, replace the door lock actuator.

PASSENGER'S DOORS

1. Remove the passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 10P connector (A) from the actuator (B).

NOTE:

The illustration shows the front passenger's door.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

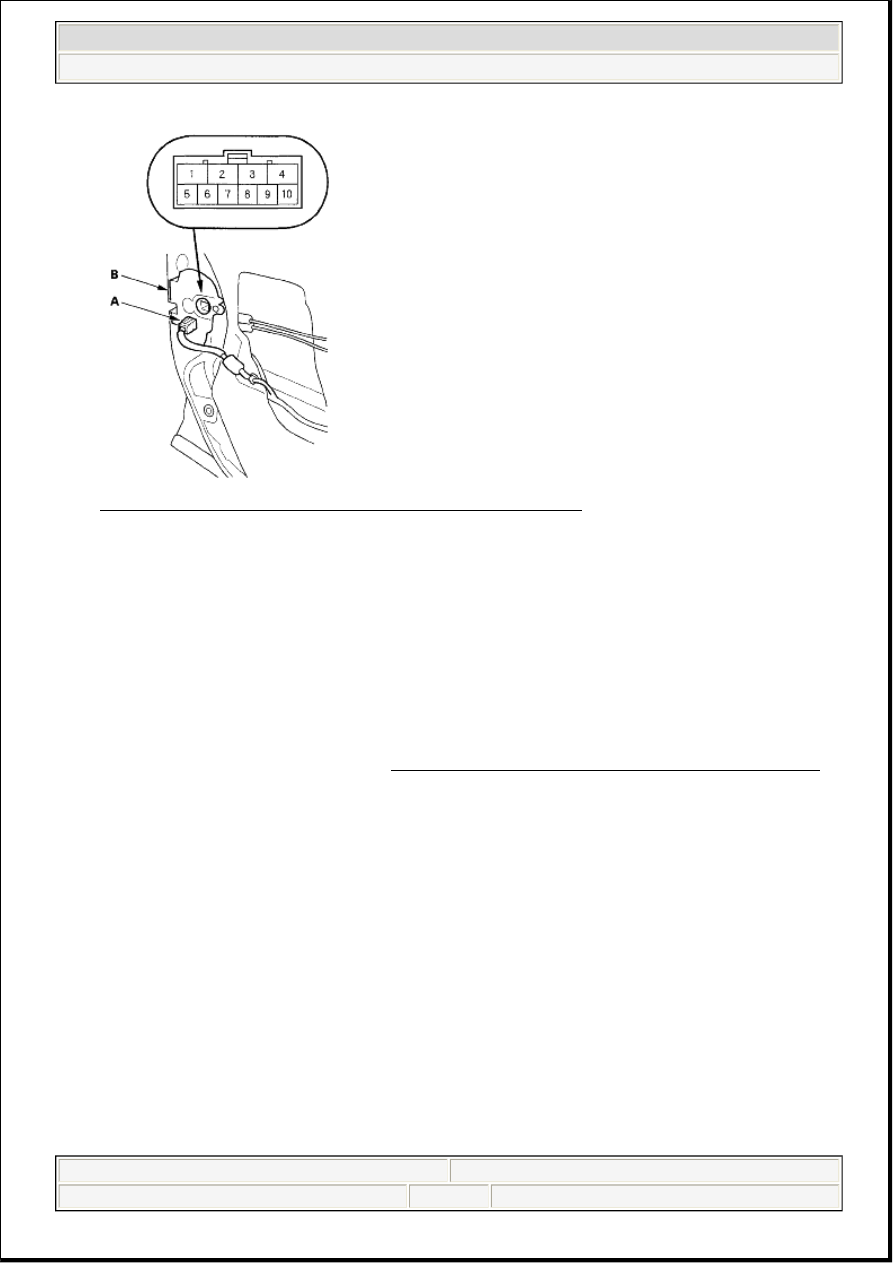

Fig. 22: Identifying Passenger's Door Knob Switch 10P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check for continuity between the terminals. There should be continuity between the No. 8 [No. 7] and

No. 10 [No. 5] terminals when the door lock knob switch in the UNLOCK position and no continuity
when the switch is in the LOCK position.

[ ] : Left rear door

4. If the continuity is not specified, replace the door lock actuator.

DOOR LOCK SWITCH TEST

1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 4P connector (A), remove the two screws, then remove the door lock switch (B).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

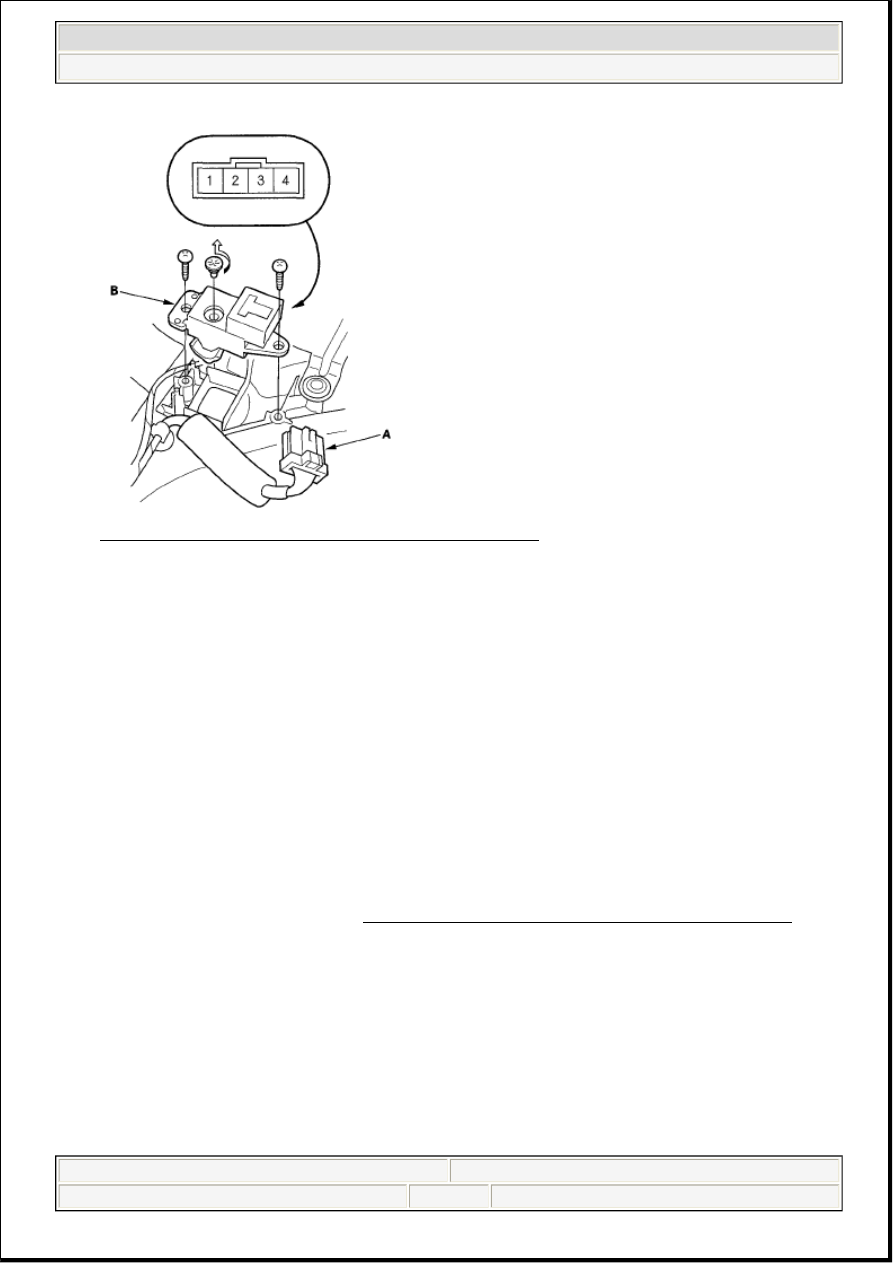

Fig. 23: Identifying Door Lock Switch And 4P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check for continuity between the terminals.



There should be continuity between the No. 2 and No. 4 terminals when the door lock switch is
in the LOCK position.



There should be no continuity between the No. 2 and No. 4 terminals when the door lock switch
is in the neutral position or UNLOCK position.



There should be continuity between the No. 2 and No. 3 terminals when the door lock switch is
in the UNLOCK position.



There should be no continuity between the No. 2 and No. 3 terminals when the door lock switch
is in the neutral position or LOCK position.



There should be continuity between the No. 1 (+) and No. 2 (-) terminals (bulb check).

4. If the continuity is not as specified, replace the bulb or switch.

DOOR KEY CYLINDER SWITCH TEST

1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 10P connector (A) from the key cylinder switch (B).



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 31

© 2005 Mitchell Repair Information Company, LLC.

Fig. 24: Identifying Key Cylinder Switch And 10P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check for continuity between the terminals.



There should be continuity between the No. 9 and No. 5 terminals when the door key cylinder
switch is in LOCK position.



There should be no continuity between the No. 9 and No. 5 terminals when the door key
cylinder switch is in the neutral or UNLOCK position.



There should be continuity between the No. 8 and No. 5 terminals when the door key cylinder
switch is in UNLOCK position.



There should be no continuity between the No. 8 and No. 5 terminals when the door key
cylinder switch is in the neutral or LOCK position.

4. If the continuity is not as specified, replace the door key cylinder assembly (see FRONT DOOR

OUTER HANDLE REPLACEMENT ).

HOOD SWITCH TEST

1. Open the hood.

2. Disconnect the 2P connector (A) from the hood switch (B).
