Front Passenger's MPCS Unit

12. Turn the ignition switch OFF, and remove the front passenger's door panel (see FRONT DOOR

PANEL REMOVAL/INSTALLATION ).

13. Disconnect passenger's MPCS unit connectors A (28P) and B (14P).

about 5 V.

A3

GRN

Driver's door open

Measure the
voltage to ground:
There should be
less than 1 V.



Poor ground (G601)



Faulty driver's door switch



An open in the wire

Driver's door closed

Measure the
voltage to ground:
There should be
about 5 V.



Faulty driver's door switch



A short to ground in the wire

A6

BRN

Left rear door lock knob
switch in UNLOCK

Measure the
voltage to ground:
There should be
less than 1 V.



Poor ground (G602)



Faulty left rear door switch



An open in the wire

Left rear door lock knob

switch in LOCK

Measure the
voltage to ground:
There should be
about 5 V.



Faulty left rear door switch



A short to around in the wire

A21

BLU

Driver's door key cylinder
switch in UNLOCK

Measure the
voltage to ground:
There should be
less than 1 V.



Poor ground (G601)



Faulty driver's door key cylinder
switch



An open in the wire

Driver's door key cylinder

switch in neutral

Measure the
voltage to ground:
There should be
about 5 V.



Faulty driver's door key cylinder
switch



A short to ground in the wire

Driver's door key cylinder
switch in LOCK

Measure the
voltage to ground:
There should be
about 5 V.



Faulty driver's door key cylinder
switch



A short to ground in the wire

A22

LT

BLU

Driver's door key cylinder
switch in LOCK

Measure the
voltage to ground:
There should be
less than 1 V.



Poor ground (G601)



Faulty driver's door key cylinder
switch



An open in the wire

Driver's door key cylinder

switch in neutral

Measure the
voltage to ground:
There should be
about 5 V.



Faulty driver's door key cylinder
switch



A short to ground in the wire

Driver's door key cylinder
switch in UNLOCK

Measure the
voltage to ground:
There should be
about 5 V.



Faulty driver's door key cylinder
switch



A short to ground in the wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

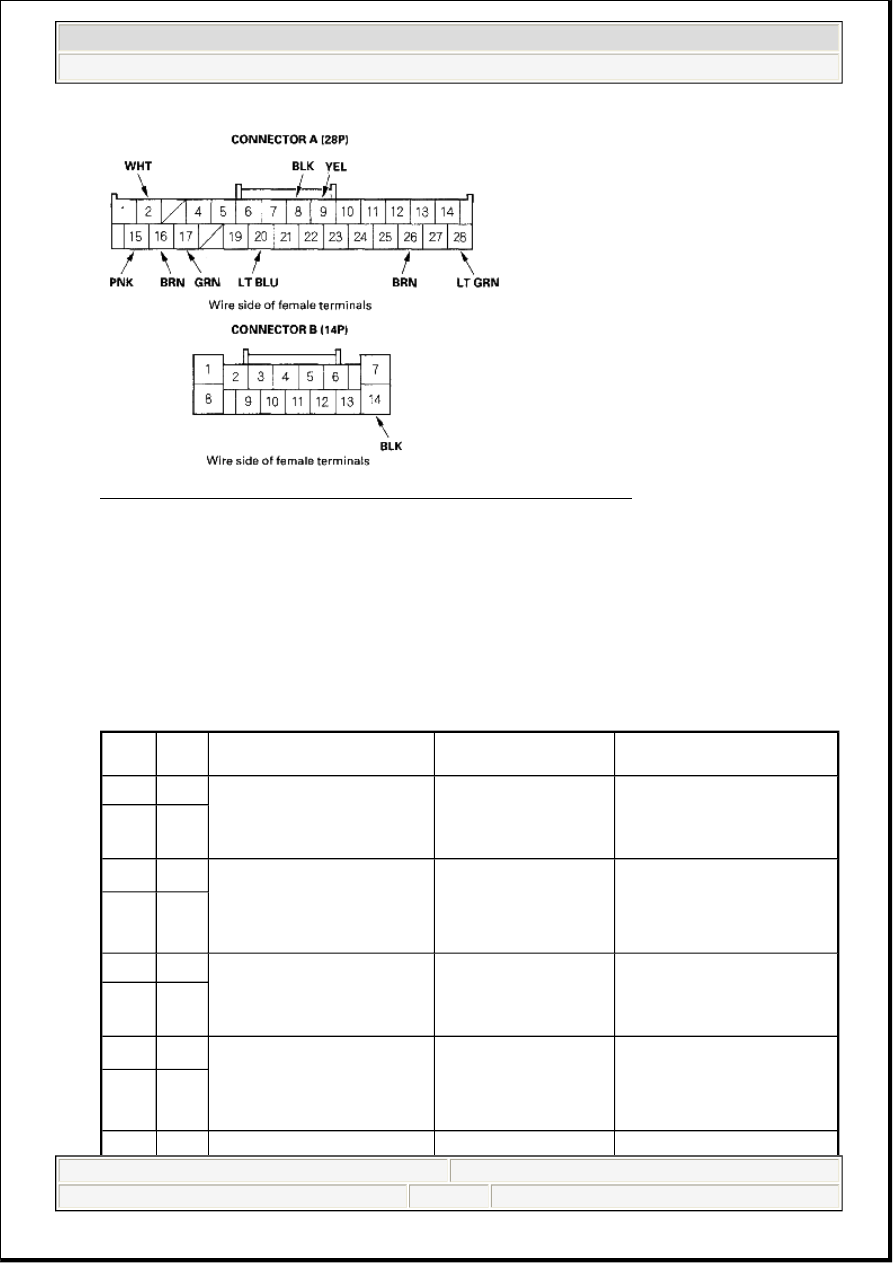

Fig. 14: Identifying Passenger's MPCS Unit 28P And 14P Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 15.

15. With the connectors still disconnected, make these input tests at the connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 16.

WIRE CAVITY REFERENCE CHART

Cavity Wire

Test condition

Test: Desired result

Possible cause if desired

result is not obtained

A15

PNK

Front passenger's door lock
switch in LOCK

Check for continuity
between the terminals:
There should be
continuity.



Faulty front passenger's
door lock switch



An open in the wire

A20

LT

BLU

A15

PNK

Front passenger's door lock
switch in neutral or UNLOCK

Check for continuity
between the terminals:
There should be no
continuity.



Faulty front passenger's
door lock switch



A short to ground in the
wire

A20

LT

BLU

A16

BRN

Front passenger's door lock
switch in UNLOCK

Check for continuity
between the terminals:
There should be
continuity.



Faulty front passenger's
door lock switch



An open in the wire

A20

LT

BLU

A16

BRN

Front passenger's door lock
switch in neutral or LOCK

Check for continuity
between the terminals:
There should be no
continuity.



Faulty front passenger's
door lock switch



A short to ground in the
wire

A20

LT

BLU



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

16. Reconnect the connectors to the front passenger's MPCS unit, and make these input tests at the

connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 17.

WIRE CAVITY REFERENCE CHART

A9

YEL

Under all conditions

Check for continuity
between the terminals:
There should be
continuity.



Faulty front passenger's
door lock switch



Blown bulb



An open in the wire

A20

LT

BLU

Cavity Wire

Test condition

Test: Desired

result

Possible cause if desired result is not

obtained

A7

BLK Under all conditions

Measure the
voltage to
ground:
There should be
less than 0.5 V.



Poor ground (G601)



An open in the wire

B14

BLK Under all conditions

Measure the
voltage to
ground:
There should be
less than 0.5 V.



Poor ground (G601)



An open in the wire

A2

WHT Under all conditions

Measure the
voltage to
ground:
There should be
battery voltage.



Blown No. 15 (40A) fuse in the
under-hood fuse/relay box



Blown No. 7(10A) fuse in the
driver's under-dash fuse/relay
box



An open in the wire

A17

GRN

Front passenger's door lock
knob switch in UNLOCK

Measure the
voltage to
ground:
There should be
less than 1 V.



Poor ground(G506)



Faulty front passenger's door
lock knob switch



An open in the wire

Front passenger's door lock

knob switch in LOCK

Measure the
voltage to
ground:
There should be 5
V or more.



Faulty front passenger's door
lock knob switch



A short to ground in the wire

A26

BRN

Right rear door lock knob
switch in LOCK

Measure the
voltage to
ground:
There should be
less than 1 V.



Poor ground(G651)



Faulty right rear door lock knob
switch ? An open in the wire

Right rear door lock knob

switch in UNLOCK

Measure the
voltage to
ground:



Faulty right rear door lock knob
switch



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

Left Rear Power Window Switch

17. Turn the ignition switch OFF, and remove the left rear power window switch (see POWER

WINDOW MASTER SWITCH REPLACEMENT ).

18. Disconnect the rear power window switch 14P connector.

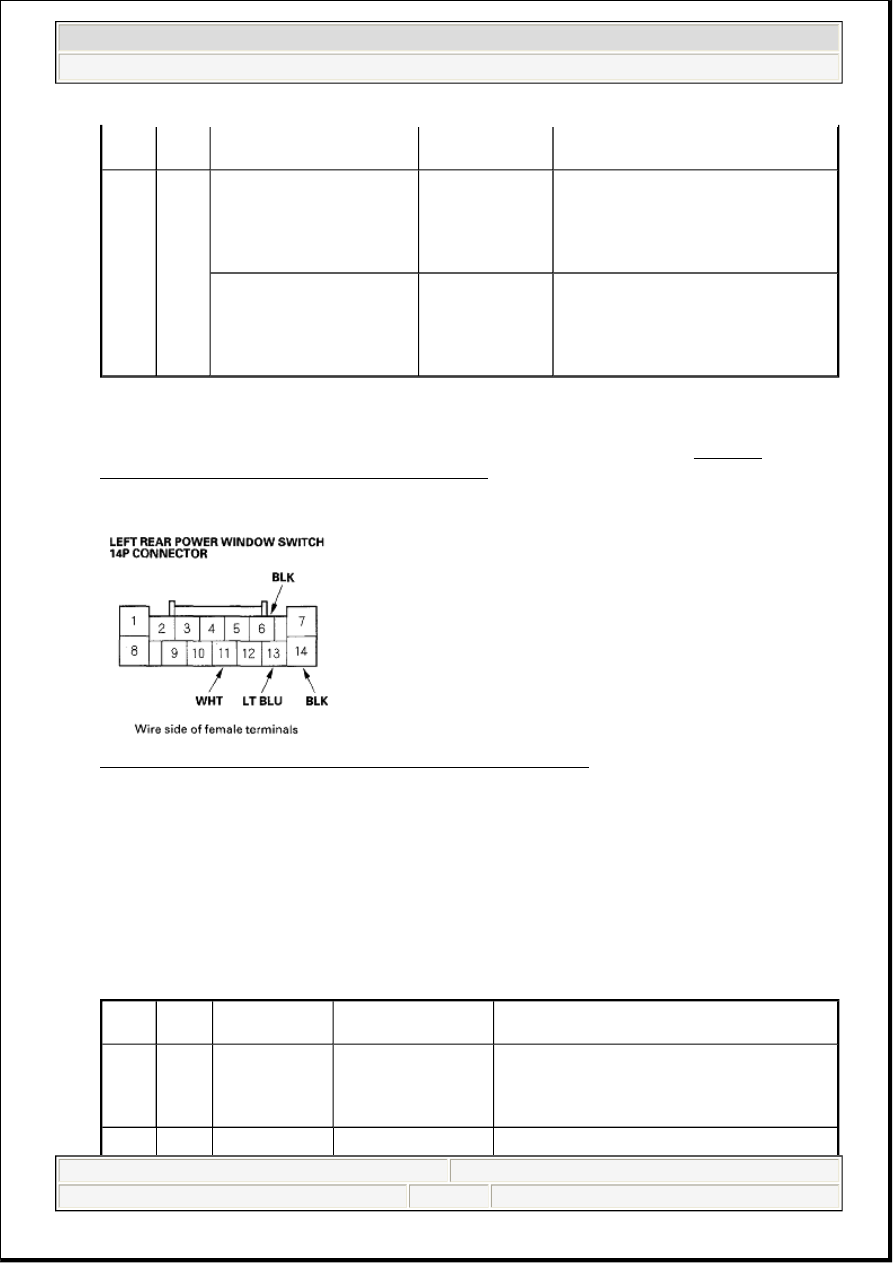

Fig. 15: Identifying Rear Power Window Switch 14P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

19. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 20.

20. Reconnect the connector to the switch, and make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 21.

WIRE CAVITY REFERENCE CHART

There should be 5
V or more.



A short to ground in the wire

A28

LT

GRN

Front passenger's door open

Measure the
voltage to
ground:
There should be
less than 1 V.



Poor ground (G506)



Faulty front passenger's door
switch



An open in the wire

Front passenger's door

closed

Measure the
voltage to
ground:
There should be 5
V or more.



Faulty front passenger's door
switch



A short to ground in the wire

Cavity Wire Test condition Test: Desired result

Possible cause if desired result is not

obtained

6

BLK

Under all
conditions

Measure the voltage
to ground:
There should be less
than 0.5 V.



Poor ground(G602)



An open in the wire

Measure the voltage
