If all the input tests prove OK, go to step 6.

WIRE CAVITY REFERENCE CHART

6. Reconnect the connectors to the driver's under-dash fuse/relay box, turn the ignition switch ON (II),

and make these input tests at the connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 7.

WIRE CAVITY REFERENCE CHART

Cavity Wire

Test condition

Test: Desired result

Possible cause if

desired result is not

obtained

F5

YEL

Connect battery power to F5
terminal momentarily.

Check the trunk lid opener
solenoid operation:
The trunk lid should open.



Faulty trunk lid
opener solenoid



An open in the
wire

P29 GRIM

Connect battery power to P29
terminal momentarily.

Check the keyless buzzer
operation:
The buzzer should sound.



Faulty keyless
buzzer



An open in the
wire

K2

YEL Connect battery power to K2

(K12) terminal, and K12 (K2)
terminal to P1 terminal.

Check the door lock actuator
operation.
The driver's door lock
actuator should UNLOCK
(LOCK).



Faulty driver's
door lock actuator



An open in the
wire

K12

BLU

E2

BLU Connect battery power to E2

(E8) terminal, and E8 (E2)
terminal to P1 terminal.

Check the door lock actuator
operation.
The left rear door lock
actuator should LOCK
(UNLOCK).



Faulty left rear
door lock actuator



An open in the
wire

E8

YEL

N7

BLU

Connect battery power to N7
(N9) terminal, and N9 (N7)
terminal to P1 terminal.

Check the door lock actuator
operation.
The front passenger's and
right rear door lock actuators
should LOCK (UNLOCK).



Faulty front
passenger's door
lock actuator



Faulty right rear
door lock actuator



An open in the
wire

N9

YEL

Cavity Wire

Test condition

Test: Desired

result

Possible cause if desired result

is not obtained

P1

BRN Under all conditions

Measure the
voltage to ground:
There should be
less than 0.5 V.



Poor ground(G502)



An open in the wire

E9

BLK Under all conditions

Measure the
voltage to ground:
There should be



Poor ground (G601)



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

Driver's MPCS Unit

7. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

8. Disconnect driver's MPCS unit connector A(40P) and B(14P).

less than 0.5 V.



An open in the wire

P16

RN

Transmission range switch in P
position.

Measure the
voltage to ground:
There should be
less than 1 V.



Poor ground(G101)



Faulty transmission range
switch



An open in the wire

Transmission range switch in

any other position than P.

Measure the
voltage to ground:
There should be 5
V or more.



Faulty transmission range
switch



A short to ground in the
wire

Q4

BLU

Trunk lid open

NOTE:

Trunk light bulb removed.

Measure the
voltage to ground:
There should be
less than 1 V.



Poor ground(G701)



Faulty trunk lid latch
switch



An open in the wire

Trunk lid closed

NOTE:

Trunk light bulb removed.

Measure the
voltage to ground:
There should be 5
V or more.



Faulty trunk lid latch
switch



A short to ground in the
wire

Q8

LT

BLU

Trunk lid outer handle pulled

Measure the
voltage to ground:
There should be
less than 1 V.



Poor ground(G701)



Faulty trunk lid outer
handle switch



An open in the wire

Trunk lid outer handle released

Measure the
voltage to ground:
There should be 5
V or more.



Faulty trunk lid outer
handle switch



A short to ground in the
wire



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

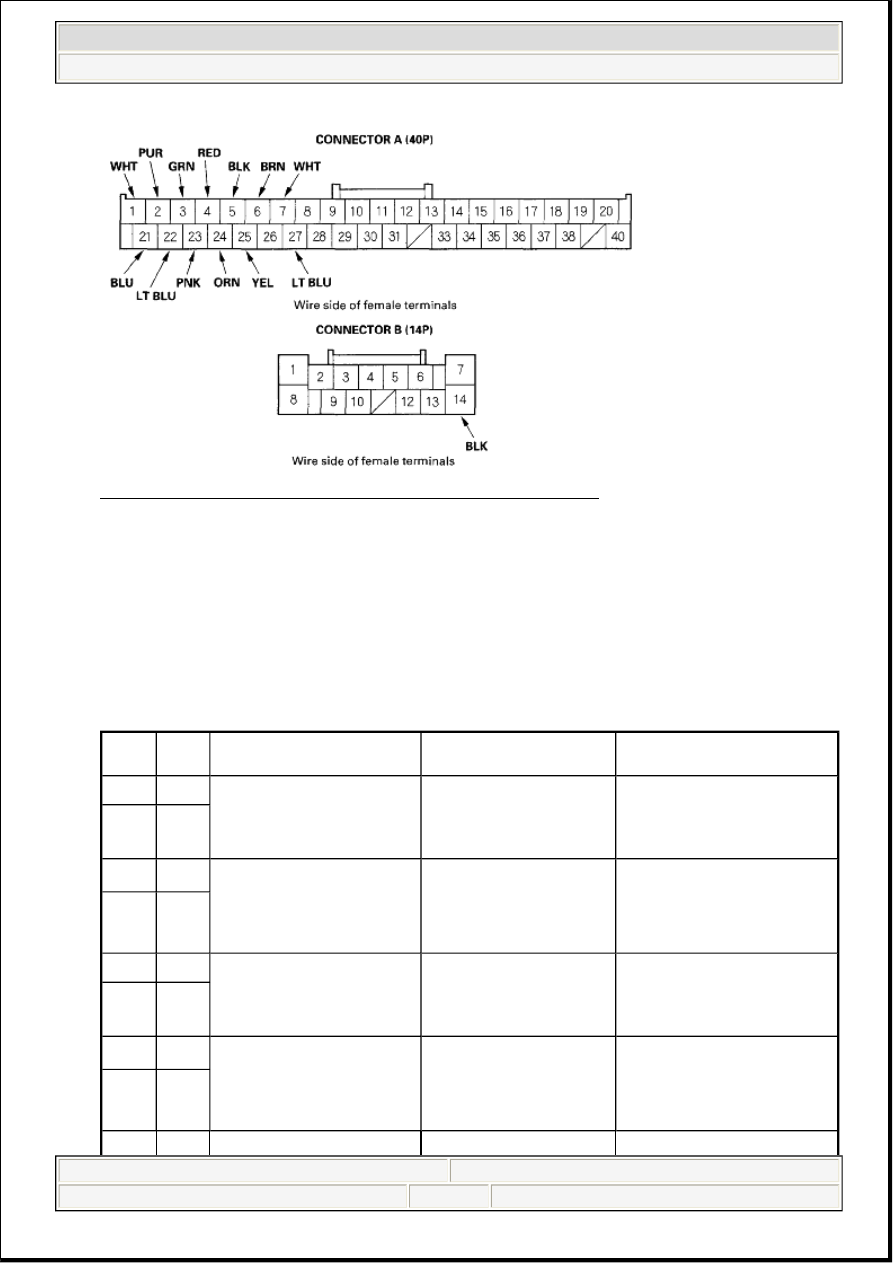

Fig. 13: Identifying Driver's MPCS Unit 40P And 14P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 10.

10. With the connectors still disconnected, make these input tests at the connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 11.

WIRE CAVITY REFERENCE CHART

Cavity Wire

Test condition

Test: Desired result

Possible cause if desired

result is not obtained

A23

PNK

Driver's door lock switch in
LOCK

Check for continuity
between the terminals:
There should be
continuity.



Faulty driver's door
lock switch



An open in the wire

A27

LT

BLU

A23

PNK

Driver's door lock switch in
neutral or UNLOCK

Check for continuity
between the terminals:
There should be no
continuity.



Faulty driver's door
lock switch



A short to ground in the
wire

A27

LT

BLU

A24

ORN

Driver's door lock switch in
UNLOCK

Check for continuity
between the terminals:
There should be
continuity.



Faulty driver's door
lock switch



An open in the wire

A27

LT

BLU

A24

ORN

Driver's door lock switch in
neutral or LOCK

Check for continuity
between the terminals:
There should be no
continuity.



Faulty driver's door
lock switch



A short to ground in the
wire

A27

LT

BLU



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

11. Reconnect the connectors to the driver's MPCS unit, turn the ignition switch ON (II), and make these

input tests at the connectors.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 12.

WIRE CAVITY REFERENCE CHART

A4

RED

Under all conditions

Check for continuity
between the terminals:
There should be
continuity.



Faulty driver's door
lock switch



Blown bulb



An open in the wire

A27

LT

BLU

Cavity Wire

Test condition

Test: Desired

result

Possible cause if desired result is not

obtained

A5

BLK Under all conditions

Measure the
voltage to ground:
There should be
less than 0.5 V.



Poor ground (G601)



An open in the wire

BH

BLK Under all conditions

Measure the
voltage to ground:
There should be
less than 0.5 V.



Poor ground (G601)



An open in the wire

A7

WHT Under all conditions

Measure the
voltage to ground:
There should be
battery voltage.



Blown No. 15 (40A) fuse in the
under-hood fuse/relay box



Blown No. 7 (10A) fuse in the
driver's under-dash fuse/relay box



An open in the wire

A25

YEL Ignition switch ON (II)

Measure the
voltage to ground:
There should be
battery voltage.



Blown No. 21 (10A) fuse in the
driver's under-dash fuse/relay box



An open in the wire

A1

WHT

Driver's door lock knob
switch in UNLOCK

Measure the
voltage to ground:
There should be
less than 1 V.



Poor ground (G601)



Faulty driver's door lock knob
switch



An open in the wire

Driver's door lock knob

switch in LOCK

Measure the
voltage to ground:
There should be
about 5 V.



Faulty driver's door lock knob
switch



A short to around in the wire

A2

PUR

Driver's door lock knob
switch in LOCK

Measure the
voltage to ground:
There should be
less than 1 V.



Poor ground (G601)



Faulty driver's door lock knob
switch



An open in the wire

Driver's door lock knob

switch in UNLOCK

Measure the
voltage to ground:
There should be



Faulty driver's door lock knob
switch



A short to ground in the wire
