Turn the ignition switch OFF, and right Rear Power Window Switch

21. Turn the ignition switch OFF, and remove the right rear power window switch (see POWER

WINDOW MASTER SWITCH REPLACEMENT ).

22. Disconnect the right rear power window switch 14P connector.

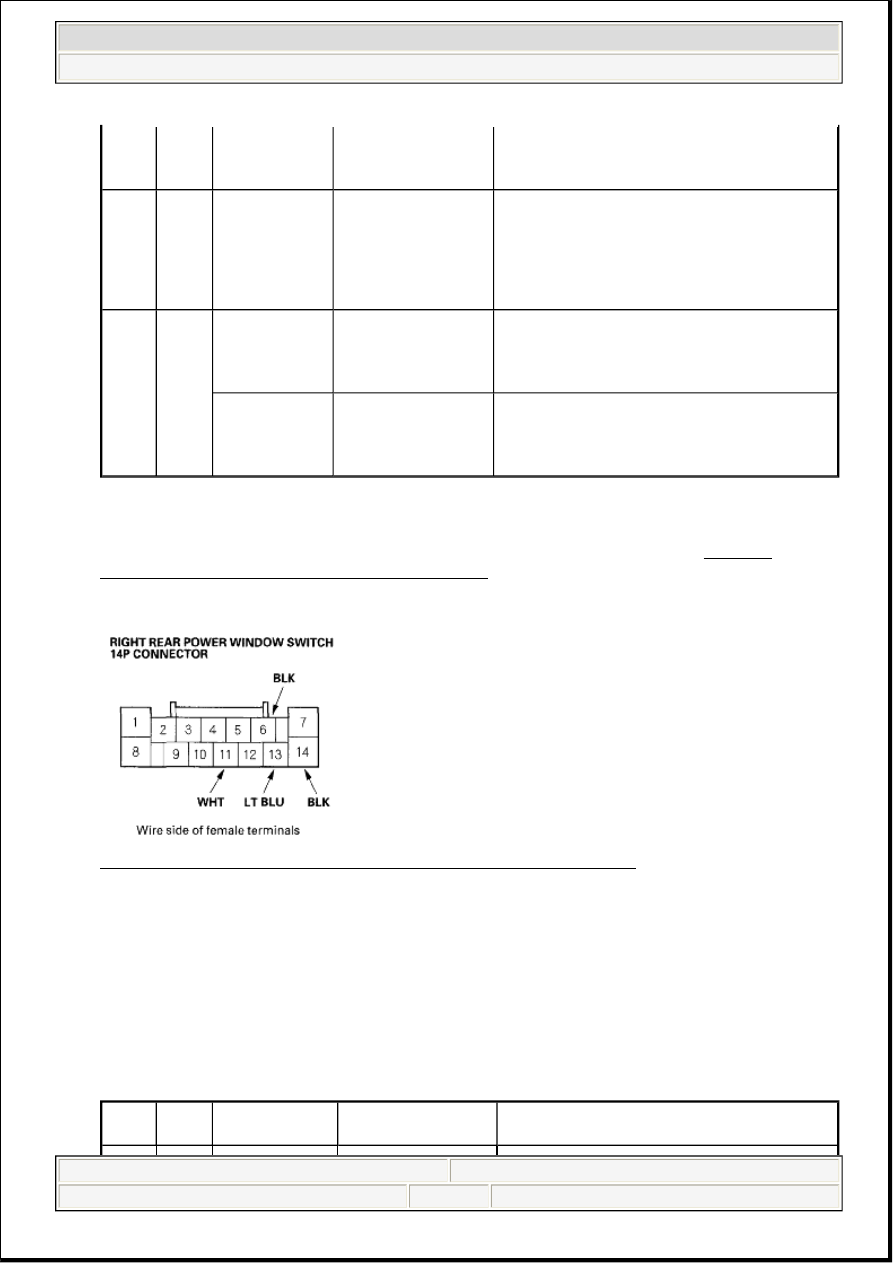

Fig. 16: Identifying Right Rear Power Window Switch 14P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Inspect the connector and socket terminals to be sure they all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.



If the terminals look OK, go to step 24.

24. Reconnect the connector to the switch, and make these input tests at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 25.

WIRE CAVITY REFERENCE CHART

14

BLK

Under all
conditions

to ground:
There should be less
than 0.5 V.



Poor ground (G602)



An open in the wire

11

WHT

Under all
conditions

Measure the voltage
to ground:
There should be
battery voltage.



Blown No. 15 (40A) fuse in the under-
hood fuse/relay box



Blown No. 6 (7.5A) fuse in the driver's
under-dash fuse/relay box



An open in the wire

13

LT

BLU

Left rear door
open

Measure the voltage
to ground:
There should be less
than 1 V.



Poor ground (G506)



Faulty left rear door switch



An open in the wire

Left rear door

closed

Measure the voltage
to ground:
There should be
about 5 V.



Faulty left rear door switch



A short to ground in the wire

Cavity Wire

Test condition Test: Desired result

Possible cause if desired result is not

obtained



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 25

© 2005 Mitchell Repair Information Company, LLC.

25. If multiple failures are found on more than one control unit, replace the driver's under-dash fuse/relay

box (includes the MICU). If input failures are related to a particular control unit, replace the control
unit.

DOOR LOCK ACTUATOR TEST

DRIVER'S DOOR AND LEFT REAR DOOR

1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 10P connector (A) from the actuator (B).

6

BLK

Under all
conditions

Measure the voltage
to ground:
There should be less
than 0.5 V.



Poor ground(G651)



An open in the wire

14

BLK

Under all
conditions

Measure the voltage
to ground:
There should be less
than 0.5 V.



Poor ground(G651)



An open in the wire

11

WHT

Under all
conditions

Measure the voltage
to ground:
There should be
battery voltage.



Blown No. 15 (40A) fuse in the under-
hood fuse/relay box



Blown No. 6 (7.5A) fuse in the driver's
under-dash fuse/relay box



An open in the wire

13

LT

BLU

Right rear door
open

Measure the voltage
to ground:
There should be less
than 1 V.



Poor ground (G506)



Faulty right rear door switch



An open in the wire

Right rear door

closed

Measure the voltage
to ground:
There should be
about 5 V.



Faulty right rear door switch



A short to ground in the wire

NOTE:

The illustration shows the driver's door.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

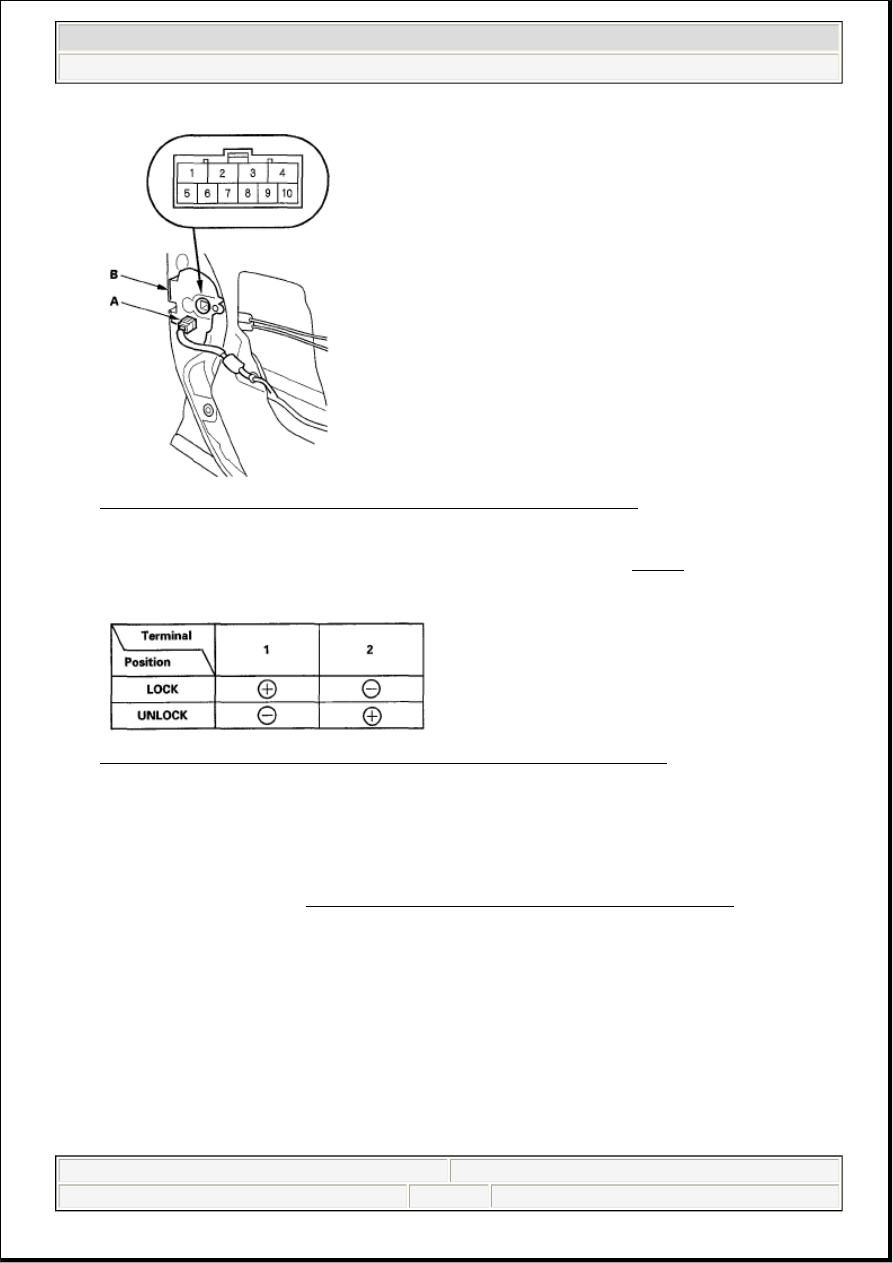

Fig. 17: Identifying Driver's Door And Left Rear Door 10P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check actuator operation by connecting power and ground as shown (see Fig. 18). To prevent damage

to the actuator, apply battery voltage only momentarily.

Fig. 18: Checking Actuator Operation By Connecting Power And Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. If the actuator does not operate as specified, replace it.

FRONT PASSENGER'S DOOR AND RIGHT REAR DOOR

1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 10P connector (A) from the actuator (B).

NOTE:

The illustration shows the front passenger's door.



2007 Acura RL

2005-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Locks/Security System - RL



me



Friday, June 05, 2009 3:51:13 PM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

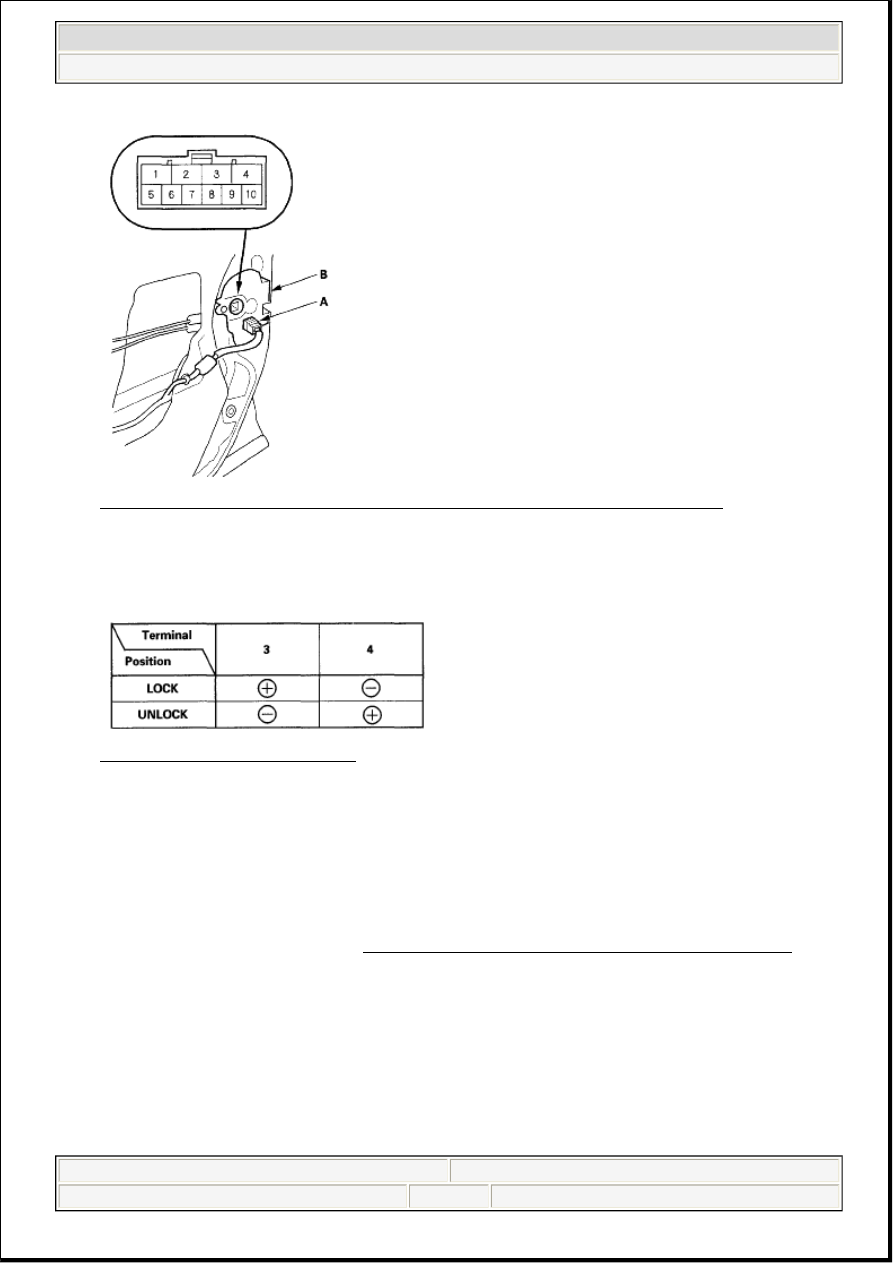

Fig. 19: Identifying Front Passenger's Door And Right Rear Door 10P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check actuator operation by connecting power and ground according to the table. To prevent damage

to the actuator, apply battery voltage only momentarily.

Fig. 20: Terminals Voltage Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. If the actuator does not operate as specified, replace it.

DOOR LOCK KNOB SWITCH TEST

DRIVER'S DOOR

1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 10P connector (A) from the actuator (B).
