Acura RL. Manual - part 439

Fig. 91: Removing Boot Band (Ear Clamp Type)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Slide the outboard boot (A) partially to the inboard joint side. Be careful not to damage the boot.

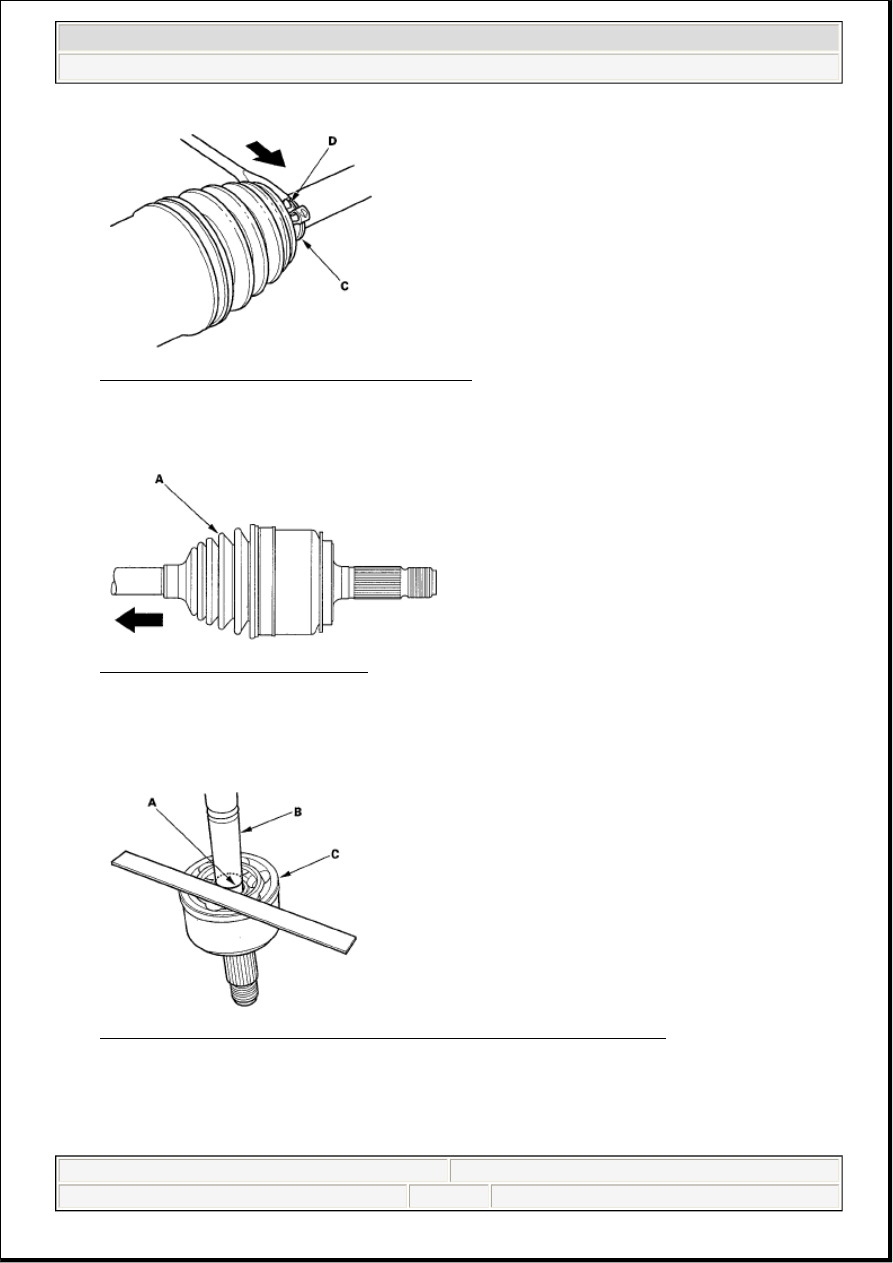

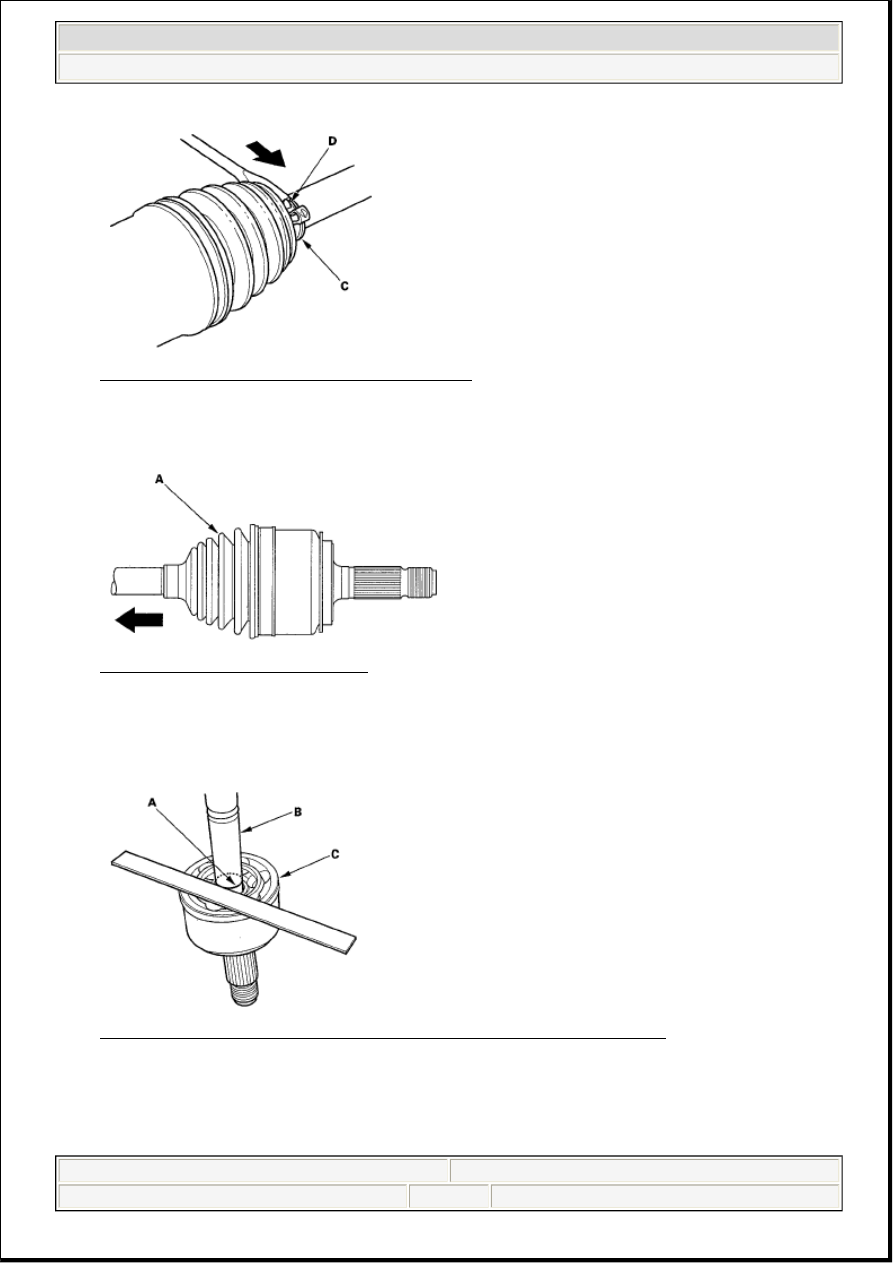

Fig. 92: Sliding Off Outboard Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Wipe off the grease to expose the driveshaft and the outboard joint inner race.

4. Make a mark (A) on the driveshaft (B) at the same position of the outboard joint end (C).

Fig. 93: Making Match Mark On Driveshaft And On Outboard Joint End
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Carefully clamp the driveshaft in a vise.

6. Remove the outboard joint (A) using the threaded adapter, 24 x 1.5 mm and a commercially available

5/8" x 18 UNF slide hammer (B).



2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL



me



Friday, June 05, 2009 3:01:08 PM

Page 42

© 2005 Mitchell Repair Information Company, LLC.

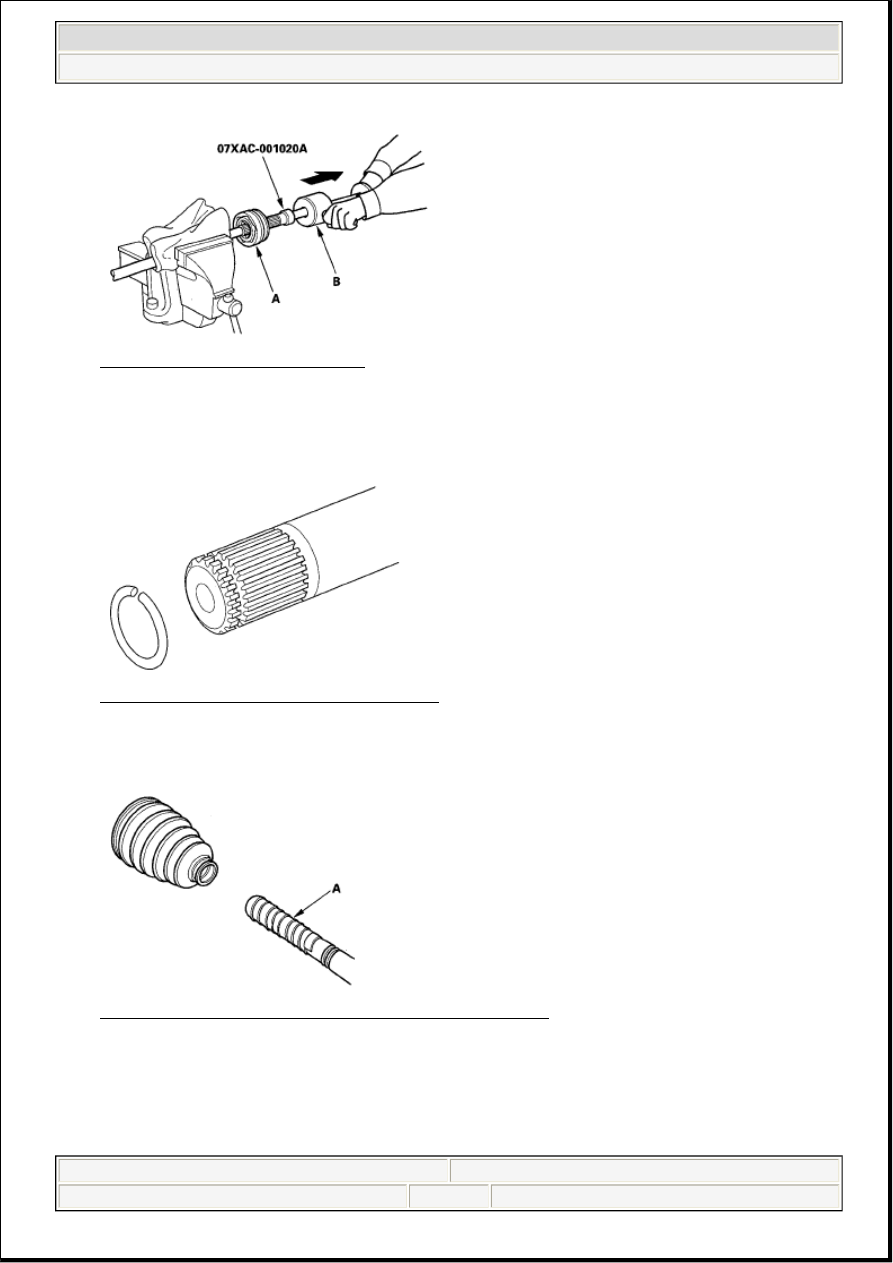

Fig. 94: Removing Outboard Joint
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the driveshaft from the vise.

8. Remove the stop ring from the driveshaft.

Fig. 95: Identifying Stop Ring Of Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Wrap the splines on the driveshaft with vinyl tape (A) to prevent damage to the boot.

Fig. 96: Wrapping Splines On Driveshaft With Vinyl Tape
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the outboard boot. Be careful not to damage the boot.

11. Remove the vinyl tape.

REAR DRIVESHAFT REASSEMBLY



2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL



me



Friday, June 05, 2009 3:01:08 PM

Page 43

© 2005 Mitchell Repair Information Company, LLC.

EXPLODED VIEW

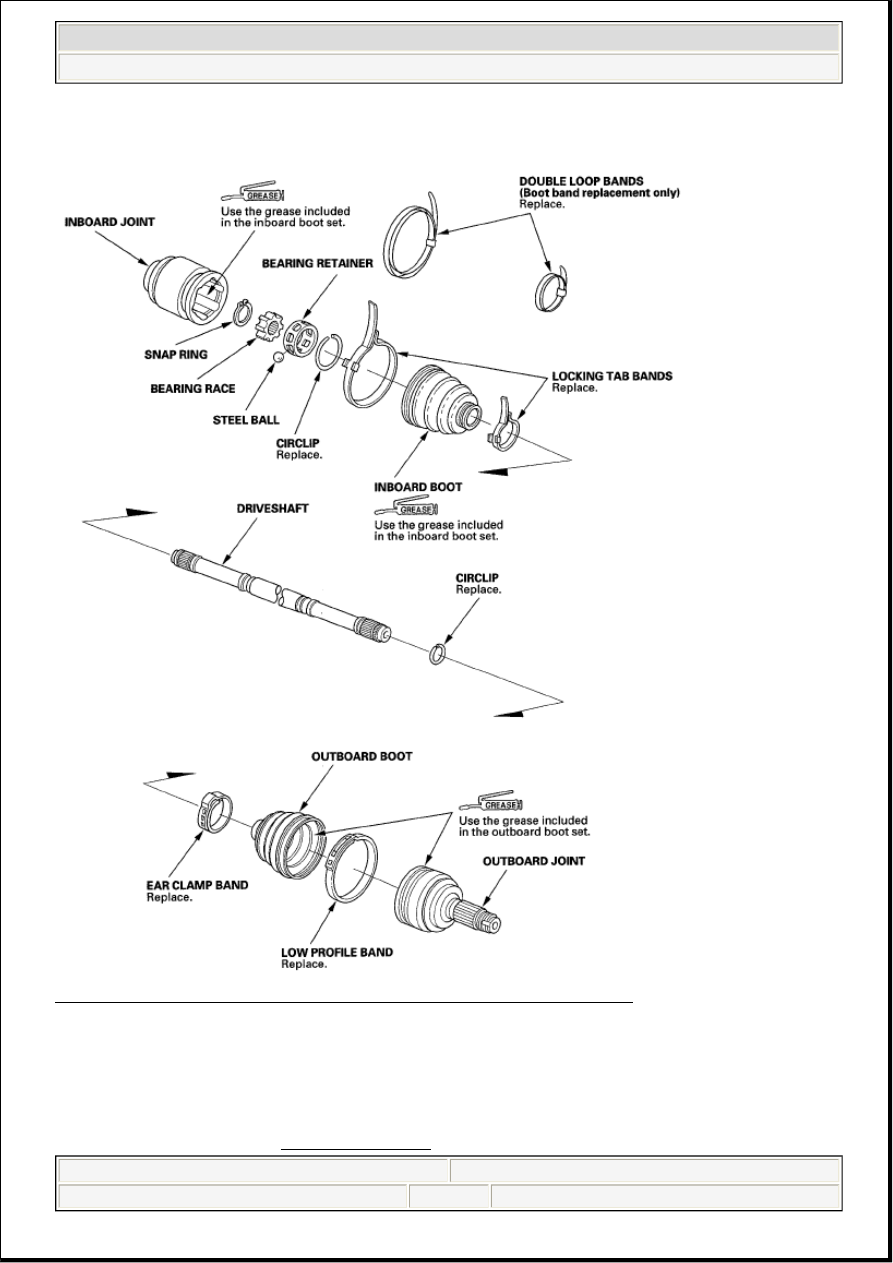

Fig. 97: Exploded View Of Rear Driveshaft With Grease Application Areas
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Boot band tool, KD-3191 or equivalent, commercially available

NOTE:

Refer to the EXPLODED VIEW as needed during this procedure.



2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL



me



Friday, June 05, 2009 3:01:08 PM

Page 44

© 2005 Mitchell Repair Information Company, LLC.

INBOARD JOINT SIDE

1. Wrap the splines with vinyl tape (A) to prevent damage to the inboard boot.

Double loop type

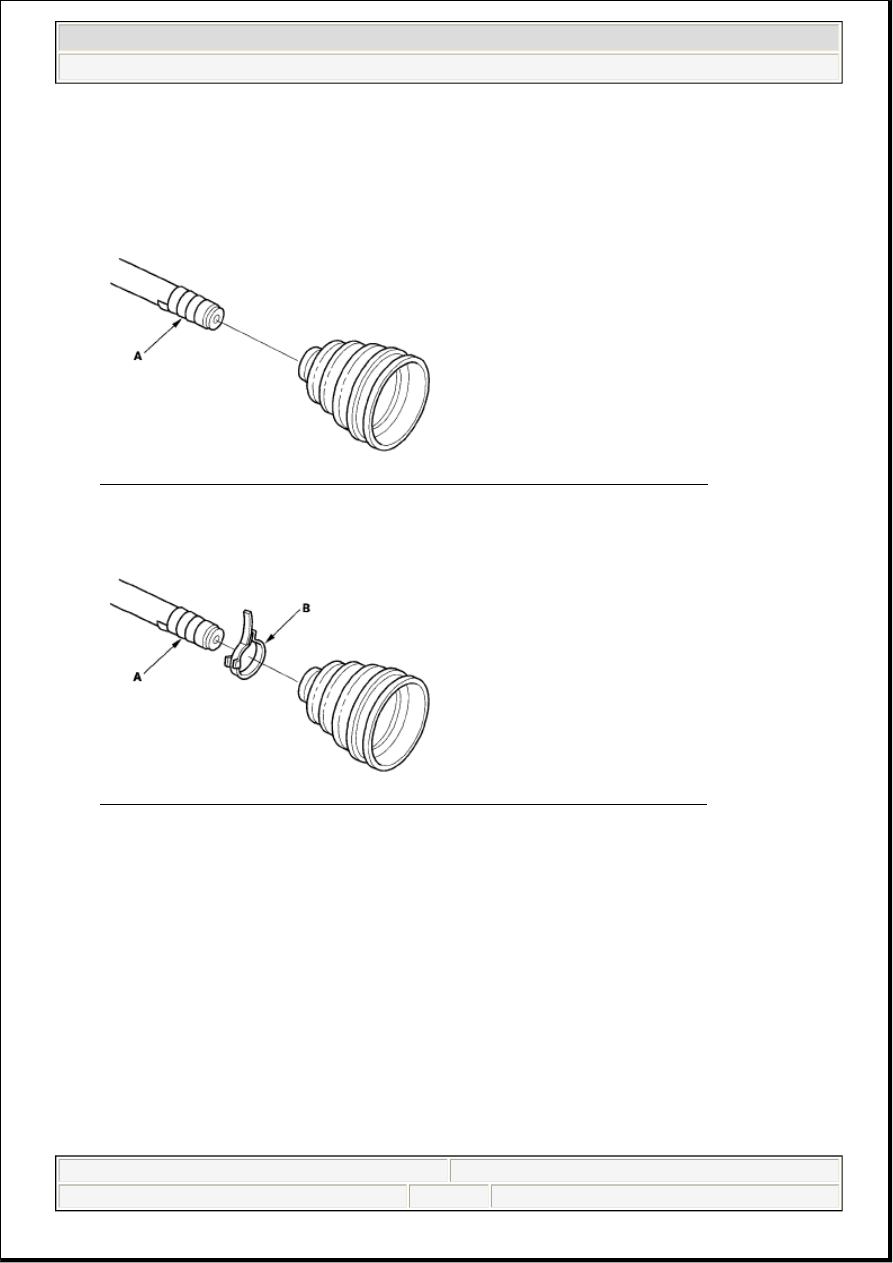

Fig. 98: Wrapping Splines On Driveshaft With Vinyl Tape (Double Loop Type)
