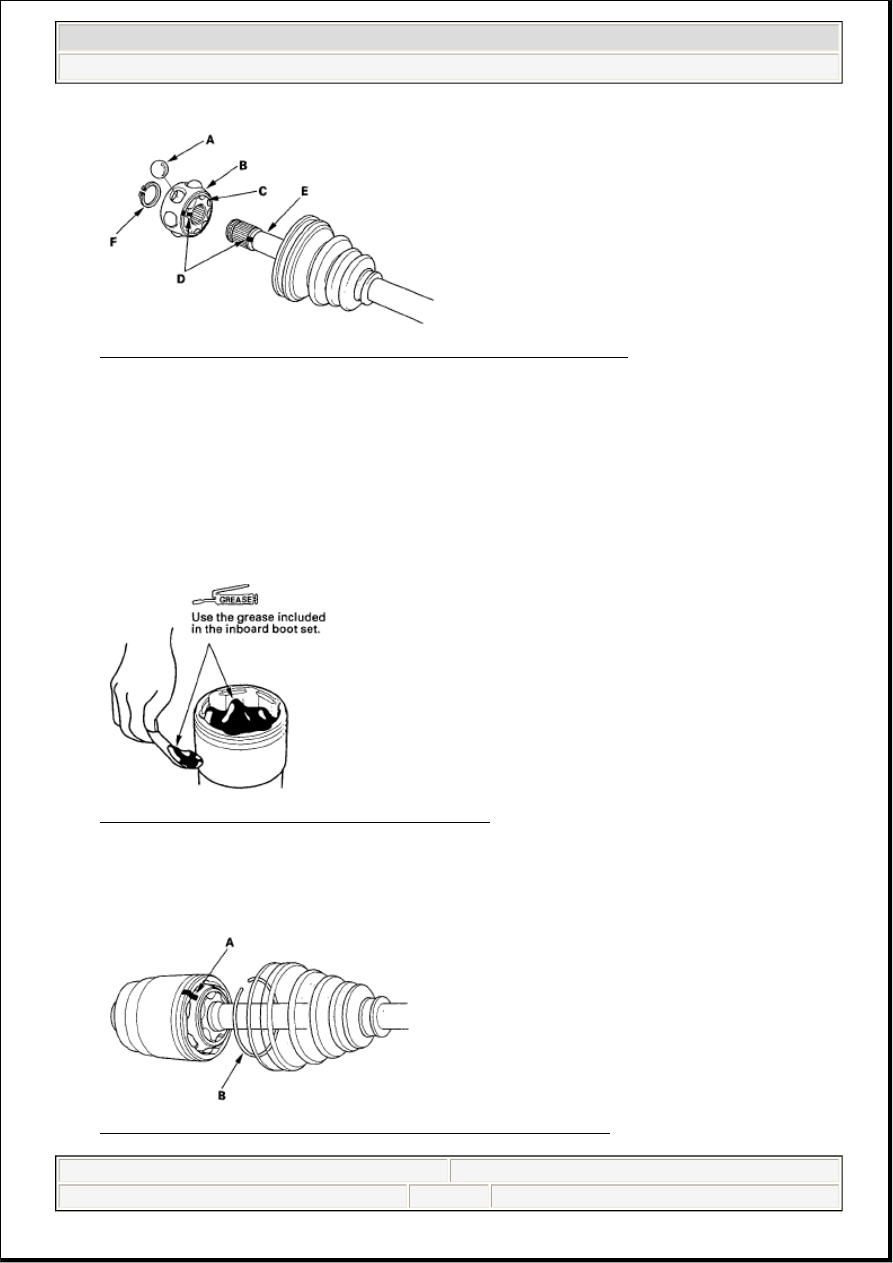

Fig. 100: Identifying Steel Balls, Bearing Retainer And Bearing Race
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the bearing onto the driveshaft (E) by aligning the marks on the bearing and the driveshaft.

5. Install the snap ring (F).

6. Pack the inboard joint with the joint grease included in the new driveshaft set.

Grease quantity

Inboard joint: 100-120 g (3.5-4.2 oz.)

Fig. 101: Packing Inboard Joint With Joint Grease
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the inboard joint onto the driveshaft by aligning the marks (A) on the inboard joint and

driveshaft.

Fig. 102: Aligning Match Marks On Inboard Joint And Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL



me



Friday, June 05, 2009 3:01:08 PM

Page 46

© 2005 Mitchell Repair Information Company, LLC.

8. Install the circlip (B).

9. Adjust the length of the driveshafts to these measurements, bleed excess air from the boot, then adjust

the boots to halfway between full compression and full extension. Make sure the ends of the boots
seat in the grooves of the driveshaft and joint.

Left driveshaft: 480-485 mm (18.9-19.1 in.)

Right driveshaft: 515-520 mm (20.3-20.5 in.)

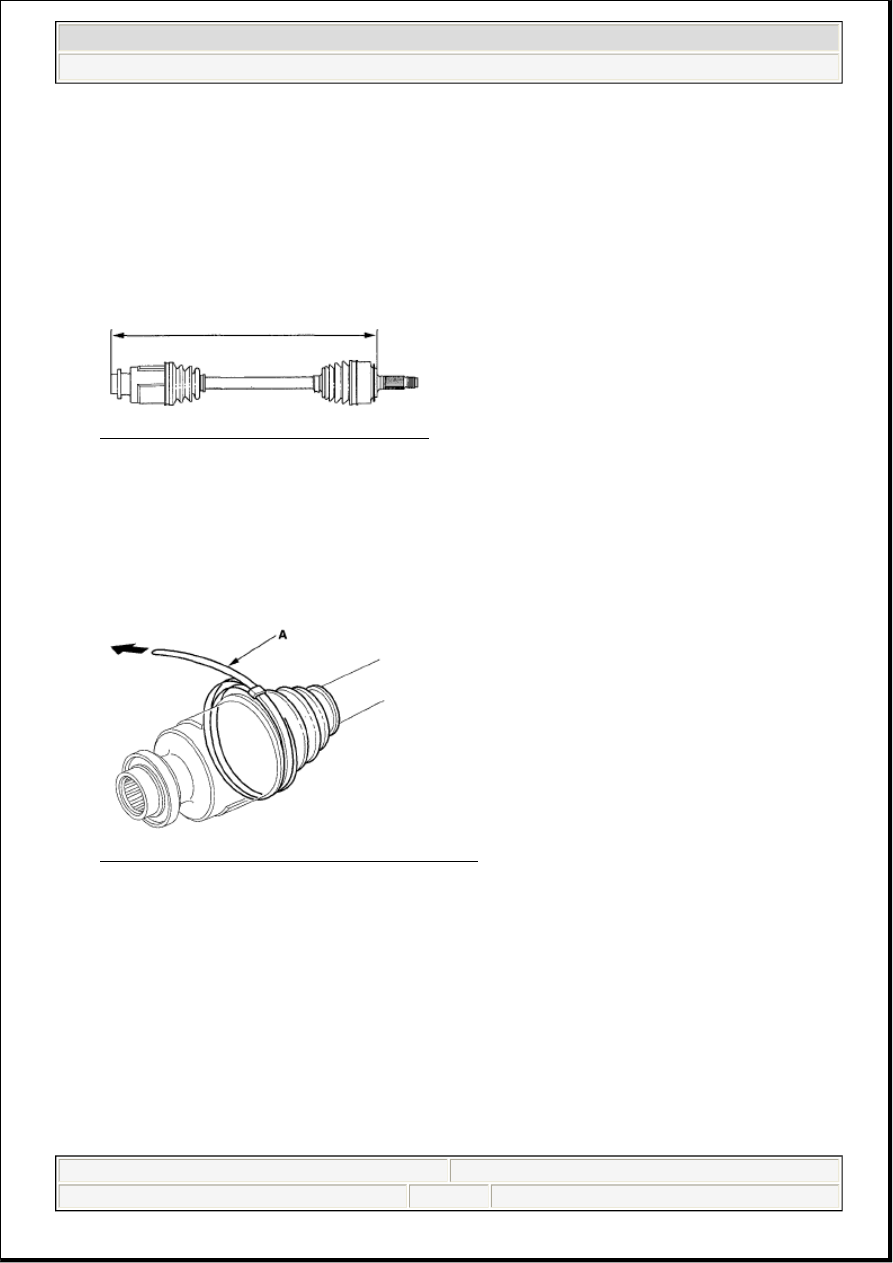

Fig. 103: Identifying Driveshaft Dimension
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Install the boot bands.



Double loop type, do steps 11 through 19.



Locking tab type, do steps 20 and 21.

11. Fit the boot ends onto the driveshaft and the inboard joint, then install the new double loop band (A)

onto the boot.

Fig. 104: Installing Double Loop Band Onto Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Pull up the slack in the band by hand.

13. Mark a position (A) on the band 10-14 mm (0.4-0.6 in.) from the clip (B).



2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL



me



Friday, June 05, 2009 3:01:08 PM

Page 47

© 2005 Mitchell Repair Information Company, LLC.

Fig. 105: Identifying Mark Position On Band
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Thread the free end of the band through the nose section of the commercially available boot band tool,

KD-3191 or equivalent (A), and into the slot on the winding mandrel (B).

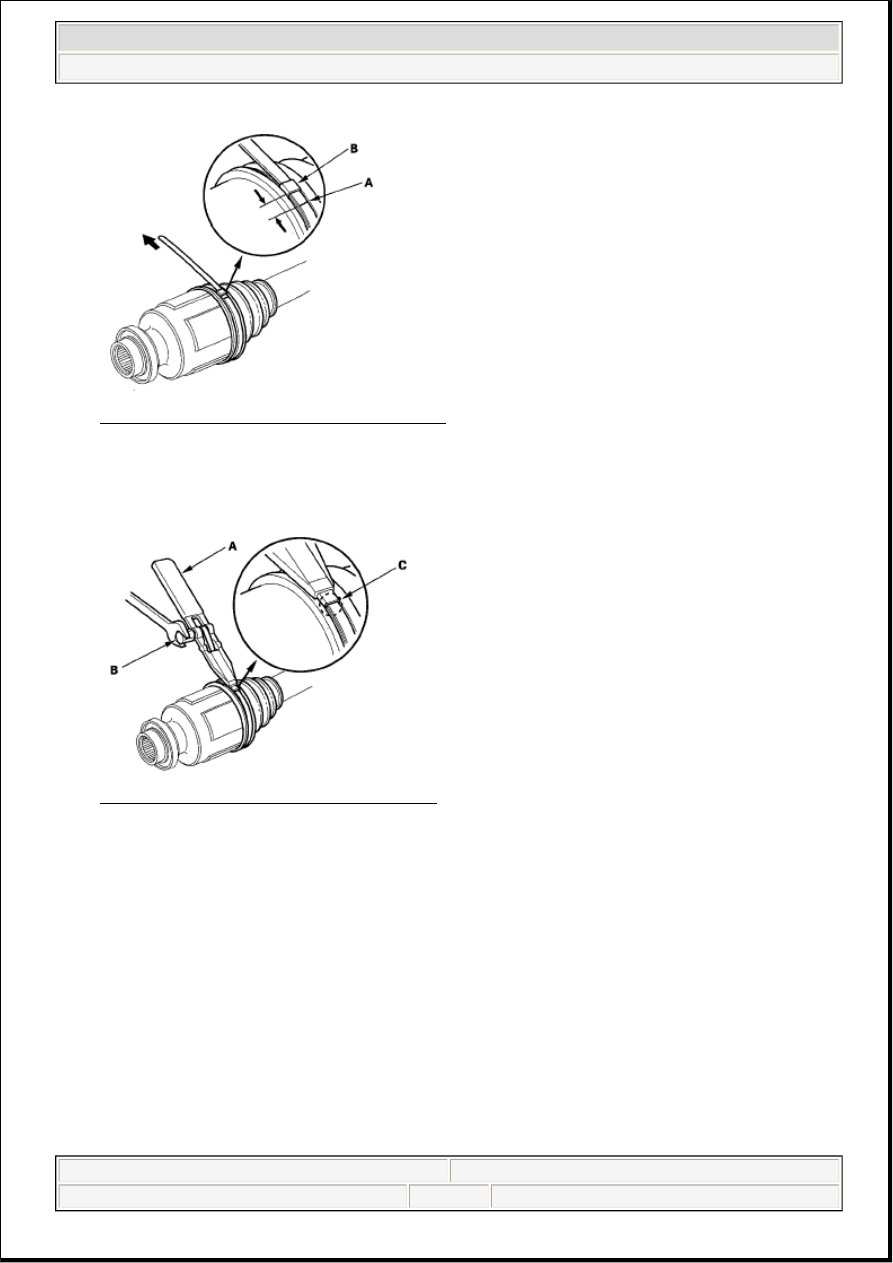

Fig. 106: Identifying Marked Spot On Band
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Using a wrench on the winding mandrel of the boot band tool, tighten the band until the marked spot

(C) on the band meets the edge of the clip.

16. Lift up the boot band tool to bend the free end of the band 90 degrees to the clip. Center-punch the

clip, then fold over the remaining tail onto the clip.



2007 Acura RL

2005-08 DRIVELINE/AXLES Driveline/Axle - RL



me



Friday, June 05, 2009 3:01:08 PM

Page 48

© 2005 Mitchell Repair Information Company, LLC.

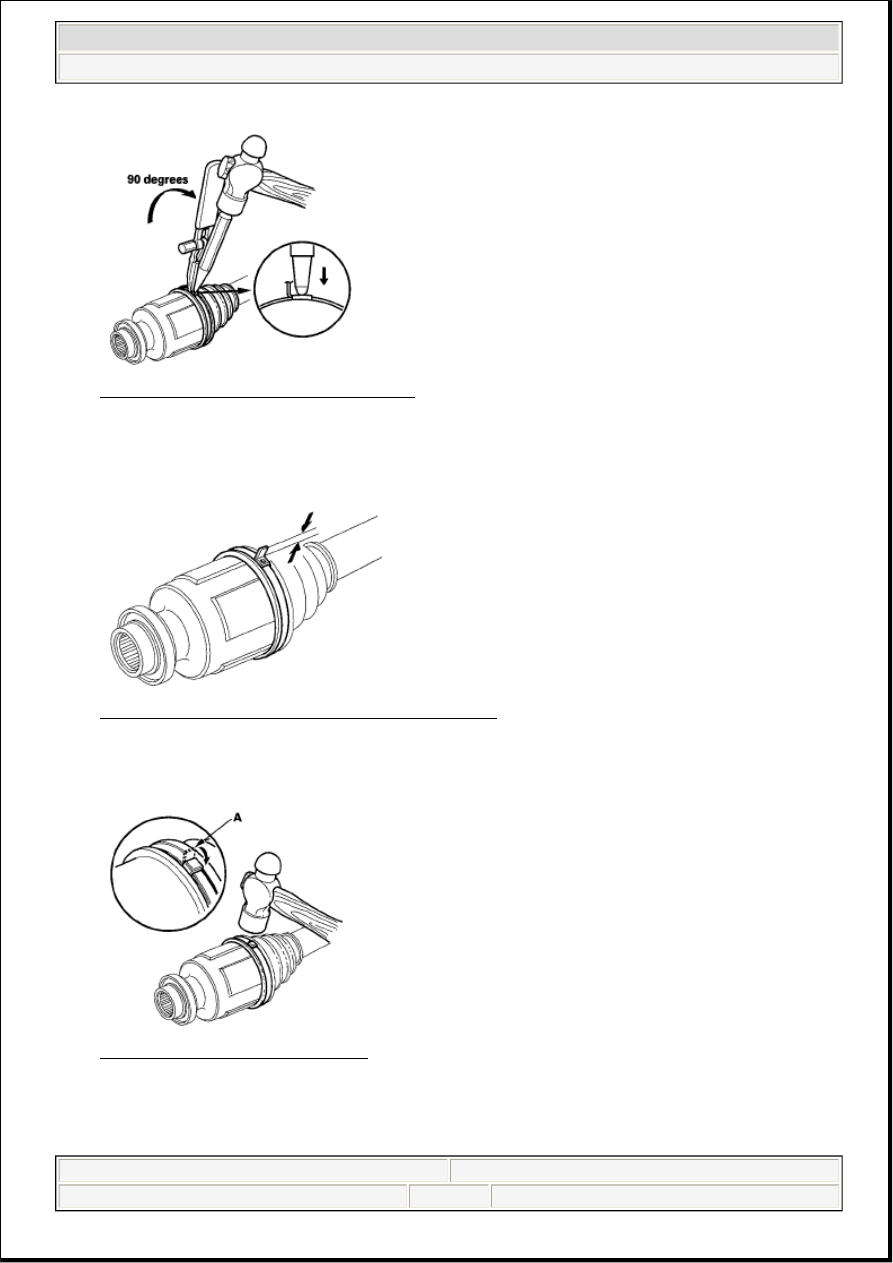

Fig. 107: Center-Punching Clip On Band
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Unwind the boot band tool, and cut off the excess free end of the band to leave 5-10 mm (0.2-0.4 in.)

from the clip.

Fig. 108: Cutting Off The Excess Free End Of Band
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Bend the band end (A) by tapping it down with a hammer.

Fig. 109: Tapping Band End Down
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:



Make sure the band and clip do not interfere with anything, and
the band does not move.
