Acura RL. Manual - part 317

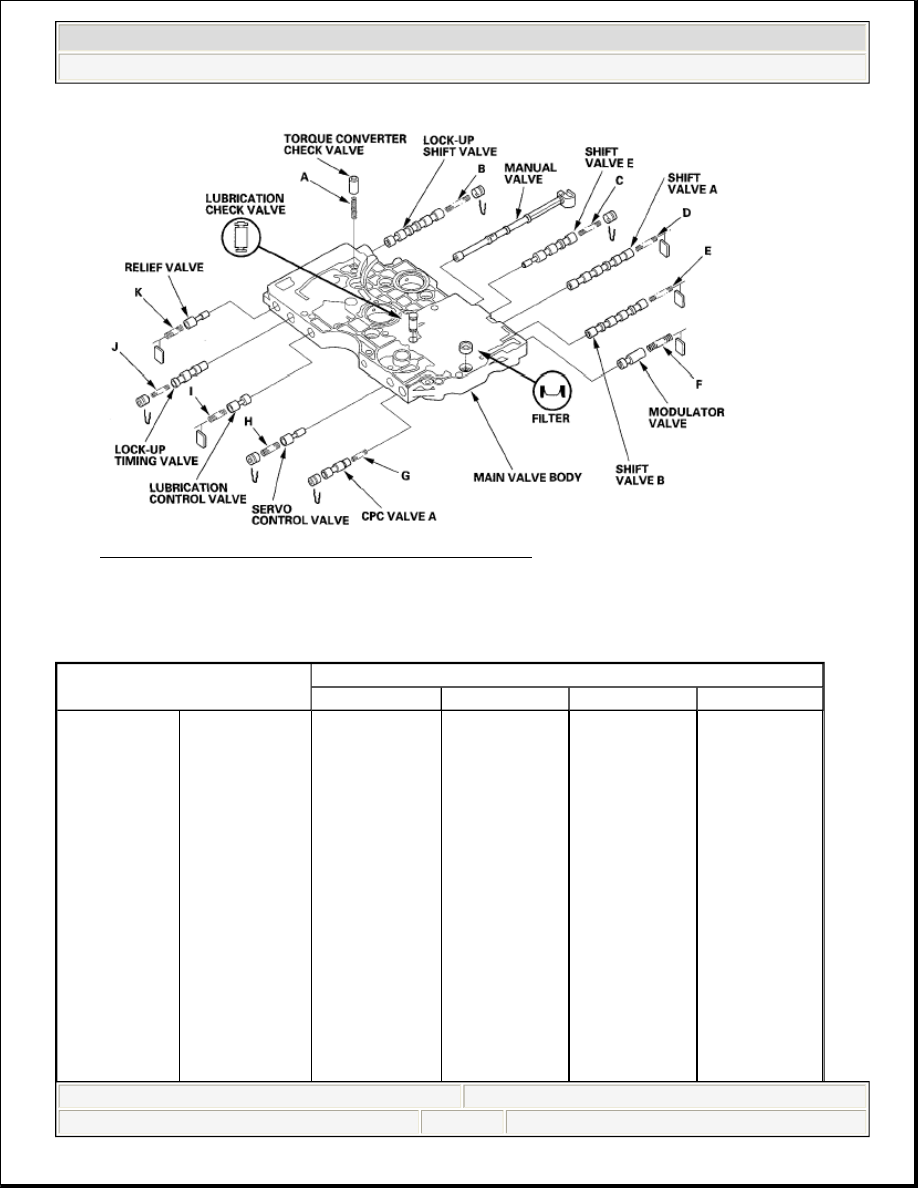

Fig. 464: Disassembling Main Valve Body (06-08 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VALVE SPRING SPECIFICATIONS

Valve Springs

Standard (New)-Unit: mm (in.)

Wire Diameter

O.D.

Free Length

No. of Coils

Torque converter
check valve
spring

1.1 (0.043)

8.6 (0.339)

35.0(1.378)

12.6

Lock-up shift
valve spring

1.0(0.039)

6.6 (0.260)

35.5(1.398)

18.2

Shift valve E
spring

0.7 (0.028)

6.6 (0.260)

42.4(1.669)

17.6

Shift valve A
spring

0.9 (0.035)

6.6 (0.260)

50.5(1.988)

23.3

Shift valve B
spring

0.8(0.031)

6.6 (0.260)

49.1 (1.933)

21.7

Modulator valve
spring

1.6(0.063)

10.4(0.409)

33.5(1.319)

9.8

CPC valve A
spring

0.7 (0.028)

6.1 (0.240)

17.8(0.701)

7.9

Servo control
valve spring

0.9 (0.035)

9.6 (0.378)

30.2(1.189)

8.4

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:16 PM

Page 439

ATF PUMP INSPECTION

1. Install the ATF pump drive gear (A), driven gear (B), and ATF pump driven gear shaft (C) in the main

valve body (D). Lubricate all parts with ATF, and install the ATF pump driven gear with its grooved and
chamfered side facing up.

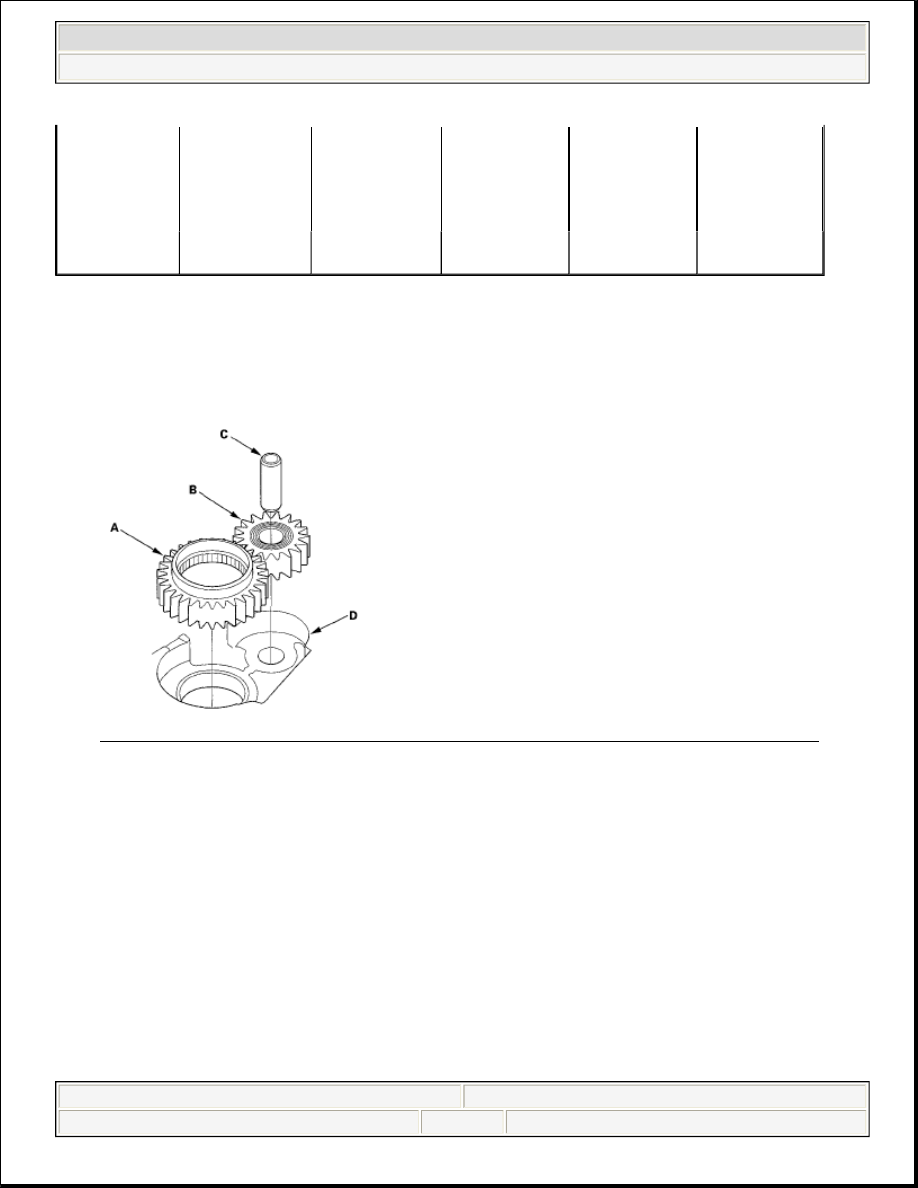

Fig. 465: Identifying ATF Pump Drive Gear, Driven Gear And ATF Pump Driven Gear Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Measure the side clearance of the ATF pump drive gear (A) and driven gear (B).

ATF Pump Gears Side (Radial) Clearance

Standard (New):

ATF Pump Drive Gear:

0.210-0.265 mm (0.0083-0.00104 in.)

ATF Pump Driven Gear:

0.070-0.125 mm (0.0028-0.0050 in.)

Lubrication
control valve
spring

0.9 (0.035)

8.7 (0.343)

25.0 (0.984)

7.2

Lock-up timing
valve spring

0.65 (0.026)

6.6 (0.260)

34.8(1.370)

15.6

Relief valve
spring

1.0(0.039)

9.6 (0.378)

28.1 (1.106)

7.7

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:16 PM

Page 440

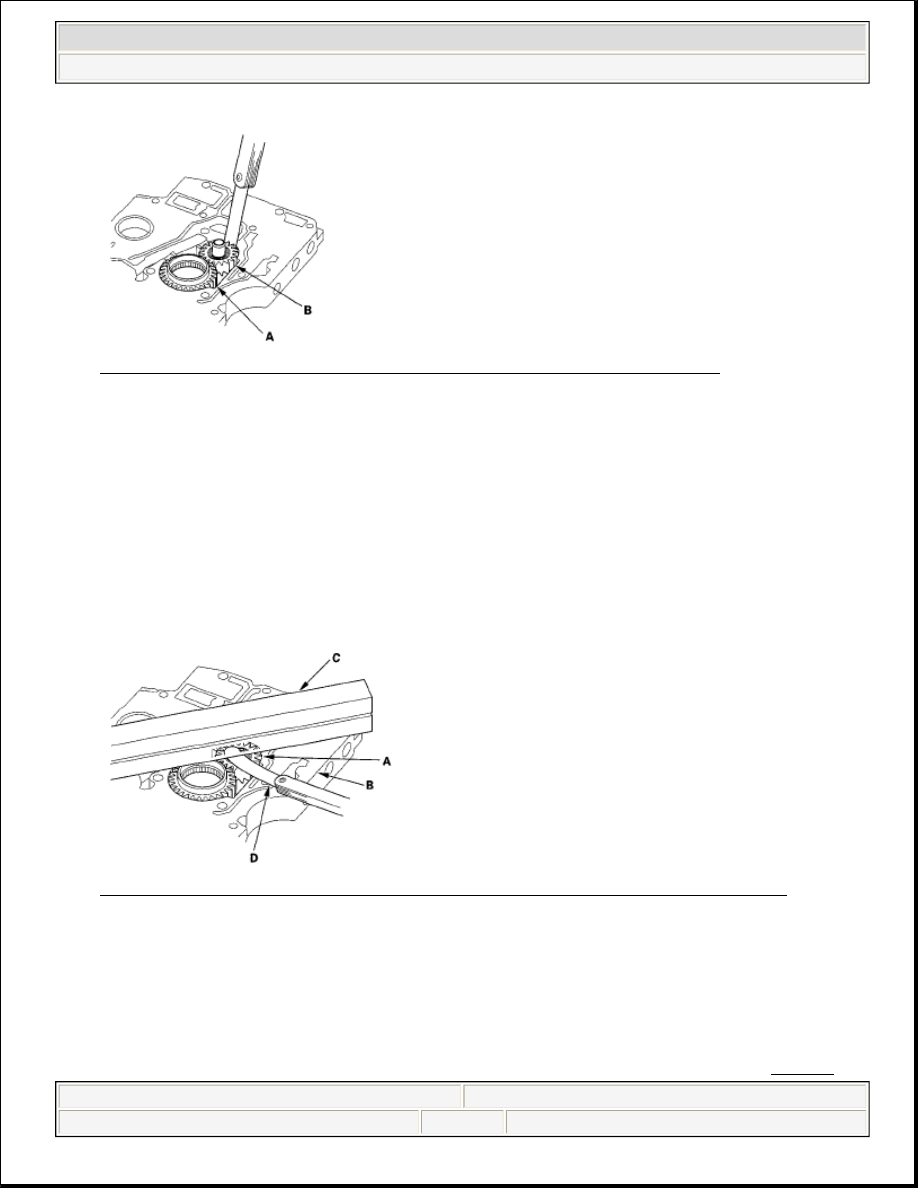

Fig. 466: Measuring Side Clearance Of ATF Pump Drive Gear And Driven Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the ATF pump driven gear shaft. Measure the thrust clearance between the ATF pump driven

gear (A) and the valve body (B) with a straight edge (C) and a feeler gauge (D).

ATF Pump Drive/Driven Gear Thrust (Axial)

Clearance:

Standard (New): 0.03-0.06 mm (0.001-0.002 in.)

Service Limit: 0.07 mm (0.003 in.)

Fig. 467: Measuring Thrust Clearance Between ATF Pump Driven Gear And Valve Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SECONDARY VALVE BODY DISASSEMBLY, INSPECTION, AND REASSEMBLY

1. Clean all parts thoroughly in solvent, and dry them with compressed air. Blowout all passages.

2. Do not use a magnet to remove the check balls, it may magnetize the check balls.

3. Inspect the secondary valve body for scoring and damage.

4. Check all valves for free movement. If any fail to slide freely, refer to valve body repair (see VALVE

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:16 PM

Page 441

BODY ).

5. Coat all parts with ATF during assembly.

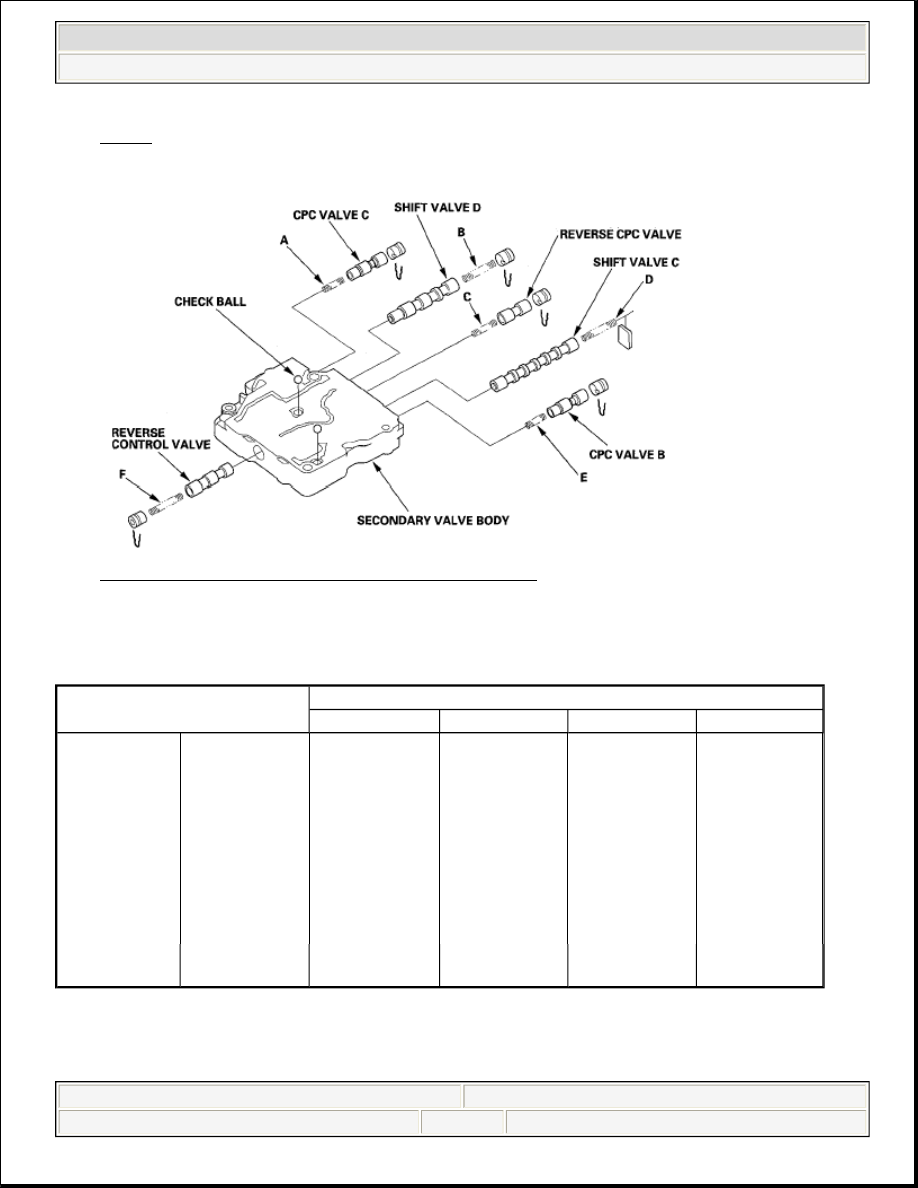

Fig. 468: Identifying Secondary Valve Body Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VALVE SPRING SPECIFICATIONS

REGULATOR VALVE BODY DISASSEMBLY, INSPECTION, AND REASSEMBLY

'05 Model

Valve Springs

Standard (New)-Unit: mm (in.)

Wire Diameter

O.D.

Free Length

No. of Coils

CPC valve C
spring

0.7 (0.028)

6.1 (0.240)

17.8 (0.701)

7.9

Shift valve D
spring

0.7 (0.028)

6.6 (0.260)

42.4 (1.669)

17.6

Reverse CPC
valve spring

0.8 (0.031)

6.1 (0.240)

24.4 (0.961)

14.6

Shift valve C
spring

0.8 (0.031)

6.6 (0.260)

49.1 (1.933)

21.7

CPC valve B
spring

0.7 (0.028)

6.1 (0.240)

17.8 (0.701)

7.9

Reverse control
valve spring

0.8 (0.031)

6.6 (0.260)

49.1 (1.933)

21.7

2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL

Friday, June 05, 2009 1:18:16 PM

Page 442
