1. Clean all parts thoroughly insolvent, and dry them with compressed air. Blow out all passages.

2. Inspect the regulator valve body for scoring and damage.

3. Hold the regulator spring cap in place while removing the stop bolt. The regulator spring cap is spring

loaded. Once the stop bolt is removed, release the spring cap slowly so it does not pop out.

4. Check all valves for free movement. If any fail to slide freely, refer to the valve body repair (see VALVE

BODY ).

5. Coat all parts with ATF during assembly.

6. Align the hole in the regulator spring cap with the stop bolt hole, then press the spring cap into the valve

body, and tighten the stop bolt.

7. Install the servo valve and the 3rd accumulator piston with the new O-rings.

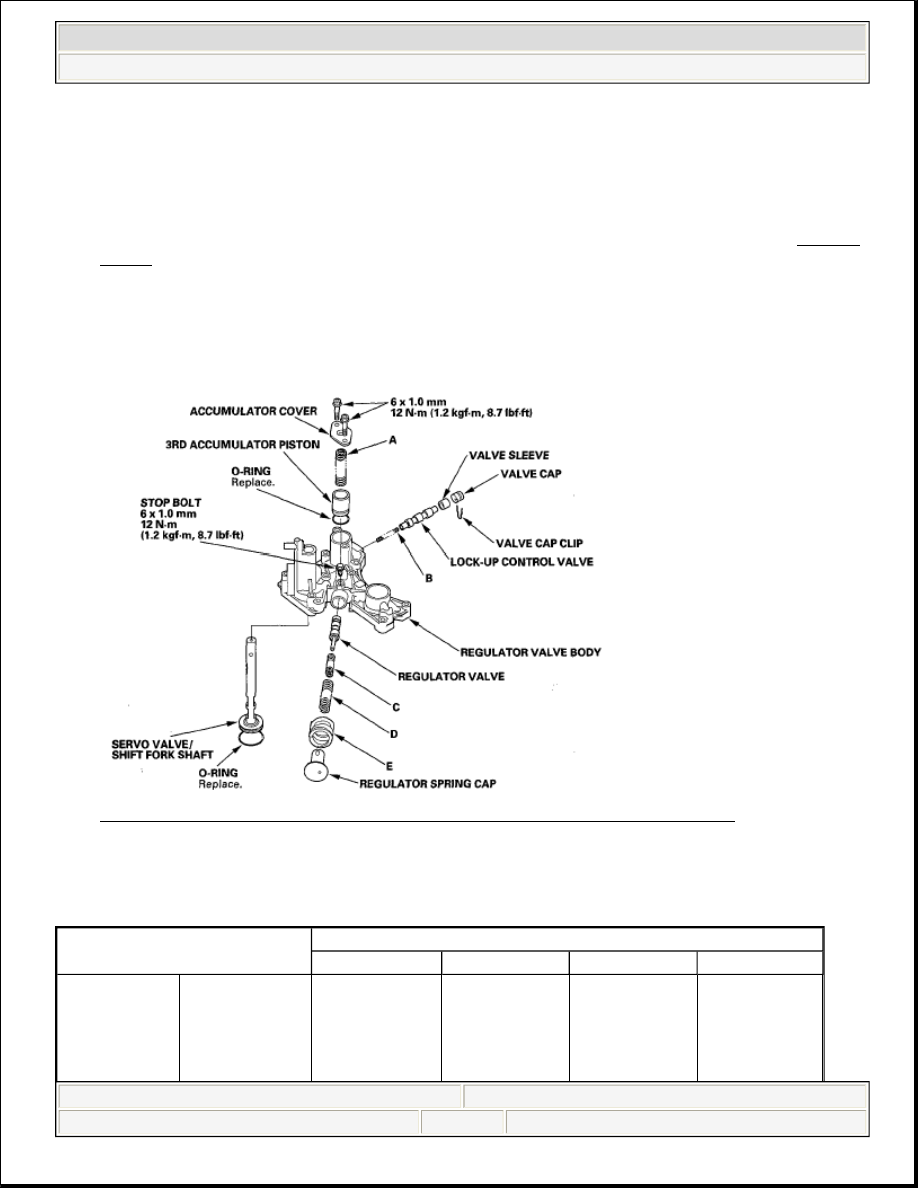

Fig. 469: Identifying Regulator Valve Body (05 Model) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VALVE SPRING SPECIFICATIONS

VALVE SPRING SPECIFICATIONS

Valve Springs

Standard (New)-Unit: mm (in.)

Wire Diameter

O.D.

Free Length

No. of Coils

A

3rd accumulator
spring

3.1 (0.122)

19.6 (0.772)

41.4 (1.630)

5.5

B

Lock-up control
valve spring
(type A)

0.7 (0.028)

6.6 (0.260)

42.9 (1.689)

14.2



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 443

© 2005 Mitchell Repair Information Company, LLC.

'06-08 Models

1. Clean all parts thoroughly in solvent, and dry them with compressed air. Blow out all passages.

2. Inspect the regulator valve body for scoring and damage.

3. Hold the regulator spring cap in place while removing the stop bolt. The regulator spring cap is spring

loaded. Once the stop bolt is removed, release the spring cap slowly so it does not pop out.

4. Check all valves for free movement. If any fail to slide freely, refer to the valve body repair (see VALVE

BODY ).

5. Coat all parts with ATF during assembly.

6. Align the hole in the regulator spring cap with the stop bolt hole, then press the spring cap into the valve

body, and tighten the stop bolt.

7. Install the servo valve and 3rd accumulator piston with the new O-rings.

Fig. 470: Identifying Regulator Valve Body (06-08 Model) With Torque Specifications



Lock-up control
valve spring
(type B)

0.8 (0.031)

6.6 (0.260)

44.3 (1.744)

25.5

C

Regulator valve
spring B

1.4 (0.055)

8.8 (0.346)

44.0 (1.732)

12.0

D

Regulator valve
spring A

1.85 (0.073)

14.7 (0.579)

86.9 (3.421)

16.2

E

Stator reaction
spring

5.5 (0.217)

26.4 (1.039)

30.3 (1.193)

2.1



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 444

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

SPRING SPECIFICATIONS

SPRING SPECIFICATIONS

ACCUMULATOR BODY DISASSEMBLY, INSPECTION, AND REASSEMBLY

1. Clean all parts thoroughly in solvent, and dry them with compressed air. Blow out all passages.

2. Inspect the accumulator body for scoring and damage.

3. Coat all parts with ATF during assembly.

4. Replace the O-rings with new ones.

Valve Springs

Standard (New)-Unit: mm (in.)

Wire Diameter

O.D.

Free Length

No. of Coils

A

Cooler check
valve spring

0.9 (0.035)

6.7 (0.264)

31.5 (1.240)

14.2

B

3rd accumulator
spring

3.1 (0.122)

19.6 (0.772)

41.4 (1.630)

5.5

C

Lock-up control
valve spring
(type A)

0.7 (0.028)

6.6 (0.260)

42.9 (1.689)

14.2



Lock-up control
valve spring
(type B)

0.8 (0.031)

6.6 (0.260)

44.3 (1.744)

25.5

D

Regulator valve
spring B

1.4 (0.055)

8.8 (0.346)

44.0 (1.732)

12.0

E

Regulator valve
spring A

1.85 (0.073)

14.7 (0.579)

86.9 (3.421)

16.2

F

Stator reaction
spring

5.5 (0.217)

26.4 (1.039)

30.3 (1.193)

2.1

NOTE:

As for the lock-up control valve spring, either of type A or type B is applied.



2007 Acura RL

2005-08 TRANSMISSION Automatic Transmission - RL



me



Friday, June 05, 2009 1:18:17 PM

Page 445

© 2005 Mitchell Repair Information Company, LLC.

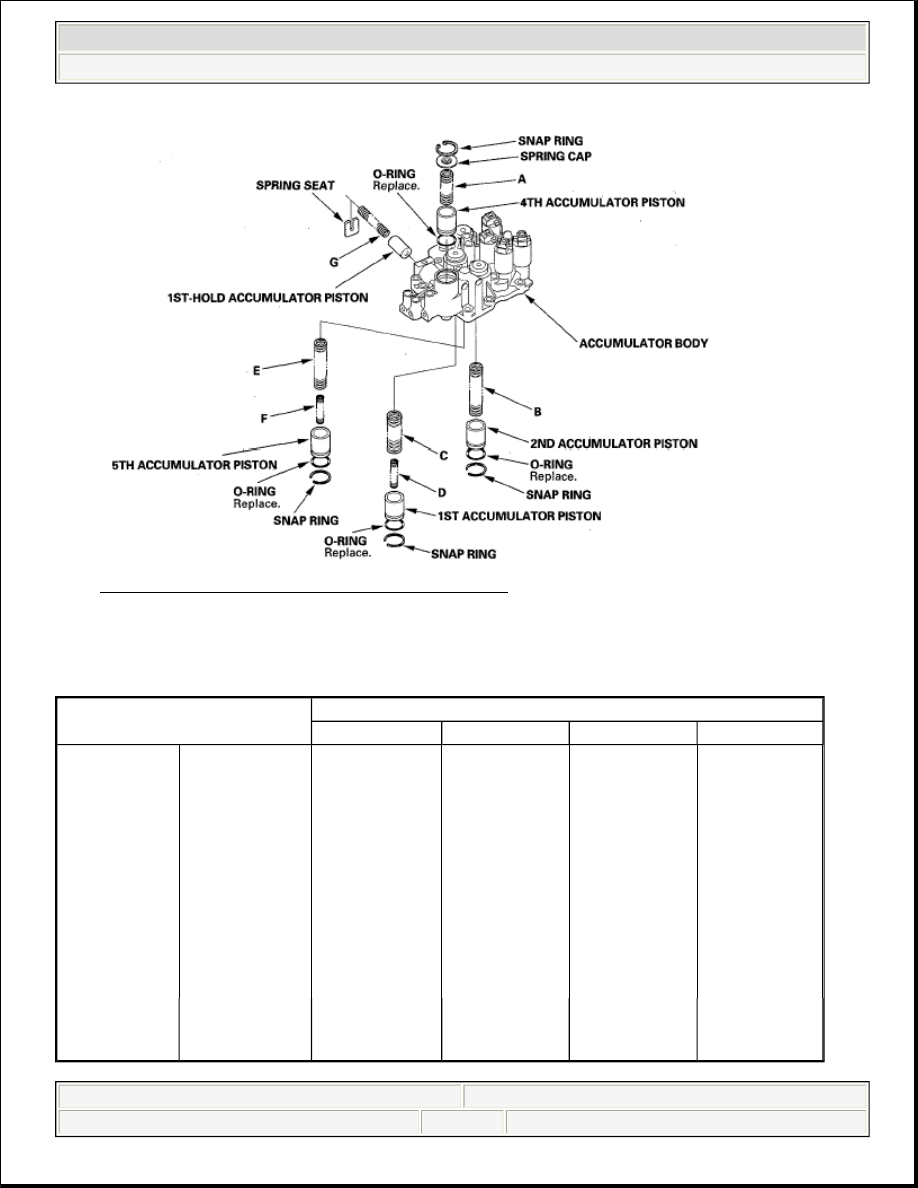

Fig. 471: Identifying Accumulator Body Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VALVE SPRING SPECIFICATIONS

VALVE SPRING SPECIFICATIONS

Valve Springs

Standard: (New)-Unit mm (in.)

Wire Diameter

O.D.

Free Length

No. of Coils

A

4th accumulator
spring

3.3 (0.130)

19.6 (0.772)

39.1 (1.539)

5.8

B

2nd accumulator
spring

3.1 (0.122)

19.6 (0.772)

53.4 (2.102)

7.5

C

1st accumulator
spring A

2.3 (0.091)

19.6 (0.772)

60.8 (2.394)

9.5

D

1st accumulator
spring B

2.5 (0.098)

12.8 (0.504)

46.0 (1.811)

9.5

E

5th accumulator
spring A

2.4 (0.094)

19.6 (0.772)

65.5 (2.579)

12.0

F

5th accumulator
spring B

2.6 (0.102)

13.2 (0.520)

50.5 (1.988)

10.1

G

1st-hold
accumulator
spring

2.0 (0.079)

13.1 (0.516)

42.9 (1.689)

9.8
