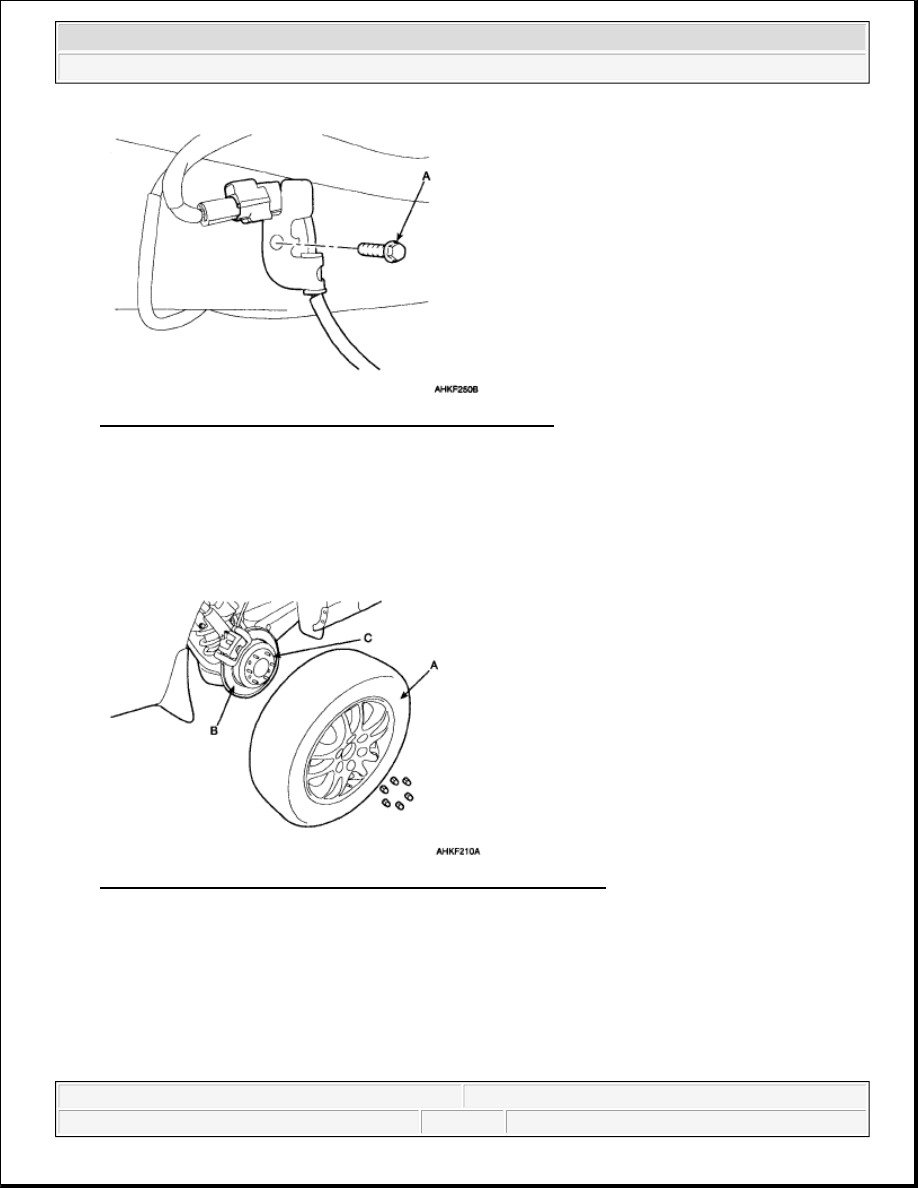

Fig. 59: Identifying Wheel Speed Sensor Wire Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

7. Install the wheel and the tire (A) to the rear hub (B).

Tightening torque N.m (kgf.m, lb-ft):

90-110 (9-11, 65.1-79.5)

Fig. 60: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

REAR STABILIZER BAR

COMPONENTS

CAUTION: Be careful not to damage the hub bolts (C) when installing the rear

wheel and tire (A).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 34

© 2006 Mitchell Repair Information Company, LLC.

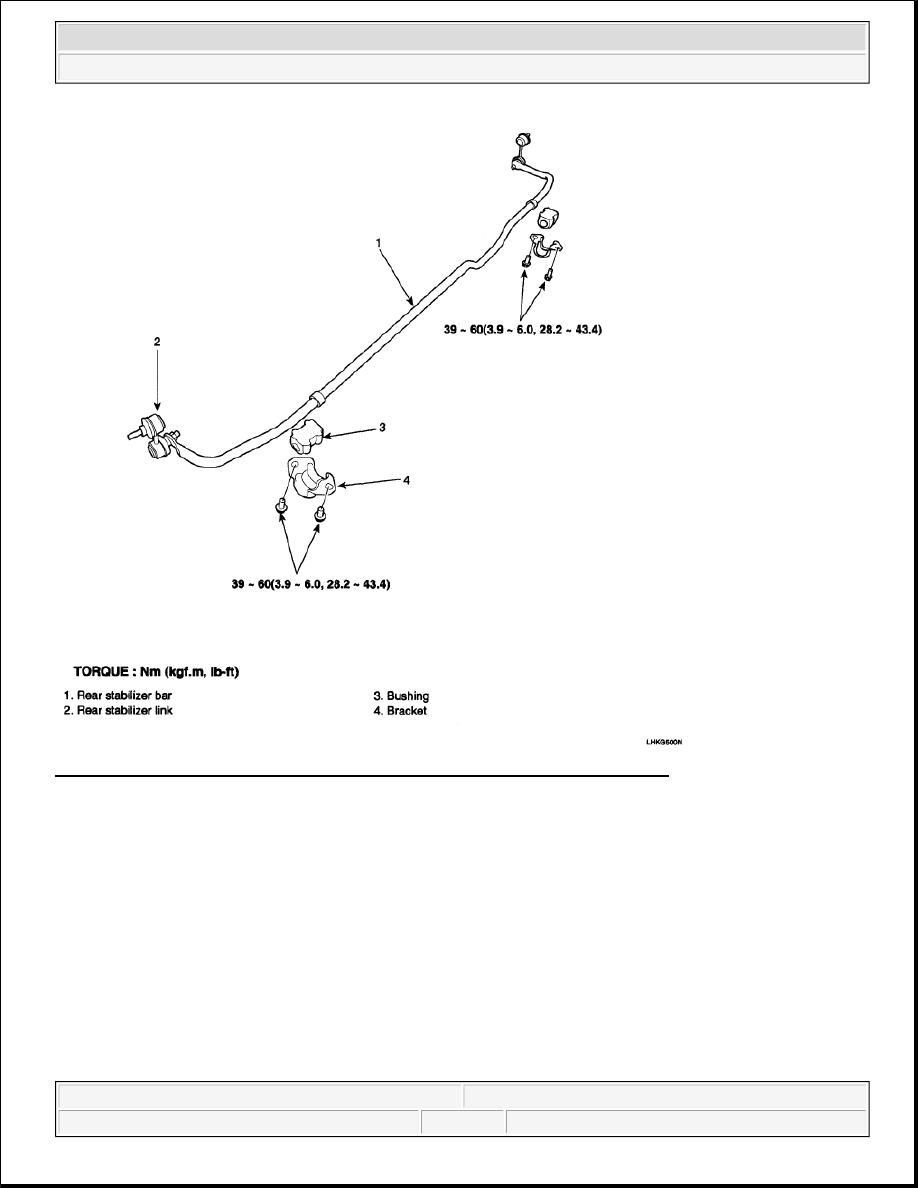

Fig. 61: Identifying Rear Stabilizer Bar Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Loosen the wheel nuts slightly.

Raise the rear of the vehicle, and make sure it is securely supported.

2. Remove the rear wheel and tire (A) from rear hub (B).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 35

© 2006 Mitchell Repair Information Company, LLC.

Fig. 62: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the left/right nuts (C) of the rear stabilizer links (B) from the trailing arm (A).

Fig. 63: Identifying Stabilizer Link, Nut And Trailing Arm
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the left/right mounting nuts (B) of the rear stabilizer bar brackets (A).

CAUTION: Be careful not to damage the hub bolts (C) when removing the rear

wheel and tire (A).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 36

© 2006 Mitchell Repair Information Company, LLC.

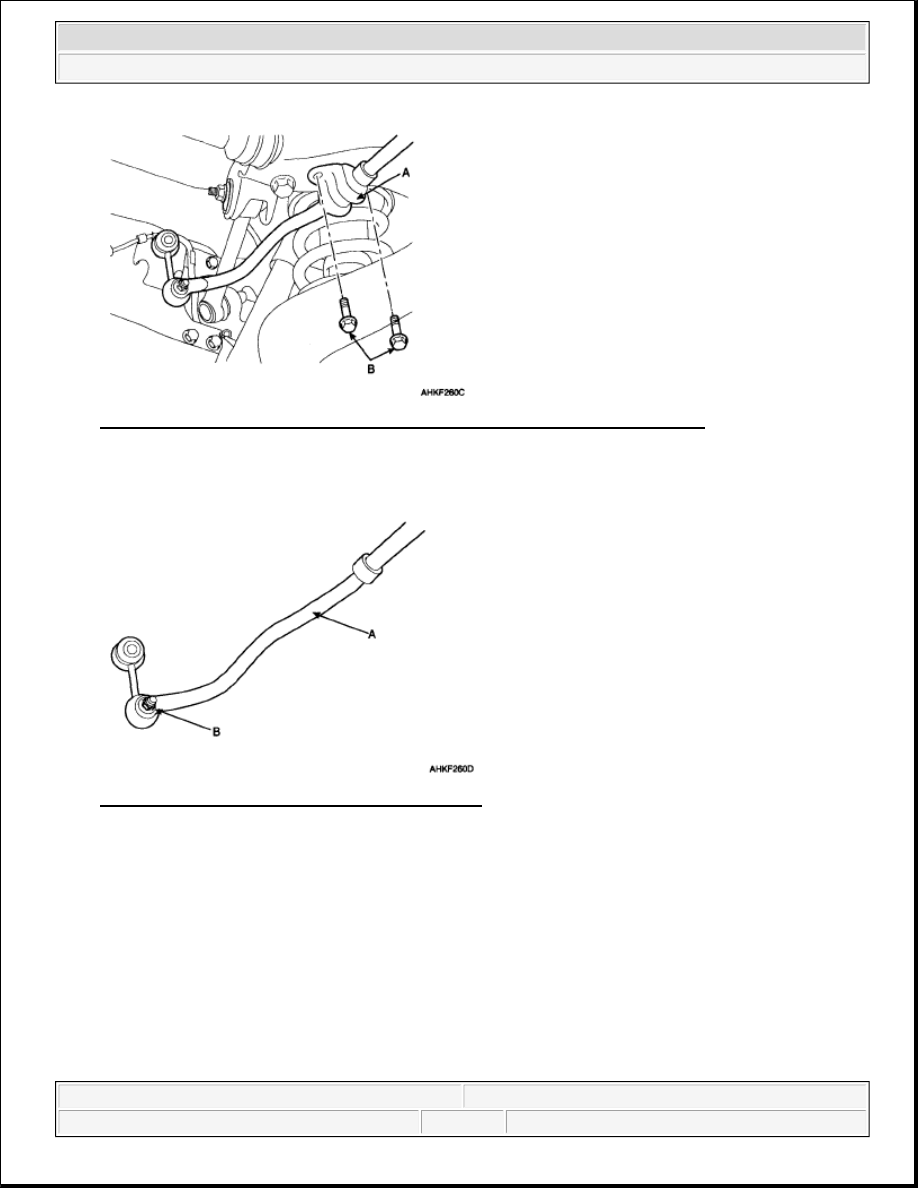

Fig. 64: Identifying Left/Right Mounting Nuts Of Rear Stabilizer Bar Brackets
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the rear stabilizer link (A) nut (B) from the stabilizer bar assembly.

Fig. 65: Identifying Rear Stabilizer Link And Nut
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

1. Check the bushing for wear and deterioration.

2. Check the stabilizer bar for bending or breakage.

3. Check the ball joint for rotating torque.

1. If there is a crack in the dust cover, replace it and add grease.

2. Shake the stabilizer link ball joint stud several times.

3. Mount the self-locking nut on the ball joint, and then measure the ball joint rotating torque.

Specified torque:
