Kia Sedona (2008 year). Manual - part 508

0.5-2.5 N.m (5-25 kgf.m, 3.62-1.81 lb-ft)

Fig. 66: Checking Ball Joint Rotating Torque
Courtesy of KIA MOTORS AMERICA, INC.

4. If the rotating torque exceeds the upper limit of standard value, replace the upper arm assembly.

5. Even if the rotating torque is below the lower limit of the standard value, the ball joint may be

reused unless it has drag and excessive play.

INSTALLATION

1. Install the rear stabilizer link (A) nut (B) to the stabilizer bar assembly.

Tightening torque N.m (kgf.m, lb-ft):

50-65 (5.0-6.5, 36.2-47.0)

NOTE:

Measure torque using the special tool (09532-11600) and torque
wrench at the range of 0.5-2 RPM after moving the ball joint stud 10
times at room temperature.



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 38

© 2006 Mitchell Repair Information Company, LLC.

Fig. 67: Identifying Rear Stabilizer Link And Nut
Courtesy of KIA MOTORS AMERICA, INC.

2. Install the bushing (B) on the stabilizer bar (A).

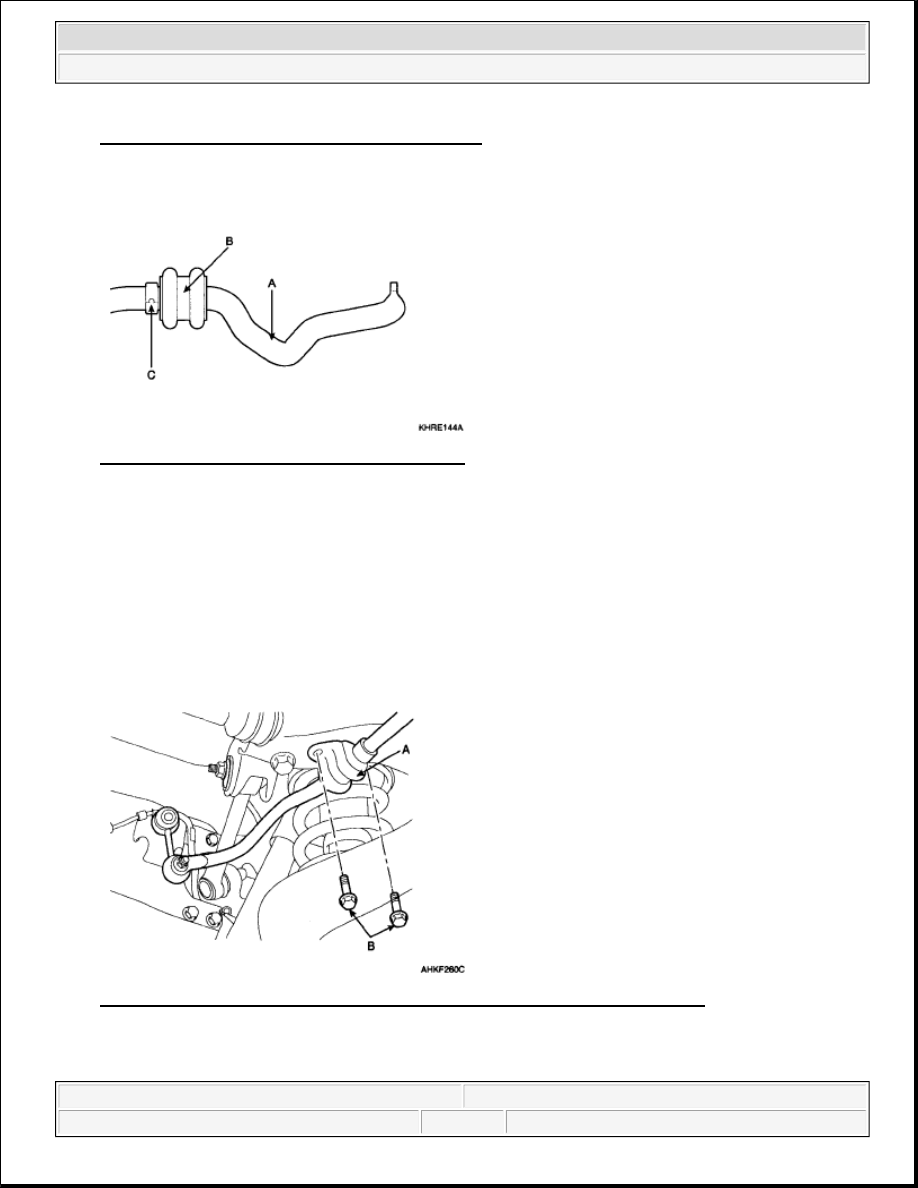

Fig. 68: Identifying Bushing And Stabilizer Bar
Courtesy of KIA MOTORS AMERICA, INC.

3. One side bracket should be temporarily tightened, and then install the bushing on the opposite side.

4. Install the stabilizer bracket (A) bolt (B) to the crossmember.

Tightening torque N.m (kgf.m, lb-ft):

39-60 (3.9-6.0, 28.2-43.4)

Fig. 69: Identifying Left/Right Mounting Nuts Of Rear Stabilizer Bar Brackets
Courtesy of KIA MOTORS AMERICA, INC.

5. Install the stabilizer link (B) nut (C) to the trailing arm (A).

NOTE:

Bring clamp (C) of stabilizer bar (A) into contact with bushing (B).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 39

© 2006 Mitchell Repair Information Company, LLC.

Tightening torque N.m (kgf.m, lb-ft):

50-65 (5.0-6.5, 36.2-47.0)

Fig. 70: Identifying Stabilizer Link And Nut
Courtesy of KIA MOTORS AMERICA, INC.

6. Repeat step 4 and 5 for the other side.

7. Install the wheel and the tire (A) to the rear hub (B).

Tightening torque N.m (kgf.m, lb-ft):

90-110 (9-11, 65.1-79.5)

Fig. 71: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts (C) when installing the rear

wheel and tire (A).
