Fig. 51: Identifying Stabilizer Link, Nut And Trailing Arm
Courtesy of KIA MOTORS AMERICA, INC.

7. Remove the trailing arm bracket (A) mounting bolts (B) from the body.

Fig. 52: Identifying Trailing Arm Bracket And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

8. Remove the connecting bolt (B) between the trailing arm (A) and the bracket.



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 30

© 2006 Mitchell Repair Information Company, LLC.

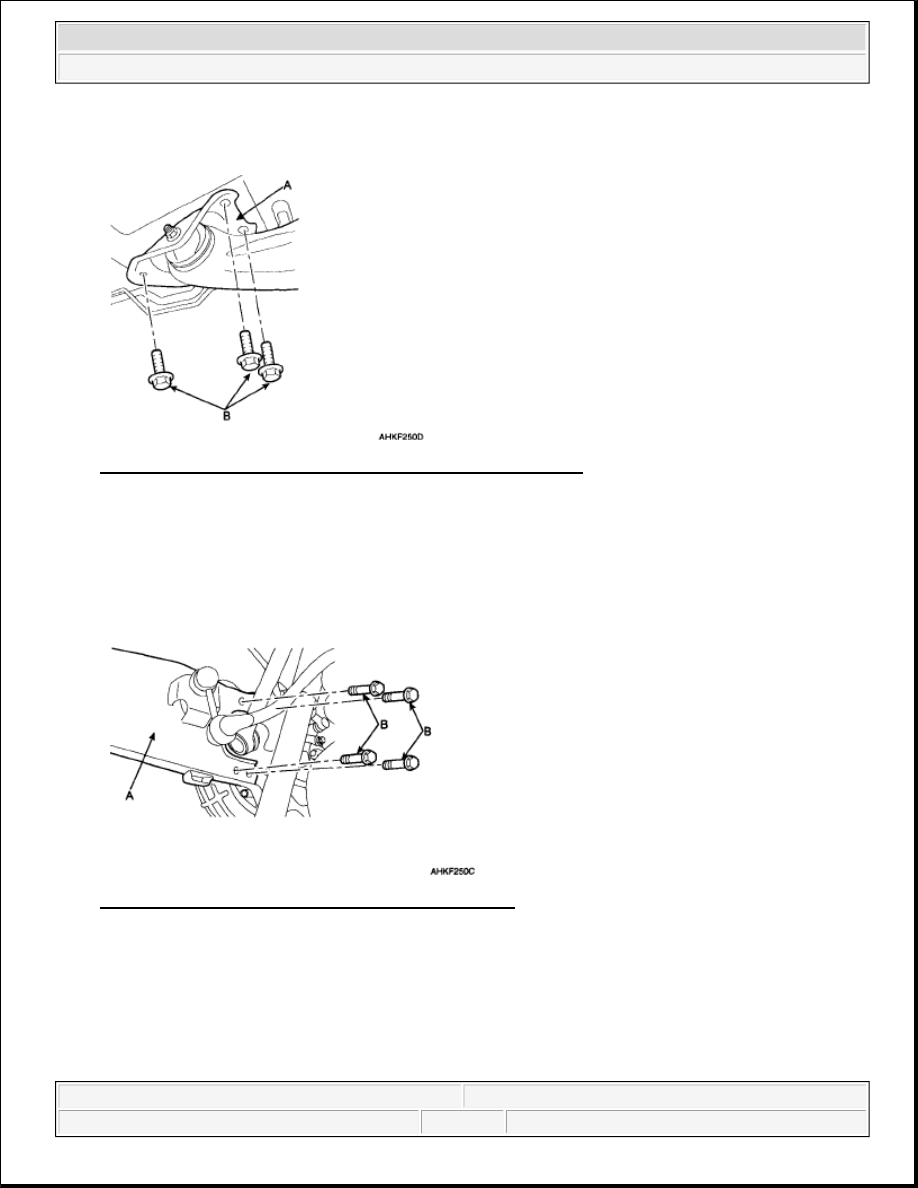

Fig. 53: Identifying Connecting Bolt, Trailing Arm And Bracket
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

1. Check the bushing for wear and deterioration.

2. Check the trailing arm for bending or breakage.

3. Check all the bolts for damage.

INSTALLATION

1. Install the connecting bolt (B) between the trailing arm (A) and the bracket.

Tightening torque N.m (kgf.m, lb-ft):

160-180 (16-18, 115.7-130.2)

Fig. 54: Identifying Connecting Bolt, Trailing Arm And Bracket
Courtesy of KIA MOTORS AMERICA, INC.

2. Install the trailing arm bracket (A) mounting bolts (B) from the body.

Tightening torque N.m (kgf.m, lb-ft):



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 31

© 2006 Mitchell Repair Information Company, LLC.

80-110 (8-11, 57.9-79.5)

Fig. 55: Identifying Trailing Arm Bracket And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Install the trailing arm (A) mounting nuts (B) from the knuckle.

Tightening torque N.m (kgf.m, lb-ft):

80-100 (8-10, 57.9-72.3)

Fig. 56: Identifying Trailing Arm And Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

4. Install the stabilizer link (B) nut (C) to the trailing arm (A).

Tightening torque N.m (kgf.m, lb-ft):

50-65 (5.0-6.5, 36.2-47.0)



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 32

© 2006 Mitchell Repair Information Company, LLC.

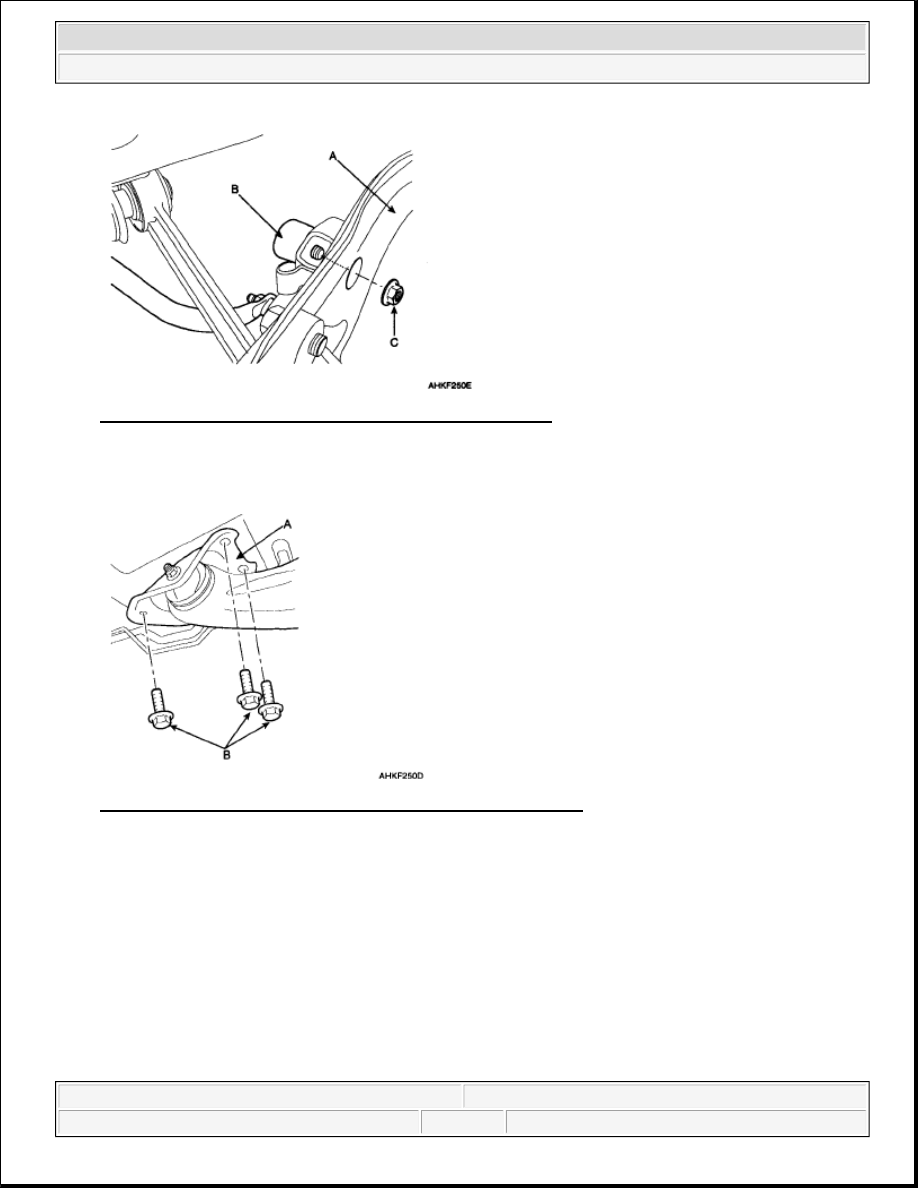

Fig. 57: Identifying Stabilizer Link, Nut And Trailing Arm
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the wheel speed sensor wire's bracket bolt (A) and the parking brake wire's bracket bolt (B).

Tightening torque N.m (kgf.m, lb-ft):

7-11 (0.7-1.1, 5.1-8.0)

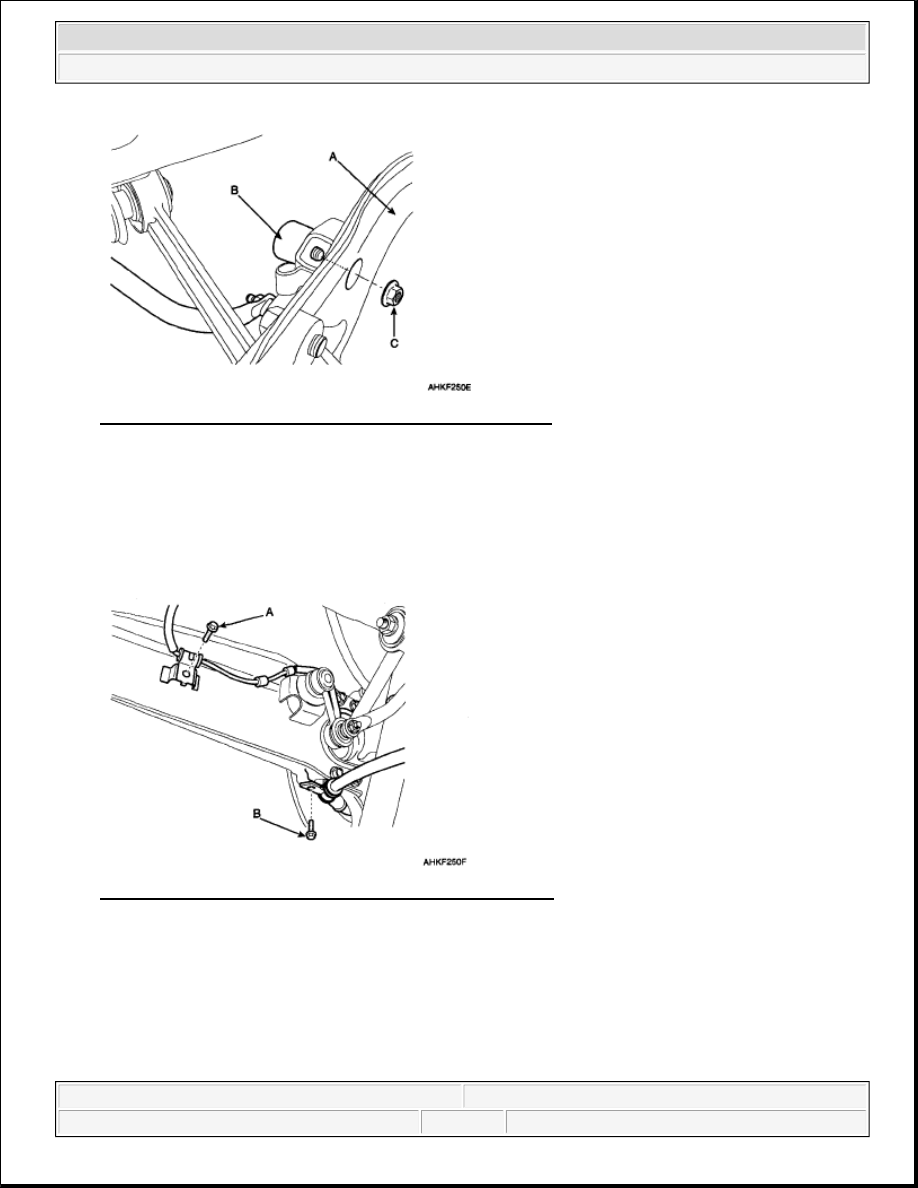

Fig. 58: Identifying Wheel Speed Sensor Wire Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

6. Install the wheel speed sensor wire's bracket bolt (A) from the body and the connector.

Tightening torque N.m (kgf.m, lb-ft):

7-11 (0.7-1.1, 5.1-8.0)
