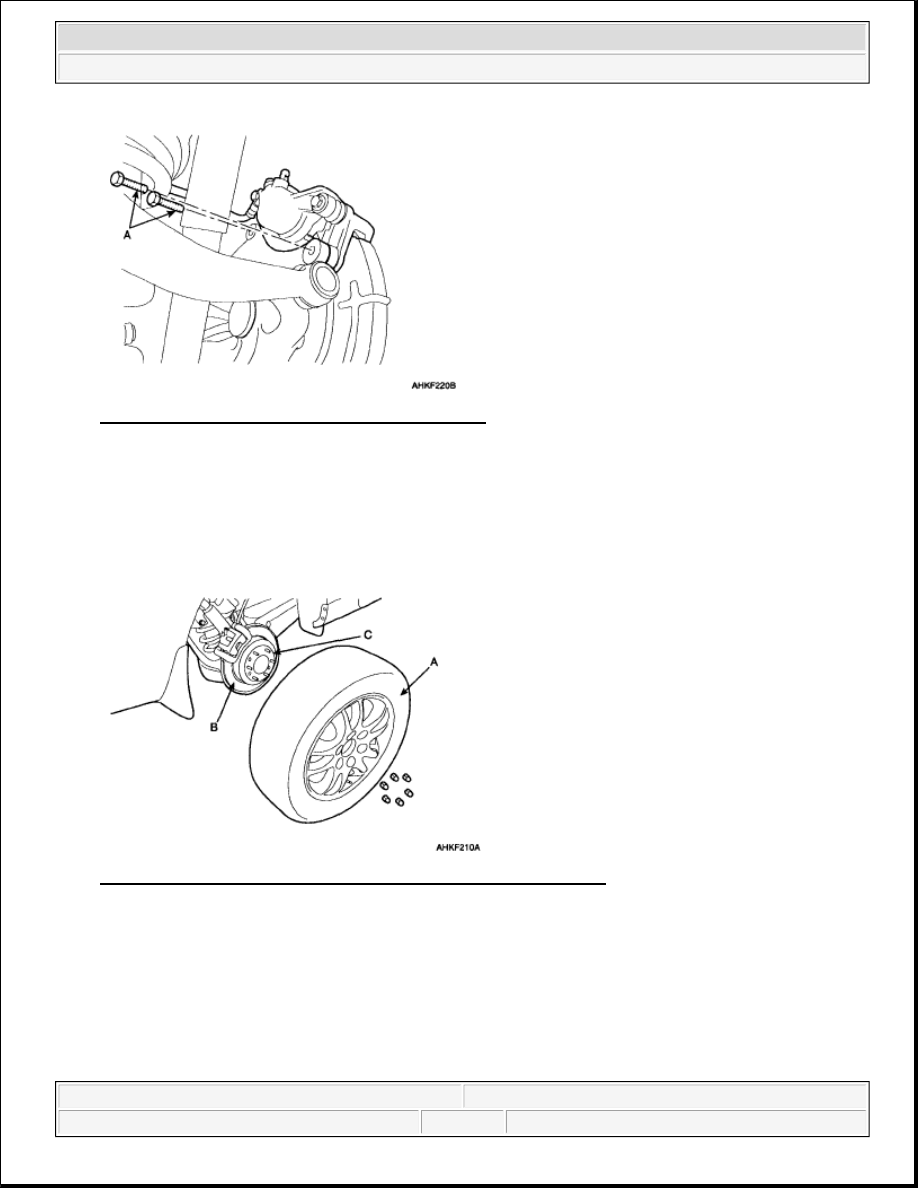

Fig. 44: Identifying Brake Caliper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

4. Install the wheel and the tire (A) to the rear hub (B).

Tightening torque N.m (kgf.m, lb-ft):

90-110 (9-11, 65.1-79.5)

Fig. 45: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

TRAILING ARM

COMPONENTS

CAUTION: Be careful not to damage the hub bolts (C) when installing the rear

wheel and tire (A).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 26

© 2006 Mitchell Repair Information Company, LLC.

Fig. 46: Identifying Trailing Arm Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Loosen the wheel nuts slightly. Raise the rear of the vehicle, and make sure it is securely supported.

2. Remove the rear wheel and tire (A) from rear hub (B).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 27

© 2006 Mitchell Repair Information Company, LLC.

Fig. 47: Identifying Rear Wheel & Tire, Rear Hub And Hub Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the wheel speed sensor wire's bracket bolt (A) from the body and the connector.

Fig. 48: Identifying Wheel Speed Sensor Wire's Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the wheel speed sensor wire's bracket bolt (A) and the parking brake wire's bracket bolt (B).

CAUTION: Be careful not to damage the hub bolts (C) when removing the rear

wheel and tire (A).



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona



Microsoft



Monday, May 24, 2010 3:46:44 PM

Page 28

© 2006 Mitchell Repair Information Company, LLC.

Fig. 49: Identifying Parking Brake Wire's Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the trailing arm (A) mounting nuts (B) from the knuckle.

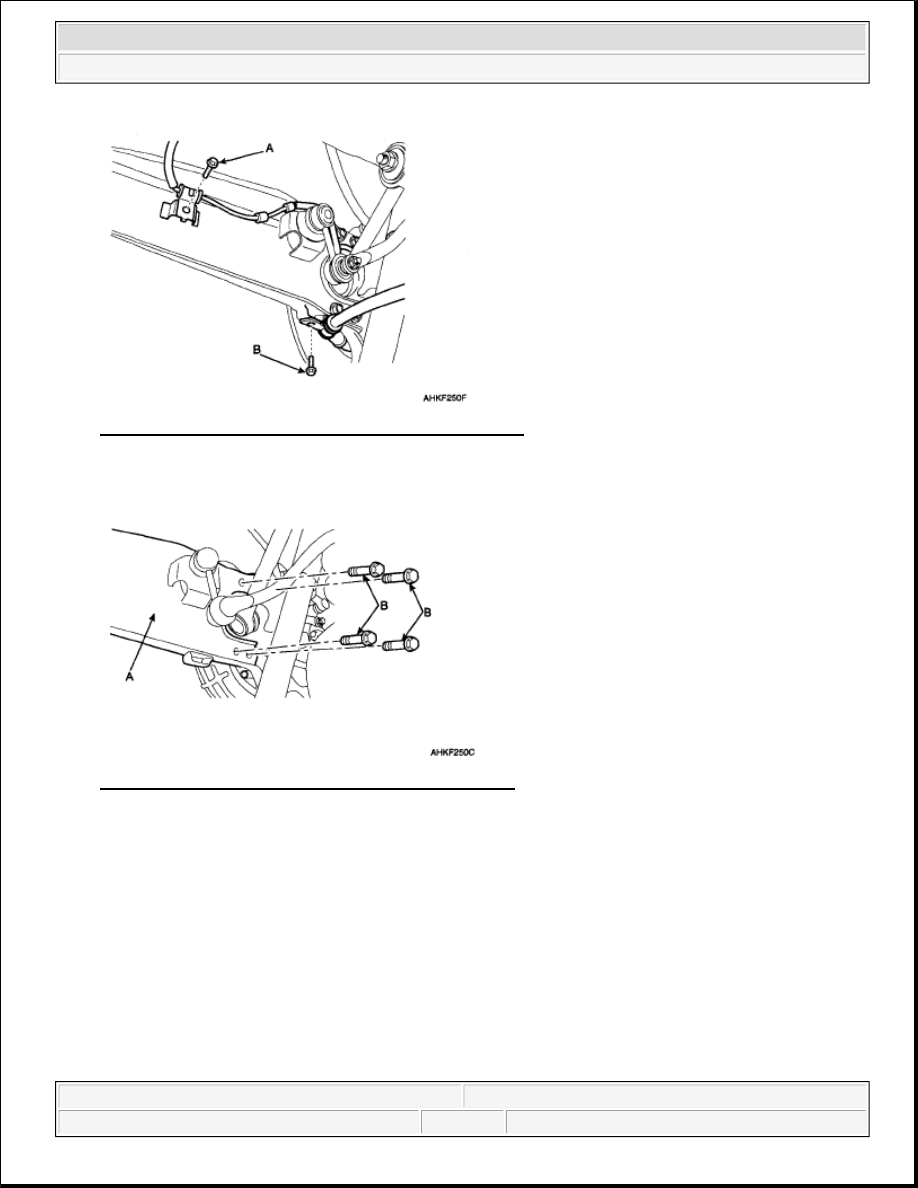

Fig. 50: Identifying Trailing Arm And Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the stabilizer link (B) nut (C) from the trailing arm (A).
