Fig. 206: Locating Condenser, Radiator Assembly And Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

10. Remove the radiator bracket.

11. Remove the radiator assembly.

12. Remove the radiator cooling fan (A).

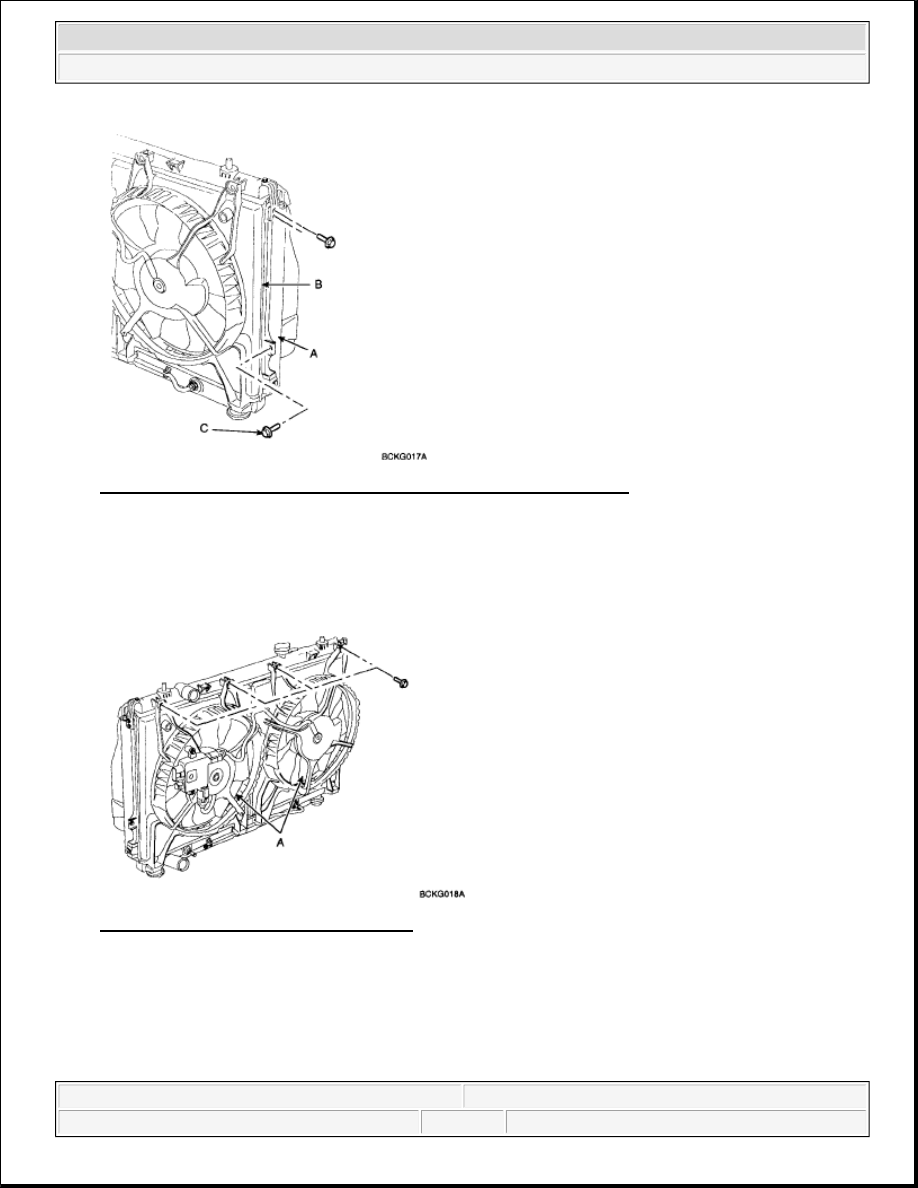

Fig. 207: Locating Radiator Cooling Fan
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

WATER PUMP

1. Check each part for cracks, damage or wear, and replace the coolant pump assembly if necessary.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 142

© 2006 Mitchell Repair Information Company, LLC.

2. Check the bearing for damage, abnormal noise and sluggish rotation, and replace the coolant pump

assembly if necessary.

3. Check for coolant leakage. If coolant leaks from hole, the seal is malfunctioning. Replace the coolant

pump assembly.

THERMOSTAT

1. Immerse the thermostat in water and gradually heat the water.

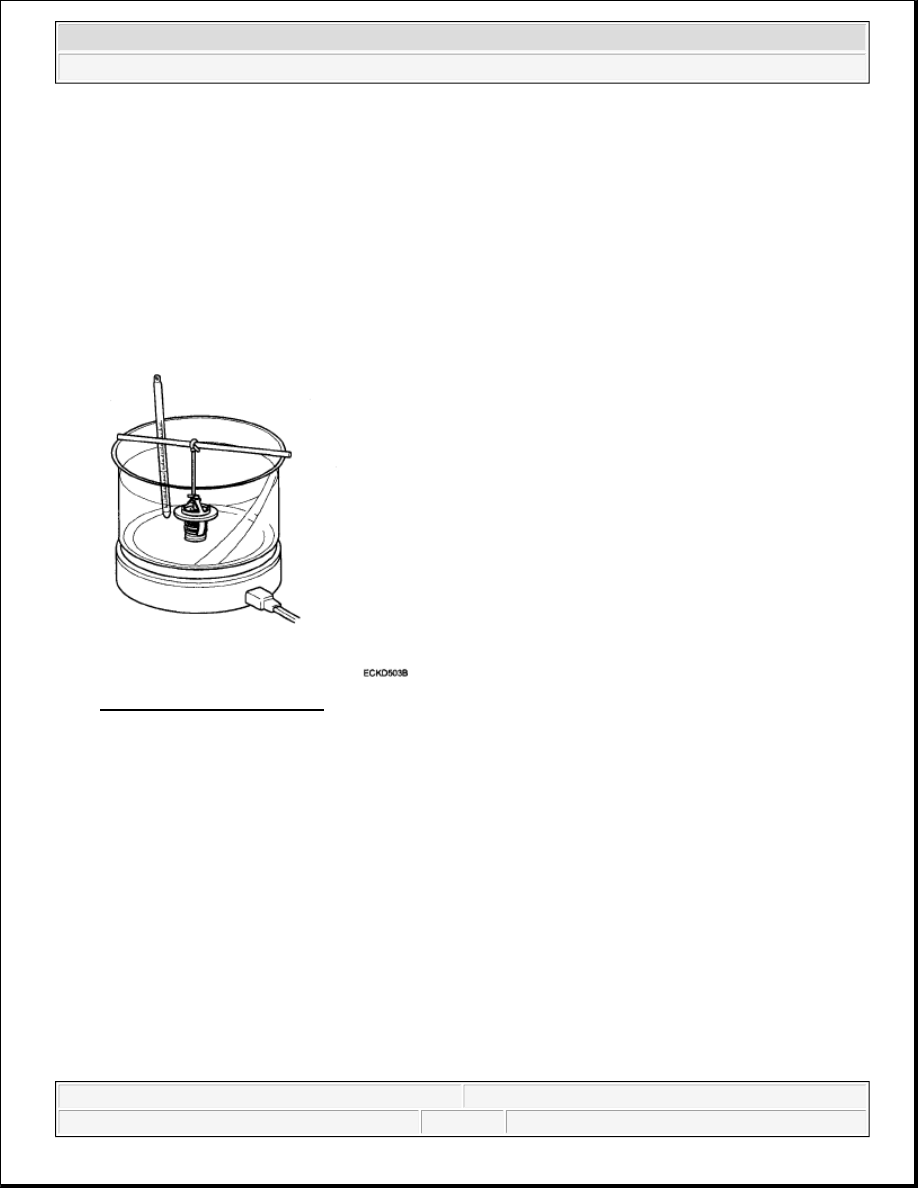

Fig. 208: Testing Thermostat
Courtesy of KIA MOTORS AMERICA, INC.

2. Check the valve opening temperature.

Valve opening temperature: 82°C (177°F)

Full opening temperature: 95°C (205°F)

If the valve opening temperature is not as specified, replace the thermostat.

3. Check the valve lift.

Valve lift: M in. 10 mm (0.4 in.) at 95°C (205°F)

If the valve lift is not as specified, replace the thermostat.

INSTALLATION

NOTE:

A small amount of "weeping" from the bleed hole is normal.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 143

© 2006 Mitchell Repair Information Company, LLC.

WATER PUMP

1. Install the water pump (A) and a new gasket (B) with 12 bolts.

Tightening torque

21.56-23.52 N.m (2.2-2.4 kgf.m, 15.91-17.36 lb-ft) 9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

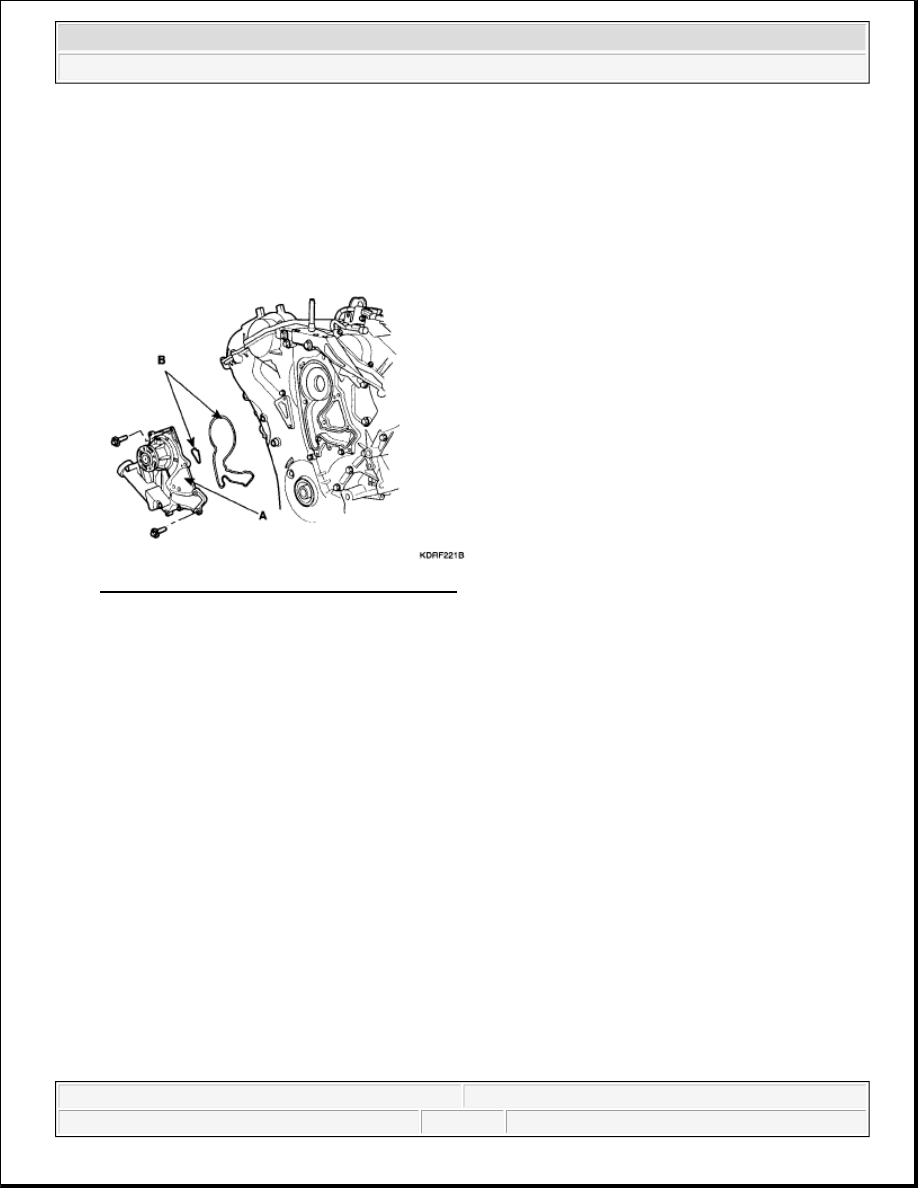

Fig. 209: Identifying Water Pump And Gasket
Courtesy of KIA MOTORS AMERICA, INC.

2. Install the 4 bolts and pump pulley (A).

Tightening torque

7.84-9.80 N.m (0.8-1.0 kgf.m, 5.78-7.23 lb-ft)

NOTE:

Make clean the contact face before assembly.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 144

© 2006 Mitchell Repair Information Company, LLC.

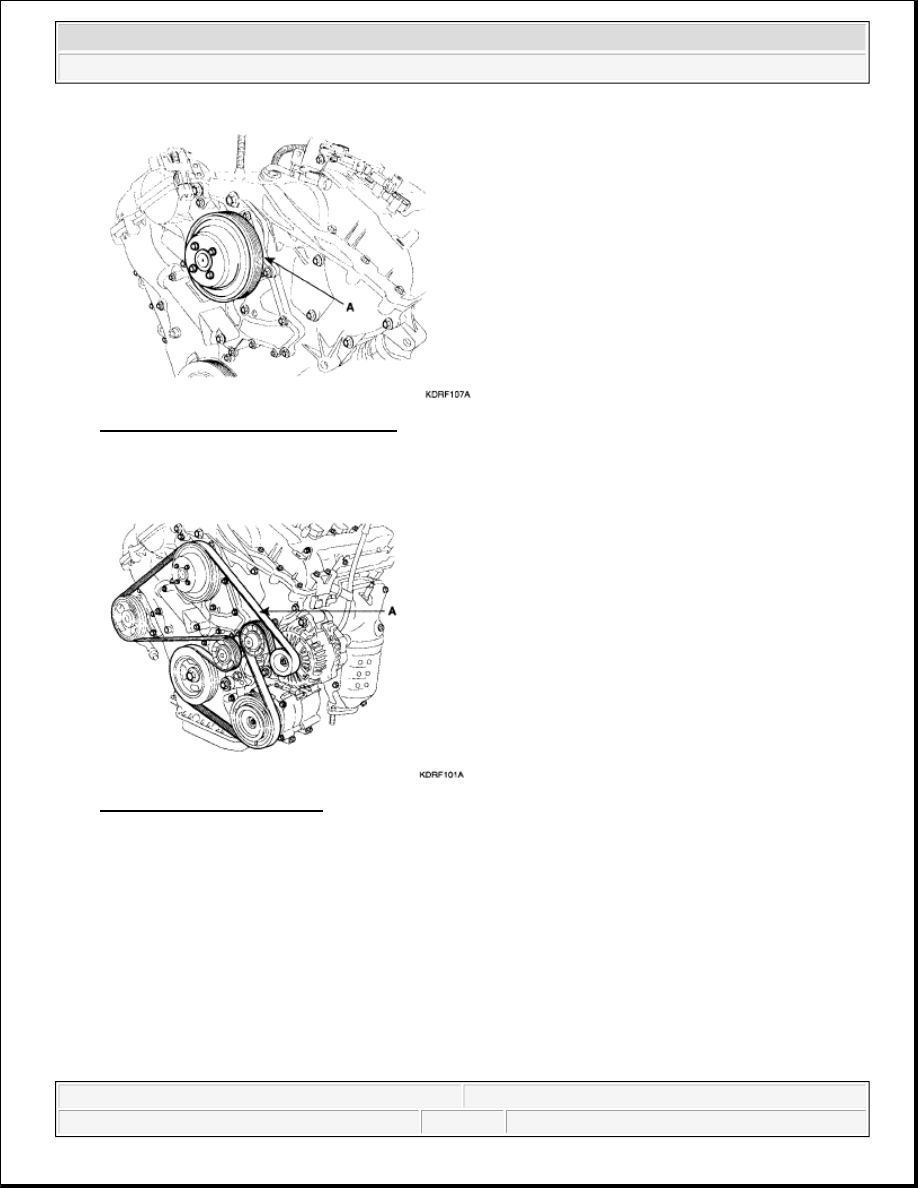

Fig. 210: Locating Water Pump Pulley
Courtesy of KIA MOTORS AMERICA, INC.

3. Install drive belt (A).

Fig. 211: Locating Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.

4. Fill with engine coolant.

5. Start engine and check for leaks.

6. Recheck engine coolant level.

WATER TEMPERATURE CONTROL ASSEMBLY

1. Install water temperature control assembly (B) and new gasket (A).

NOTE:

Make clean the contact face before assembly.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 145
