RADIATOR

1. Drain the engine coolant.

2. Remove the radiator grille upper cover (A).

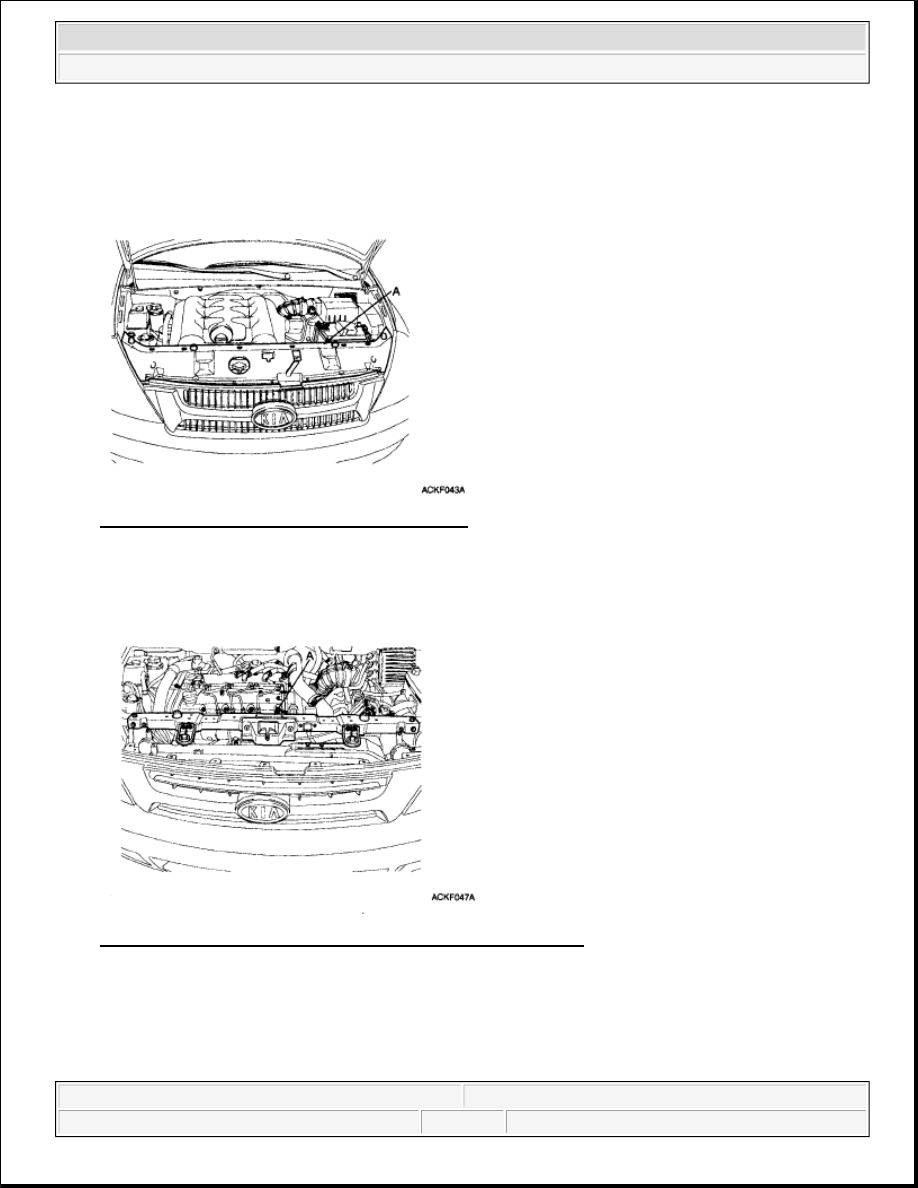

Fig. 198: Locating Radiator Grille Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove under cover.

4. Remove the radiator support upper member assembly (A) for convenience sake.

Fig. 199: Locating Radiator Support Upper Member Assembly
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

The bottom side bolt (A) which can be seen after removing the under cover
should be loosened for removal of the radiator support upper member
assembly.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 138

© 2006 Mitchell Repair Information Company, LLC.

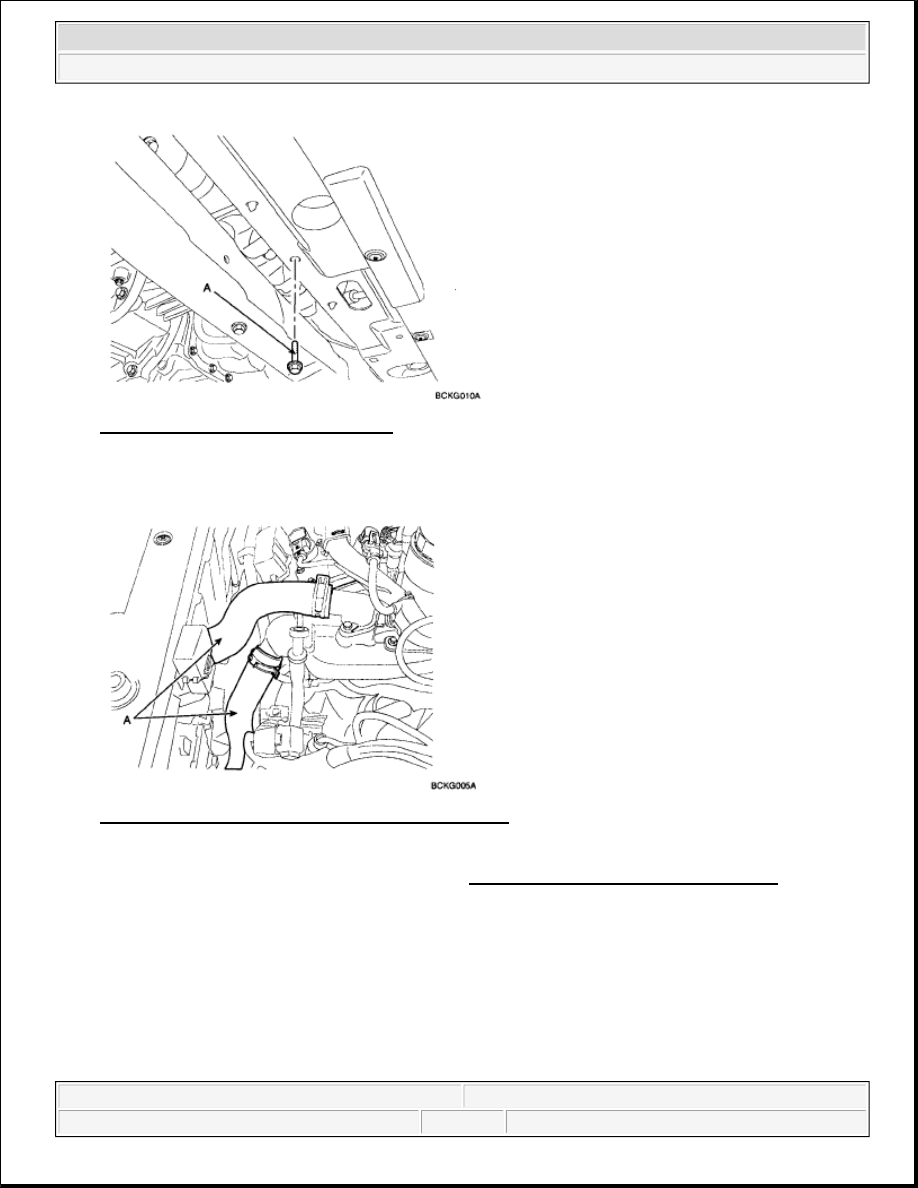

Fig. 200: Identifying Bottom Side Bolt
Courtesy of KIA MOTORS AMERICA, INC.

5. Disconnect radiator upper and lower hoses (A).

Fig. 201: Locating Radiator Upper And Lower Hoses
Courtesy of KIA MOTORS AMERICA, INC.

6. Disconnect transaxle oil cooler hoses (A). Refer to AUTOMATIC TRANSAXLE SYSTEM .



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 139

© 2006 Mitchell Repair Information Company, LLC.

Fig. 202: Locating Transaxle Oil Cooler Hoses
Courtesy of KIA MOTORS AMERICA, INC.

7. Disconnect the radiator fan connectors (A).

Fig. 203: Locating Radiator Fan Connectors
Courtesy of KIA MOTORS AMERICA, INC.

8. Disconnect the pressure lines (A) from the radiator assembly (B).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 140

© 2006 Mitchell Repair Information Company, LLC.

Fig. 204: Locating Pressure Lines And Radiator Assembly
Courtesy of KIA MOTORS AMERICA, INC.

9. Separate the condenser (A) from the radiator assembly (B) by removing the bolts (C).

Fig. 205: Locating Condenser, Radiator Assembly And Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
