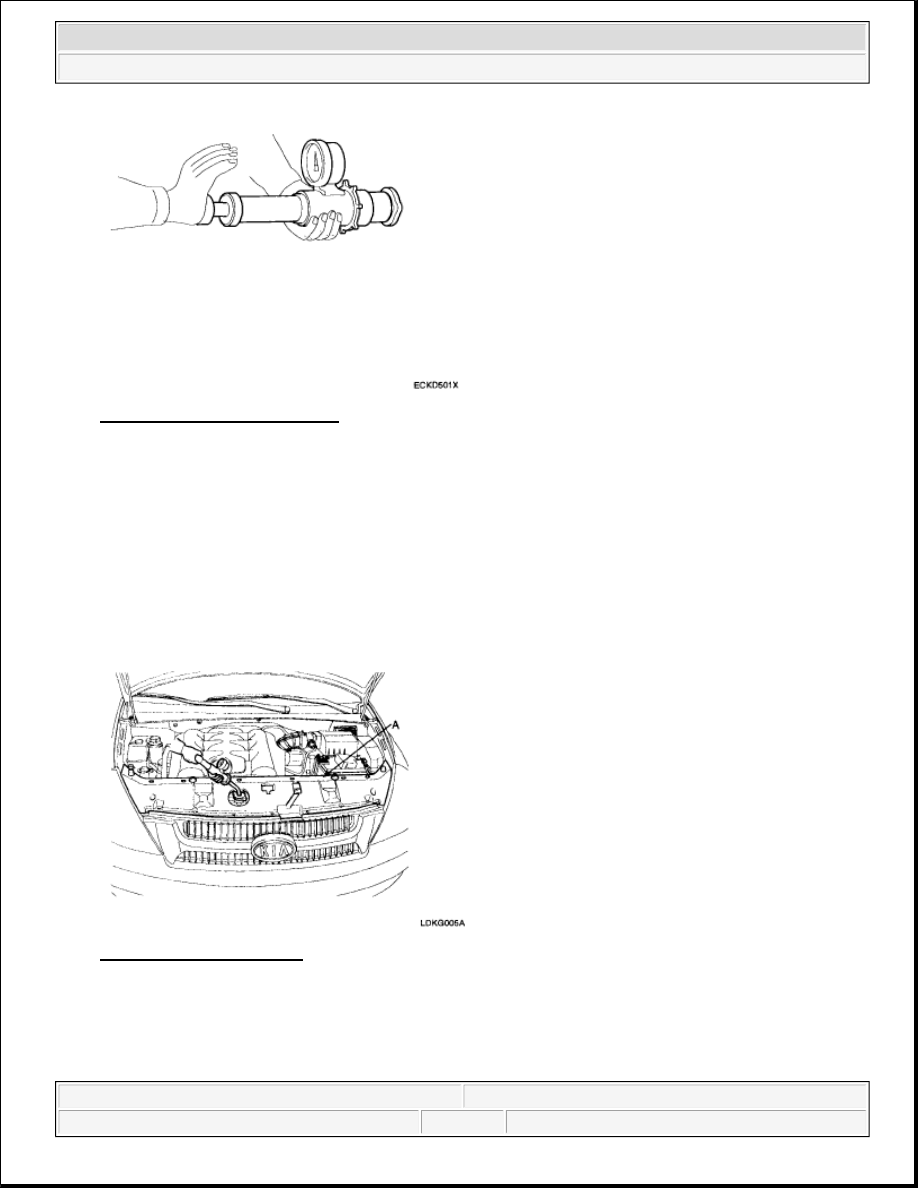

Fig. 190: Testing Radiator Cap
Courtesy of KIA MOTORS AMERICA, INC.

2. Apply a pressure of 93-123 kPa (0.95-1.25 kgf/cm

2

 , 14-19 psi)



3. Check for a drop in pressure.

4. If the pressure drops, replace the cap.

TESTING

1. Wait until engine is cool, then carefully remove the radiator cap and fill the radiator with engine coolant,

then install it on the pressure tester.

Fig. 191: Testing Radiator
Courtesy of KIA MOTORS AMERICA, INC.

2. Apply a pressure tester to the radiator and apply a pressure of 93-123 kPa (0.95-1.25 kgf/cm

2

 14-18 psi).



3. Inspect for engine coolant leaks and a drop in pressure.

4. Remove the tester and reinstall the radiator cap.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 134

© 2006 Mitchell Repair Information Company, LLC.

REMOVAL

WATER PUMP

1. Drain the engine coolant.

2. Remove drive belt (A).

Fig. 192: Locating Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the 4 bolts and pump pulley (A).

NOTE:

Check for engine oil in the coolant and/or coolant in the engine oil.

WARNING:

System is under high pressure when the engine is hot. To avoid
danger of releasing scalding engine coolant, remove the cap only
when the engine is cool.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 135

© 2006 Mitchell Repair Information Company, LLC.

Fig. 193: Locating Water Pump Pulley
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the water pump (A) and gasket.

Fig. 194: Identifying Water Pump And Gasket
Courtesy of KIA MOTORS AMERICA, INC.

WATER TEMPERATURE CONTROL ASSEMBLY

1. Drain the engine coolant.

2. Remove air cleaner assembly. Refer to ENGINE AND TRANSAXLE ASSEMBLY.

3. Disconnect radiator upper and lower hose (A).

Fig. 195: Locating Radiator Upper And Lower Hoses
Courtesy of KIA MOTORS AMERICA, INC.

4. Disconnect ECT connector.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 136

© 2006 Mitchell Repair Information Company, LLC.

5. Disconnect heater hose, water vent hose and water hose from water temperature control assembly.

6. Remove wiring protector.

7. Remove water temperature control assembly (A).

Fig. 196: Identifying Water Temperature Control Assembly
Courtesy of KIA MOTORS AMERICA, INC.

THERMOSTAT

1. Drain engine coolant so its level is below thermostat.

2. Remove water inlet (A) and thermostat (B).

Fig. 197: Identifying Water Inlet And Thermostat
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Removal of the thermostat would have an adverse effect, causing a lowering of
cooling efficiency. Do not remove the thermostat, even if the engine tends to
overheat.
