Fig. 180: Identifying Sealant Area On Oil Drain Cover
Courtesy of KIA MOTORS AMERICA, INC.

13. Install rear oil seal case.

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.67 lb-ft)

Fig. 181: Locating Rear Oil Seal Case
Courtesy of KIA MOTORS AMERICA, INC.

sealant



Before assembling oil drain cover, the liquid sealant TB1217H should
be applied oil drain cover.



The part must be assembled within 5 minutes after sealant was
applied.



Apply sealant to the inner threads of the bolt holes.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 126

© 2006 Mitchell Repair Information Company, LLC.

Fig. 182: Identifying Sealant Area On Rear Oil Seal Case
Courtesy of KIA MOTORS AMERICA, INC.

14. Using SST (09231-3C200, 09231-H1100), install rear oil seal.

Fig. 183: Identifying SST (09231-3C200, 09231-H1100)
Courtesy of KIA MOTORS AMERICA, INC.

15. Install baffle plate.

Install and uniformly tighten the baffle plate bolts, in several passes, in the sequence shown in illustration.

NOTE:



Make clean the sealing face before assembling two parts.



Remove harmful foreign matters on the sealing face before applying
sealant



Before assembling rear oil seal case, the liquid sealant TB1217H
should be applied rear oil seal case.



The part must be assembled within 5 minutes after sealant was
applied.



Apply sealant to the inner threads of the bolt holes.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 127

© 2006 Mitchell Repair Information Company, LLC.

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

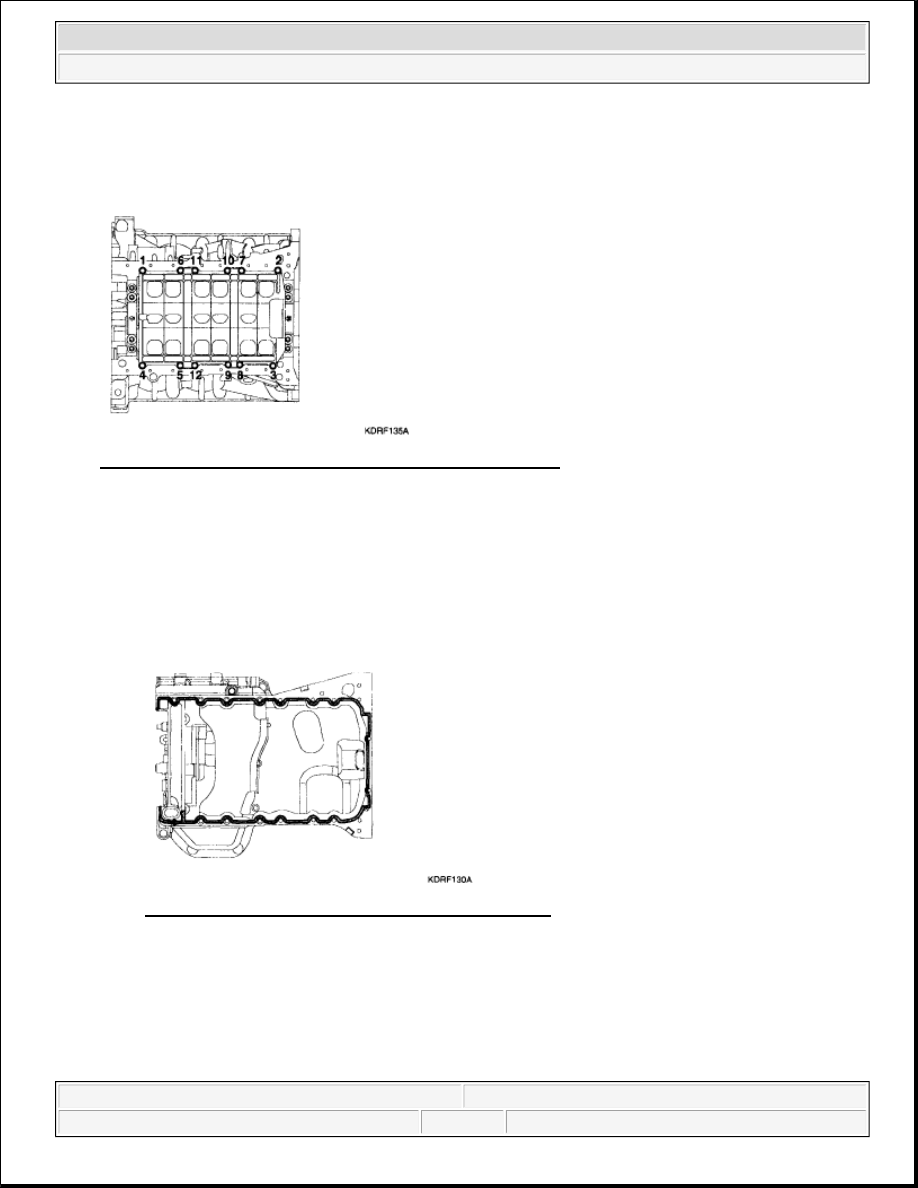

Fig. 184: Identifying Baffle Plate Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

16. Install upper oil pan.

a. Using a gasket scraper, remove all the old packing material from the gasket surfaces.

b. Before assembling the oil pan, the liquid sealant TB1217H should be applied on upper oil pan. The

part must be assembled within 5 minutes after the sealant was applied.

Bead width: 2.5 mm (0.1 in.)

Fig. 185: Identifying Sealant Area On Upper Oil Pan
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:



Ensure the sealing face is clean before assembling two parts.



Remove harmful foreign matters on the sealing face before
applying sealant



When applying sealant gasket, sealant must not be protruded
into the inside of oil pan.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 128

© 2006 Mitchell Repair Information Company, LLC.

c. Install upper oil pan.

Uniformly tighten the bolts in several passes.

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

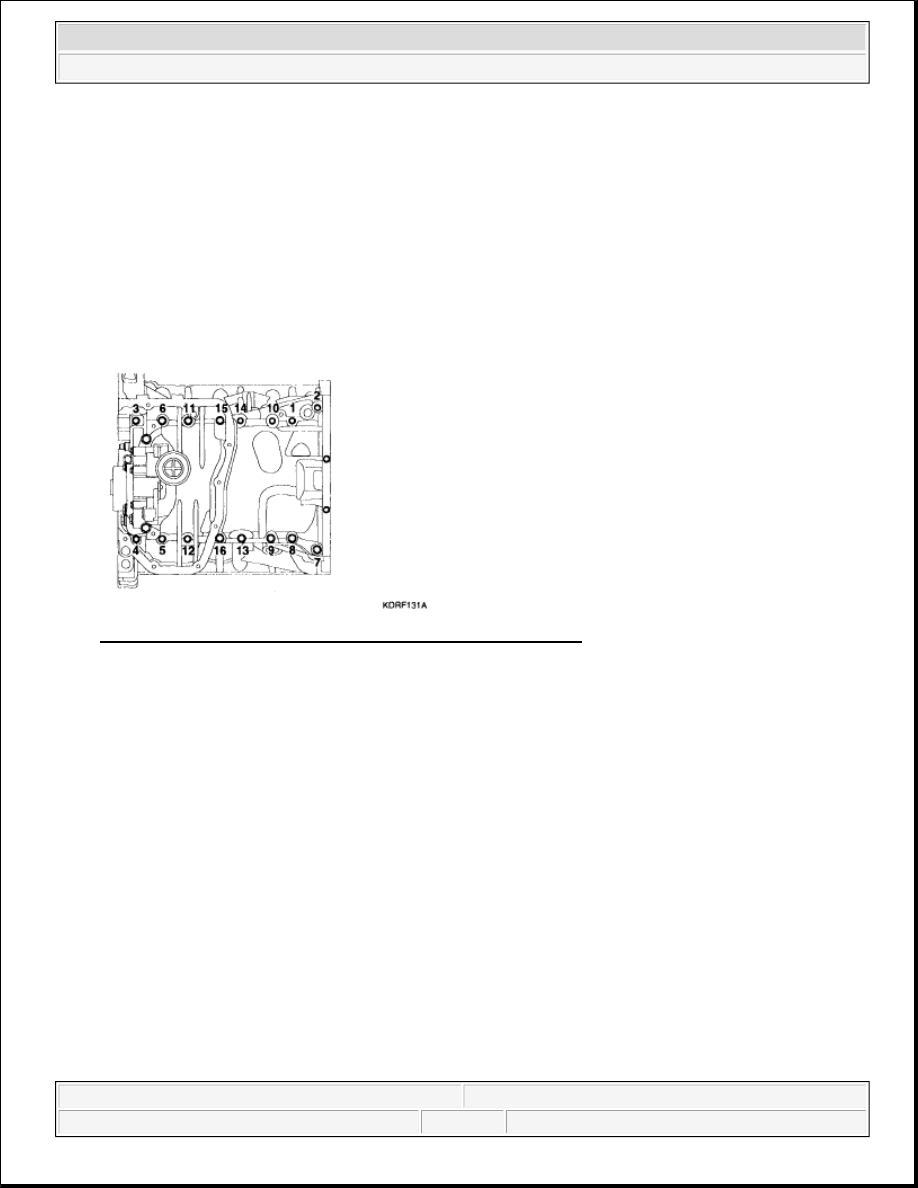

Fig. 186: Identifying Upper Oil Pan Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

17. Install knock sensor.

Tightening torque

15.68-23.52 N.m (1.6-2.4 kgf.m, 11.57-17.36 lb-ft)



To prevent leakage of oil, apply sealant gasket of the inner
threads of the bolt holes.
