Tightening torque

18.62-23.52 N.m (1.9-2.4 kgf.m, 13.74-17.36 lb-ft)

Fig. 212: Identifying Water Temperature Control Assembly, Gasket And O-Ring
Courtesy of KIA MOTORS AMERICA, INC.

2. Connect water hoses to the water temperature control assembly.

3. Install wiring protector.

4. Connect ECT connector.

5. Connect radiator upper and lower hose (A).

Fig. 213: Locating Radiator Upper And Lower Hoses)
Courtesy of KIA MOTORS AMERICA, INC.

6. Install air cleaner assembly.

NOTE:

Use new O-rings (C) when reassembling.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 146

© 2006 Mitchell Repair Information Company, LLC.

7. Fill with engine coolant.

8. Start engine and check for leaks.

9. Recheck engine coolant level.

THERMOSTAT

1. Place thermostat in thermostat housing.

1. Install the thermostat with the jiggle valve upward.

2. Install a new thermostat (B).

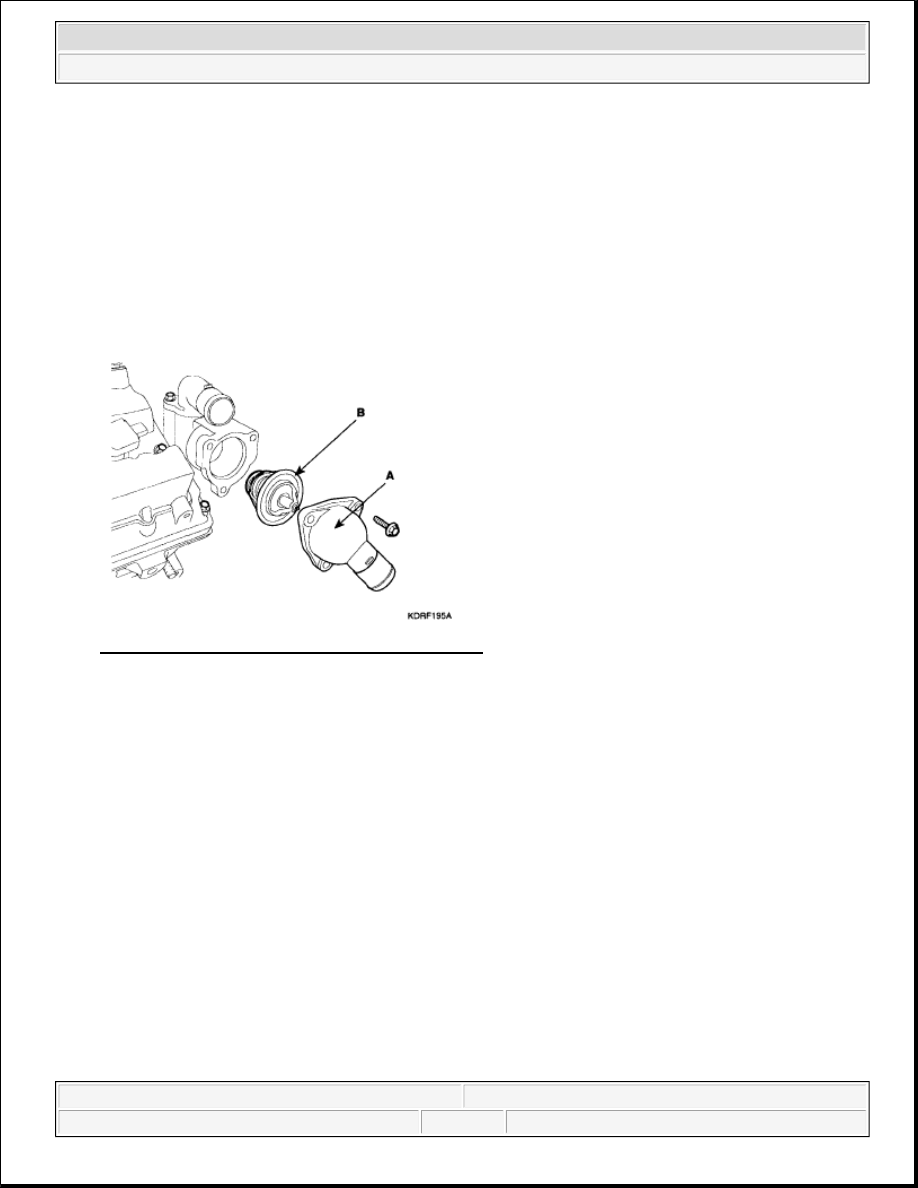

Fig. 214: Identifying Water Inlet And Thermostat
Courtesy of KIA MOTORS AMERICA, INC.

2. Install water inlet (A).

Tightening torque

16.66-19.60 N.m (1.7-2.0 kgf.m, 12.30-14.47 lb-ft)

3. Fill with engine coolant.

4. Start engine and check for leaks.

RADIATOR

1. Install the radiator fan (A) to the radiator.

Tightening torque

4.9-7.8 N.m (0.5-0.8 kgf.m, 3.6-5.8 lb-ft)



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 147

© 2006 Mitchell Repair Information Company, LLC.

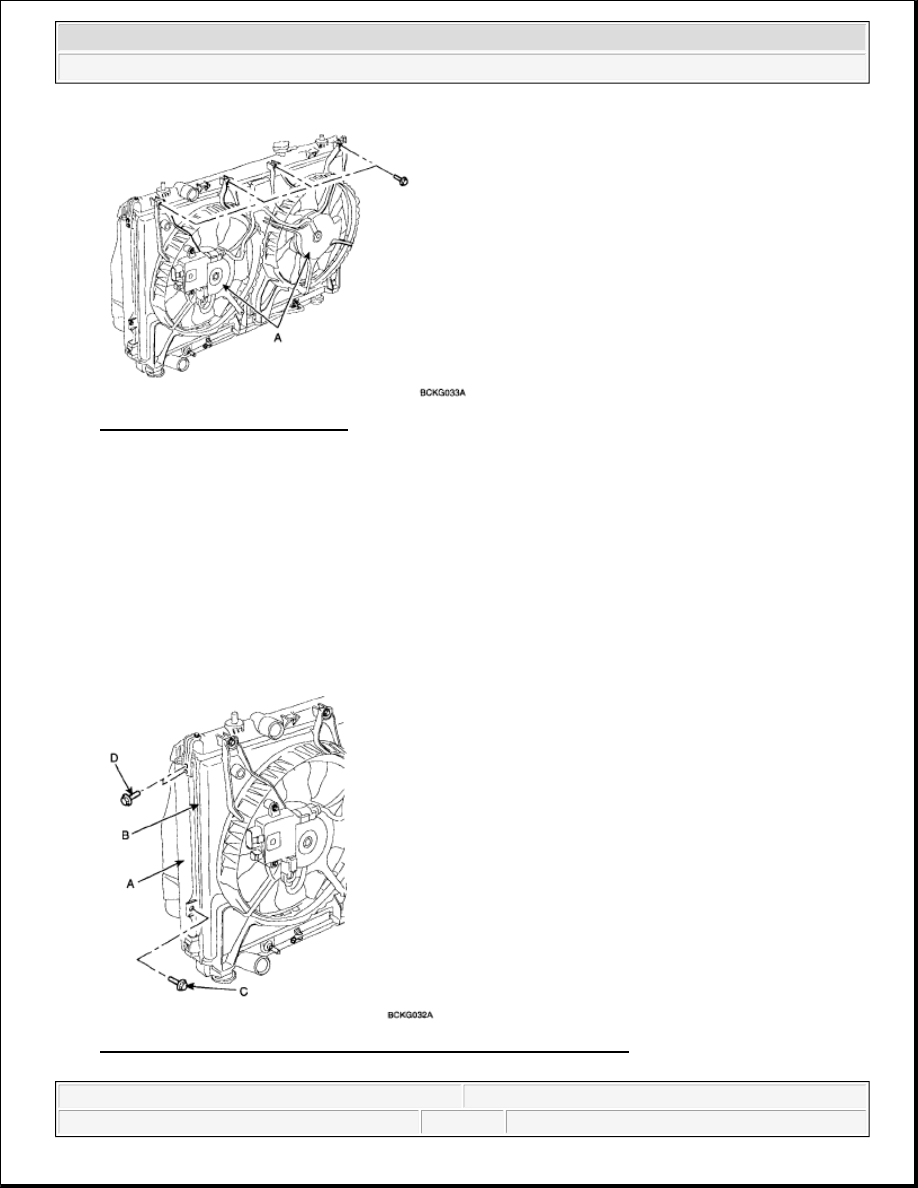

Fig. 215: Locating Radiator Fan
Courtesy of KIA MOTORS AMERICA, INC.

2. Install the radiator assembly to the vehicle.

3. Install the radiator bracket.

4. Fix the condenser with the radiator assembly.

Tightening torque

4.9-7.8 N.m (0.5-0.8 kgf.m, 3.6-5.8 lb-ft) - D

6.9-9.8 N.m (0.7-1.0 kgf.m, 5.1-7.2 lb-ft) - C

Fig. 216: Locating Condenser, Radiator Assembly And Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 148

© 2006 Mitchell Repair Information Company, LLC.

Fig. 217: Locating Condenser, Radiator Assembly And Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

5. Connect the radiator fan connectors (A).

Fig. 218: Locating Radiator Fan Connectors
Courtesy of KIA MOTORS AMERICA, INC.

6. Connect the pressure lines (A) to the radiator assembly (B).
