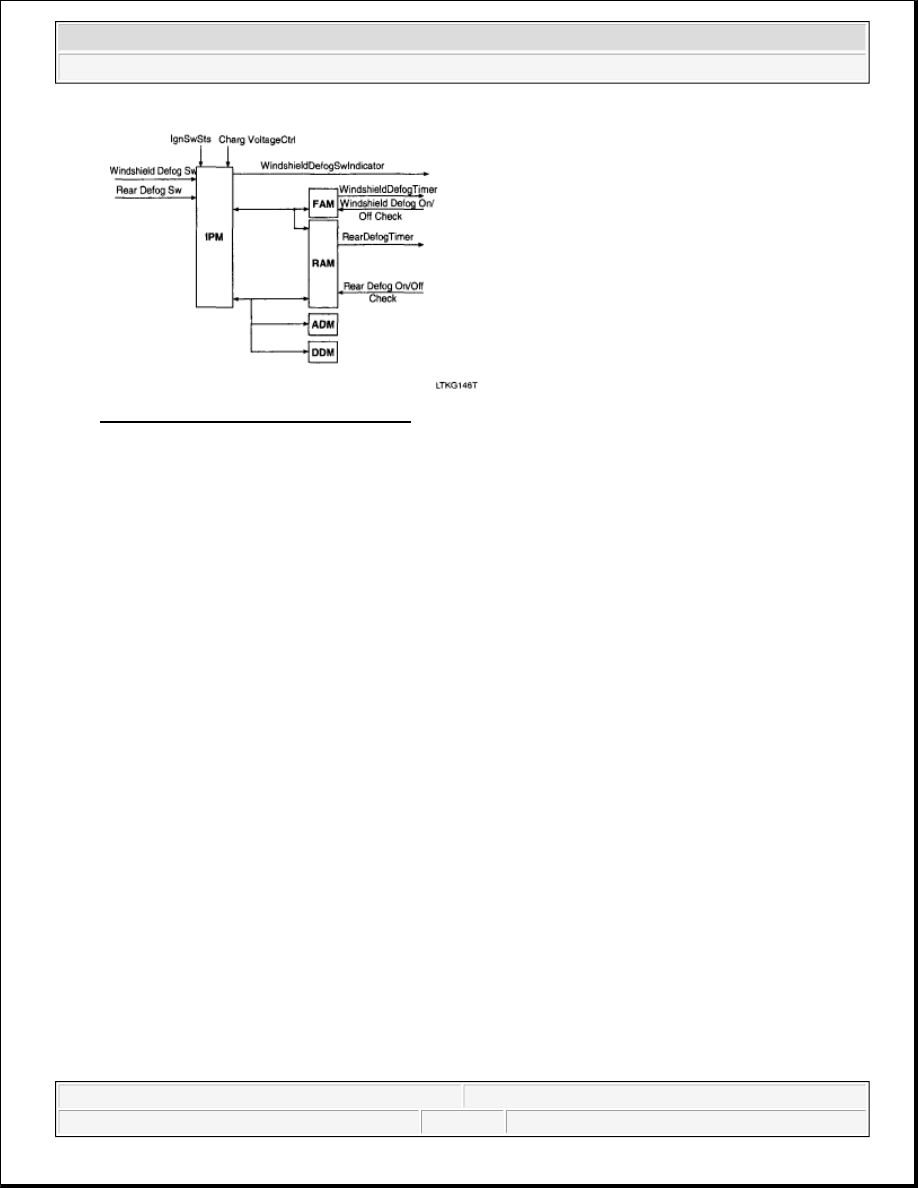

Fig. 12: Rear Defog Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Rear Window Defogger - Sedona



Microsoft



Monday, May 24, 2010 4:13:22 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Windshield Deicer - Sedona

COMPONENT LOCATION

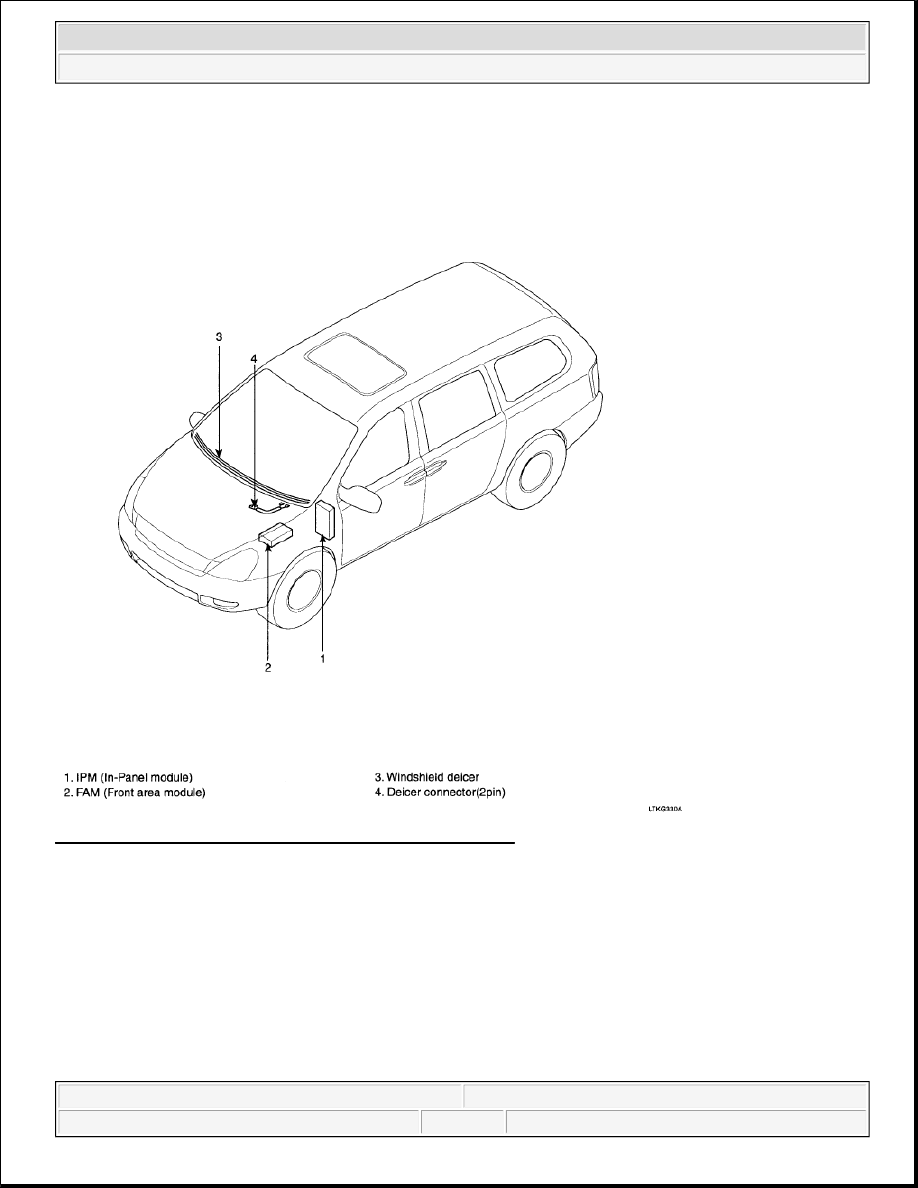

Fig. 1: Identifying Windshield Deicer Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

DESCRIPTION

Windshield deicer system prevent windshield wiper from freezing in the winter season. It consists of deicer in
the lower part of windshield, switch and relay. FAM receives an input signal from the deicer switch of IPM
through CAN communication line and then controls relay. Operating condition is the same that of rear window
defogger system.

With the engine running and the charging system operating, if the deicer switch is ON, then deicer output is ON
for 20 minutes.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Deicer - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Deicer - Sedona



Microsoft



Monday, May 24, 2010 4:13:51 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:13:54 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

WINDSHIELD DEICER

INSPECTION

1. Remove the cowl top cover. Refer to WINDSHIELD WIPER/WASHER .

2. Disconnect the windshield deicer connector (A) from the wiper motor linkage.

Fig. 2: Identifying Windshield Deicer Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check for continuity between the terminals of deicer lines.

Fig. 3: Checking Continuity Between Terminals Of Deicer Lines
Courtesy of KIA MOTORS AMERICA, INC.

4. Turn the ignition switch ON and the windshield deicer switch ON, then measure the voltage between the

terminals of harness side deicer connector.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Deicer - Sedona



Microsoft



Monday, May 24, 2010 4:13:51 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

O K: approx. Battery voltage (12V)

Fig. 4: Measuring Voltage Between Terminals Of Harness Side Deicer Connector
Courtesy of KIA MOTORS AMERICA, INC.

WINDSHIELD DEICER SWITCH

INSPECTION

1. Disconnect the negative (-) battery terminal.

2. Remove the console lower cover (A).

Fig. 5: Identifying Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the center fascia panel (A) after loosening screws. Take care not to damage fixing clips.
