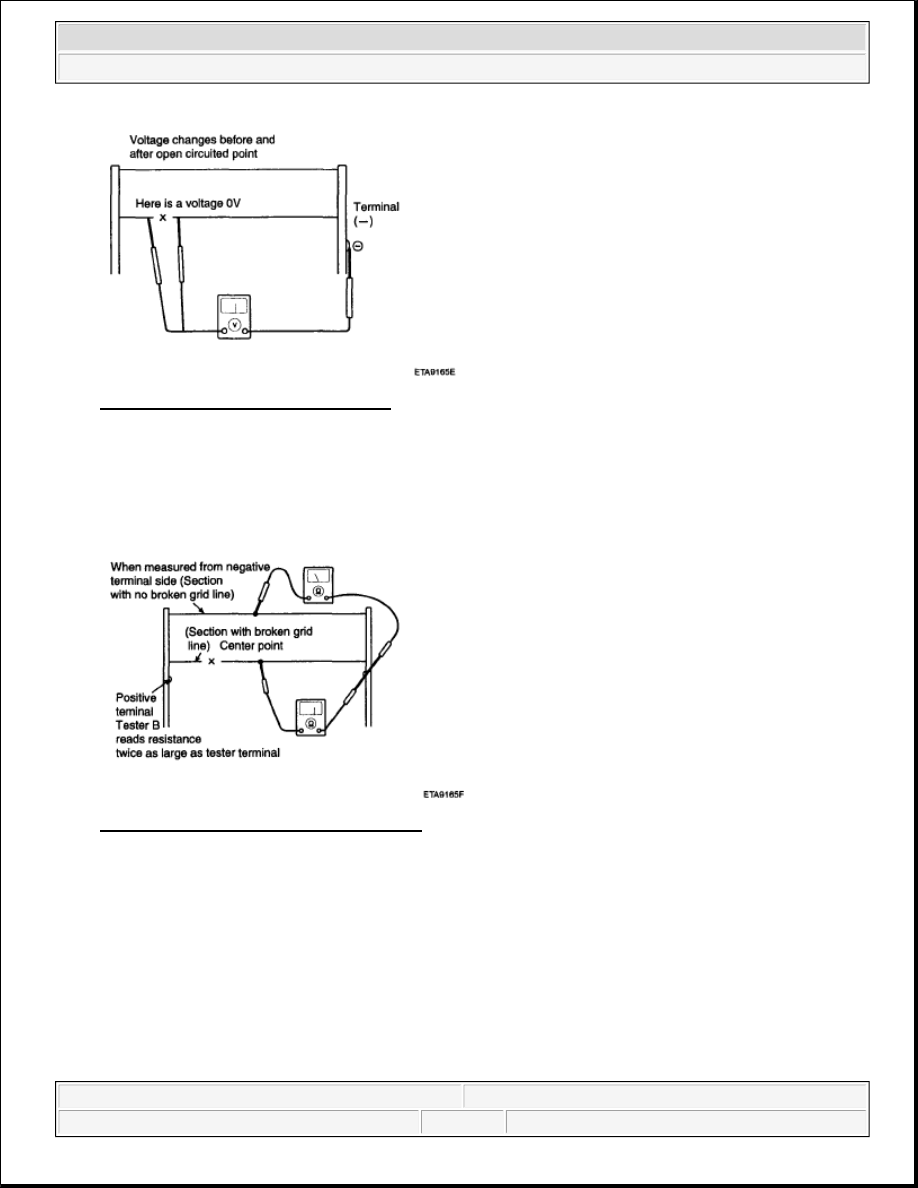

Fig. 5: Identifying Open Circuit Point
Courtesy of KIA MOTORS AMERICA, INC.

5. Use an ohmmeter to measure the resistance of each heater line between a terminal and the center of a grid

line, and between the same terminal and the center of one adjacent heater line. The section with a broken
heater line will have a resistance twice as that in other sections. In the affected section, move the test lead
to a position where the resistance sharply changes.

Fig. 6: Measuring Heater Grid Resistance
Courtesy of KIA MOTORS AMERICA, INC.

REPAIR OF BROKEN HEATER LINE

Prepare the following items:

1. Conductive paint.

2. Paint thinner.

3. Masking tape.

4. Silicone remover.

5. Using a thin brush :



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Rear Window Defogger - Sedona



Microsoft



Monday, May 24, 2010 4:13:22 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

Wipe the glass adjacent to the broken heater line, clean with silicone remover and attach the masking tape
as shown in illustration. See Fig. 7. Shake the conductive paint container well, and apply three coats with
a brush at intervals of about 15 minutes apart. Remove the tape and allow sufficient time for drying
before applying power. For a better finish, scrape away excess deposits with a knife after the paint has
completely dried (Allow 24 hours).

Fig. 7: Attaching Masking Tape
Courtesy of KIA MOTORS AMERICA, INC.

REAR WINDOW DEFOGGER SWITCH

INSPECTION

1. Disconnect the negative (-) battery terminal.

2. Remove the center fascia panel, console lower cover and center air vent (A) after loosening screws. Take

care not to damage fixing clips.

Fig. 8: Identifying Center Air Vent
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Rear Window Defogger - Sedona



Microsoft



Monday, May 24, 2010 4:13:22 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

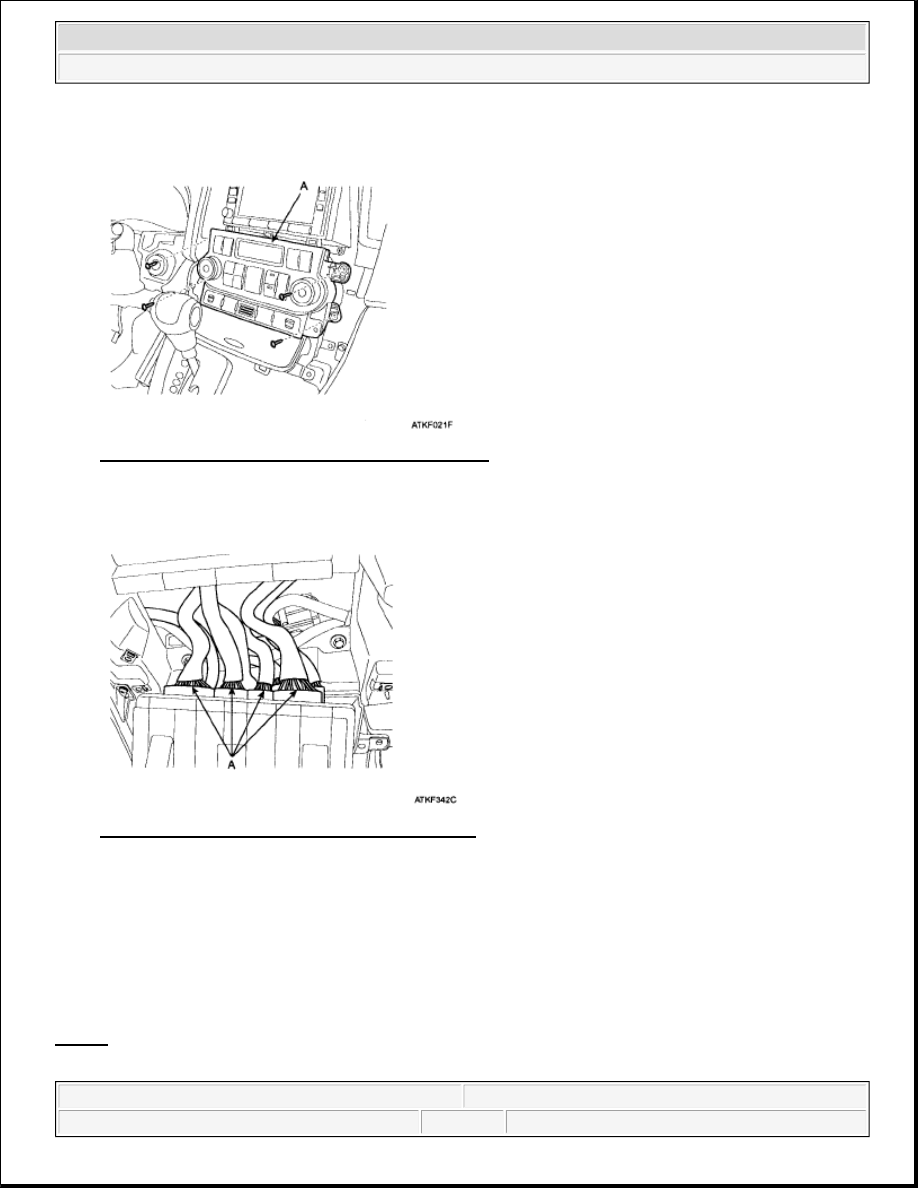

3. Remove the center fascia panel switch and air control panel (A) after loosening screws.

Fig. 9: Identifying Tray And Heater Control Panel
Courtesy of KIA MOTORS AMERICA, INC.

4. Disconnect the air control panel connector (A).

Fig. 10: Identifying Air Control Panel Connector
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

REAR WINDOW DEFOGGER TIMER

INSPECTION

While operating the components, check whether the operations are normal as shown in the timing chart. See
Fig. 11.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Rear Window Defogger - Sedona



Microsoft



Monday, May 24, 2010 4:13:22 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

1. The defog function can be activated only when engine is running and ignition key is in RUN position.

If the defogger is switched ON, the defogger will stay ON for 20 minutes duration.

While Windshield Defog is on, the windshield defog button is illuminated

If the switch is pushed again while defog is already active, defog stops.

If the engine stops while defog is on, defog stops and it is not automatically turned on when the engine is
started again.

Rear defog works exactly in the same way as windshield defog using the Rear Defog Switch button as
input.

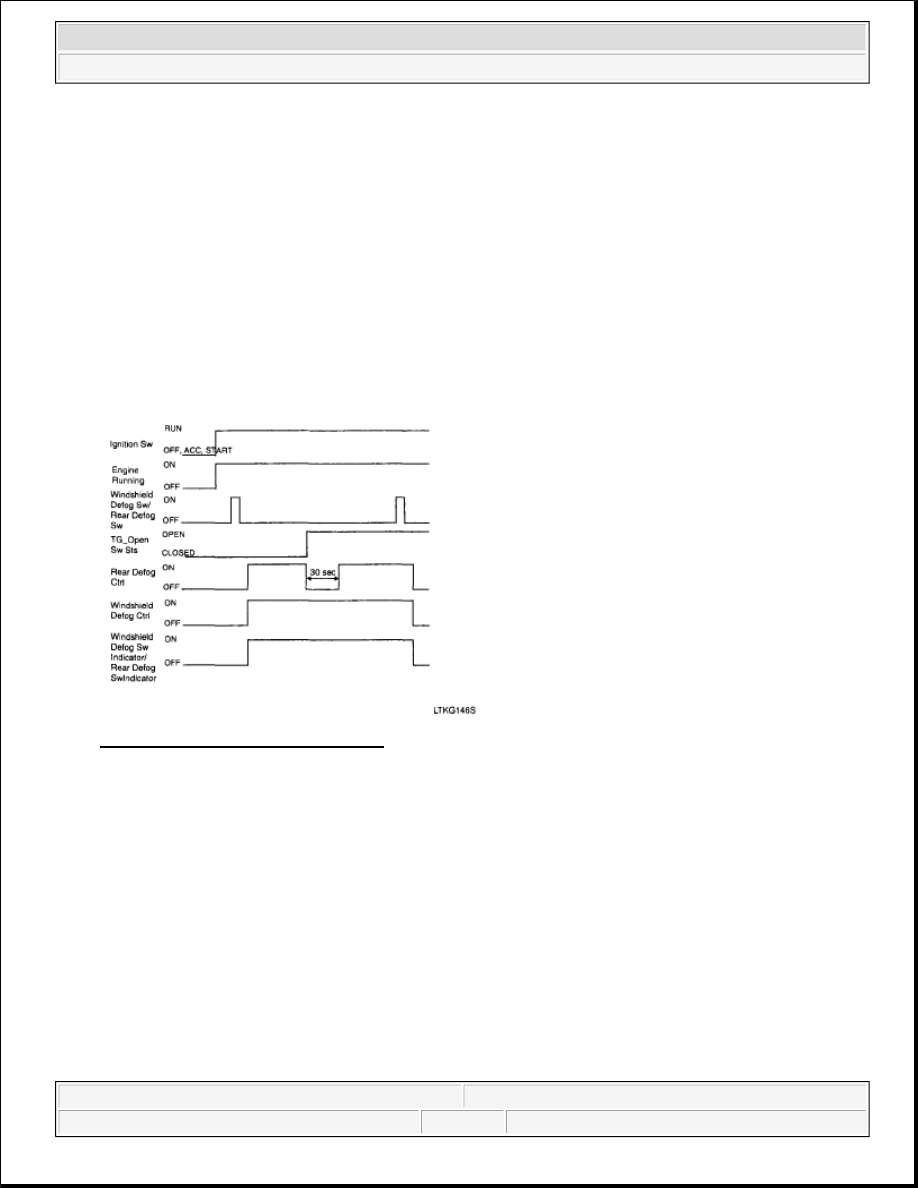

Fig. 11: Rear Defog Flashing Pattern
Courtesy of KIA MOTORS AMERICA, INC.

2. Rear Defog Pause

When IPM receives tailgate flasher control CAN message transition to tailgate flash value, rear defog is
inhibited for 30 seconds.

The 20 min. rear defog timer is frozen during this pause.

If the user turns on rear defog function while this pause is going on, rear defog is set to ON only at the
end of the pause.

This pause has no impact on Rear Defog Switch illumination.

When IPM receives tailgate open CAN message transition to OPEN value, this 30-second rear defog
pause is also started, it works the same way as described above.
