COMPONENT PARTS AND FUNCTION OUTLINE

COMPONENT PARTS AND FUNCTION OUTLINE CHART

CRUISE CONTROL

Cruise control system is engaged by "ON/OFF" main switch located on right of steering wheel column. System
has the capability to cruise, coast, resume speed, and accelerate, and raise "tab-up" or lower "tab-down" set
speed.

It also has a safety interrupt, engaged upon depressing brake or shifting select lever.

ECM is a speed control system that maintains a required vehicle speed at normal driving conditions.

The main components of cruise control system are mode control switches, transaxle range switch, brake switch,
vehicle speed sensor, ECM and ETS motor that connect throttle body.

ECM contains a low speed limit which will prevent system engagement below a minimum speed of 40km/h
(25mph). The operation of the controller is controlled by mode control switches located on steering wheel.

Transaxle range switch and brake switch are provided to disengage the cruise control system. The switches are
on brake pedal bracket and transaxle. When the brake pedal is depressed or select lever shifted, the cruise
control system is electrically disengaged and the throttle is returned to the idle position.

Cruise main switch

Cruise control system is engaged by pressing "ON/OFF" push button. Releasing "ON/OFF" push button release
throttle, clears cruise memory speed, and puts vehicle in a non-cruise mode.

Coast/Set switch

Component part

Function

Vehicle-speed sensor

Converts vehicle speed to pulse.

Engine control module (ECM)

Receives signals from sensor and control switches;

Cruise control indicator

Illuminate when CRUISE main switch is ON (Built into
cluster)

Cruise Control
switches

CRUISE main switch

Switch for automatic speed control power supply.

Resume/Accel switch

Controls automatic speed control functions by Resume/Accel
switch (Set/Coast switch)

Set/Coast switch

Cancel switch

Cancel switch

Sends cancel signals to ECM

Brake-pedal switch
Transaxle range switch
(A/T)
Clutch switch (M/T)

ETS motor

Regulates the throttle valve to the set opening by ECM.

*ETS: Electronic Throttle System



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Cruise Control System - Sedona



Microsoft



Monday, May 24, 2010 4:18:17 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

COAST/SET switch located on right of steering wheel column has two positions - "Normal" and "Depressed".
The set position - With COAST/SET switch depressed and then released the cruise speed will be set at the
speed the vehicle was going when COAST/SET switch was released. The coast position - With COAST/SET
switch fully depressed, driver can lower cruise speed. To decrease cruise speed, COAST/SET switch is held in,
disengaging cruise control system. When vehicle has slowed to required cruise speed, releasing COAST/SET
switch will re-engage speed at new selected speed.

The tab down - To lower vehicle speed, cruise must be engaged and operating. Tab down is done by quickly
pressing and releasing COAST/SET switch. Do not hold COAST/SET switch in depressed position.

Tab down is a function which will cause the cruise control's speed of vehicle to decrease by 1 MPH (1.6 km/h)

Resume/Accel switch

RES/ACCEL switch located on right of steering wheel column has two positions - "Normal" and "Depressed".

The resume position - With RES/ACCEL switch depressed and then release, this switch also returns cruise
control operation to last speed (Which is temporarily disengaged by Cancel switch or Brake pedal), setting
when momentarily operating RES/ACCEL switch by constant acceleration.

The accel position - With RES/ACCEL switch depressed and held in, disengaging cruise control system, when
vehicle has accelerated to required cruise speed, releasing RES/ACCEL switch will re-engage speed at new
selected speed.

The tab up - To increase vehicle speed, the cruise must be engaged and operating.

Tab up is done by quickly pressing and releasing RES/ACCEL switch less than 0.5 second. Do not hold
RES/ACCEL switch in depressed position. Tab up is a function in which cruise speed can be increased by 1
MPH (1.6 km/h).

Cancel switch

Cruise control system is temporarily disengaged by pressing "CANCEL" switch.

Cruise speed canceled by this switch will be recovered by RES/ACCEL switch

CRUISE CONTROL MAIN SWITCH

CIRCUIT DIAGRAM



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Cruise Control System - Sedona



Microsoft



Monday, May 24, 2010 4:18:17 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

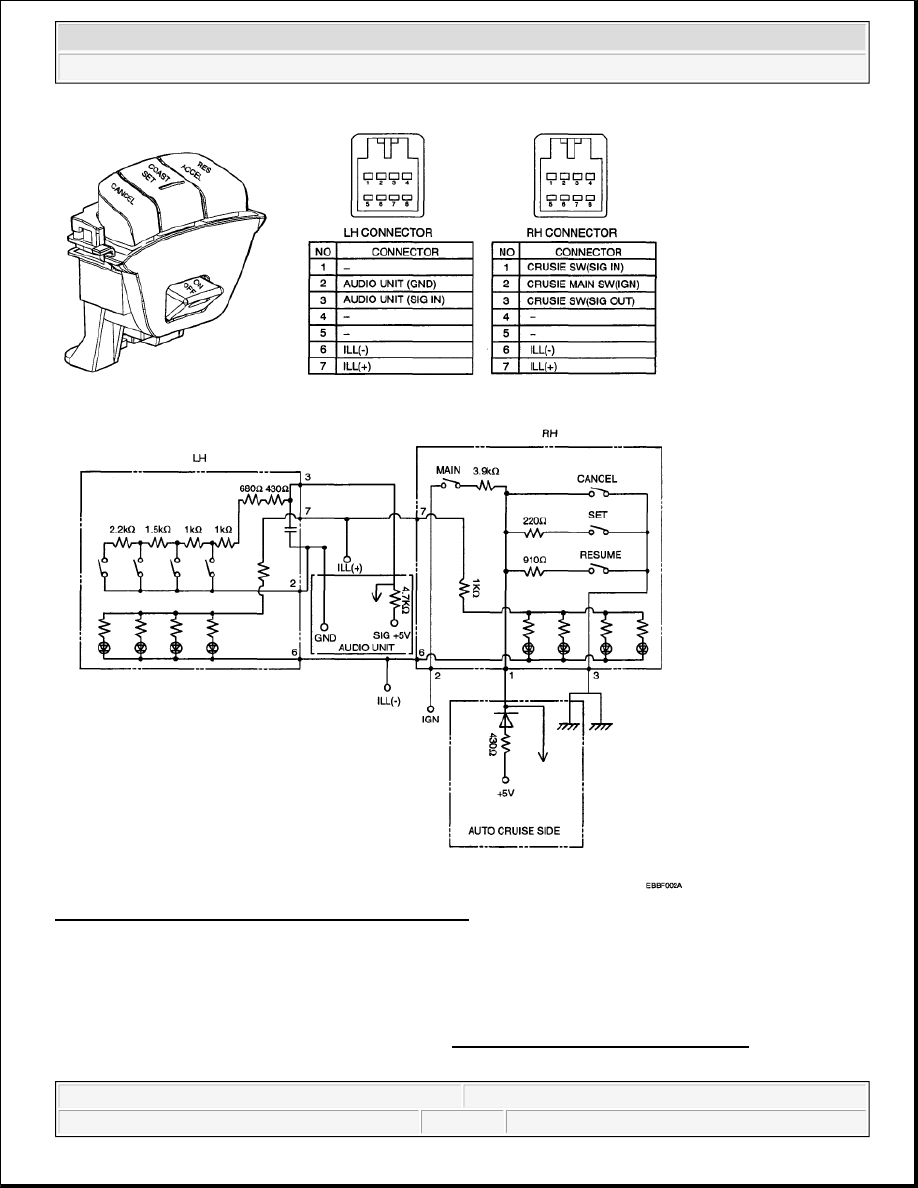

Fig. 3: Cruise Control Main Switch - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Disconnect the battery (-) terminal.

2. Remove the driver side air bag module. Refer to AIR BAG MODULE (DRIVER SIDE) .

3. Disconnect the cruise control switch connector and then remove the cruise control switch (A) with two



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Cruise Control System - Sedona



Microsoft



Monday, May 24, 2010 4:18:17 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

screws.

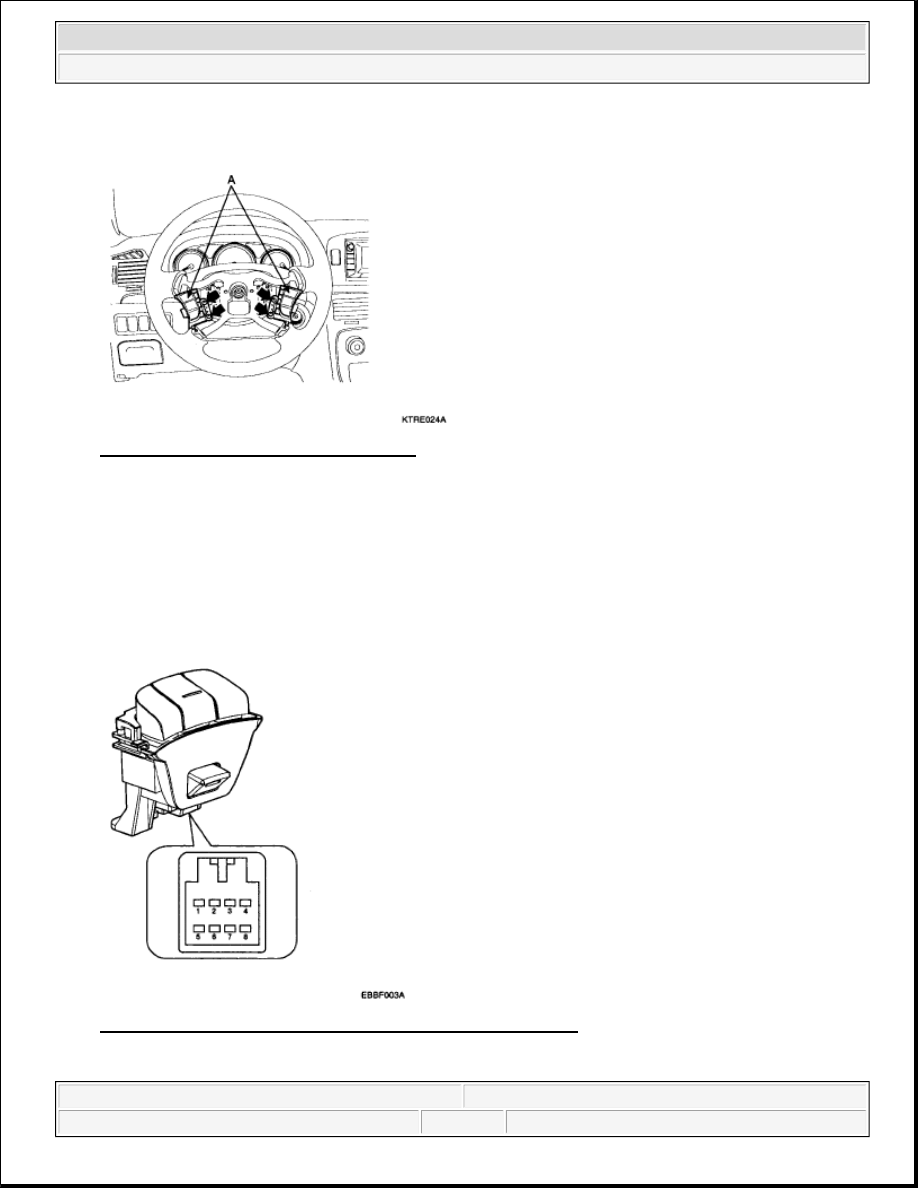

Fig. 4: Identifying Cruise Control Switch
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

INSPECTION

MEASURING RESISTANCE

1. Disconnect the cruise control switch connector from the control switch.

Fig. 5: Identifying Cruise Control Switch Connector Terminal
Courtesy of KIA MOTORS AMERICA, INC.
