2. Measure resistance between terminals on the control switch when each function switch is ON (switch is

depressed).

CONNECTOR TERMINAL RESISTANCE SPECIFICATIONS

3. If not within specification, replace switch.

MEASURING VOLTAGE

1. Connect the cruise control switch connector to the control switch.

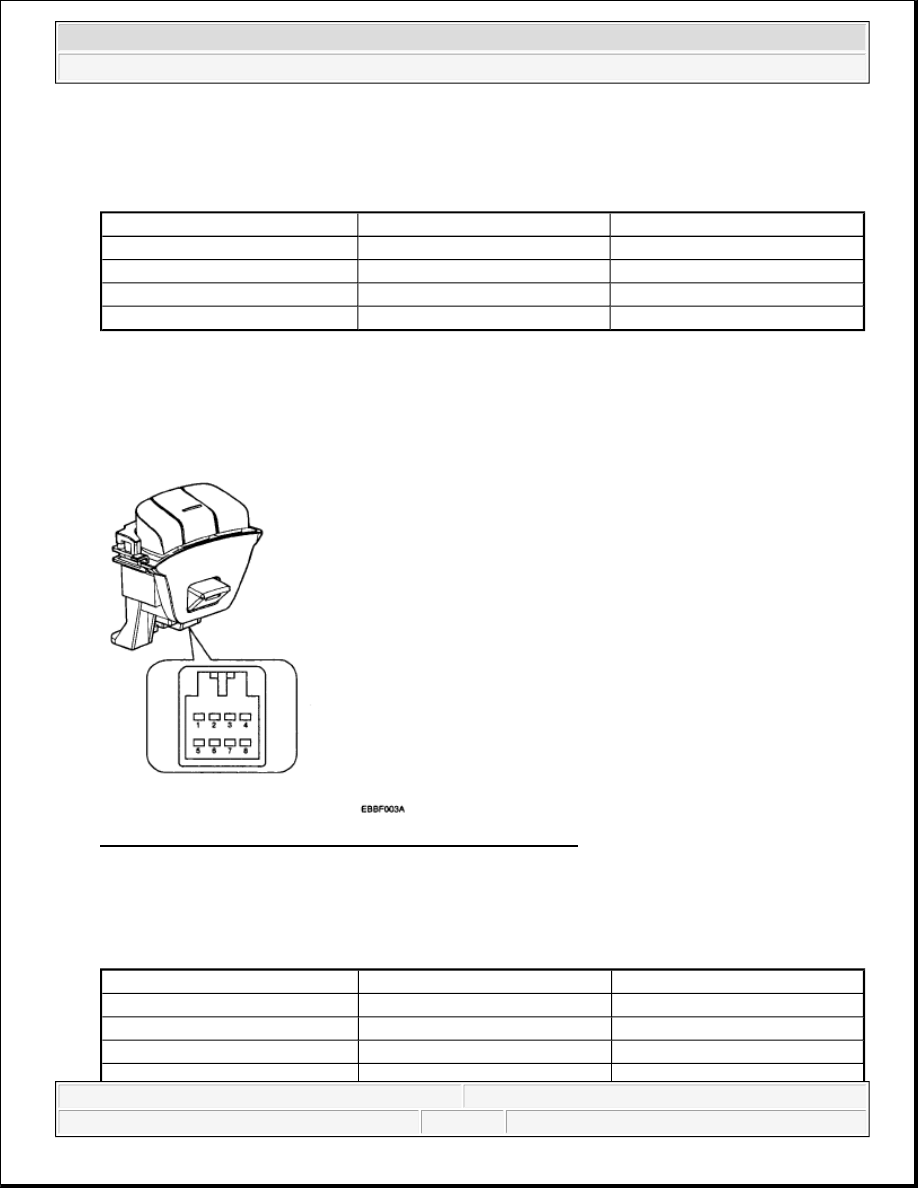

Fig. 6: Identifying Cruise Control Switch Connector Terminal
Courtesy of KIA MOTORS AMERICA, INC.

2. Measure voltage between terminals on the harness side connector when each function switch is ON

(switch is depressed).

CONNECTOR TERMINAL VOLTAGE SPECIFICATIONS

Function switch

Terminal

Resistance

Cruise Main

RH 1-2

3.9 kohms ± 1%

Cancel

RH 1-3

0 ohms ± 1%

Set/Coast

RH 1-3

220 ohms ± 1%

Resume/Accel

RH 1-3

910 ohms ± 1%

Function switch

Terminal

Voltage

Cruise Main

RH 1-2

-

Cancel

RH 1-3

0.0 V ± 0.22 V

Set/Coast

RH 1-3

1.5 V ± 0.22 V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Cruise Control System - Sedona



Microsoft



Monday, May 24, 2010 4:18:17 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

3. If not within specification, replace switch.

Resume/Accel

RH 1-3

3.0 V ± 0.22 V



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Cruise Control System - Sedona



Microsoft



Monday, May 24, 2010 4:18:17 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Rear Window Defogger - Sedona

REAR WINDOW DEFOGGER PRINTED HEATER

INSPECTION

Fig. 1: Checking For Open Circuits
Courtesy of KIA MOTORS AMERICA, INC.

1. Turn on the defogger switch and use a voltmeter to measure the voltage of each heater line at the glass

center point. If a voltage of approximately 6V is indicated by the voltmeter, the heater line of the rear
window is considered satisfactory.

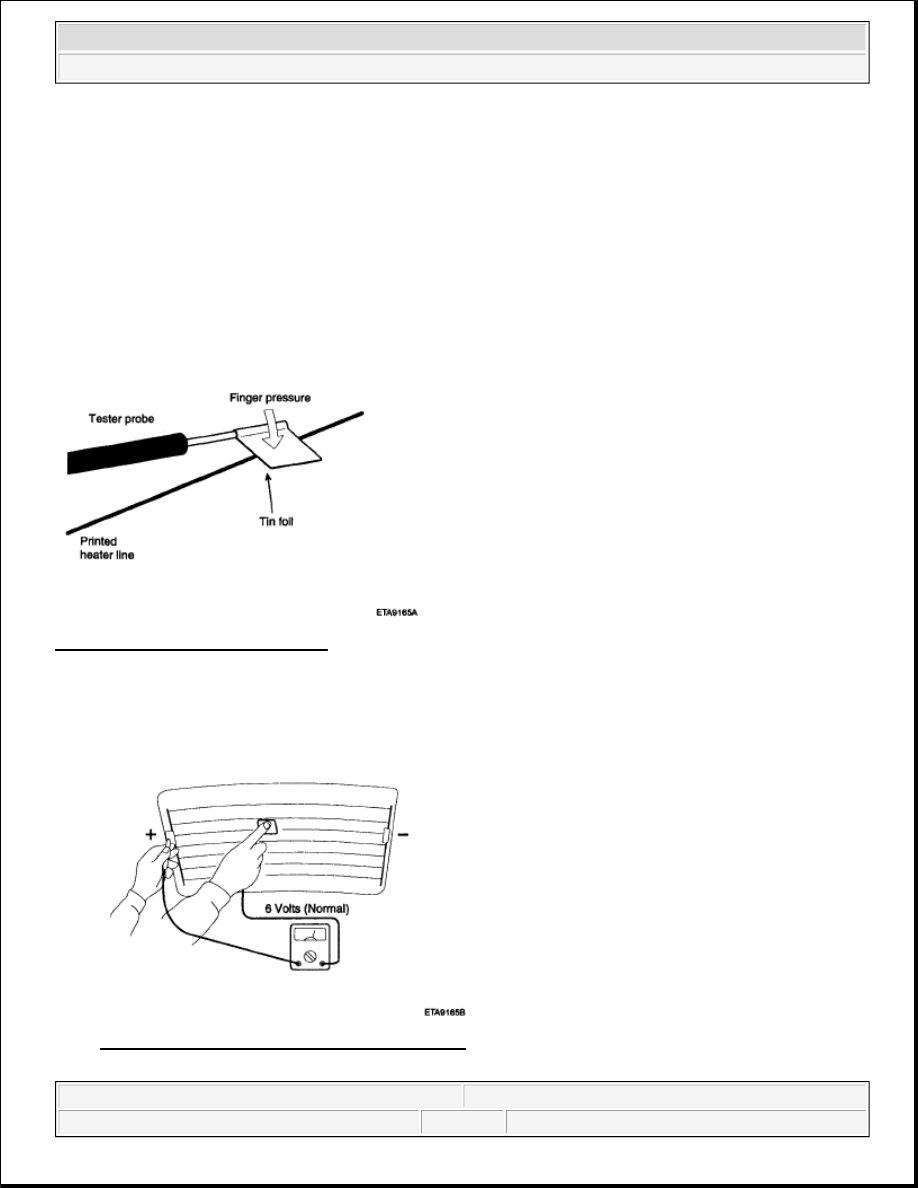

Fig. 2: Measuring Voltage Of Each Heater Line
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Wrap tin foil around the end of the voltmeter test lead to prevent damaging

the heater line. Apply finger pressure on the tin foil, moving the tin foil
along the grid line to check for open circuits.
