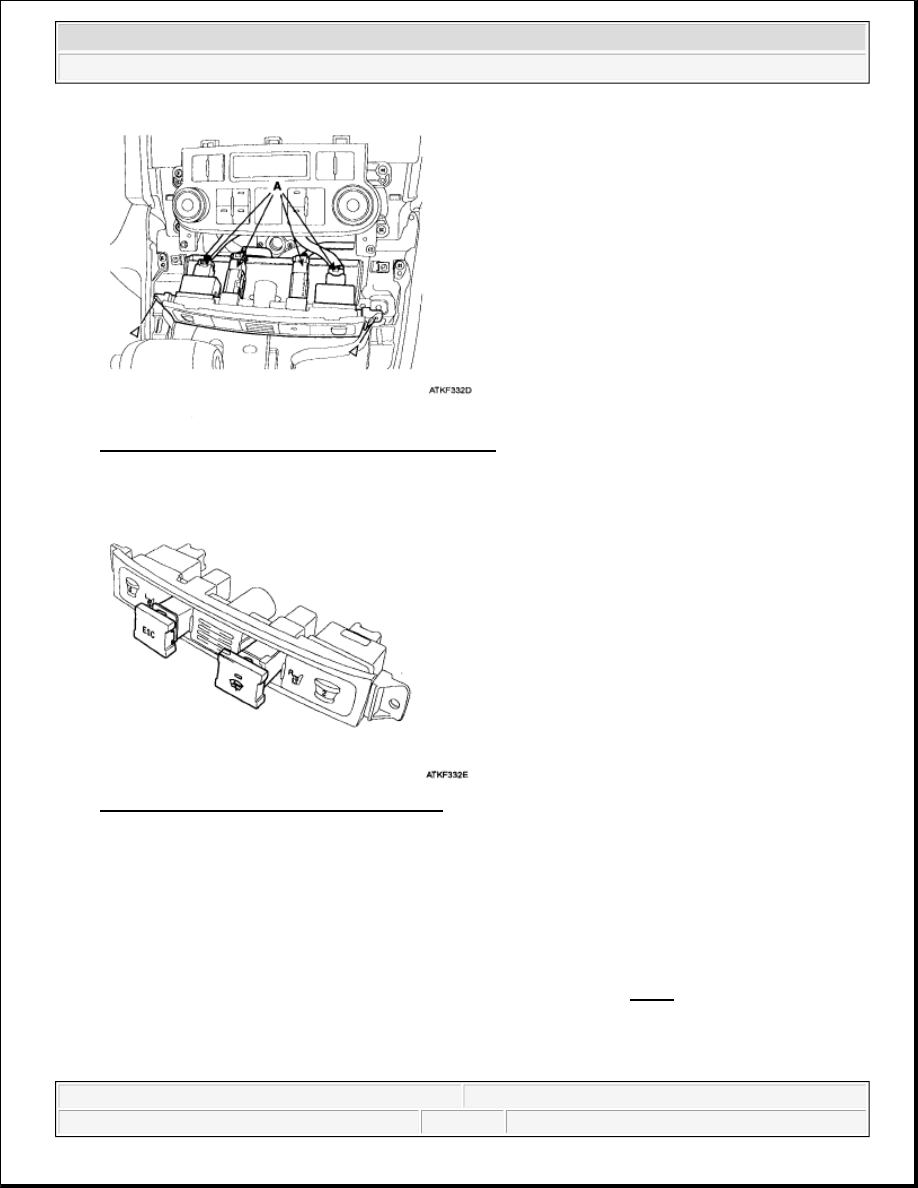

Fig. 6: Identifying Seat Warmer Switch Connectors
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the windshield deicer switch from the center fascia panel switch.

Fig. 7: Identifying Windshield Deicer Switch
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

WINDSHIELD DEICER TIMER

INSPECTION

While operating the components, check whether the operations are normal. See Fig. 8.

1. Once Generator "L" is ON, if the defogger is switched ON, the defogger will stay ON for 20 minutes

duration.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Deicer - Sedona



Microsoft



Monday, May 24, 2010 4:13:51 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

2. If defogger switch is pressed again (see Step 1), or if ignition is switched OFF, the defogger will shut

OFF.

3. If Generator "L" is OFF, the defogger will shut OFF.

Fig. 8: Defogger Timing Chart
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Deicer - Sedona



Microsoft



Monday, May 24, 2010 4:13:51 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Power Door Locks - Sedona

COMPONENT LOCATION

Fig. 1: Identifying Power Door Locks Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

POWER DOOR LOCK ACTUATORS

INSPECTION



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:15:45 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

FRONT DOOR LOCK ACTUATOR

1. Remove the front door trim panel. Refer to FRONT DOOR .

2. Disconnect the 4P connector from the actuator.

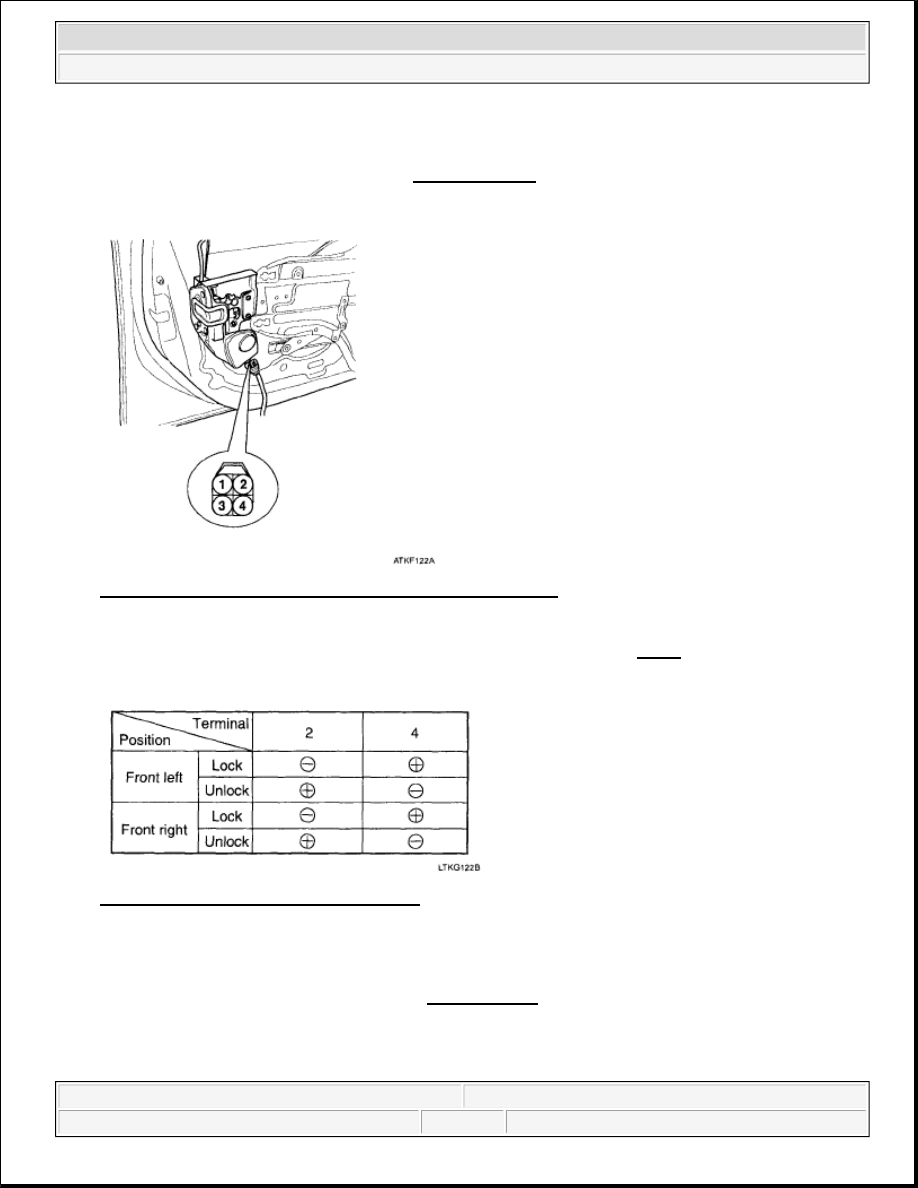

Fig. 2: Identifying Front Door Lock Actuator 4P Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check actuator operation by connecting power and ground according. See Fig. 3. To prevent damage to

the actuator, apply battery voltage only momentarily.

Fig. 3: Testing Front Door Lock Actuator
Courtesy of KIA MOTORS AMERICA, INC.

SLIDING DOOR LOCK ACTUATOR

1. Remove the sliding door trim panel. Refer to REAR DOOR .

2. Disconnect the 6P connector from the actuator.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.
