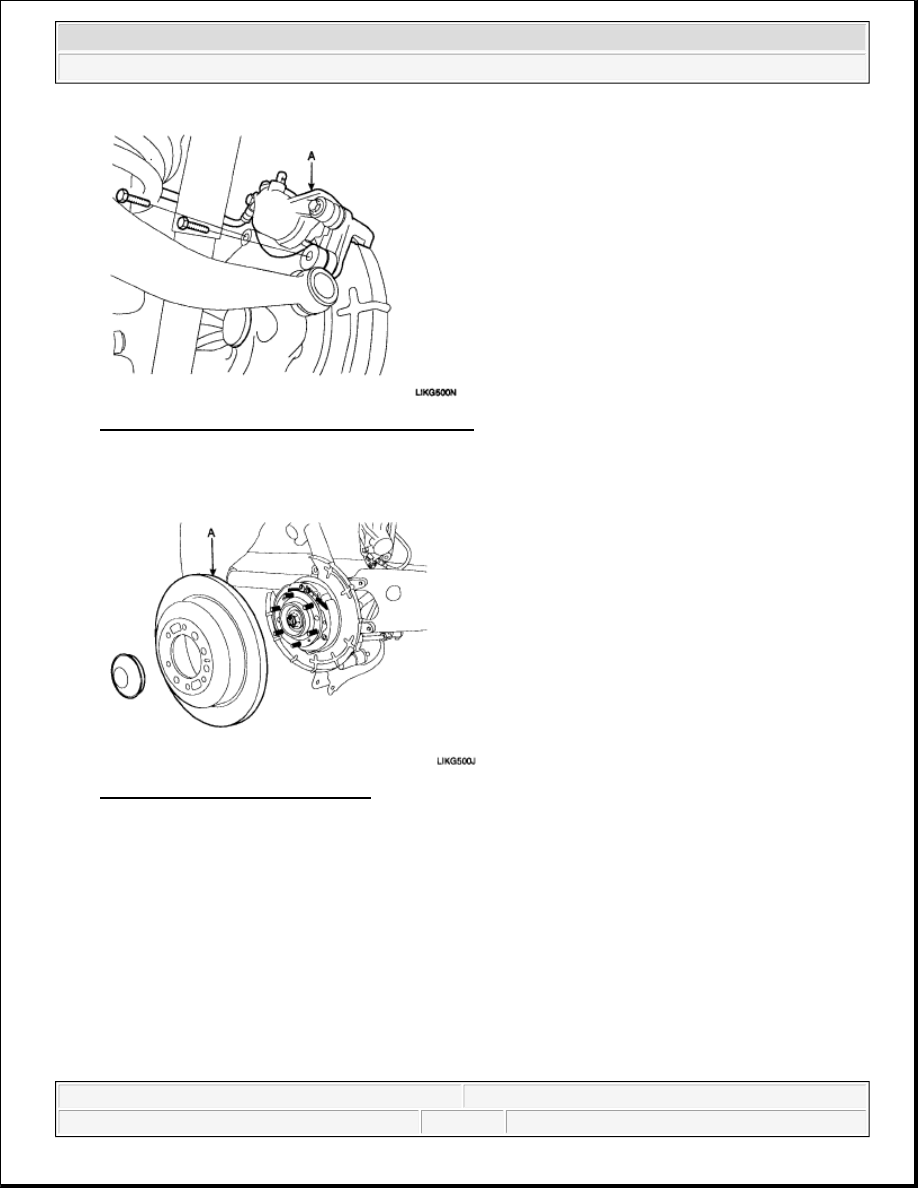

Fig. 6: Identifying Rear Brake Caliper Assembly
Courtesy of KIA MOTORS AMERICA, INC.

7. Remove the rear brake disc (A) by loosening the screws.

Fig. 7: Identifying Rear Brake Disc
Courtesy of KIA MOTORS AMERICA, INC.

8. Unstake the lock nut using a chisel and hammer.



2008 Kia Sedona

2008 DRIVELINE/AXLES Rear Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:27 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

Fig. 8: Tapping Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 9: Unstaking Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.

9. Remove the lock nut (A) and washer (B).

Tightening torque N.m (kgf.m, lb-ft):

200-260 (20.0-26.0, 145-188)



2008 Kia Sedona

2008 DRIVELINE/AXLES Rear Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:27 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

Fig. 10: Identifying Lock Nut And Washer
Courtesy of KIA MOTORS AMERICA, INC.

10. Remove the hub & bearing assembly (A).

Fig. 11: Identifying Hub & Bearing Assembly
Courtesy of KIA MOTORS AMERICA, INC.

11. Disconnect the parking brake cable (A) from the brake assembly.



2008 Kia Sedona

2008 DRIVELINE/AXLES Rear Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:27 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

Fig. 12: Identifying Parking Brake Cable
Courtesy of KIA MOTORS AMERICA, INC.

12. Remove the clip (A) and bracket mounting bolt and disconnect the parking brake cable (B) from the

carrier assembly.

Fig. 13: Identifying Clip And Parking Brake Cable
Courtesy of KIA MOTORS AMERICA, INC.

13. Remove the rear brake assembly (A).

Tightening torque N.m (kgf.m, lb-ft):

50-60 (5.0-6.0, 36-43)
