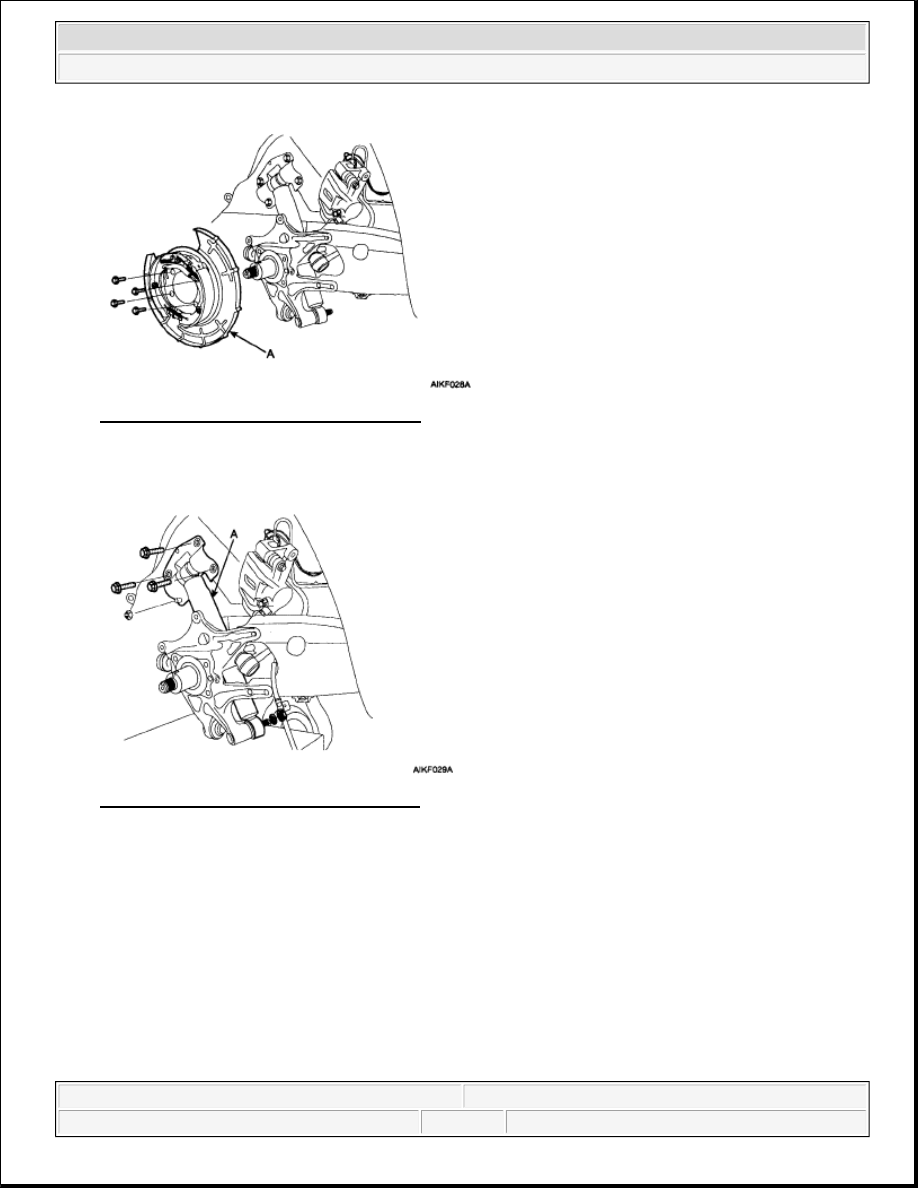

Fig. 14: Identifying Rear Brake Assembly
Courtesy of KIA MOTORS AMERICA, INC.

14. Remove the rear shock absorber (A).

Fig. 15: Identifying Rear Shock Absorber
Courtesy of KIA MOTORS AMERICA, INC.

15. After loosening the castle nut and split pin, disconnect the assist arm (A) from the carrier assembly using

a SST (09568-4A000).

Tightening torque N.m (kgf.m, lb-ft):

90-100 (9.0-10.0, 65-72)



2008 Kia Sedona

2008 DRIVELINE/AXLES Rear Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:27 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

Fig. 16: Identifying SST (09568-4A000)
Courtesy of KIA MOTORS AMERICA, INC.

16. After loosening the castle nut and split pin, disconnect the upper arm (A) from the carrier assembly using

a SST (09562-4A000).

Tightening torque N.m (kgf.m, lb-ft):

90-100 (9.0-10.0, 65-72)

Fig. 17: Identifying SST (09562-4A000)
Courtesy of KIA MOTORS AMERICA, INC.

17. Remove the carrier assembly (A) from the trailing arm by loosening the bolts.

Tightening torque N.m (kgf.m, lb-ft):

80-110 (8.0-11.0, 58-80)



2008 Kia Sedona

2008 DRIVELINE/AXLES Rear Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:27 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

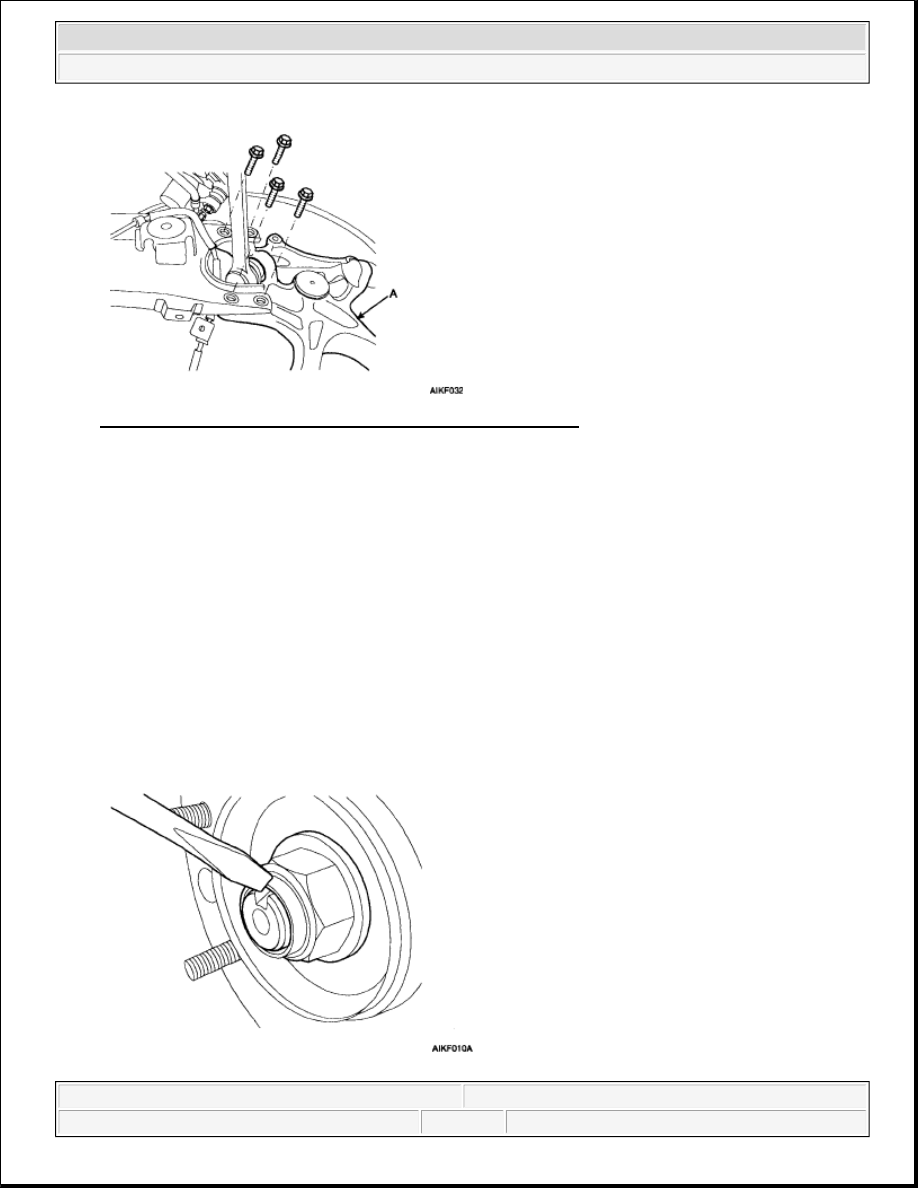

Fig. 18: Identifying Carrier Assembly And Trailing Arm Bolts
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

1. Check the hub for cracks and wear.

2. Check the brake disc for scoring and damage.

3. Check the carrier for cracks.

INSTALLATION

1. Installation is the reverse of removal.

Fig. 19: Staking Driveshaft Lock Nut

CAUTION:



The rear hub lock nut should be replaced with new ones.



After installation lock nut, stake the lock nut using a chisel and
hammer as shown in the illustration below.



2008 Kia Sedona

2008 DRIVELINE/AXLES Rear Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:27 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

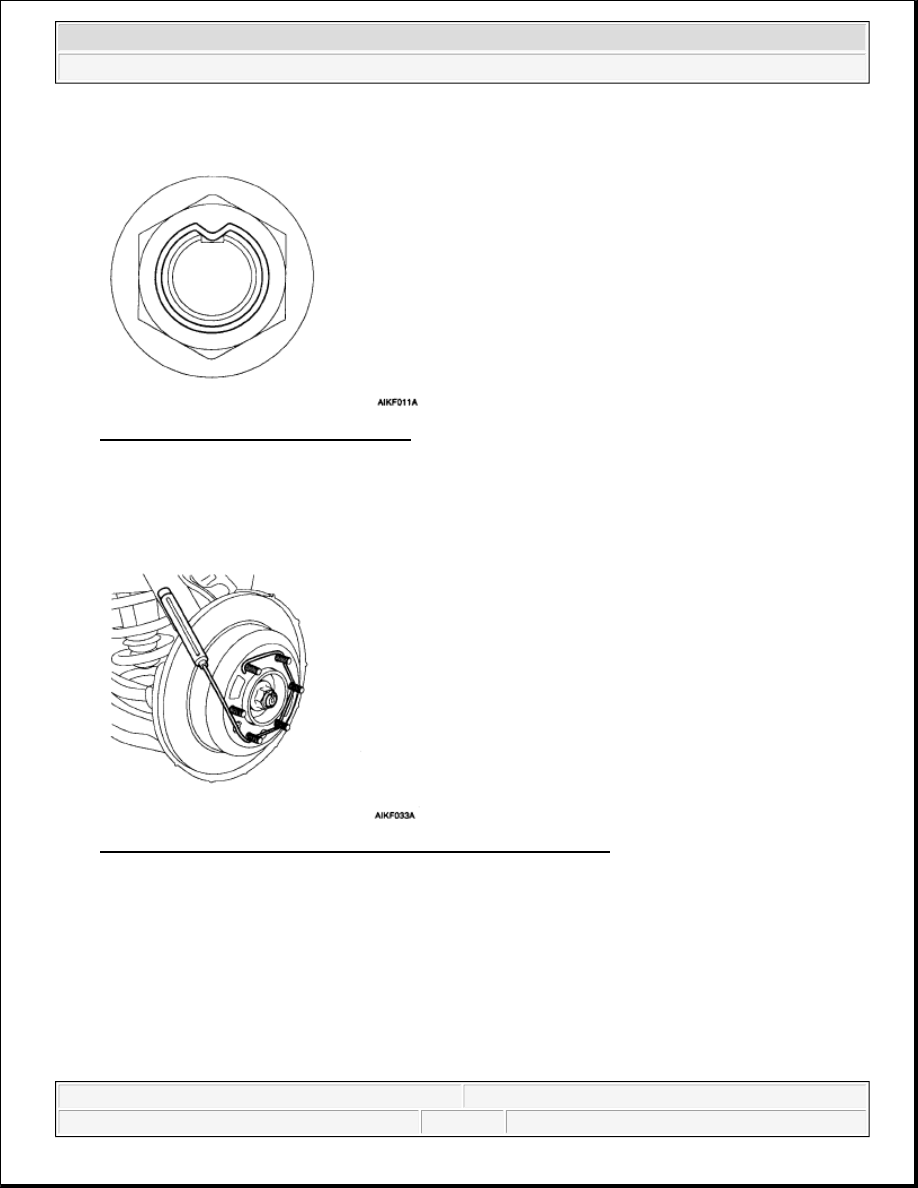

Fig. 20: Identifying Driveshaft Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.

2. Check the rear hub & bearing assembly starting torque using a spring balance.

Starting torque: 1.9 N.m (20 kgf.cm, 1.45 lb-ft)

Fig. 21: Checking Rear Hub & Bearing Assembly Starting Torque
Courtesy of KIA MOTORS AMERICA, INC.
