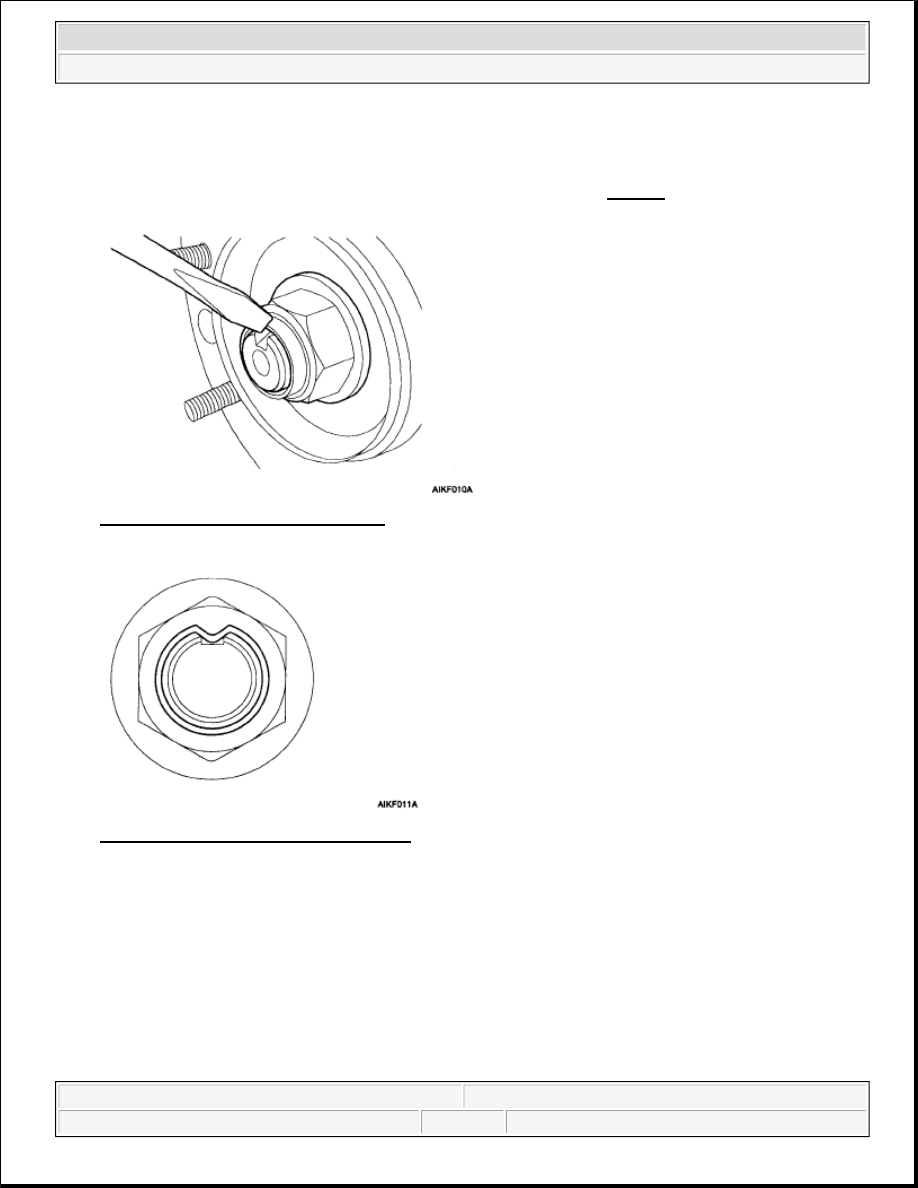

Fig. 20: Staking Driveshaft Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 21: Identifying Driveshaft Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION:



The driveshaft lock nut should be replaced with new ones.



After installation driveshaft lock nut, stake the lock nut using a
chisel and hammer as shown. See Fig. 20.



2008 Kia Sedona

2008 DRIVELINE/AXLES Front Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:57 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

2008 DRIVELINE/AXLES

Rear Axle - Sedona

REAR HUB/CARRIER

COMPONENTS

Fig. 1: Identifying Rear Hub/Carrier Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Release the parking brake.

2. Remove the wheel & tire assembly.



2008 Kia Sedona

2008 DRIVELINE/AXLES Rear Axle - Sedona





2008 Kia Sedona

2008 DRIVELINE/AXLES Rear Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:27 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Saturday, May 22, 2010 6:51:30 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Tightening torque N.m (kgf.m, lb-ft):

90-110 (9.0-11.0, 65-80)

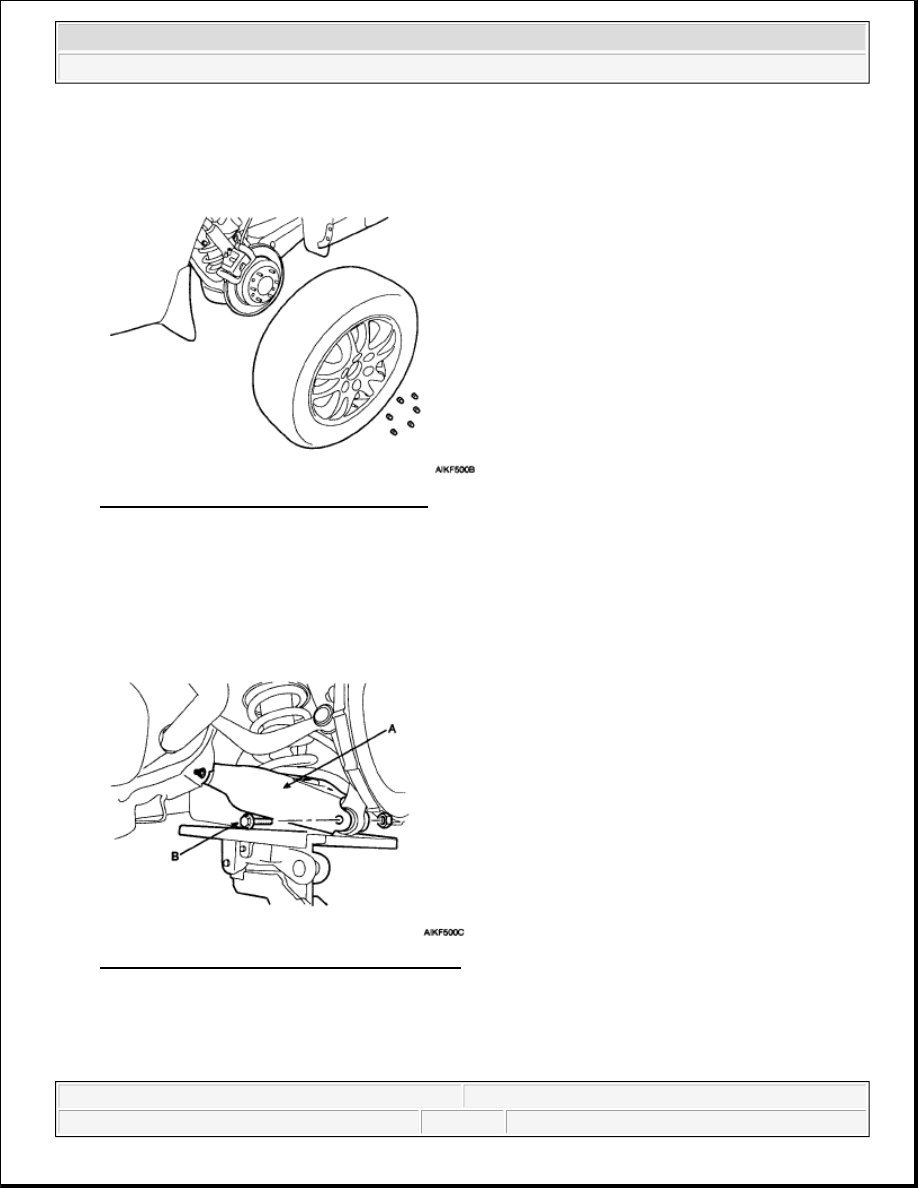

Fig. 2: Identifying Wheel & Tire Assembly
Courtesy of KIA MOTORS AMERICA, INC.

3. Support lower part of the lower arm (A) using a jack and remove the bolt & nut (B).

Tightening torque N.m (kgf.m, lb-ft):

160-180 (16.0-18.0, 116-130)

Fig. 3: Identifying Lower Arm And Bolt & Nut
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the coil spring (A) and upper pad.



2008 Kia Sedona

2008 DRIVELINE/AXLES Rear Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:27 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

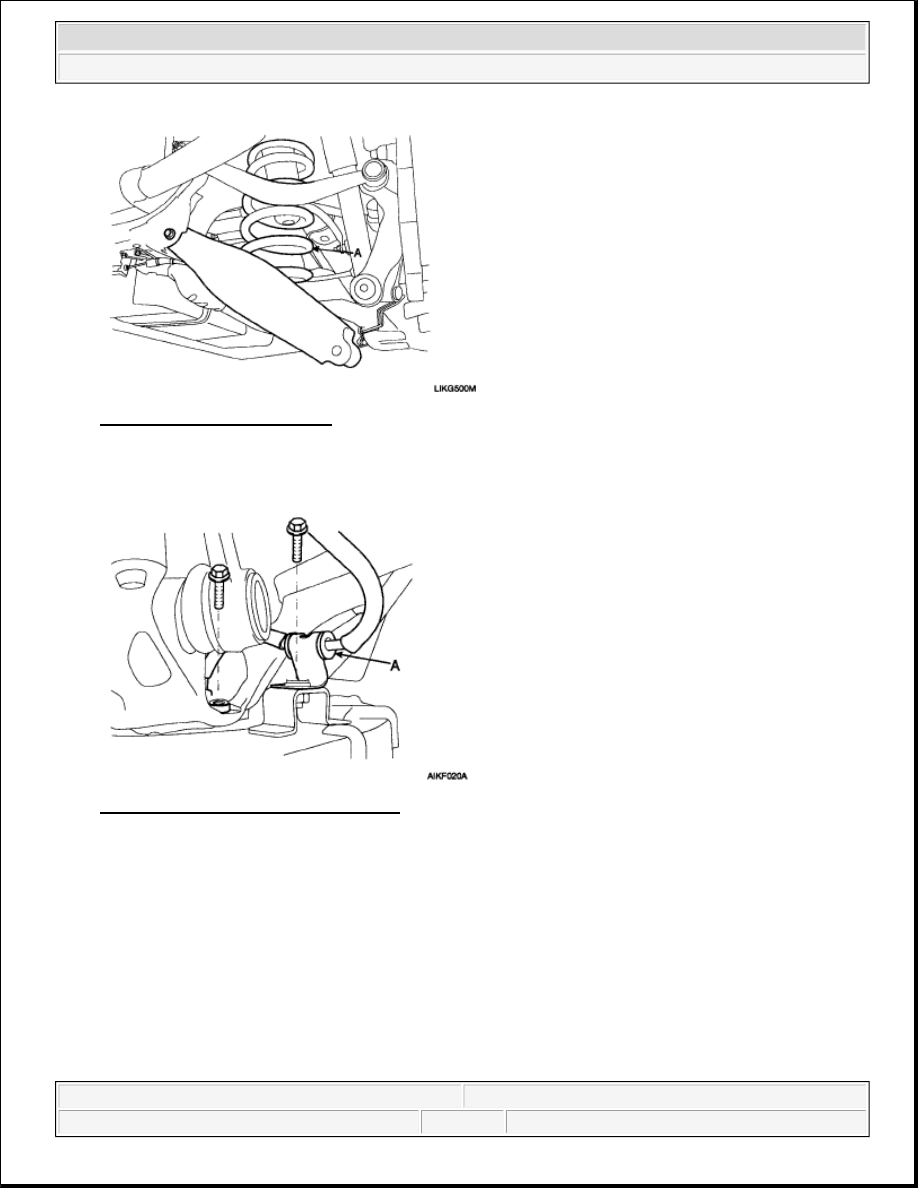

Fig. 4: Identifying Coil Spring
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the wheel speed sensor (A).

Fig. 5: Identifying Wheel Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the rear brake caliper assembly (A) from the carrier assembly and suspend it with wire.

Tightening torque N.m (kgf.m, lb-ft):

50-60 (5.0-6.0, 36-43)
