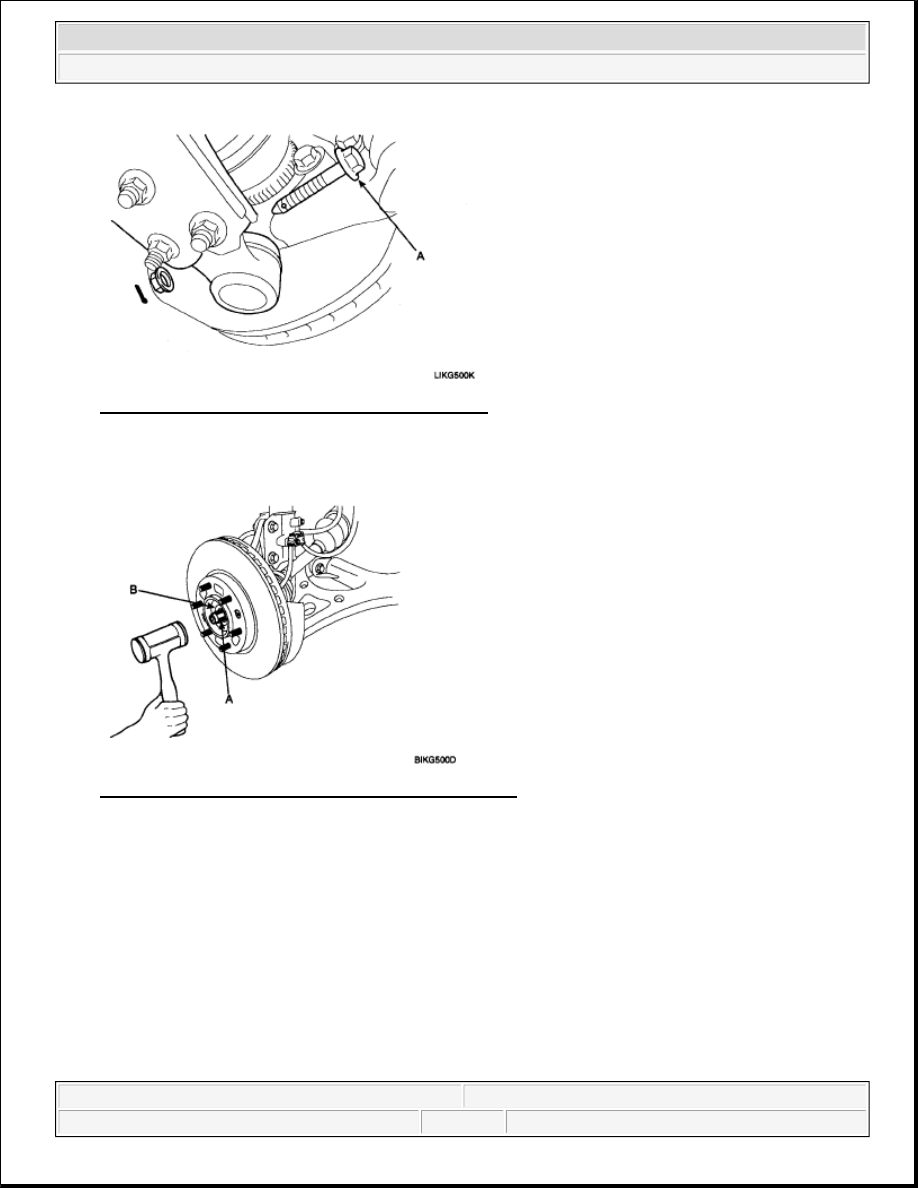

Fig. 12: Identifying Split Pin And Lower Arm Bolt
Courtesy of KIA MOTORS AMERICA, INC.

10. Using a plastic hammer, disconnect the driveshaft (A) from the front hub assembly (B).

Fig. 13: Tapping Driveshaft And Front Hub Assembly
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 DRIVELINE/AXLES Front Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:57 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

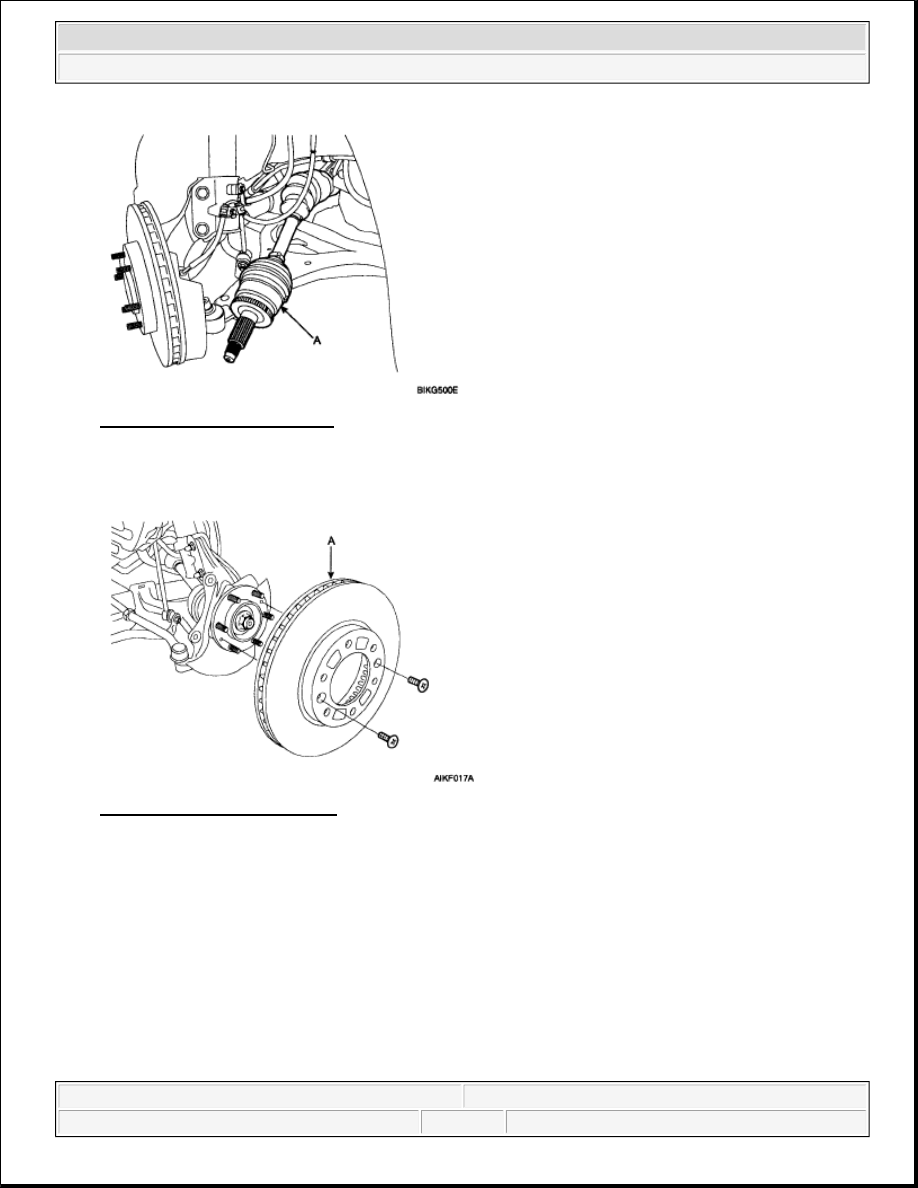

Fig. 14: Identifying Driveshaft
Courtesy of KIA MOTORS AMERICA, INC.

11. Remove the brake disc (A) from the front hub assembly.

Fig. 15: Identifying Brake Disc
Courtesy of KIA MOTORS AMERICA, INC.

12. Remove the knuckle from the strut assembly by loosening the bolts (A).

Tightening torque N.m (kgf.m, lb-ft):

100-120 (10.0-12.0, 72-87)



2008 Kia Sedona

2008 DRIVELINE/AXLES Front Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:57 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

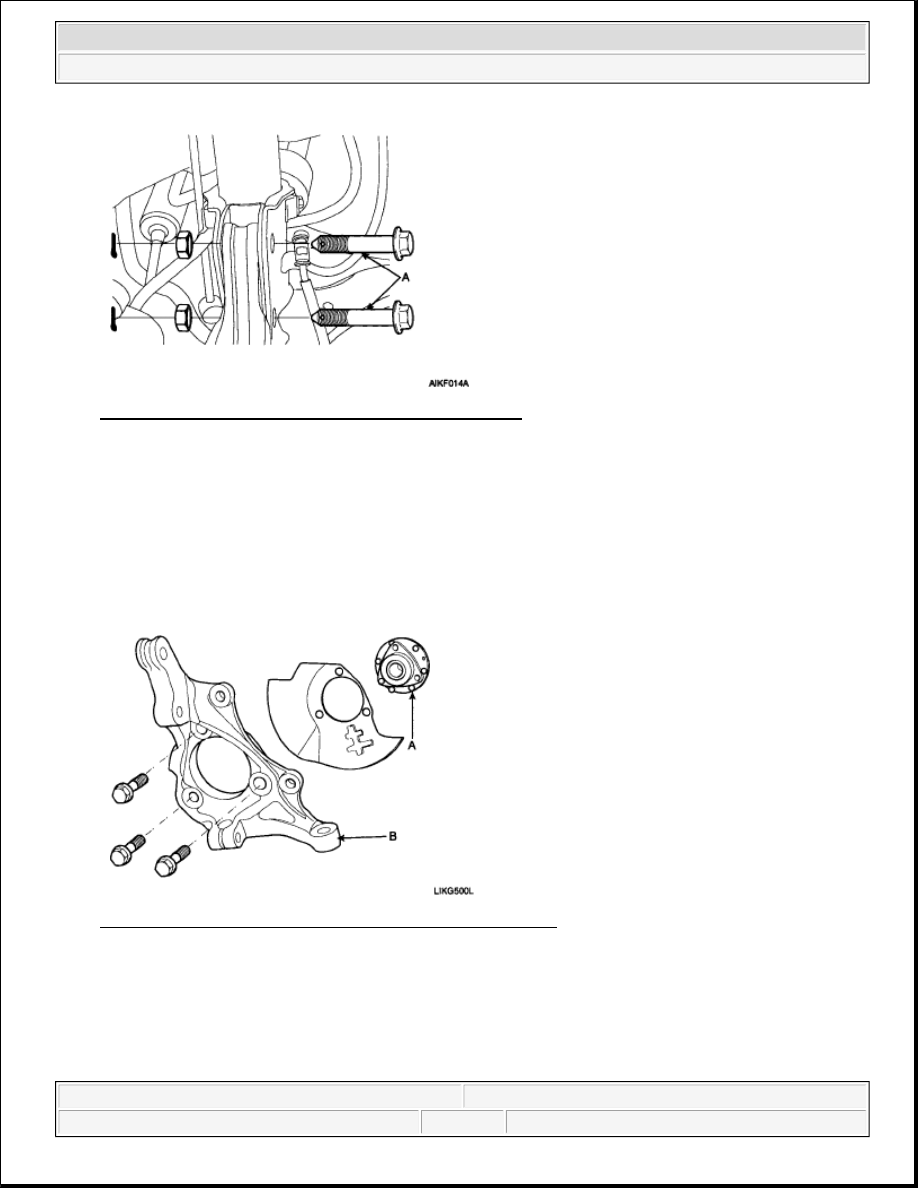

Fig. 16: Identifying Knuckle And Strut Assembly Bolts
Courtesy of KIA MOTORS AMERICA, INC.

DISASSEMBLY

1. Separate the hub & bearing assembly (A) from the knuckle (B) by loosening the bolts.

Tightening torque N.m (kgf.m, lb-ft):

160-180 (16.0-18.0, 116-130)

Fig. 17: Identifying Hub & Bearing Assembly And Knuckle
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

1. Check the hub for cracks and the splines for wear.

2. Check the brake disc for scoring and damage.

3. Check the knuckle for cracks.



2008 Kia Sedona

2008 DRIVELINE/AXLES Front Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:57 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

REASSEMBLY

1. Reassembly is the reverse of disassembly.

2. Measure the wheel bearing starting torque.

Starting torque: 1.97 N.m (20 kgf.cm, 1.45 lbs-ft)

Fig. 18: Measuring Wheel Bearing Starting Torque
Courtesy of KIA MOTORS AMERICA, INC.

3. Measure the hub assembly axial play using a dial gauge.

Axial play: 0.008 mm or less

Fig. 19: Measuring Hub Assembly Axial Play
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Installation is the reverse of removal.
