Fig. 167: Identifying Air Cleaner Upper Cover (B) And Clips (A)
Courtesy of KIA MOTORS AMERICA, INC.

24. Connect the AFS connector (A).

Fig. 168: Identifying AFS Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

25. Install the battery (A).



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:55 PM

Page 167

© 2006 Mitchell Repair Information Company, LLC.

Fig. 169: Identifying Battery (A)
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:55 PM

Page 168

© 2006 Mitchell Repair Information Company, LLC.

2008 DRIVELINE/AXLES

Front Axle - Sedona

FRONT HUB/KNUCKLE

COMPONENTS

Fig. 1: Front Hub/Knuckle Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Raise the vehicle and remove the wheel & tire assembly (A) from the front hub assembly (B).



2008 Kia Sedona

2008 DRIVELINE/AXLES Front Axle - Sedona





2008 Kia Sedona

2008 DRIVELINE/AXLES Front Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:57 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Saturday, May 22, 2010 6:52:00 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Tightening torque N.m (Kgf.m, lb-ft):

90-110 (9.0-11.0, 65-80)

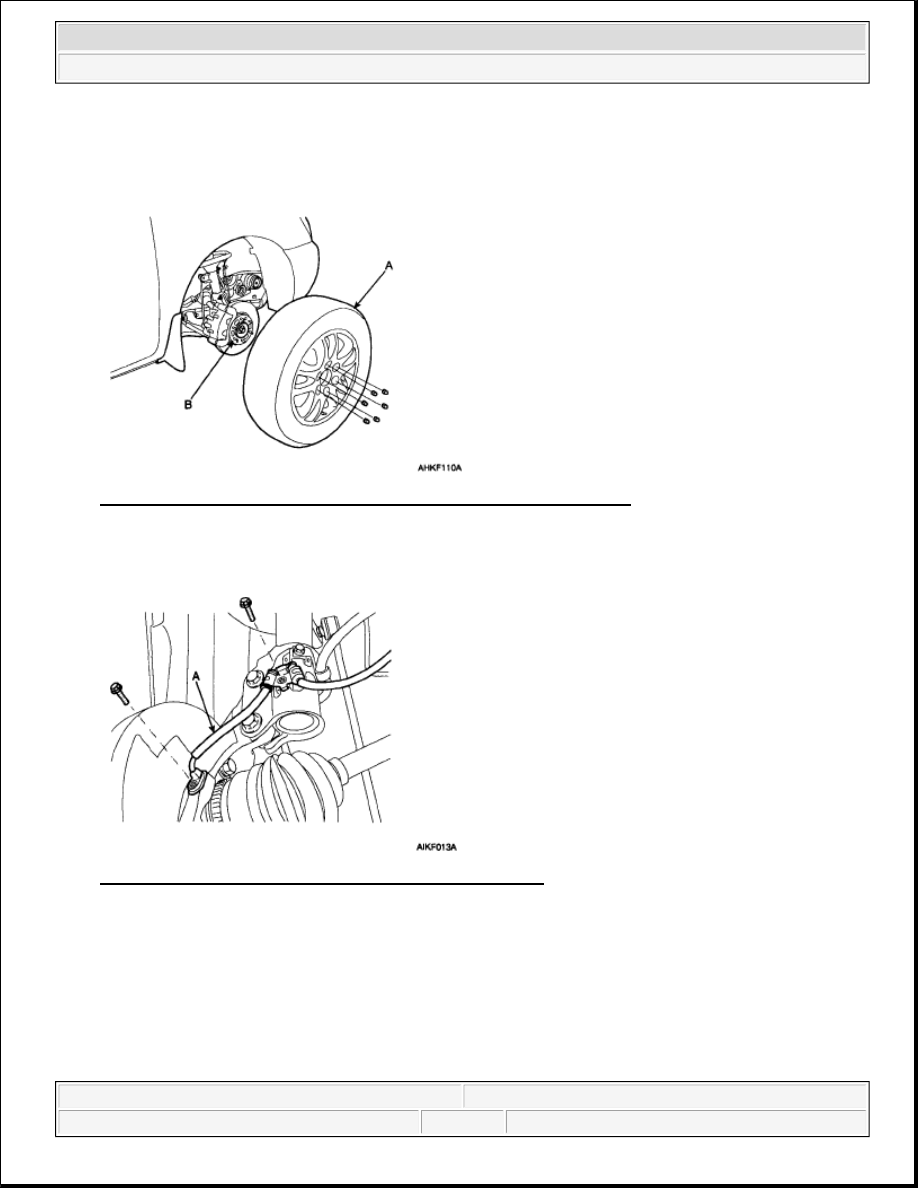

Fig. 2: Identifying Wheel & Tire Assembly And Front Hub Assembly
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the wheel speed sensor & wire (A) by loosening the bolts.

Fig. 3: Identifying Wheel Speed Sensor & Wire And Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the brake hose (A) from the strut assembly.



2008 Kia Sedona

2008 DRIVELINE/AXLES Front Axle - Sedona



Microsoft



Saturday, May 22, 2010 6:51:57 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.
